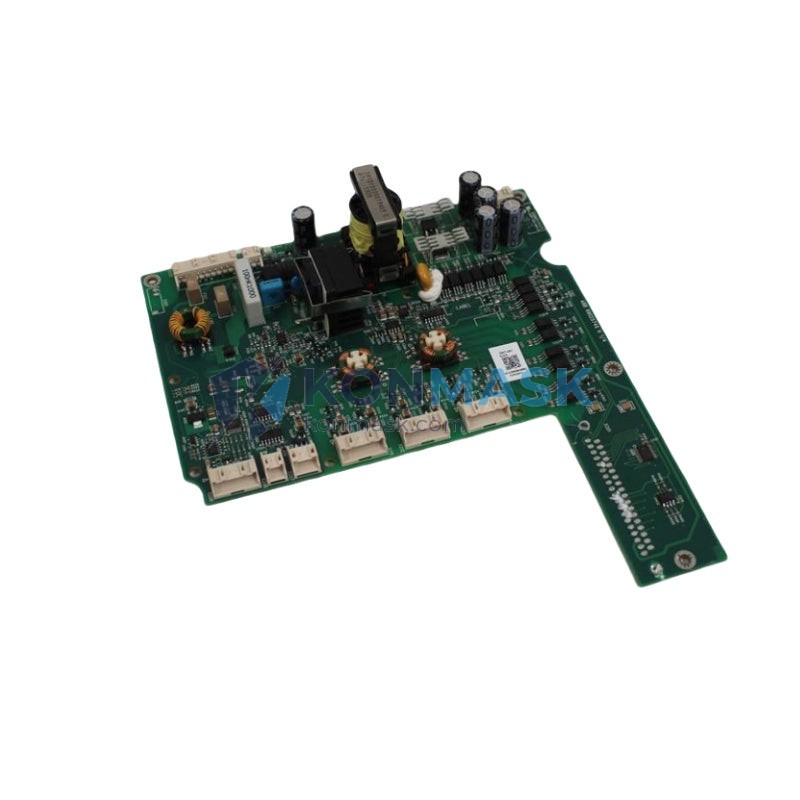

ABB ZINT-541 3AUA0000065896R PROFIBUS DP Communication Board – ACS Drive Series
Imagine a high-speed automated production line suddenly losing communication between the PLC master and the variable frequency drive. Without a reliable fieldbus interface module, the entire drive system becomes an isolated island — unable to receive speed references, torque commands, or status feedback. Conveyor belts stop, robotic arms freeze, and the cost of unplanned downtime climbs by the minute. The ABB ZINT-541 (Part No. 3AUA0000065896R) is the precision-engineered solution that prevents exactly this scenario, delivering seamless PROFIBUS DP integration for ABB ACS-series drives.
Within the ABB ZINT/OINT fieldbus adapter family, the ZINT-541 occupies a critical position as the dedicated PROFIBUS DP slave adapter. Designed specifically for ABB ACS880, ACS580, ACS380, and compatible ACS drive platforms, this module enables cyclic and acyclic data exchange at up to 12 Mbit/s, making it one of the most widely deployed drive communication boards in global process and discrete manufacturing industries. Its adoption spans automotive assembly, pulp & paper, water treatment, and heavy-process sectors across Europe, Asia, and the Americas.
Technical Specifications
- Part Number: ZINT-541 / 3AUA0000065896R
- Manufacturer: ABB Ltd.
- Product Series: ACS Drive ZINT/OINT Fieldbus Adapter Series
- Fieldbus Protocol: PROFIBUS DP (EN 50170 / IEC 61158)
- Communication Speed: 9.6 kbit/s – 12 Mbit/s (auto-baud detection)
- Connector: 9-pin D-sub (DB9) female
- Isolation: Galvanic isolation between fieldbus and drive
- Compatible Drive Platforms: ACS880, ACS580, ACS380, ACS355 (with FENA/ZINT slot)
- Mounting: Plug-in module to drive option slot
- Operating Temperature: -10°C to +55°C
- Storage Temperature: -40°C to +70°C
- Weight: Approx. 500 g (packaged)
- Compliance: CE, RoHS
Key Features & Benefits
- Auto Baud-Rate Detection: Automatically adapts to network speed from 9.6 kbit/s to 12 Mbit/s — no manual DIP switch configuration required.
- Cyclic & Acyclic Data Exchange: Supports both PPO (Parameter Process data Object) types and acyclic DP-V1 services for full parameter access from the PLC.
- Galvanic Isolation: Protects the drive’s control electronics from fieldbus transients and ground loops in noisy industrial environments.
- Plug-and-Play Installation: Slots directly into the drive’s option module bay — no additional power supply or external wiring harness needed.
- Broad Drive Compatibility: A single module type covers multiple ACS drive generations, simplifying spare-parts inventory management.
- ABB DriveStudio / Drive Composer Compatible: Full parameter visibility and diagnostics via ABB’s native commissioning tools.
Industry & Equipment Applications
- Automotive Manufacturing: Body-shop conveyor drives, paint-line ventilation fans, press-room hydraulic pump drives
- Pulp & Paper: Refiner drives, winder section drives, broke conveyor systems
- Water & Wastewater: Pump station VFDs integrated into SCADA/PLC networks via PROFIBUS
- Food & Beverage: Mixer drives, bottling line conveyors, CIP pump control
- Mining & Minerals: Belt conveyor drives, crusher drives, slurry pump VFDs
- HVAC & Building Automation: Air handling unit fan drives in BMS-integrated PROFIBUS networks
System Integration & Compatible Parts
The ZINT-541 is designed to work within ABB’s broader drive ecosystem. Commonly paired components include:
- ABB ACS880-01 / ACS880-07 drive units
- ABB ACS580-01 standard drives
- ABB DPMP-01 / DPMP-02 PROFIBUS DP master modules
- ABB FENA-21 Ethernet/IP & PROFINET adapter (alternative protocol option)
- Siemens S7-300/400/1500 PLC PROFIBUS DP master interfaces
- Beckhoff EL6731 PROFIBUS DP master terminals
When replacing or upgrading, always verify the drive’s option slot type (ZINT vs. OINT) and firmware version compatibility using ABB’s Drive Compatibility Tool or contact Konmask.com for pre-sales technical support.
Our Quality Assurance Process
Every ABB ZINT-541 3AUA0000065896R unit shipped from Konmask.com undergoes a rigorous multi-stage inspection:
- Visual Inspection: PCB surface, connector pins, and housing integrity checked against OEM reference standards.
- Functional Verification: Communication handshake and LED status indicators tested on a live ACS drive test bench.
- Authenticity Check: Part number, date code, and manufacturer markings verified against ABB’s official documentation.
- ESD-Safe Packaging: Shipped in anti-static bags with foam cushioning to prevent transit damage.
- Traceability: Each unit is logged with inspection records available upon request.
How to Order
- Submit an inquiry via the “Request a Quote” button on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Receive a formal quotation with lead time, shipping options, and payment terms within 24 business hours.
- Confirm the order and receive a proforma invoice.
- Upon payment confirmation, your order is dispatched with full tracking information.
We support T/T bank transfer, PayPal, and other B2B payment methods. Minimum order quantity: 1 unit.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, VFD, and industrial control components — not a generalist marketplace.
- Verified Sourcing: Parts sourced from authorized distributors and verified secondary market channels with full traceability.
- Global Shipping: DHL, FedEx, and UPS express options to 150+ countries with customs documentation support.
- Technical Pre-Sales Support: Our engineers can confirm compatibility before you order — saving costly mistakes.
- Competitive Lead Times: In-stock items ship within 1–3 business days; sourced items typically within 7–15 business days.
- After-Sales Warranty: 90-day warranty on all stocked items with DOA replacement guarantee.
Frequently Asked Questions
Q: What is the difference between ZINT-541 and OINT-541?
A: The ZINT-541 is designed for ABB drives with the ZINT option slot (e.g., ACS880, ACS580), while the OINT-541 is for drives with the OINT slot (e.g., older ACS800 series). Always confirm your drive’s slot type before ordering.
Q: Does the ZINT-541 support PROFIBUS DP-V1 acyclic services?
A: Yes. The ZINT-541 supports both DP-V0 cyclic data exchange and DP-V1 acyclic parameter read/write services, enabling full remote parameterization from a PROFIBUS master.
Q: What GSD file is required for PROFIBUS configuration?
A: The GSD file for the ZINT-541 is available from ABB’s official website and can also be provided by Konmask.com upon request. It is required for configuring the module in your PLC’s hardware configuration tool (e.g., Siemens TIA Portal, Step 7).
Q: Can I use the ZINT-541 with an ACS355 drive?
A: The ACS355 uses a different option module slot (FENA/RELA type). Please contact us to confirm compatibility with your specific drive model and firmware version.
Q: Do you provide a certificate of conformity or test report?
A: Yes. A quality inspection report and certificate of conformity are available upon request for orders of 1 unit or more.
