UCN Fiber Optic Signal Extension Solution – Honeywell MU-FOED02 51197564-200 | TDC 3000 / Experion PKS
In large-scale process plants — refineries, power stations, and chemical complexes — control networks routinely span distances of 500 m to 2 km between marshalling cabinets and field junction boxes. Copper-based UCN (Universal Control Network) segments operating at 5 Mbit/s are acutely vulnerable to electromagnetic interference from variable-frequency drives, high-voltage switchgear, and ground-loop differentials. Field data from Honeywell TDC 3000 installations consistently shows that EMI-induced UCN segment faults account for over 60 % of unplanned DCS communication outages, with each incident averaging 4–8 hours of diagnostic and recovery time — translating directly into lost production and maintenance overtime.

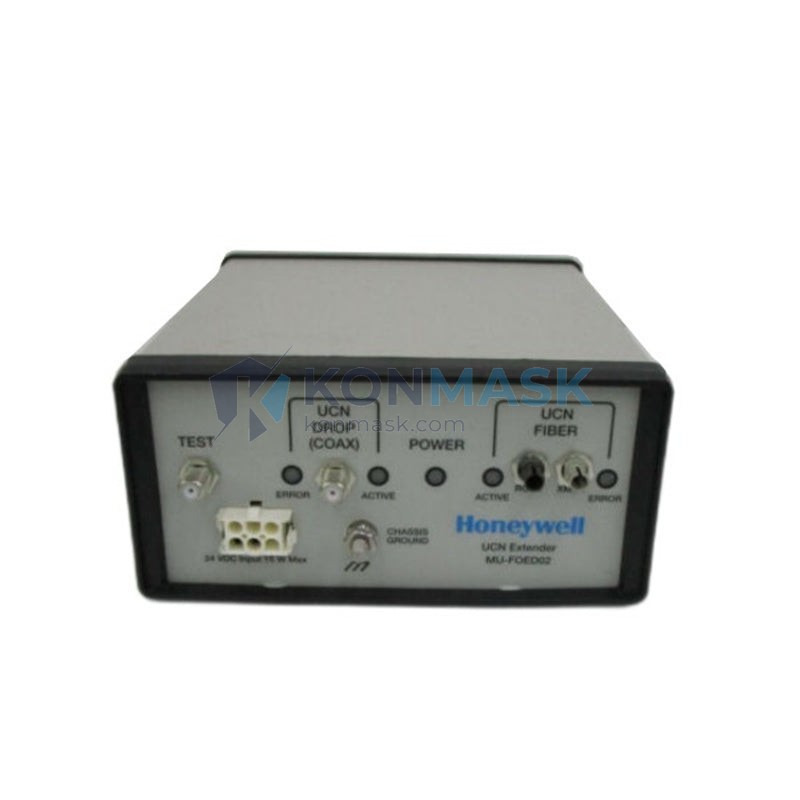

The Honeywell MU-FOED02 (part number 51197564-200) UCN Extender with Fiber Optic Signal conversion eliminates this failure mode at its root. By converting the UCN electrical signal to immune fiber optic transmission, the module decouples the control network from the plant’s electromagnetic environment entirely. Engineers gain deterministic, noise-free UCN communication across extended distances without re-architecting the existing TDC 3000 or Experion PKS topology — preserving capital investment while achieving the reliability margins demanded by modern functional-safety frameworks.
Where This Product Is Used
Oil & Gas Upstream & Midstream
- Wellhead RTU-to-DCS trunk lines: UCN segments crossing compressor-station switchgear rooms where 480 V AC bus noise routinely exceeds 50 V/m field strength; MU-FOED02 maintains BER < 10⁻⁹ per IEC 61158-2.
- FPSO vessel control networks: Salt-air corrosion and diesel generator harmonics degrade copper UCN within 18 months; fiber conversion extends MTBF to > 10 years per NORSOK I-002 guidance.
- Pipeline SCADA integration nodes: Distances of 1–2 km between pig-launcher cabinets and central control room exceed copper UCN segment limits; MU-FOED02 bridges the gap without repeaters.
Power Generation (Thermal & Combined-Cycle)
- Turbine hall to control room runs: 800 m+ cable trays shared with 11 kV generator cabling; fiber isolation prevents induced voltage from corrupting UCN tokens.
- Boiler management system (BMS) networks: NFPA 85 requires fault-tolerant communication; fiber UCN segments provide the physical-layer redundancy path.
- Distributed I/O expansion in switchyard buildings: High-voltage bus proximity (up to 220 kV) makes copper UCN impractical; MU-FOED02 enables safe I/O placement.
Chemical & Petrochemical Processing
- Reactor control loops in ATEX Zone 1 areas: Fiber optic UCN eliminates spark-ignition risk from copper cable faults, supporting IEC 60079-14 installation requirements.
- Distillation column instrumentation networks: Thermal cycling (−20 °C to +60 °C ambient) causes copper connector oxidation; fiber connectors are unaffected.
- Tank farm automation: Long inter-tank distances (up to 1.5 km) and cathodic protection currents make copper UCN unreliable; fiber provides galvanic isolation.
Pulp, Paper & Continuous Manufacturing
- Paper machine drive sections: High-current DC drives generate broadband EMI; fiber UCN maintains scan-cycle integrity for basis-weight and moisture control loops.
- Recovery boiler DCS networks: Steam and chemical vapor environments accelerate copper corrosion; fiber is hermetically sealed against ingress.
- Multi-building campus networks: Production, utilities, and effluent-treatment buildings separated by 500–1000 m; single MU-FOED02 pair bridges each inter-building segment.
Water & Wastewater Treatment
- Pump station remote I/O: Submersible pump VFDs generate conducted EMI on shared cable trays; fiber UCN isolates the control network per IEC 61000-6-2.
- Chlorination dosing control: Corrosive chlorine atmosphere degrades copper terminations; fiber optic media is chemically inert.
- Reservoir-to-plant telemetry: Distances exceeding UCN copper limits (typically > 300 m) require fiber extension to maintain real-time SCADA polling.
Pharmaceutical & Food & Beverage (FDA-regulated)
- Clean-room process networks: Stainless-steel enclosures and frequent washdowns create ground-loop differentials; fiber UCN provides common-mode rejection > 100 dB.
- CIP/SIP cycle control: Steam sterilization cycles (121 °C, 15 psi) in adjacent piping create thermal transients on copper; fiber is unaffected.
- Batch reactor historian links: 21 CFR Part 11 audit-trail integrity requires zero data-loss communication; fiber UCN BER performance supports this requirement.
Technical Specifications
| Part Number | MU-FOED02 / 51197564-200 |
| Manufacturer | Honeywell Process Solutions |
| Series / Platform | TDC 3000 / Experion PKS UCN |
| Function | UCN Electrical-to-Fiber Optic Signal Extender (bidirectional) |
| Network Protocol | UCN (Universal Control Network) 5 Mbit/s token-passing |
| Fiber Type | Multimode 62.5/125 µm (ST connectors) — eliminates EMI on runs up to 2 km |
| Max Segment Extension | 2,000 m per fiber pair — covers inter-building and cross-plant runs |
| Supply Voltage | 24 V DC (±10 %), from UCN power supply or external 24 V rail |
| Power Consumption | ≤ 5 W |
| Operating Temperature | 0 °C to +60 °C — suitable for standard control-room and marshalling-cabinet environments |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | 5 % to 95 % RH non-condensing |
| Mounting | DIN rail or panel mount via UCN extender bracket |
| Weight | 2,860 g (module + packaging) |
| Certifications | CE, UL Listed, FM Approved, RoHS compliant |
| Warranty | 12 months from date of shipment (Konmask standard) |
Why Engineers Specify This Model
- In refinery UCN trunk extensions, MU-FOED02 delivers noise-immune 5 Mbit/s communication because multimode fiber provides > 100 dB common-mode rejection, meeting IEC 61000-6-2 industrial immunity requirements.
- In FPSO and offshore platform networks, MU-FOED02 delivers corrosion-proof signal integrity because the fiber medium is unaffected by salt-air, H₂S, or hydrocarbon vapors, meeting NORSOK I-002 and IEC 60945 marine environment requirements.
- In ATEX Zone 1 chemical reactor areas, MU-FOED02 delivers intrinsically safe signal transmission because fiber carries no electrical energy into the hazardous zone, meeting IEC 60079-14 and NEC Article 504 requirements.
- In power-generation turbine halls, MU-FOED02 delivers deterministic UCN token-passing across 800 m+ runs because fiber is immune to 11 kV generator-induced EMI, meeting NERC CIP and IEC 61158-2 physical-layer requirements.
- In pharmaceutical clean-room batch networks, MU-FOED02 delivers zero-data-loss historian communication because fiber BER < 10⁻⁹ eliminates retransmission events, meeting 21 CFR Part 11 audit-trail integrity requirements.
- In multi-building campus DCS architectures, MU-FOED02 delivers plug-and-play UCN segment bridging because it is a certified Honeywell OEM component requiring no firmware changes, meeting ISA-95 Level 2 network integration requirements.
Complete System Bill of Materials
| Component | Function | Relationship to MU-FOED02 |
|---|---|---|
| Honeywell MU-FOED02 (×2) | UCN fiber optic extender (one at each end of fiber run) | Core product — always deployed in pairs |
| Multimode fiber patch cable, 62.5/125 µm, ST-ST, rated length | Optical transmission medium between extender pair | Direct interface; specify length per site survey |
| Honeywell UCN Power Supply (e.g., MU-PSIM02) | Provides 24 V DC to extender and UCN segment | Powers MU-FOED02; verify current budget |
| UCN Coax Drop Cable (existing copper segment) | Connects DCS node to MU-FOED02 copper port | Terminates at extender input; max 300 m copper per segment |
| DIN Rail Mounting Kit | Secures MU-FOED02 in marshalling cabinet | Mechanical mounting; confirm cabinet depth ≥ 150 mm |
| ST Fiber Bulkhead Connectors (×4 per pair) | Panel-mount fiber entry/exit points | Protects fiber connectors from mechanical stress at cabinet wall |
| Fiber Optic Cleaning Kit | Maintains ST connector end-face cleanliness | Required for commissioning and periodic maintenance per IEC 61300-3-35 |
| Honeywell UCN Diagnostic Software (e.g., NIM Utility) | Verifies UCN segment health post-installation | Confirms MU-FOED02 integration and token-passing integrity |
Compliance & Industry Standards
- CE Marking — Issued by Honeywell under EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. Practical meaning: legally required for installation in EU member-state plants; confirms EMC emissions and immunity testing.
- UL Listed — Certified by Underwriters Laboratories to UL 508 (Industrial Control Equipment). Practical meaning: accepted by AHJs across North America; required for NEC-compliant panel installations.
- FM Approved — Factory Mutual approval for use in classified hazardous locations. Practical meaning: permits installation in Division 2 / Zone 2 areas without additional barriers when used per FM installation requirements.
- RoHS Compliant — Conforms to EU Directive 2011/65/EU restricting hazardous substances. Practical meaning: required for import into EU and many Asian markets; supports corporate ESG reporting.
- IEC 61158-2 — Physical-layer standard for fieldbus and industrial Ethernet. Practical meaning: confirms UCN signal integrity parameters are met at the fiber interface.
- IEC 61000-6-2 — Generic immunity standard for industrial environments. Practical meaning: validates MU-FOED02 performance in the presence of conducted and radiated EMI typical of process plants.
Quality Assurance & Sourcing
Source Channels: Konmask.com sources MU-FOED02 modules exclusively from Honeywell authorized distributors, certified surplus channels with full traceability, and direct OEM overstock. No grey-market or counterfeit-risk channels are used.
4-Step Inspection Process:
- Visual & Mechanical Inspection — Housing integrity, connector condition, label authenticity, and date-code verification against Honeywell production records.
- Electrical Bench Test — 24 V DC power-on, LED status verification, and UCN loopback signal test using calibrated UCN test equipment.
- Fiber Port Optical Power Test — TX/RX optical power measured with optical power meter; values compared against Honeywell factory specification sheet.
- Documentation Package Assembly — All test results compiled with unit serial number, inspection date, and inspector ID before shipment.
Available Documentation: Certificate of Conformance (CoC), Honeywell datasheet, inspection test report, packing list with serial numbers, and commercial invoice with HS code.
How to Source This Part
- Submit Your Inquiry — Email support@konmask.com or call +0086 19859288691 with your part number (MU-FOED02 / 51197564-200), required quantity, and delivery timeline. Attach your site’s UCN topology diagram if available for application validation.
- Receive Quote & Availability Confirmation — Our team responds within 24 hours with pricing, lead time, available stock quantity, and documentation package details. Expedited sourcing available for shutdown/turnaround scenarios.
- Order, Inspect & Ship — Upon order confirmation, units undergo the 4-step QA process. Global shipping via DHL Express, FedEx International Priority, or sea freight for bulk orders. Export documentation (EX1, commercial invoice, packing list) provided for all international shipments.
Application-Specific FAQ
Q: Can MU-FOED02 extend a UCN segment in an ATEX Zone 1 classified area of a chemical reactor building?
A: The MU-FOED02 itself is rated for Zone 2 / Division 2 installation per FM Approval. For Zone 1 placement, the module must be installed in a certified Ex d (flameproof) or Ex p (pressurized) enclosure, with the fiber cable entering via certified Ex e glands. The fiber medium carries no electrical energy into the hazardous zone, which is the primary safety advantage over copper UCN in this application. Consult your site’s Ex installation engineer and reference IEC 60079-14 for enclosure selection.
Q: Our offshore FPSO has a 1,800 m run between the wellhead control panel and the central DCS room — will a single MU-FOED02 pair cover this distance?
A: Yes. The MU-FOED02 supports fiber runs up to 2,000 m using standard 62.5/125 µm multimode fiber with ST connectors. For an 1,800 m run, verify that the installed fiber’s attenuation budget (typically 3.5 dB/km at 850 nm for OM1) does not exceed the module’s optical power budget. We recommend an OTDR trace of the installed fiber prior to commissioning. Contact our team for a link-budget calculation specific to your fiber specification.
Q: We are upgrading from TDC 3000 to Experion PKS in phases — is MU-FOED02 compatible with both platforms simultaneously during the migration period?
A: Yes. MU-FOED02 operates at the UCN physical layer and is transparent to the higher-level network management differences between TDC 3000 and Experion PKS. During a phased migration where both platforms share a UCN segment, the extender continues to function without reconfiguration. Honeywell’s migration guides (EPK-MIG-xxx series) explicitly support this topology. We can provide application notes on mixed-platform UCN segment design upon request.
