ABB DPMP-02 (3AXD50000009374C) Control Panel Mounting Platform | Replacement, Equivalent & Selection Guide

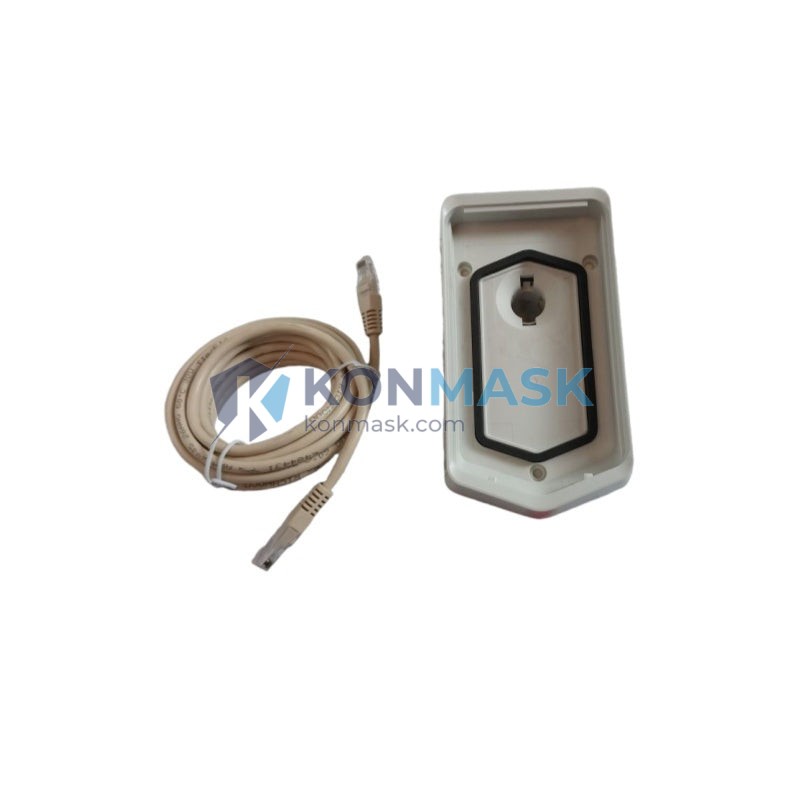

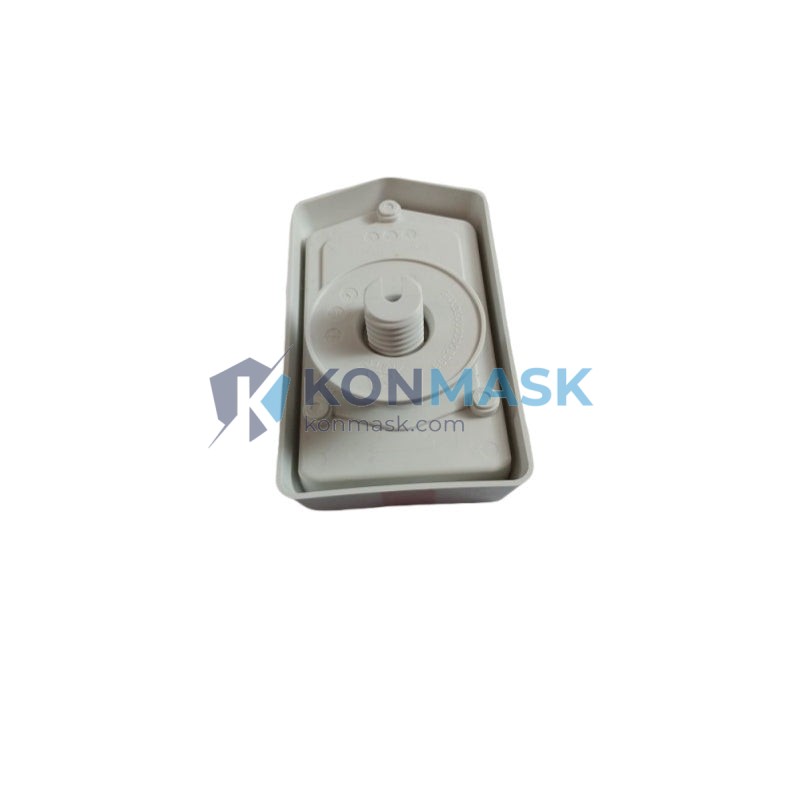

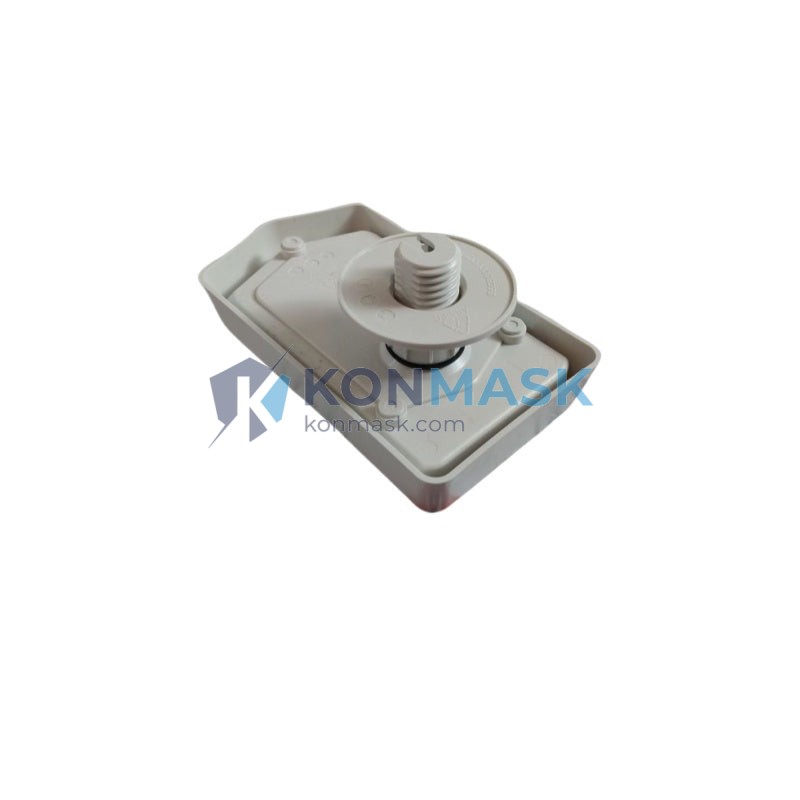

The ABB DPMP-02 (part number 3AXD50000009374C) is a dedicated Control Panel Mounting Platform designed for ABB ACS880 series industrial drives. It provides a secure, panel-mount interface for the ACS880 control panel, enabling remote or door-mounted operation in demanding industrial environments. Konmask.com supplies genuine ABB DPMP-02 units and can assist with compatible equivalents for your system integration needs.
Technical Specifications
- Model: DPMP-02
- Part Number: 3AXD50000009374C
- Manufacturer: ABB
- Product Type: Control Panel Mounting Platform
- Compatible Drive Series: ACS880 (all frame sizes supporting remote panel mounting)
- Mounting Style: Panel / Door mount
- Weight: Approx. 1,700 g
- Connection: Compatible with ABB ACS880 control panel cable (sold separately)
- Material: Industrial-grade plastic housing
- IP Rating: Suitable for standard industrial enclosure integration
Compatible Replacement & Equivalent Models
If the DPMP-02 is unavailable or you require an alternative, the following models may serve as functional equivalents depending on your drive configuration:
- ABB DPMP-01 — Earlier generation mounting platform; verify cable compatibility with your ACS880 frame
- ABB DPMP-03 — Upgraded variant with enhanced sealing; check dimensional fit before ordering
- ABB ACS880 Panel Mounting Kit — OEM kit option bundled with cable; suitable for new installations
- Third-party DIN-rail adapters — Generic alternatives for non-critical applications; confirm connector pinout before use
Note: Always verify part compatibility with your specific ACS880 frame size and firmware version. Contact support@konmask.com for a compatibility check.
Why Choose the Original ABB DPMP-02
- ✅ OEM Fit & Finish — Designed and tested by ABB specifically for ACS880 drives; zero modification required
- ✅ Reliable Locking Mechanism — Secure panel retention prevents accidental disconnection in high-vibration environments
- ✅ Full ABB Warranty Coverage — Genuine parts maintain your drive’s warranty and service agreement
- ✅ Plug-and-Play Installation — No tools or custom brackets needed; installs in minutes
- ✅ Long-Term Availability — ABB OEM parts are supported through the full ACS880 product lifecycle
Typical Applications
- Remote control panel mounting on MCC (Motor Control Center) doors
- ACS880 drive commissioning and parameter access in field enclosures
- Industrial automation panels requiring operator interface at door level
- Process industries: oil & gas, water treatment, pulp & paper, mining
- HVAC and building automation systems using ACS880 drives
System Compatibility
| Drive Series | Compatible | Notes |
|---|---|---|
| ABB ACS880-01 | ✅ Yes | All frame sizes |
| ABB ACS880-04 | ✅ Yes | Verify cable length |
| ABB ACS880-07 | ✅ Yes | Large frame; confirm door depth |
| ABB ACS580 | ⚠️ Check | Different panel connector; not guaranteed |
| ABB ACS380 | ❌ No | Incompatible panel interface |
Selection Guide
Use the following criteria to confirm the DPMP-02 is the right choice for your project:
- Step 1 — Identify your drive model: Confirm you have an ACS880 series drive. Check the drive nameplate for the exact model code.
- Step 2 — Determine mounting location: Door-mount or panel-mount? The DPMP-02 is optimized for enclosure door integration.
- Step 3 — Check cable requirement: A separate panel extension cable (e.g., ABB DPMP cable) is required. Measure the distance from drive to panel cutout.
- Step 4 — Verify frame size: Confirm the DPMP-02 cutout dimensions match your enclosure door panel opening.
- Step 5 — Consider IP rating: For washdown or outdoor enclosures, evaluate DPMP-03 or a sealed alternative.
Quality Assurance & Sourcing
All ABB products supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes basic inspection before dispatch:
- Original ABB packaging and labeling verified
- Part number and date code cross-checked against ABB documentation
- No refurbished or counterfeit stock — genuine OEM only
- Export compliance checked for international orders
How to Order
- Add the ABB DPMP-02 / 3AXD50000009374C to your cart directly on this page.
- For bulk orders (>5 units) or urgent requirements, email support@konmask.com for a dedicated quote.
- Specify your ACS880 drive model and frame size in your inquiry for compatibility confirmation.
- International orders: provide your destination country for export documentation and shipping rate calculation.
- Lead time: typically 3–7 business days for in-stock units; 2–4 weeks for special orders.
Replacement & Compatibility FAQ
Q: Can the DPMP-02 be used with ACS580 drives?
A: The DPMP-02 is designed for ACS880. ACS580 uses a different control panel interface. Contact us to confirm compatibility for your specific configuration.
Q: Is a cable included with the DPMP-02?
A: No. The DPMP-02 is the mounting platform only. A separate panel extension cable must be ordered based on your required cable length.
Q: What is the difference between DPMP-01 and DPMP-02?
A: The DPMP-02 is the current generation with improved locking and a refined housing design. DPMP-01 is an earlier version; both are functionally similar but check dimensional compatibility.
Q: Can I use a third-party mounting platform instead?
A: Generic alternatives exist but may not provide the same locking security or IP protection. For critical industrial applications, we recommend the genuine ABB DPMP-02.
Q: Do you offer warranty on this product?
A: Yes. Genuine ABB products supplied by Konmask.com carry the standard ABB manufacturer warranty. Contact us for warranty terms applicable to your region.
