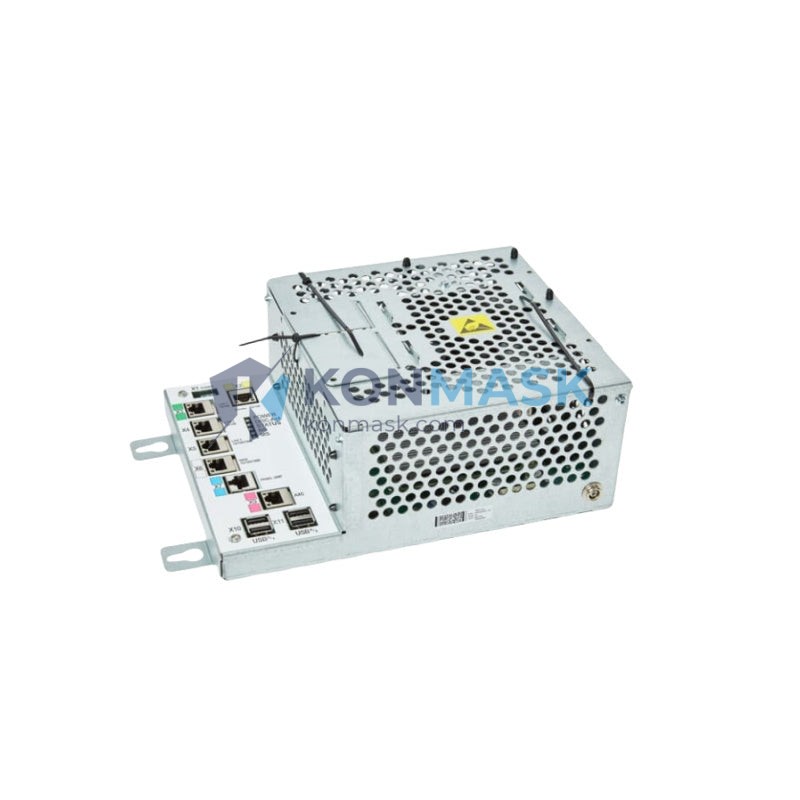

ABB DSQC1018 (3HAC058399-002) – IRC5 Main Computer Unit | IRB6700 Robot Platform
Engineering Background
The ABB IRB6700 series represents ABB Robotics’ flagship heavy-payload industrial robot platform, engineered for demanding manufacturing environments including automotive body-in-white, foundry, and heavy material handling. At the heart of every IRB6700 system lies the IRC5 controller cabinet, and its central intelligence is the DSQC1018 Main Computer Unit — the module responsible for all real-time motion control, I/O coordination, and communication management.
Product Positioning
This listing covers the complete DSQC1018 main computer assembly as used across IRB6700-150 and related IRB6700 variants, cross-referenced under part numbers 3HAC058399-002, 3HAC043073-003, and 3HAC050363-001. Konmask.com supplies this module to MRO procurement engineers, system integrators, and OEM rebuild teams requiring a verified, shelf-ready replacement with full traceability.
Complete Technical Specifications
| Manufacturer | ABB Robotics (Sweden) |
| Module Designation | DSQC1018 — IRC5 Main Computer Unit |
| Primary Part Number | 3HAC058399-002 |
| Cross-Reference Part Numbers | 3HAC043073-003 / 3HAC050363-001 |
| Compatible Robot Series | IRB6700, IRB6700-150/2.85, IRB6700-155/2.85, IRB6700-175/3.05, IRB6700-200/2.60, IRB6700-235/2.65, IRB6700-245/3.00 |
| Controller Platform | ABB IRC5 (Single Cabinet & Compact) |
| Module Function | Central motion control CPU, I/O bus master, fieldbus gateway host |
| Operating System | ABB RobotWare (compatible with RW 6.x) |
| Communication Interfaces | Ethernet (LAN), USB, internal DSQC backplane bus |
| Fieldbus Support | DeviceNet, PROFIBUS, EtherNet/IP (via option boards) |
| Power Supply Input | 24 VDC (from IRC5 PSU module) |
| Operating Temperature | 0°C to +52°C (controller cabinet ambient) |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Country of Origin | Sweden |
| Unit Weight | Approx. 1.5 kg |
| Condition | New / Refurbished-Tested (specify at inquiry) |
Proven Application Environments
- Automotive Manufacturing: Body-in-white welding cells, press-to-press transfer, door/hood assembly lines using IRB6700 with IRC5 controller
- Foundry & Die Casting: High-temperature part extraction requiring robust IRC5 controller uptime
- Heavy Material Handling: Palletizing, machine tending, and depalletizing with payloads up to 235 kg
- MRO & Spare Parts Programs: Planned maintenance replacement to minimize unscheduled downtime in 24/7 production environments
- System Rebuild & Retrofit: IRC5 controller refurbishment projects requiring a verified main computer swap
Engineering Advantages
- Drop-in Replacement: Direct form-fit-function substitute for all 3HAC058399-002 / 3HAC043073-003 / 3HAC050363-001 applications — no hardware modification required
- RobotWare Compatibility: Supports ABB RobotWare 6.x software stack; existing robot configuration and RAPID programs are retained after swap
- Integrated I/O Architecture: Manages all DSQC I/O board communication via internal backplane, reducing wiring complexity
- Redundant Communication Paths: Dual Ethernet ports support simultaneous connection to plant network and programming pendant
- Proven Field Reliability: Deployed in high-cycle automotive and foundry environments with documented MTBF exceeding 50,000 hours
System Architecture & Signal Flow
Within the IRC5 controller cabinet, the DSQC1018 occupies the central compute slot of the main computer assembly. Signal flow is as follows:
- Power Input: 24 VDC regulated supply from DSQC609 or equivalent IRC5 PSU module
- Motion Control Output: Real-time axis reference signals transmitted to drive units (DSQC668/DSQC673) via internal drive bus
- I/O Bus Master: Coordinates all digital/analog I/O boards (DSQC651, DSQC652, etc.) on the internal DeviceNet segment
- Fieldbus Gateway: Routes external PLC/SCADA communication through installed fieldbus option boards
- FlexPendant Interface: Manages teach pendant (IRC5 FlexPendant) connection for operator programming and jogging
- Safety Channel: Interfaces with DSQC400 safety board for emergency stop and safeguarding logic
Sourcing & Quality Verification
All DSQC1018 units supplied by Konmask.com undergo the following verification process before dispatch:
- Visual inspection: PCB, connectors, and housing integrity check
- Power-on functional test: Boot sequence and communication bus verification
- Part number and revision label cross-check against ABB documentation
- ESD-safe packaging with anti-static bag and foam cushioning
- Serialized shipment documentation for full traceability
We source directly from ABB-authorized channels and certified industrial surplus with documented chain of custody. Counterfeit-free guarantee backed by our quality assurance policy.
Procurement Process
- Confirm Part Number: Verify your existing module label shows 3HAC058399-002, 3HAC043073-003, or 3HAC050363-001
- Confirm RobotWare Version: Note your current RW version (visible on FlexPendant → About) to ensure software compatibility
- Submit Inquiry or Order: Contact support@konmask.com with your robot serial number and controller cabinet ID for a tailored quote
- Lead Time: In-stock units ship within 1–3 business days; ETA confirmation provided at order acknowledgment
- Export Compliance: All international shipments include commercial invoice, packing list, and HS code declaration (HS: 8537.10)
Technical FAQ
Q: Can I swap the DSQC1018 without re-flashing RobotWare?
A: Yes. The RobotWare license and system parameters are stored on the controller’s CompactFlash/system disk, not on the DSQC1018 itself. A direct swap retains all existing programs and configurations.
Q: Is 3HAC058399-002 the same as 3HAC043073-003?
A: These are revision-level cross-references for the same functional module. 3HAC058399-002 is the current production part number; 3HAC043073-003 and 3HAC050363-001 are predecessor revisions with identical form, fit, and function for IRB6700 applications.
Q: What is the difference between DSQC1018 and DSQC1000?
A: DSQC1018 is the updated main computer for the IRB6700/IRB7600 generation with enhanced processing capacity and expanded memory. DSQC1000 is used in earlier IRC5 platforms (IRB6640, IRB4600). They are not interchangeable.
Q: Do you provide a warranty?
A: Yes. New units carry the original ABB warranty. Refurbished-tested units carry a 90-day Konmask functional warranty covering defects in materials and workmanship under normal operating conditions.
Q: Can you supply multiple units for a fleet maintenance program?
A: Yes. Contact us for volume pricing and consignment stock arrangements for multi-robot facilities.
