ABB NGDR-03C 58976539 Gate Drive Circuit Card | Replacement, Equivalent & Selection Guide

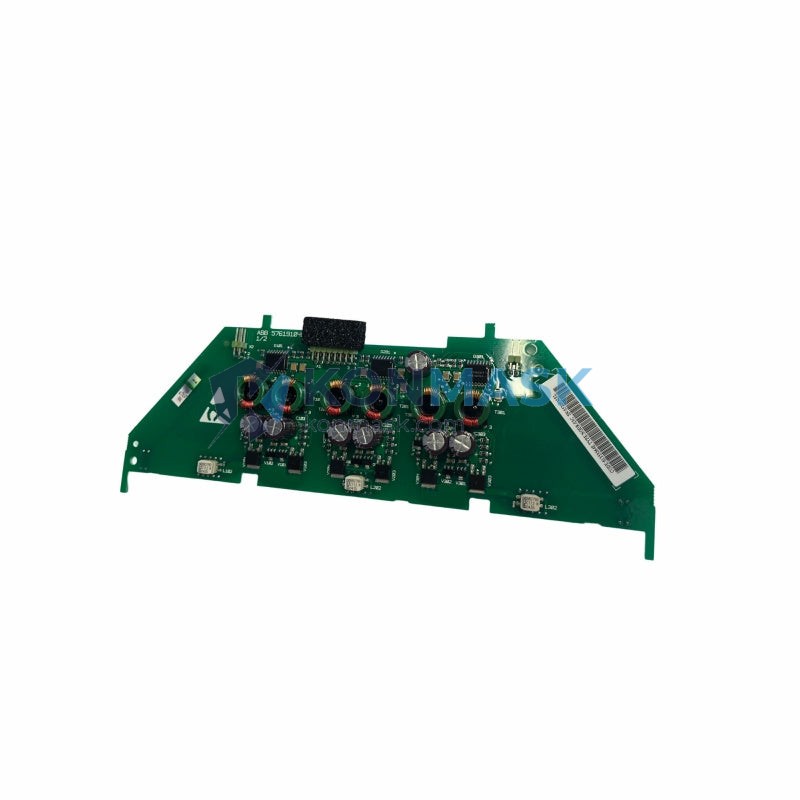

The ABB NGDR-03C (Part No. 58976539) is an original ABB Gate Drive Circuit Card designed for use in ABB ACS800 series AC drives. It serves as the IGBT gate driver interface between the control board and power modules, ensuring precise switching and protection of the inverter stage. This page provides full technical specifications, compatible replacement models, application guidance, and a structured selection guide for engineers and procurement teams.
Technical Specifications
- Manufacturer: ABB
- Part Number: NGDR-03C
- Reference / Order Code: 58976539
- Series: NGDR (Gate Drive Board Series)
- Compatible Drive Series: ABB ACS800
- Function: IGBT Gate Drive & Protection Circuit
- Board Type: Gate Circuit Card (PCB Assembly)
- Mounting: Direct-mount to power module stack
- Weight: Approx. 600 g
- Condition Available: New Original / Tested Refurbished
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or functional equivalents for the ABB NGDR-03C. Always verify electrical and mechanical compatibility before substitution:
- ABB NGDR-03 – Earlier revision; verify firmware and connector compatibility
- ABB NGDR-03B – Intermediate revision; functionally similar, check PCB layout
- ABB NGDR-03E – Later revision; may offer enhanced protection features
- ABB NGDR-02C – Lower-current variant; confirm drive frame size before use
- 3rd-Party IGBT Gate Driver Boards – Must match voltage isolation, propagation delay, and connector pinout of the original NGDR-03C
Note: Konmask.com recommends using original ABB spare parts for safety-critical applications. Contact us for cross-reference verification.
Why Choose the Original ABB NGDR-03C
- ✅ OEM-Certified Design – Engineered and tested to ABB ACS800 drive specifications
- ✅ Precise Gate Timing – Ensures accurate IGBT switching for optimal drive efficiency
- ✅ Built-in Protection – Short-circuit, over-current, and desaturation protection circuits
- ✅ Long Service Life – Industrial-grade components rated for harsh environments
- ✅ Full Traceability – ABB part number 58976539 with documented revision history
- ✅ Warranty Support – Eligible for ABB authorized service and warranty programs
Typical Applications
- ABB ACS800 variable frequency drives (VFDs) – all frame sizes using NGDR-03C
- Industrial motor control systems in manufacturing, oil & gas, and mining
- HVAC and pump/fan drive systems requiring reliable IGBT gate control
- Crane, hoist, and conveyor drive systems
- Spare parts inventory for ACS800 drive maintenance programs
System Compatibility
The NGDR-03C is designed for integration within the ABB ACS800 drive platform. Compatibility depends on the drive frame size and firmware version. Confirmed compatible configurations include:
- ACS800-01 / ACS800-02 / ACS800-04 series
- ACS800-07 / ACS800-11 / ACS800-17 series
- ACS800-31 / ACS800-37 cabinet drives (verify frame-specific gate board assignment)
Always cross-reference the drive’s spare parts list (SPL) or contact Konmask.com with your drive nameplate data for confirmed compatibility.
Selection Guide
Use the following criteria to determine whether the NGDR-03C is the correct gate drive card for your application:
- Step 1 – Identify Drive Model: Confirm your ACS800 drive model and frame size from the nameplate
- Step 2 – Locate Existing Board: Check the part number printed on the installed gate drive card (NGDR-03C / 58976539)
- Step 3 – Check Revision: Note the PCB revision (Rev. A/B/C/E) to ensure exact match or approved upgrade
- Step 4 – Verify Quantity: Large ACS800 frames may use multiple gate drive cards per phase leg
- Step 5 – Contact Konmask: Send your drive model, serial number, and existing board photo for expert confirmation
Quality Assurance & Sourcing
- All ABB NGDR-03C units sourced by Konmask.com are inspected upon receipt
- New-original stock supplied with ABB factory packaging and documentation where available
- Refurbished units undergo functional testing on ACS800-compatible test rigs
- Anti-static packaging and climate-controlled storage for all PCB assemblies
- Batch traceability records maintained for B2B procurement compliance
How to Order
- Add the ABB NGDR-03C 58976539 to your cart, or contact us directly for bulk/urgent orders
- Provide your drive model, serial number, and required quantity
- Our team will confirm stock availability, lead time, and shipping options
- Payment via T/T bank transfer, PayPal, or other agreed B2B terms
- Worldwide shipping with DHL / FedEx / UPS express options available
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
Replacement & Compatibility FAQ
Q: Can NGDR-03B replace NGDR-03C?
A: In many ACS800 configurations, NGDR-03B and NGDR-03C are interchangeable, but connector pinout and PCB mounting points should be verified. Contact us for confirmation.
Q: Is the 58976539 the only order code for NGDR-03C?
A: 58976539 is the primary ABB order/reference code. Some regional catalogs may list alternate codes — always verify with the physical board marking.
Q: Do you supply tested refurbished NGDR-03C boards?
A: Yes. Konmask.com offers both new-original and tested-refurbished options. Refurbished units are functionally tested and carry a limited warranty.
Q: What is the lead time for new-original NGDR-03C?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–6 week lead time depending on ABB supply chain status.
Q: Can I use a third-party gate drive board instead of NGDR-03C?
A: Third-party alternatives exist but must precisely match isolation voltage, propagation delay, connector pinout, and protection logic. Konmask.com recommends original ABB parts for safety-critical drives.
