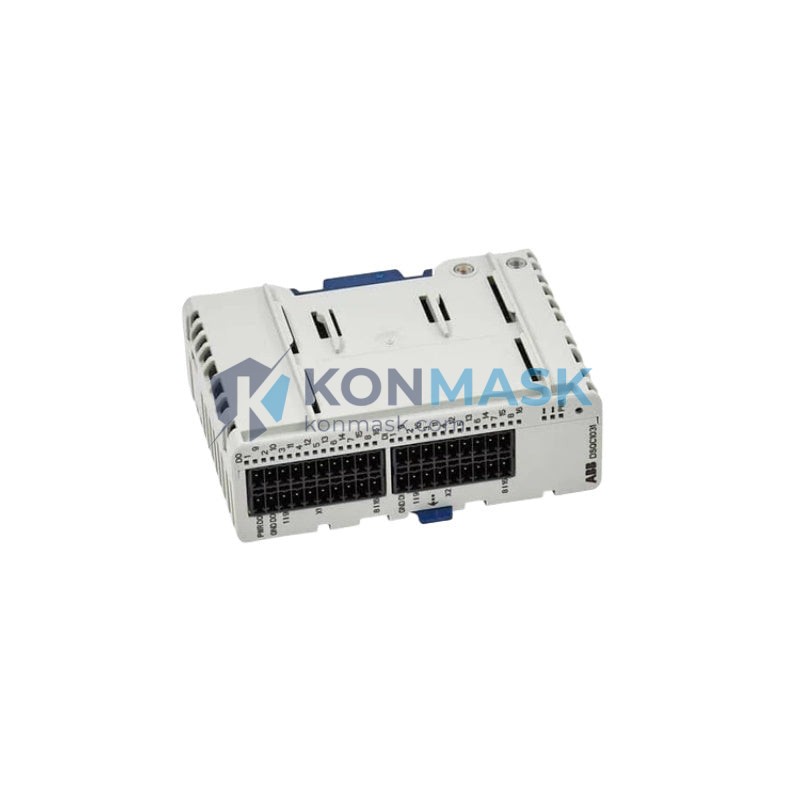

ABB DSQC1030 / DSQC1031 / DSQC1032 — IRC5 Robot Controller IO Communication Module | IRC5 Platform
Engineering Background
The DSQC1030, DSQC1031, and DSQC1032 are ABB’s dedicated IO communication modules engineered for the IRC5 robot controller family. Carrying part numbers 3HAC025338-006, 3HNA015149-001, and 3HAC0586635-001, these modules serve as the critical interface layer between the IRC5 controller backplane and field-level I/O devices — enabling deterministic, high-speed signal exchange across DeviceNet, PROFIBUS, and EtherNet/IP networks.
Product Positioning
Designed for procurement engineers and maintenance teams operating ABB IRC5-based robotic cells, these modules are direct OEM replacements that eliminate compatibility risk. Konmask.com supplies verified, tested units with full traceability — supporting both planned upgrades and emergency line-down scenarios.
Complete Technical Specifications
- Part Numbers: 3HAC025338-006 / 3HNA015149-001 / 3HAC0586635-001
- Model Numbers: DSQC1030 / DSQC1031 / DSQC1032
- Compatible Platform: ABB IRC5 Robot Controller (single cabinet & dual cabinet)
- Module Type: IO Communication Module (fieldbus interface card)
- Supported Protocols: DeviceNet, PROFIBUS-DP, EtherNet/IP (model-dependent)
- Backplane Interface: IRC5 internal bus (proprietary ABB connector)
- Operating Voltage: 24 VDC (supplied via IRC5 backplane)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5–95% RH, non-condensing
- Protection Class: IP20 (installed within IRC5 cabinet)
- Weight: Approx. 800 g (module + packaging)
- Certifications: CE, UL (per ABB OEM specification)
- RoHS Compliance: Yes
- Firmware: Compatible with RobotWare 5.x / 6.x
Proven Application Environments
- Automotive body-in-white welding and assembly lines (IRC5 multi-robot cells)
- Foundry and die-casting automation with high EMI environments
- Palletizing and material handling systems requiring deterministic I/O timing
- Painting and coating booths with EX-rated IRC5 controller variants
- Electronics manufacturing SMT lines with precision pick-and-place robots
- Food & beverage packaging lines requiring washdown-adjacent controller enclosures
- Semiconductor wafer handling with cleanroom-compatible IRC5 installations
Engineering Advantages
- Drop-in OEM Replacement: Plug-and-play compatibility with existing IRC5 backplane — no firmware patching or hardware modification required.
- Multi-Protocol Flexibility: DSQC1030/1031/1032 variants cover the three dominant industrial fieldbus standards, allowing a single procurement source for mixed-protocol facilities.
- Deterministic Cycle Time: Hardware-level fieldbus processing ensures sub-millisecond I/O update cycles, critical for synchronized multi-axis motion.
- Robust EMI Shielding: Designed to ABB’s industrial-grade EMC standards, validated for operation adjacent to high-current servo drives and welding equipment.
- Long Service Life: Conformal-coated PCB resists humidity, dust, and chemical vapors common in industrial environments.
- RobotWare Integration: Natively recognized by ABB RobotWare 5.x and 6.x — I/O configuration via FlexPendant or RobotStudio without additional drivers.
System Architecture & Signal Flow
The DSQC1030/1031/1032 module occupies a dedicated slot in the IRC5 controller’s main computer unit (MCU) backplane. On power-up, the IRC5 system bus enumerates the module and loads the corresponding I/O configuration from the system parameters. Field devices (sensors, actuators, remote I/O stations) connect via the module’s front-panel fieldbus connector. Signal data is transferred to the IRC5 main computer via the backplane at the robot’s configured system cycle time (typically 4 ms). The module’s onboard processor handles protocol-level handshaking independently, offloading the main CPU and ensuring deterministic I/O performance regardless of robot program complexity.
Sourcing & Quality Verification
- Origin: OEM ABB production units — not aftermarket or remanufactured
- Inspection: Each unit undergoes visual inspection, connector integrity check, and functional power-on verification before shipment
- Traceability: Serial number and date code recorded at dispatch; documentation available on request
- Packaging: ESD-safe anti-static bag + foam-lined carton; shock-rated for international air and sea freight
- Warranty: 12-month replacement warranty against manufacturing defects
- Lead Time: In-stock units ship within 1–3 business days; contact us for volume availability
Procurement Process
- Confirm Part Number: Cross-reference your IRC5 controller’s module slot label against DSQC1030 / DSQC1031 / DSQC1032 and associated ABB part numbers (3HAC025338-006, 3HNA015149-001, 3HAC0586635-001).
- Request Quote: Contact support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Order Confirmation: Receive proforma invoice with unit price, shipping cost, and estimated delivery date.
- Payment & Dispatch: Payment via T/T, PayPal, or credit card. Units dispatched within 1–3 business days of payment confirmation.
- After-Sales Support: Technical support available via email for installation and commissioning queries.
Technical FAQ
Q: Are DSQC1030, DSQC1031, and DSQC1032 interchangeable?
A: No — each model supports a different fieldbus protocol (DeviceNet, PROFIBUS-DP, EtherNet/IP respectively). Confirm your system’s fieldbus type before ordering.
Q: Is this module compatible with IRC5 Compact and IRC5 Panel Mounted Controller?
A: Compatibility depends on the specific IRC5 variant and RobotWare version. Contact us with your controller serial number for confirmation.
Q: Can I configure the module without ABB RobotStudio?
A: Yes — I/O configuration can be performed directly via the FlexPendant (teach pendant) using the IRC5 system parameters menu.
Q: What is the lead time for bulk orders (>5 units)?
A: Bulk availability varies by model. Contact us for a dedicated stock check and volume pricing.
Q: Do you provide a test report or inspection certificate?
A: Yes — functional test records are available upon request for each dispatched unit.
