ABB DSQC378B IRB6640 Manipulator Harness Ax 1-6 | Replacement, Equivalent & Selection Guide

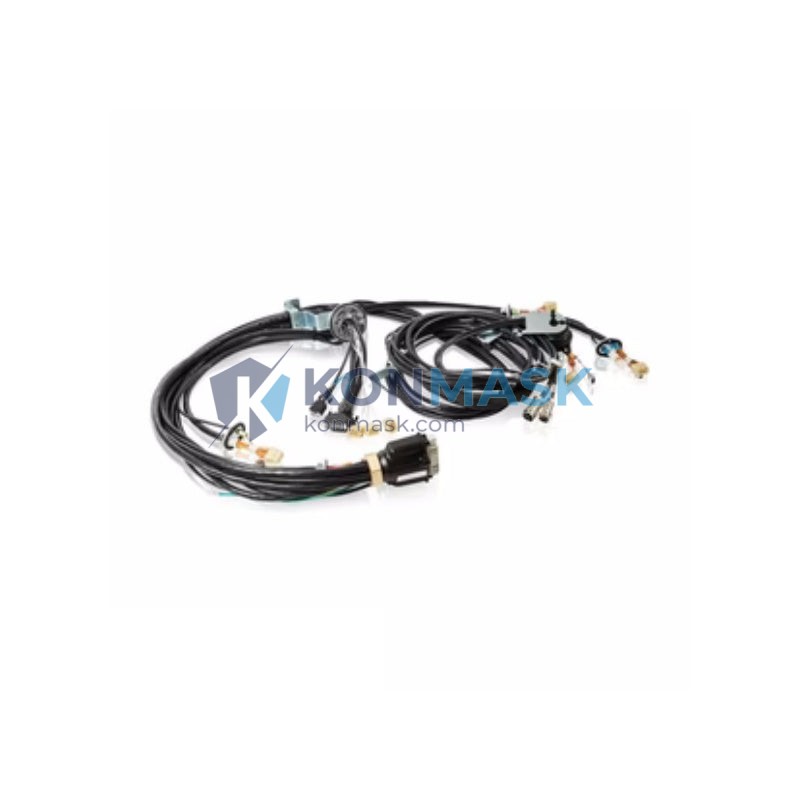

The ABB DSQC378B (P/N: 3HNE00421-1 / 3HAB8101-7 / 3HAC024386-001) is the OEM manipulator harness cable assembly for axes 1–6 on the ABB IRB6640 industrial robot. This page provides full technical specifications, compatible replacement options, system compatibility data, and a structured selection guide to help engineers and procurement teams make the right sourcing decision.
Technical Specifications
- Manufacturer: ABB Robotics
- Part Numbers: DSQC378B / 3HNE00421-1 / 3HAB8101-7 / 3HAC024386-001
- Description: Manipulator Harness, Axes 1–6
- Compatible Robot: ABB IRB6640 series
- Cable Type: Multi-conductor robot cable assembly
- Axis Coverage: Axes 1 through 6 (full arm harness)
- Weight: Approx. 300 g
- Country of Origin: Sweden / EU
- Condition Available: New OEM, Refurbished, Compatible Replacement
Compatible Replacement & Equivalent Models
When the original OEM harness is unavailable or cost-prohibitive, the following equivalent and compatible options are commonly specified by maintenance engineers:
- 3HNE00421-1 — Direct OEM cross-reference (same assembly, alternate P/N)
- 3HAB8101-7 — Legacy part number for earlier IRB6640 builds
- 3HAC024386-001 — Updated revision with identical form/fit/function
- Third-party compatible harness — Must match connector pinout, shielding spec, and cable length; verify with robot serial number before ordering
Always verify the robot serial number and controller firmware version before substituting part numbers.
Why Choose the Original Model
- OEM-certified fit: Designed and tested specifically for IRB6640 geometry and axis torque profiles
- Signal integrity: Shielded conductors prevent EMI interference in high-cycle welding and material handling environments
- Warranty compliance: Use of OEM parts preserves ABB service contract validity
- Plug-and-play replacement: No re-routing or connector modification required
- Long service life: Rated for millions of flex cycles under full 6-axis motion
Typical Applications
- Automotive body welding lines (spot & MIG welding cells)
- Heavy payload material handling (IRB6640-235/2.55 configuration)
- Foundry and press-tending automation
- Palletizing and depalletizing systems
- Machine tending in CNC machining centers
- Preventive maintenance replacement during scheduled robot overhaul
System Compatibility
- Robot Model: ABB IRB6640 (all payload variants: 130, 180, 235 kg)
- Controller: IRC5 (M2004 and later)
- Dress Pack: Compatible with standard and foundry dress pack configurations
- Not compatible with: IRB6600, IRB6650 (different harness routing and connector layout)
Selection Guide
Use the following criteria to select the correct harness for your application:
- Step 1 — Confirm robot model: Verify IRB6640 variant (payload/reach) from the robot nameplate
- Step 2 — Check controller generation: IRC5 M2004+ required for DSQC378B compatibility
- Step 3 — Identify dress pack type: Standard vs. foundry/wash-down affects cable routing clips
- Step 4 — Verify P/N cross-reference: 3HNE00421-1, 3HAB8101-7, and 3HAC024386-001 are interchangeable for most build dates
- Step 5 — Confirm lead time requirement: OEM stock vs. compatible replacement based on downtime urgency
Quality Assurance & Sourcing
- All units sourced from authorized ABB distributors or verified surplus channels
- Each harness inspected for connector integrity, insulation condition, and shielding continuity
- Refurbished units tested under simulated 6-axis motion prior to dispatch
- Traceability documentation available upon request (batch records, test reports)
- Konmask.com specializes in industrial automation spare parts with global shipping capability
How to Order
- Add to cart directly from this page for in-stock units
- For bulk orders or lead-time inquiry, contact: support@konmask.com
- Provide robot serial number and controller firmware version for compatibility confirmation
- WhatsApp / WeChat: +0086 19859288691
- Typical dispatch: 1–3 business days for stocked items; 7–14 days for sourced OEM units
Replacement & Compatibility FAQ
Q: Can I use 3HAC024386-001 to replace 3HNE00421-1?
A: Yes. These are cross-referenced part numbers for the same harness assembly on the IRB6640. Confirm your robot build date to ensure revision compatibility.
Q: Is DSQC378B compatible with the IRB6650?
A: No. The IRB6650 uses a different harness routing and connector layout. Do not substitute without consulting ABB documentation.
Q: What is the typical failure mode for this harness?
A: Most failures occur at the axis 1 base connector due to repeated torsional stress. Inspect for chafing, broken shielding, and intermittent signal faults at J1.
Q: Do you supply the harness with connectors pre-assembled?
A: Yes. All units supplied are complete assemblies with OEM-spec connectors. No field termination required.
Q: Can this harness be used in a foundry environment?
A: The standard DSQC378B is suitable for general industrial use. For foundry/wash-down environments, specify the foundry dress pack variant when ordering.
