Industrial Robot Axis Drive Solution – ABB DSQC626 3HAC020465-001 | DSQC400 Series
Where This Product Is Used

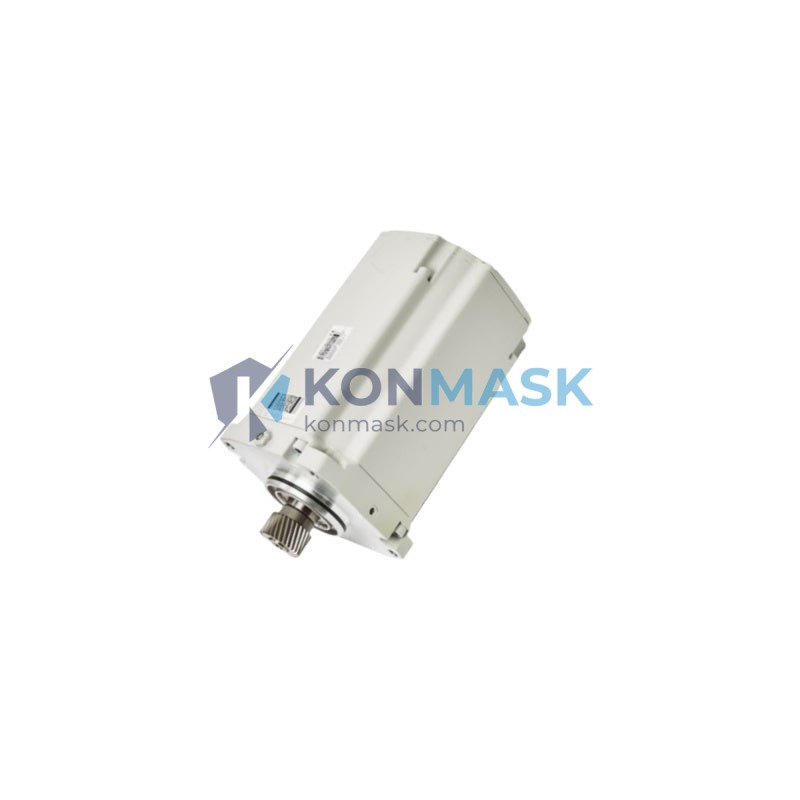

The ABB DSQC626 (OEM part number 3HAC020465-001) is a rotational AC servo motor engineered for precision axis actuation inside ABB industrial robot arms. It is the primary motion element on axis 4, 5, or 6 of the IRB series, delivering the torque and positional accuracy that automated production lines demand.
- Automotive body welding & spot-welding cells – maintains sub-millimetre repeatability at high cycle rates
- Electronics PCB assembly & pick-and-place – smooth low-inertia rotation for delicate component handling
- Palletising & material handling – continuous-duty torque for heavy-payload end-of-arm tooling
- Painting & coating booths – sealed construction tolerates solvent-rich environments
- Food & beverage packaging – hygienic-grade operation compatible with washdown protocols
- Pharmaceutical & medical device assembly – low-vibration motion meets cleanroom requirements
Technical Specifications
| OEM Part Number | 3HAC020465-001 |
| Model / SKU | DSQC626 |
| Cross-Reference | DSQC400 / 3HAC025062-003 |
| Motor Type | Rotational AC Servo Motor |
| Manufacturer | ABB Robotics |
| Country of Origin | Sweden |
| Weight | 420 g (approx.) |
| HS Code | 8501.52 – AC motors, multi-phase |
| Compatible Robot Series | ABB IRB 140 / 1400 / 1600 / 2400 / 4400 and related |
| Typical Axis Position | Axis 4 / 5 / 6 (wrist axes) |
| Encoder | Integrated resolver / absolute encoder |
| Condition | New / Refurbished – specified at order |
Why Engineers Specify This Model
- OEM-identical form factor – bolt-in replacement; no mechanical adaptation required
- High torque-to-inertia ratio – enables rapid acceleration/deceleration without overshooting
- Integrated encoder feedback – works natively with ABB IRC5 / S4C+ drive controllers
- Proven MTBF – ABB’s DSQC series is field-validated across millions of robot operating hours
- Backward-compatible – direct functional replacement for the earlier DSQC400 (3HAC025062-003)
- Global certifications – CE, UL, RoHS compliant for multi-region deployment
Complete System Bill of Materials
For a full axis-drive replacement or upgrade, engineers typically source the following alongside the DSQC626:
- ABB IRC5 Drive Module (DSQC661 / 3HAC026253-001)
- Axis Computer Unit (DSQC668 / 3HAC031670-001)
- Motor cable harness – axis 4/5/6 (3HAC031683-001)
- Resolver cable (3HAC025562-001)
- Gearbox unit for wrist axis (3HAC002481-001)
- Brake resistor module (DSQC604 / 3HAC12928-1)
Contact support@konmask.com to request a complete BOM quote for your robot model.
Compliance & Industry Standards
- CE Marking – EU Machinery Directive 2006/42/EC
- UL Listed – North American electrical safety
- RoHS 2 (2011/65/EU) – restricted hazardous substances compliant
- ISO 9283 – robot performance and accuracy standard
- IEC 60034 – rotating electrical machines standard
Quality Assurance & Sourcing
Every DSQC626 unit shipped by Konmask.com undergoes a structured inspection protocol:
- Visual inspection for mechanical damage, connector integrity, and label authenticity
- Encoder signal verification and winding resistance check
- Functional run-in test on ABB-compatible drive bench (refurbished units)
- Anti-static packaging with desiccant and shock-indicator label
- Traceability documentation: serial number, test date, and inspector ID included
We source directly from authorised ABB distributors and certified industrial surplus channels. Counterfeit parts are rejected at intake.
How to Source This Part
- In-stock orders: Add to cart and check out – ships within 1–3 business days from our warehouse
- Bulk / project orders: Email support@konmask.com with quantity and delivery schedule for volume pricing
- Urgent breakdown support: Call +0086 19859288691 – we prioritise emergency line-down situations
- Custom BOM sourcing: Share your robot model and axis configuration; we will compile a full parts list
Application-Specific FAQ
Q: Is the DSQC626 a direct drop-in for the DSQC400 (3HAC025062-003)?
A: Yes. The DSQC626 / 3HAC020465-001 is the OEM successor to the DSQC400 / 3HAC025062-003 with identical mounting dimensions and connector pinout. No software parameter changes are required on IRC5 controllers.
Q: Which ABB robot models use this motor?
A: It is most commonly found in the IRB 140, IRB 1400, IRB 1600, IRB 2400, and IRB 4400 families on wrist axes 4–6. Always verify against your robot’s spare-parts manual (3HAC-XXXXX) before ordering.
Q: Can this motor be used with a non-ABB controller?
A: The motor is a standard AC servo with resolver feedback. Third-party servo drives with compatible resolver input and matching power ratings can drive it, but tuning and safety validation are the integrator’s responsibility.
Q: What warranty is provided?
A: New units carry the standard ABB OEM warranty. Refurbished units are covered by Konmask’s 90-day functional warranty. Extended warranty options are available on request.
Q: Do you provide installation support?
A: We provide technical documentation and remote guidance. On-site commissioning services can be arranged through our partner network – contact us for details.
