ABB DSQC651 3HEA800439-002 Control Cabinet I/O Module | Replacement, Equivalent & Selection Guide

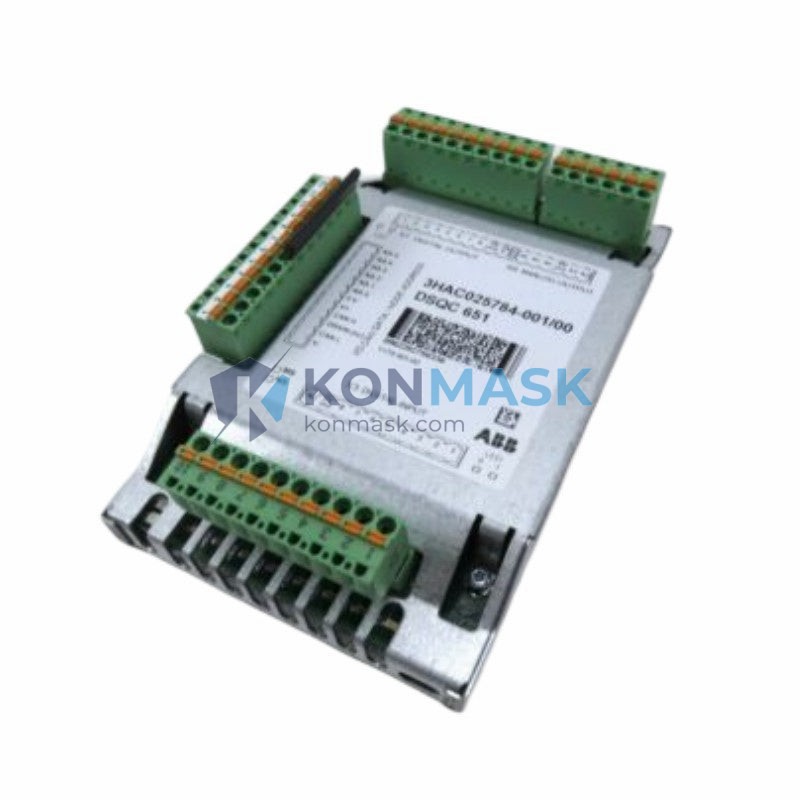

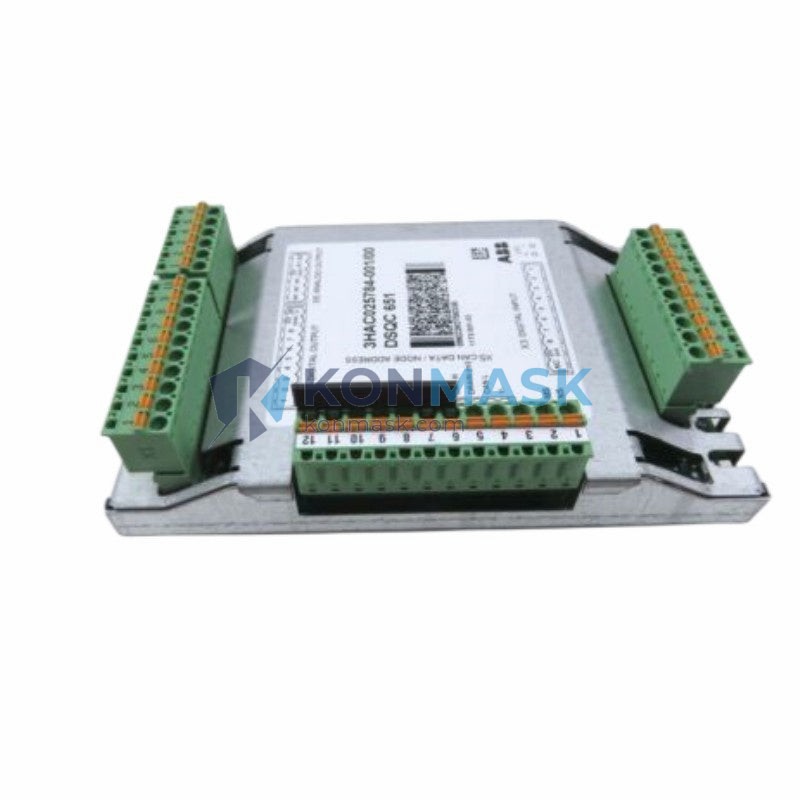

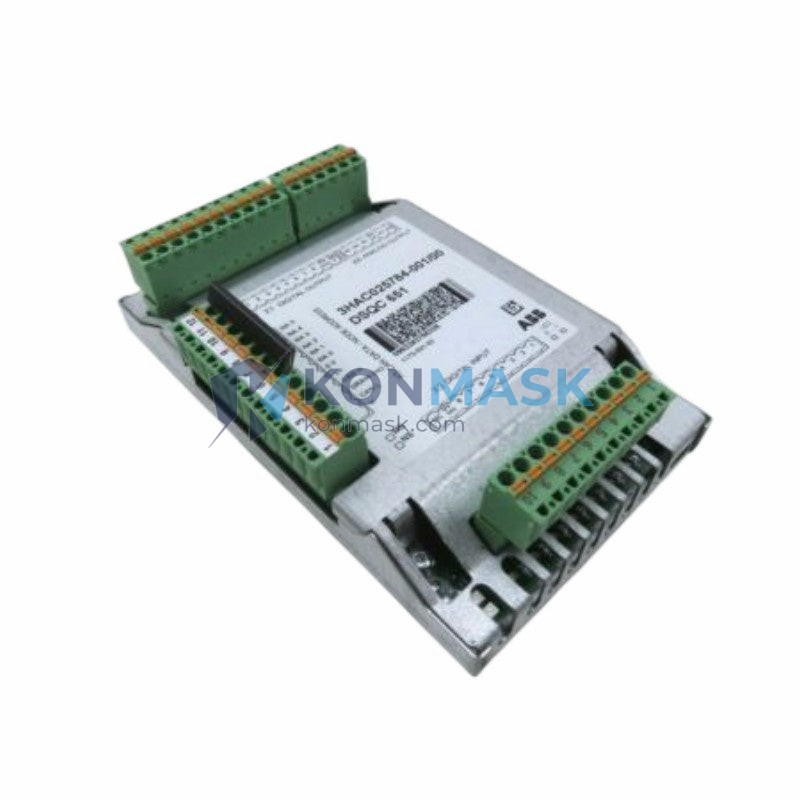

The ABB DSQC651 (part number 3HEA800439-002) is a Control Cabinet I/O Module designed for ABB IRC5 robot controller systems. It serves as the primary interface between the robot controller and external field devices, enabling reliable digital and analog signal exchange in demanding industrial automation environments. This page provides full technical specifications, verified compatible replacements, system compatibility data, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB Robotics |
| Part Number | DSQC651 / 3HEA800439-002 |
| Module Type | Control Cabinet I/O Module |
| Compatible Controller | ABB IRC5 (Single Cabinet, Dual Cabinet, Panel Mounted) |
| Digital Inputs | 16 × 24 VDC |
| Digital Outputs | 16 × 24 VDC, 0.5 A per channel |
| Communication Bus | DeviceNet |
| Supply Voltage | 24 VDC (±10%) |
| Power Consumption | ≤ 5 W (typical) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -25 °C to +70 °C |
| Protection Rating | IP20 (cabinet-mounted) |
| Weight | 270 g |
| Certifications | CE, UL |
Compatible Replacement & Equivalent Models
The following models are verified as direct or functional replacements for the ABB DSQC651. Always confirm firmware version and DeviceNet node address settings before installation.
| Model | Part Number | Compatibility Notes |
|---|---|---|
| ABB DSQC651 | 3HEA800439-002 | OEM original — direct drop-in |
| ABB DSQC651 | 3HEA800439-001 | Earlier revision; functionally equivalent, verify firmware |
| ABB DSQC652 | 3HEA800439-003 | Upgraded I/O count; backward compatible in IRC5 |
| ABB DSQC328A | 3HNE00001-1 | Legacy S4C+ equivalent; not IRC5 compatible |
Note: Cross-referencing by part number alone is insufficient. Always verify controller generation, RobotWare version, and DeviceNet configuration before substitution.
Why Choose the Original Model
- Guaranteed firmware compatibility — factory-matched to IRC5 RobotWare 5.x / 6.x without additional configuration.
- Validated signal integrity — ABB-tested I/O timing ensures deterministic response in safety-critical sequences.
- Full ABB warranty support — eligible for ABB service contracts and spare-parts programs.
- Traceability — OEM serial number enables full lifecycle tracking and audit compliance.
- Reduced commissioning risk — no re-parameterization of DeviceNet node addresses or I/O mapping required.
Typical Applications
- Automotive body-in-white welding cells (IRC5 multi-robot lines)
- Palletizing and depalletizing systems with conveyor interlocks
- Machine tending with PLC handshake signals
- Arc welding and spot welding stations requiring precise I/O synchronization
- Assembly automation with vision system trigger/strobe outputs
- Painting and coating lines with zone-entry safety interlocks
System Compatibility
| System / Platform | Compatible | Notes |
|---|---|---|
| ABB IRC5 Single Cabinet | ✅ Yes | Primary target platform |
| ABB IRC5 Dual Cabinet | ✅ Yes | Drive module side I/O |
| ABB IRC5 Panel Mounted | ✅ Yes | Compact controller variant |
| ABB S4C+ Controller | ❌ No | Different I/O bus architecture |
| ABB IRC5 Compact | ⚠️ Verify | Space constraints; confirm mounting |
| RobotWare 5.x | ✅ Yes | Fully supported |
| RobotWare 6.x | ✅ Yes | Fully supported |
| DeviceNet Master (3rd party PLC) | ✅ Yes | EDS file required; available on request |
Selection Guide
Use the following decision flow to confirm the correct module for your application:
- Identify your controller generation — IRC5 (post-2005) or S4C+ (pre-2005). DSQC651 is IRC5 only.
- Count required I/O points — DSQC651 provides 16 DI + 16 DO. If more points are needed, consider DSQC652 or adding a second DSQC651 node.
- Confirm DeviceNet node address — each DSQC651 occupies one DeviceNet node (0–63). Ensure no address conflict with existing devices.
- Check RobotWare version — RobotWare 5.12 or later recommended for full DSQC651 feature support.
- Assess safety requirements — for safety-rated I/O (SIL 2 / PLd), the DSQC651 is not safety-rated; use ABB DSQC643 or SafeMove instead.
- Evaluate sourcing priority — OEM new stock for new installations; certified refurbished acceptable for maintenance replacement with full test report.
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified surplus inventory with full traceability.
- Inspection: Each unit undergoes visual inspection, power-on functional test, and DeviceNet communication verification before shipment.
- Condition options: New OEM, Certified Refurbished (with test report), and Exchange (core return) available — contact us for current stock status.
- Packaging: Anti-static ESD bag + foam-lined carton; original ABB packaging where available.
- Lead time: In-stock units ship within 1–3 business days; sourced units 5–15 business days depending on origin.
How to Order
- Add the DSQC651 (3HEA800439-002) to your cart and proceed to checkout, or
- Contact us directly for volume pricing, exchange programs, or urgent requirements:
📧 support@konmask.com
📞 +0086 19859288691 - Provide your controller serial number and RobotWare version for pre-sales compatibility confirmation if needed.
- Request a proforma invoice or formal quotation for procurement departments — available within 24 hours.
Replacement & Compatibility FAQ
Q: Can I use DSQC651 3HEA800439-001 instead of -002?
A: Yes, in most cases. The -001 and -002 are hardware revisions of the same module. Verify that your RobotWare version supports both revisions — check ABB Product Manual 3HAC021313-001 for revision history.
Q: Is DSQC651 compatible with ABB S4C+ controllers?
A: No. S4C+ uses a different I/O bus (INTERBUS or proprietary ABB bus). Use DSQC328A or DSQC332A for S4C+ systems.
Q: Can I add multiple DSQC651 modules to one IRC5 controller?
A: Yes. Up to 10 DeviceNet I/O nodes are supported per IRC5 controller. Each DSQC651 must have a unique node address set via the rotary switch on the module.
Q: Do you provide an EDS file for third-party PLC integration?
A: Yes. Contact support@konmask.com with your PLC brand and model, and we will provide the appropriate EDS file and wiring diagram.
Q: What is the difference between DSQC651 and DSQC652?
A: DSQC652 offers an expanded I/O count (24 DI / 16 DO) and is the recommended upgrade path when additional inputs are required. Both are IRC5 compatible and use DeviceNet.
Q: Can I use a refurbished DSQC651 for production?
A: Yes, provided the unit has been fully tested and comes with a test report. Konmask certified refurbished units include a functional test certificate and 90-day warranty.
