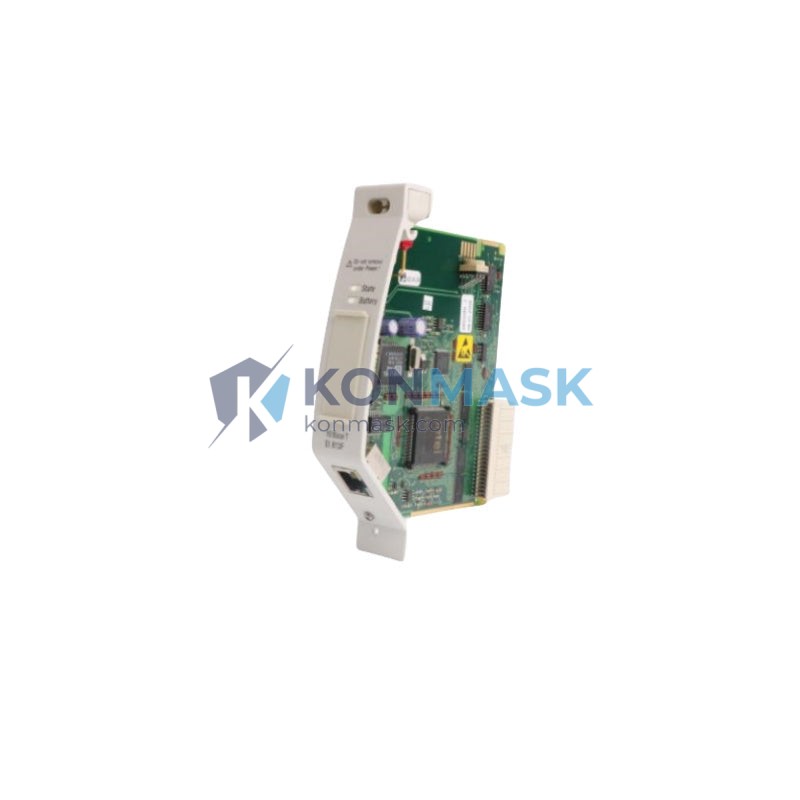

ABB EI813F – Industrial Ethernet Communication Module | AC 800M Platform
Engineering Background: The ABB EI813F (part number 3BDH000022R1) is a dedicated Ethernet interface module engineered for the AC 800M distributed control system platform — ABB’s flagship process automation controller deployed across oil & gas, power generation, pulp & paper, and chemical industries worldwide. As plant networks migrate from legacy fieldbus to Ethernet-based architectures, the EI813F provides the high-speed, deterministic communication backbone that modern DCS topologies demand.
Product Positioning: Designed for system integrators and process engineers who require reliable, high-throughput Ethernet connectivity within AC 800M controller cabinets, the EI813F supports both standard and redundant network configurations. Its compact module form factor integrates directly into the S800 I/O and PM8xx processor ecosystem, eliminating the need for external gateways or protocol converters.
Complete Technical Specifications
- Part Number: EI813F
- ABB Order Code: 3BDH000022R1
- Platform: ABB AC 800M DCS
- Module Type: Ethernet Communication Interface Module
- Communication Standard: IEEE 802.3 Ethernet
- Network Speed: 10/100 Mbps (auto-negotiation)
- Connector Type: RJ-45
- Redundancy Support: Dual-port redundant Ethernet network
- Protocol Support: TCP/IP, UDP, Modbus TCP (application-dependent)
- Power Supply: Supplied via AC 800M backplane (no external PSU required)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -40°C to +70°C
- Relative Humidity: 5% to 95% (non-condensing)
- Weight: 140 g
- Dimensions: Standard AC 800M module form factor
- Certifications: CE, UL, cUL
- Firmware: Configurable via ABB Control Builder M
Proven Application Environments
- Oil & Gas: Upstream SCADA integration, offshore platform DCS networks, pipeline monitoring systems requiring high-availability Ethernet backbones
- Power Generation: Turbine control systems, boiler management DCS, substation automation with IEC 61850 gateway connectivity
- Pulp & Paper: Continuous process control networks, multi-controller AC 800M clusters communicating over plant Ethernet
- Chemical & Petrochemical: Hazardous area DCS cabinets (module mounted in safe zone), batch process controllers with MES/ERP Ethernet integration
- Water & Wastewater: Remote pump station controllers, SCADA-to-DCS Ethernet bridging, redundant network topologies for critical infrastructure
- Pharmaceutical: FDA 21 CFR Part 11 compliant process networks, validated DCS environments requiring traceable communication modules
Engineering Advantages
- Native AC 800M Integration: Plug-and-play compatibility with PM851, PM856, PM860, PM861, PM864, PM866 processor modules — no additional configuration hardware required
- Redundant Network Architecture: Dual-port design supports HSR (High-availability Seamless Redundancy) and PRP (Parallel Redundancy Protocol) topologies, achieving zero-switchover-time failover
- Deterministic Latency: Hardware-level Ethernet switching ensures consistent cycle times critical for closed-loop process control
- Backward Compatibility: Supports legacy AC 800M installations alongside new deployments — ideal for brownfield expansion projects
- Simplified Engineering: Fully configurable within ABB Control Builder M software; no third-party tools or drivers required
- Long Product Lifecycle: ABB industrial module with extended availability commitment, reducing obsolescence risk for long-horizon plant assets
System Architecture & Signal Flow
The EI813F installs into the AC 800M controller unit backplane alongside the PM8xx processor module. On power-up, the module auto-negotiates Ethernet speed and duplex with the connected switch. The processor communicates with the EI813F over the internal backplane bus; the module then encapsulates process data into TCP/IP or UDP frames for transmission to SCADA servers, historian systems, or peer controllers. In redundant configurations, both EI813F ports are active simultaneously — if one network path fails, traffic seamlessly continues on the surviving path with no data loss and no controller restart.
Typical Signal Flow: Field I/O (S800 modules) → AC 800M Backplane → PM8xx Processor → EI813F → Plant Ethernet Switch → SCADA / Historian / MES
Sourcing & Quality Verification
- Origin: Genuine ABB-manufactured module; sourced through verified industrial automation supply channels
- Inspection: Each unit undergoes visual inspection, label verification (part number 3BDH000022R1 confirmed), and functional power-on check prior to shipment
- Condition: New (factory-sealed) and refurbished (tested, cleaned, re-certified) stock available — specify requirement at inquiry
- Traceability: Serial number and firmware version documented per shipment; full chain-of-custody records available on request
- Packaging: Anti-static ESD bag + foam-lined carton; compliant with IEC 61340-5-1 electrostatic discharge protection standards
Procurement Process
- Confirm Compatibility: Verify your AC 800M controller version and firmware revision against EI813F compatibility matrix (available on request)
- Submit Inquiry: Contact Konmask.com with quantity, required condition (new/refurbished), and delivery timeline
- Receive Quotation: Formal quotation issued within 24 hours including unit price, lead time, and shipping options
- Place Order: Purchase order accepted via email; payment terms discussed per account status
- Shipment & Documentation: Module shipped with packing list, inspection report, and commercial invoice; DHL / FedEx / sea freight available
- After-Sales Support: Technical support available for installation verification and Control Builder M configuration guidance
Technical FAQ
Q: Is the EI813F compatible with AC 800M PM864 and PM866 processors?
A: Yes. The EI813F is compatible with all current-generation PM8xx processor modules including PM851, PM856, PM860, PM861, PM864, and PM866. Confirm firmware version compatibility with your ABB system documentation.
Q: Can the EI813F support PROFINET or EtherNet/IP in addition to standard TCP/IP?
A: The EI813F is a standard Ethernet interface module. PROFINET and EtherNet/IP fieldbus protocols require dedicated ABB fieldbus modules (e.g., CI854, CI855). Contact us to identify the correct module for your protocol requirement.
Q: What is the difference between EI813F and EI812F?
A: The EI813F is the updated revision offering improved throughput and redundancy support compared to the earlier EI812F. The EI813F is the recommended replacement for EI812F in new and retrofit installations.
Q: Is a refurbished EI813F suitable for a validated pharmaceutical DCS environment?
A: Refurbished units supplied by Konmask.com include full test reports and serial number documentation. Suitability for validated environments depends on your site’s change control procedures. We recommend consulting your validation team and providing our test documentation for review.
Q: What is the lead time for EI813F 3BDH000022R1?
A: In-stock units ship within 3–5 business days. For larger quantities or new factory-sealed stock, lead time is typically 2–4 weeks. Contact support@konmask.com for current availability.
