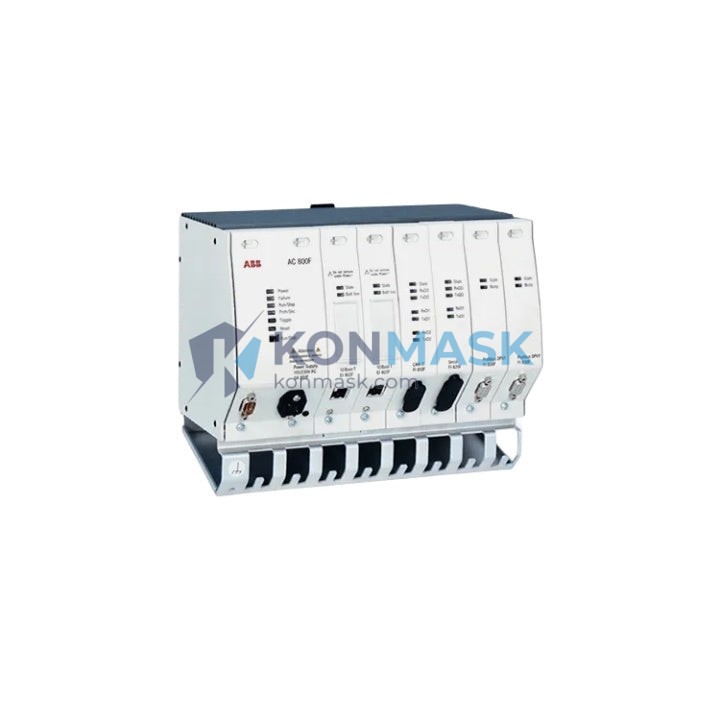

ABB FI810F – PROFIBUS DP Fieldbus Interface Module | AC 800M / S800 I/O Platform
Engineering Background
The ABB FI810F is a dedicated fieldbus interface module engineered for the AC 800M controller platform and S800 I/O system — ABB’s flagship process automation architecture deployed across power generation, oil & gas, pulp & paper, and chemical industries worldwide. As a PROFIBUS DP slave interface, the FI810F enables seamless integration of distributed I/O stations into PROFIBUS DP networks, extending the reach of the AC 800M controller without compromising deterministic communication performance.
Product Positioning
Designed for procurement engineers and system integrators who require a verified, drop-in replacement or expansion module for existing ABB S800 I/O installations. The FI810F eliminates the need for gateway devices or protocol converters, delivering native PROFIBUS DP connectivity at the I/O station level. Konmask.com supplies this module from verified industrial channels with full traceability documentation available upon request.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | FI810F / 3BDH000032R1 |
| Platform Compatibility | ABB AC 800M, S800 I/O |
| Communication Protocol | PROFIBUS DP (IEC 61158) |
| Node Role | DP Slave |
| Baud Rate | 9.6 kbps – 12 Mbps (auto-detect) |
| Max I/O Modules per Station | Up to 12 S800 I/O modules |
| Supply Voltage | 24 V DC (via S800 I/O bus) |
| Power Consumption | ≤ 3 W |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Mounting | DIN rail (35 mm), S800 I/O rail |
| Dimensions (W × H × D) | Approx. 35 × 130 × 115 mm |
| Weight | 440 g |
| Protection Class | IP20 |
| Certifications | CE, UL, PROFIBUS certified |
| Diagnostic LED Indicators | Module status, Bus status, I/O fault |
| Configuration Tool | ABB Control Builder M (CBM) |
| GSD File | Available from ABB Library |
Proven Application Environments
- Power Generation: Turbine control I/O expansion via PROFIBUS DP backbone in AC 800M-based DCS architectures.
- Oil & Gas: Remote I/O stations in hazardous-area marshalling cabinets connected to central AC 800M controllers.
- Pulp & Paper: High-speed process data acquisition from distributed S800 I/O racks across large mill footprints.
- Chemical & Petrochemical: Integration of field instruments and actuators into PROFIBUS DP segments managed by AC 800M.
- Water & Wastewater: Distributed pump station I/O aggregation with deterministic fieldbus communication.
- Retrofit & Expansion: Adding I/O capacity to existing S800 stations without controller replacement or network redesign.
Engineering Advantages
- Native Protocol Support: Full PROFIBUS DP V0/V1 compliance — no gateway overhead, no latency penalty.
- Auto Baud Rate Detection: Eliminates manual DIP switch configuration; module self-adapts to network speed from 9.6 kbps to 12 Mbps.
- Hot-Swap Capable: Supports module replacement under power in compatible S800 I/O configurations, minimizing process downtime.
- Integrated Diagnostics: Per-module and per-channel fault reporting surfaced directly in Control Builder M for rapid fault isolation.
- Compact Form Factor: Single-slot DIN rail footprint maximizes cabinet density in space-constrained installations.
- Wide Temperature Range: -25°C to +70°C operating range suits both indoor control rooms and outdoor marshalling enclosures.
System Architecture & Signal Flow
In a typical deployment, the AC 800M controller hosts a CI854 or CI858 PROFIBUS DP master module. The FI810F occupies the leftmost slot of an S800 I/O station and acts as the DP slave node, receiving cyclic process data requests from the master. I/O modules (AI810, AO810, DI810, DO810, etc.) plug into the S800 rail to the right of the FI810F, sharing the internal S800 I/O bus. The FI810F aggregates all I/O channel data and presents it as a single DP slave address on the PROFIBUS segment. Up to 125 slave nodes can coexist on a single PROFIBUS DP segment, with the FI810F occupying one node address (configurable via rotary switches or CBM software).
Sourcing & Quality Verification
- Origin: Sourced from verified industrial distributors and decommissioned plant inventories with documented chain of custody.
- Inspection: Each unit undergoes visual inspection, label verification (part number, revision, serial number), and functional power-on check prior to shipment.
- Documentation: ABB factory test reports and calibration certificates available upon request for critical applications.
- Warranty: 90-day operational warranty against defects in materials and workmanship. Extended warranty available — contact sales.
- Counterfeit Prevention: All modules verified against ABB serial number databases where accessible. Suspicious units are quarantined and not listed.
Procurement Process
- Step 1 – Confirm Compatibility: Verify your AC 800M firmware version and S800 I/O station configuration supports FI810F (refer to ABB System Version Matrix).
- Step 2 – Request Quote: Contact support@konmask.com with quantity, required delivery date, and any documentation requirements.
- Step 3 – Order Confirmation: Purchase order accepted via email. Pro-forma invoice issued within 1 business day.
- Step 4 – Shipment: EMS / DHL / FedEx international express. Typical lead time: 3–7 business days from payment confirmation.
- Step 5 – Incoming Inspection: Recommended — verify part number label, revision marking, and perform power-on LED check before installation.
Technical FAQ
Q: Can the FI810F be used with third-party PROFIBUS DP masters (e.g., Siemens S7)?
A: Yes. The FI810F is a standard PROFIBUS DP slave. Any DP master with the correct GSD file can communicate with it. However, ABB’s full diagnostic capabilities require an ABB AC 800M master.
Q: What is the maximum cable length on a PROFIBUS DP segment with FI810F?
A: Depends on baud rate — up to 1,200 m at 93.75 kbps, reducing to 100 m at 12 Mbps. Use repeaters for longer runs.
Q: Is redundant PROFIBUS DP supported?
A: The FI810F itself is a single-port module. Redundant fieldbus topologies require the FI820F (dual-port redundant variant).
Q: How do I set the PROFIBUS node address?
A: Via rotary address switches on the module face (hardware) or through ABB Control Builder M software assignment. Hardware address takes precedence unless overridden in CBM.
Q: What S800 I/O modules are compatible?
A: All standard S800 I/O modules (AI810, AI820, AO810, DI810, DI811, DO810, DO814, etc.) are compatible. Refer to ABB S800 I/O Product Guide (3BSE020924) for the full compatibility matrix.
Q: Is this module available with an ABB factory warranty?
A: New factory-sealed units with full ABB warranty can be quoted on request. Lead times vary. Contact us for availability.
