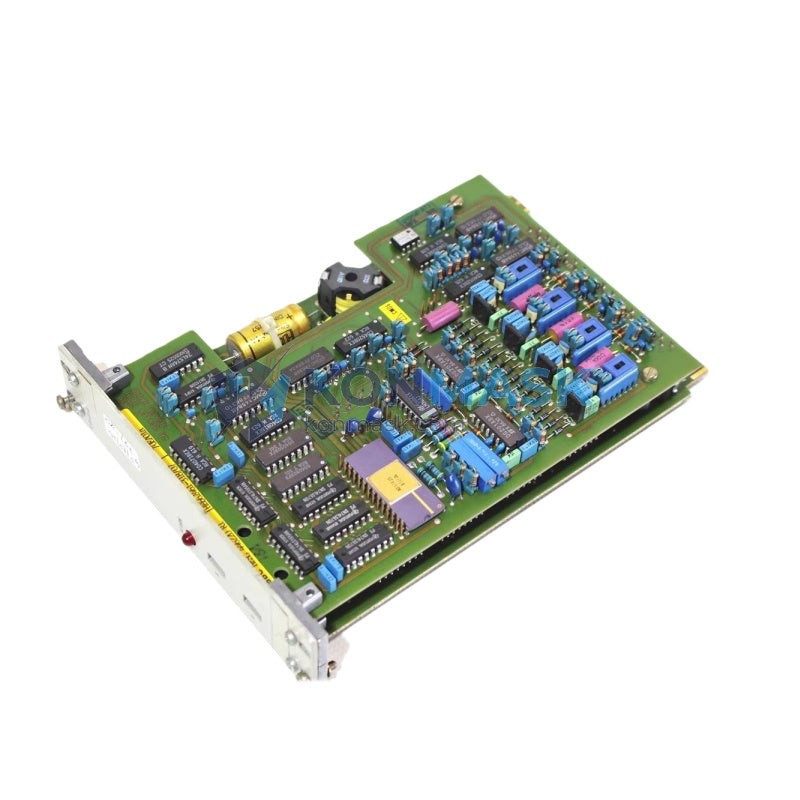

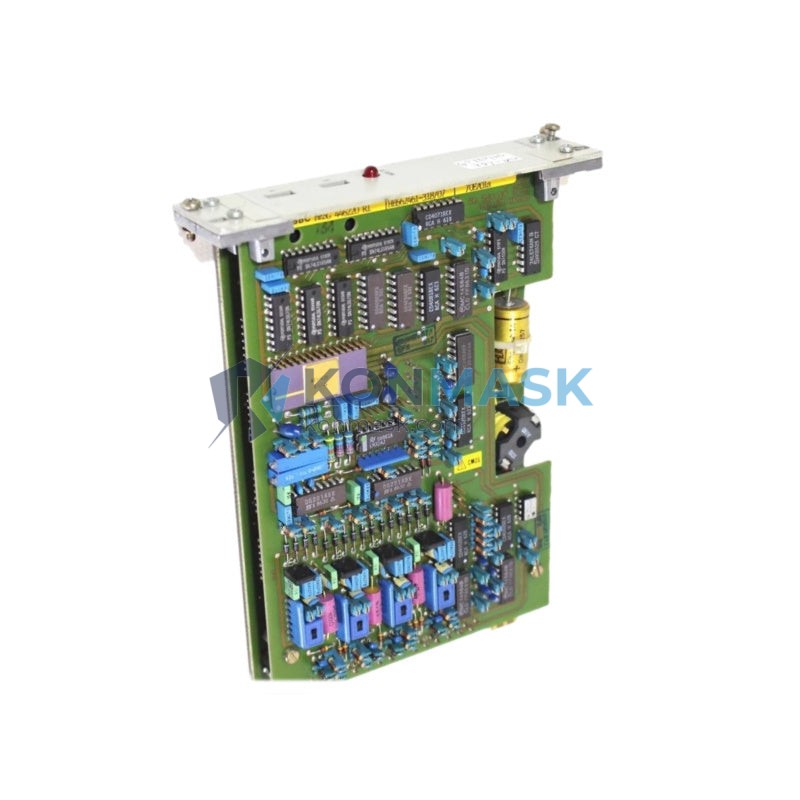

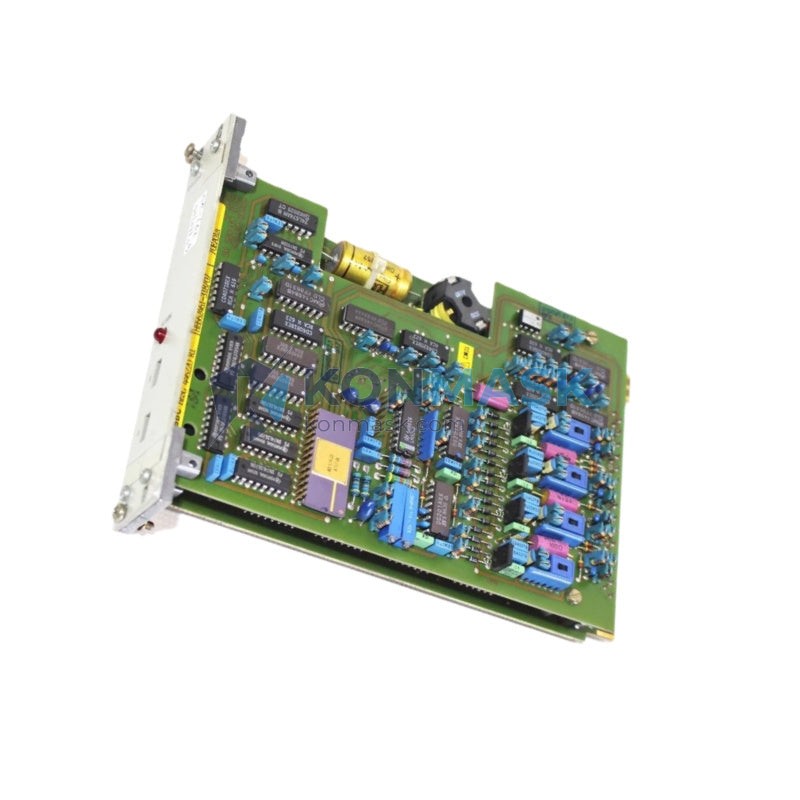

ABB HESG447398R0020/70EA06A-E – Multi-Channel Analog Input Module | Advant DCS Platform
Engineering Background: The HESG447398R0020/70EA06A-E is a precision analog input module engineered by ABB for deployment within the Advant Distributed Control System (DCS) architecture. Designed to meet the rigorous demands of continuous process industries, this module serves as a critical signal acquisition node between field instrumentation and the process controller.
Product Positioning: Targeted at procurement engineers and MRO specialists sourcing verified spare parts for ABB Advant OCS/MasterPiece installations, this module provides a direct OEM-equivalent replacement path with full backward compatibility. It is suited for brownfield maintenance, system life extension projects, and hot-standby redundancy configurations.
Complete Technical Specifications
- Part Number: HESG447398R0020 / 70EA06A-E
- Manufacturer: ABB (ASEA Brown Boveri)
- Module Type: Analog Input (AI)
- Platform: ABB Advant DCS / OCS / MasterPiece Series
- Signal Types Supported: 4–20 mA, 0–10 V DC, thermocouple (TC), RTD (Pt100)
- Input Channels: Multi-channel (refer to OEM datasheet for exact channel count)
- Resolution: 12-bit / 16-bit (model-dependent)
- Isolation: Galvanic channel-to-channel and channel-to-bus isolation
- Communication Bus: Advant internal S-bus / RCOM backplane
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5–95% RH, non-condensing
- Power Supply: Supplied via DCS backplane (24 V DC nominal)
- Weight: Approx. 300 g
- Country of Origin: Sweden
- Compliance: CE, IEC 61131-2
Proven Application Environments
- Oil & Gas — upstream wellhead monitoring, downstream refinery process control
- Power Generation — turbine inlet temperature and pressure signal acquisition
- Pulp & Paper — digester and recovery boiler analog loop control
- Chemical & Petrochemical — reactor temperature profiling and flow measurement
- Water & Wastewater — pump station level and flow analog inputs
- Pharmaceutical — validated batch process signal acquisition (21 CFR Part 11 environments)
Engineering Advantages
- OEM Compatibility: Direct plug-in replacement for existing Advant DCS racks — no firmware modification required
- High Signal Fidelity: Galvanic isolation eliminates ground loop interference in noisy industrial environments
- Flexible Input Acceptance: Supports current, voltage, TC, and RTD inputs on a single module platform
- Proven Reliability: MTBF-rated design consistent with ABB Advant platform lifecycle standards
- Hot-Swap Ready: Designed for live insertion in redundant DCS configurations (verify with site safety procedures)
- Long Service Life: Compatible with ABB’s extended lifecycle support program for legacy Advant installations
System Architecture & Signal Flow
Field transmitters (4–20 mA / HART) connect to the module’s screw-terminal or connector front-end. The HESG447398R0020/70EA06A-E performs A/D conversion and transmits digitized process values over the Advant S-bus backplane to the MasterPiece CPU module. Engineering units scaling, alarm limit checking, and signal filtering are configured via ABB’s Control Builder or equivalent Advant engineering tool. The module supports both simplex and redundant I/O configurations depending on rack and controller setup.
Sourcing & Quality Verification
- All units sourced from authorized ABB distribution channels or verified industrial surplus with full traceability
- Pre-shipment inspection: visual, label verification, and functional bench test where applicable
- Original ABB firmware version preserved — no third-party modifications
- Packaging: ESD-safe anti-static bag + foam-lined carton for international transit
- Certificate of Conformance (CoC) available upon request
- Lead time: typically 3–7 business days for in-stock units; 2–4 weeks for sourced units
Procurement Process
- Submit your RFQ via support@konmask.com or WhatsApp +0086 19859288691
- Receive quotation with availability confirmation within 24 business hours
- Review and approve Proforma Invoice (PI)
- Payment via T/T, PayPal, or agreed trade terms
- Shipment via DHL / FedEx / UPS with full tracking — worldwide delivery
- Post-delivery technical support available from Konmask engineering team
Technical FAQ
Q: Is HESG447398R0020/70EA06A-E compatible with ABB MasterPiece 200/1?
A: Yes, this module is designed for the ABB Advant OCS / MasterPiece platform family. Confirm rack slot compatibility with your system’s I/O configuration drawing.
Q: Can this module accept HART signals?
A: The module accepts 4–20 mA analog signals. HART pass-through capability depends on the specific firmware revision and system configuration — contact us for confirmation.
Q: Do you provide a warranty?
A: Yes. Konmask provides a 90-day functional warranty on all verified units. Extended warranty options are available upon request.
Q: Can I get a test report before shipment?
A: Yes. Functional test reports and inspection photos are available for orders above minimum quantity thresholds.
