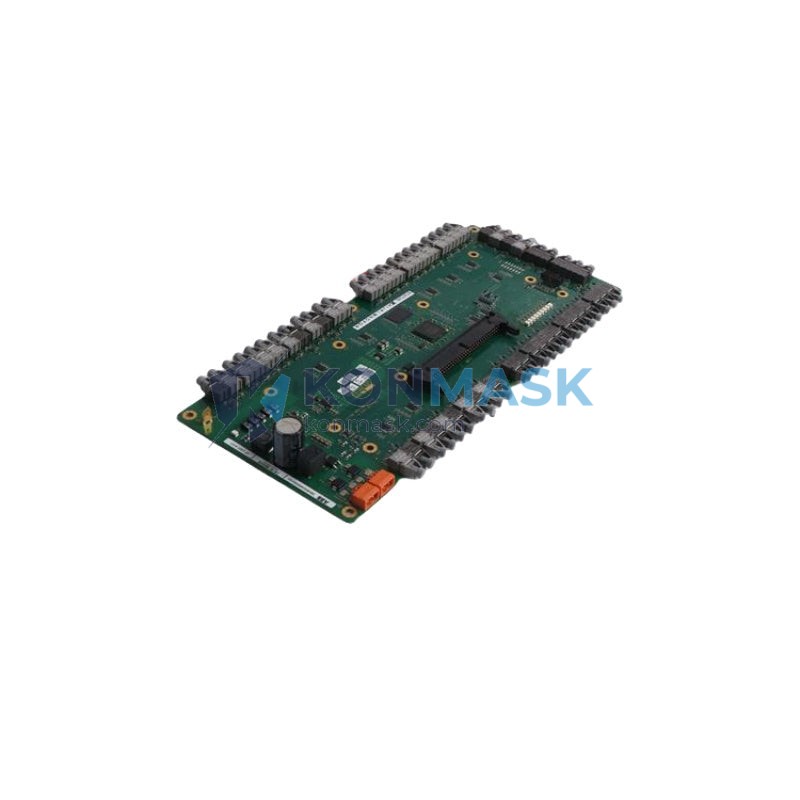

ABB JINT-C1C 68614902H – Industrial Power Supply Board | AC800M DCS Platform
Engineering Background
The ABB JINT-C1C (Part No. 68614902H) is a dedicated power supply board engineered for ABB’s AC800M Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in the global energy, chemical, and pulp & paper industries. Designed to deliver stable, conditioned DC power to controller backplanes and I/O modules, this board is a critical reliability component in continuous-process environments where unplanned downtime carries significant operational cost.
Product Positioning
Procurement engineers sourcing replacement or spare JINT-C1C boards require exact OEM-equivalent hardware to maintain system certification and avoid compatibility risk. Konmask.com specializes in verified industrial automation components, offering genuine ABB modules with full traceability — suitable for MRO (Maintenance, Repair & Operations) procurement, capital spares programs, and system expansion projects.
Complete Technical Specifications
| Manufacturer | ABB |
| Part Number | JINT-C1C |
| Assembly / Revision Code | 68614902H |
| Module Type | Power Supply Board (PSU Board) |
| Compatible Platform | ABB AC800M DCS / S800 I/O |
| Form Factor | PCB Assembly, rack-mount compatible |
| Weight (approx.) | 500 g |
| Condition | New / Refurbished (specify at inquiry) |
| Warranty | 12 months from shipment date |
| Lead Time | In stock / 3–7 business days (EXW) |
| Export Classification | EAR99 (verify for destination country) |
Note: Full electrical specifications (input voltage range, output rails, ripple tolerance) are available upon request or in the ABB AC800M Hardware Configuration Manual.
Proven Application Environments
- Oil & Gas: Upstream SCADA and downstream refinery DCS cabinets requiring 24/7 uptime
- Chemical & Petrochemical: Continuous batch process controllers with redundant power architectures
- Pulp & Paper: AC800M-based machine control systems in high-humidity mill environments
- Power Generation: Turbine governor and BOP (Balance of Plant) control panels
- Water & Wastewater: Remote I/O stations requiring stable low-voltage DC supply
- Pharmaceuticals: GMP-compliant process control systems with validated hardware configurations
Engineering Advantages
- OEM-Identical Replacement: Drop-in compatibility with existing AC800M backplane slots — no firmware reconfiguration required
- Stable DC Output: Engineered to ABB’s internal power quality specifications, minimizing noise-induced I/O errors
- Thermal Resilience: Designed for industrial ambient temperature ranges typical of control room and field cabinet installations
- Redundancy Support: Compatible with ABB’s redundant power supply configurations for high-availability architectures
- Long Service Life: Component-grade selection aligned with ABB’s industrial lifecycle standards
System Architecture & Signal Flow
Within the AC800M architecture, the JINT-C1C power supply board receives primary AC or DC input from the cabinet power distribution unit and conditions it into regulated DC rails distributed to the PM8xx processor module and connected S800 I/O clusters. The board interfaces directly with the backplane bus, ensuring synchronized power sequencing during controller startup and graceful shutdown during power loss events. In redundant configurations, dual PSU boards operate in active-standby mode with automatic failover — the JINT-C1C is designed to support this topology without additional external switching hardware.
Sourcing & Quality Verification
- Genuine ABB Origin: All JINT-C1C units sourced through authorized distribution channels or verified OEM surplus — no counterfeit risk
- Incoming Inspection: Each board undergoes visual inspection, label verification (part number, revision code, date code), and functional power-on test where applicable
- Traceability Documentation: Certificate of conformance, packing list, and shipping documentation provided with every order
- Packaging: ESD-safe anti-static bag + foam-lined carton, suitable for international air and sea freight
- RoHS Status: Confirm with Konmask team based on specific revision code and production date
Procurement Process
- Submit RFQ: Contact support@konmask.com with your required quantity, delivery timeline, and destination port
- Quotation & Lead Time Confirmation: Receive formal quotation within 1 business day including unit price, freight estimate, and ETA
- Purchase Order: Issue PO against quotation; proforma invoice issued for prepayment or net terms (qualified accounts)
- Quality Hold & Dispatch: Final inspection completed, ESD packaging applied, and shipment booked with tracking number provided
- After-Sales Support: 12-month warranty coverage; technical support available via email and phone
Technical FAQ
Q: Is the JINT-C1C 68614902H compatible with all AC800M controller variants?
A: The JINT-C1C is designed for the AC800M platform. Compatibility with specific PM8xx variants should be confirmed against the ABB Hardware Configuration Manual or by contacting our technical team.
Q: Can this board be used in a redundant PSU configuration?
A: Yes. The JINT-C1C supports ABB’s standard redundant power supply topology. Ensure the backplane and cabinet wiring are configured per ABB’s redundancy guidelines.
Q: What is the difference between revision codes (e.g., 68614902H vs. earlier revisions)?
A: Revision codes reflect PCB layout or component updates by ABB engineering. In most cases, later revisions are backward-compatible. Contact us to confirm cross-compatibility for your specific installation.
Q: Do you provide a test report or functional verification certificate?
A: Yes, functional test reports are available upon request for refurbished units. New units ship with OEM documentation.
Q: What are the payment and shipping terms?
A: We accept T/T (bank transfer), PayPal, and major credit cards. Shipping via DHL, FedEx, or UPS Express. EXW Xiamen, China. Incoterms negotiable for large orders.
