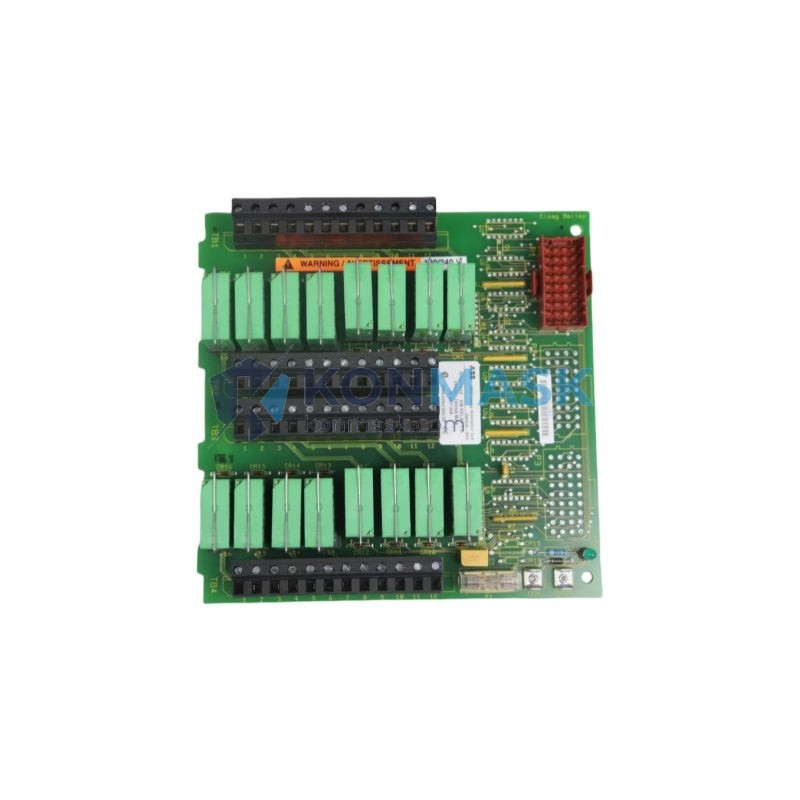

ABB NTU-7Q2-E Termination Unit Digital Output Relay | Replacement, Equivalent & Selection Guide
The ABB NTU-7Q2-E is a Termination Unit for Digital Output Relay signals, designed for use within ABB’s Advant / MOD 300 / Master DCS platform. It provides a robust, field-wiring interface between the DCS controller and field devices, supporting reliable relay-based digital output switching in demanding industrial environments. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams.
Technical Specifications
- Part Number: NTU-7Q2-E
- Manufacturer: ABB
- Series: Advant / MOD 300 / Master DCS Termination Units
- Function: Digital Output Relay Termination Unit
- Output Type: Relay (Digital O/P)
- Form Factor: DIN-rail / rack-mount termination panel
- Weight: ~700 g
- Compatibility: ABB Advant Controller series, MOD 300 I/O subsystem
- Operating Environment: Industrial control cabinet, IEC 61131-compliant systems
- Condition Available: New, Refurbished, Tested Used
Compatible Replacement & Equivalent Models
If the ABB NTU-7Q2-E is discontinued, long lead-time, or out of budget, the following models may serve as functional replacements or equivalents — always verify electrical and mechanical compatibility before substitution:
- ABB NTU-7Q1-E — Single-relay variant; verify channel count matches your I/O card
- ABB NTU-7Q3-E — Higher-density relay termination; check backplane connector pinout
- ABB TU810V1 / TU830V1 — S800 I/O series termination units (requires S800 I/O modules, not direct drop-in)
- ABB NTAI05 / NTAI09 — Analog termination units (different signal type; listed for reference only)
- Third-party DIN relay termination panels — Custom wiring required; consult your system integrator
⚠ Note: Always cross-reference the I/O module part number (e.g., NDIO-01, NDIO-02) to confirm termination unit compatibility before ordering.
Why Choose the Original ABB NTU-7Q2-E
- ✅ Plug-and-play compatibility with ABB Advant / MOD 300 DCS I/O cards — no rewiring
- ✅ Factory-matched relay ratings — voltage, current, and isolation specs pre-validated by ABB
- ✅ Reduced commissioning risk — eliminates field adaptation and custom cable assemblies
- ✅ Long service life — industrial-grade relay contacts rated for high-cycle operation
- ✅ Spare parts continuity — maintains OEM traceability for audits and insurance compliance
Typical Applications
- Motor starter and contactor control in process plants
- Valve open/close command outputs in oil & gas and chemical facilities
- Alarm and shutdown relay outputs in safety-instrumented systems (non-SIL rated)
- Pump and fan on/off control in water treatment and utilities
- General-purpose digital output switching in ABB DCS-controlled plants
System Compatibility
| DCS Platform | Compatible I/O Module | Notes |
|---|---|---|
| ABB Advant OCS / MOD 300 | NDIO-01, NDIO-02 | Direct compatible |
| ABB Master DCS | DSDIO series | Verify backplane revision |
| ABB Advant Controller 450 | DSDO series | Check termination board revision |
| Third-party DCS | N/A | Custom wiring adapter required |
Selection Guide
Use the following criteria to confirm the NTU-7Q2-E is the right termination unit for your project:
- Step 1 — Identify your I/O module: Locate the ABB I/O card part number installed in your controller rack (e.g., NDIO-01).
- Step 2 — Match the termination unit: Cross-reference the I/O module’s documentation to confirm NTU-7Q2-E is the specified termination unit.
- Step 3 — Verify relay type: Confirm whether your application requires SPDT, DPDT, or NO/NC relay contacts.
- Step 4 — Check channel count: Ensure the number of relay channels on the NTU-7Q2-E matches your field device count.
- Step 5 — Confirm voltage/current ratings: Validate relay contact ratings against your field load specifications.
- Step 6 — Order with confidence: Contact Konmask.com for availability, lead time, and pricing.
Quality Assurance & Sourcing
At Konmask.com, every ABB NTU-7Q2-E unit is:
- Sourced from authorized distributors or verified surplus channels
- Inspected for physical integrity, connector condition, and relay contact continuity
- Tested under simulated DCS I/O conditions where applicable
- Shipped with anti-static packaging and full documentation
- Backed by our 30-day return & replacement guarantee
How to Order
- Online: Add to cart directly on this page
- Email RFQ: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Bulk / Project Orders: Contact us for volume pricing and lead-time commitments
- Expedite Available: Ask about air freight and same-week dispatch options
Replacement & Compatibility FAQ
Q: Is the ABB NTU-7Q2-E still in production?
A: ABB has transitioned many Advant/MOD 300 components to end-of-life. Konmask.com maintains stock of new and refurbished units — contact us for current availability.
Q: Can I use NTU-7Q1-E instead of NTU-7Q2-E?
A: The Q1 and Q2 variants differ in relay channel configuration. Verify your I/O module’s termination unit specification before substituting.
Q: Does the NTU-7Q2-E work with ABB S800 I/O?
A: No. The NTU-7Q2-E is designed for the Advant/MOD 300 platform. ABB S800 I/O uses TU8xx series termination units.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–6 week lead time. Contact us for real-time availability.
Q: Do you provide a test report or certificate of conformance?
A: Yes, upon request for new and refurbished units. Please specify your documentation requirements when ordering.
