ABB PM825 3BSE010796R1 — High-Performance DCS Processor Module | AC800M Platform
Engineering Background

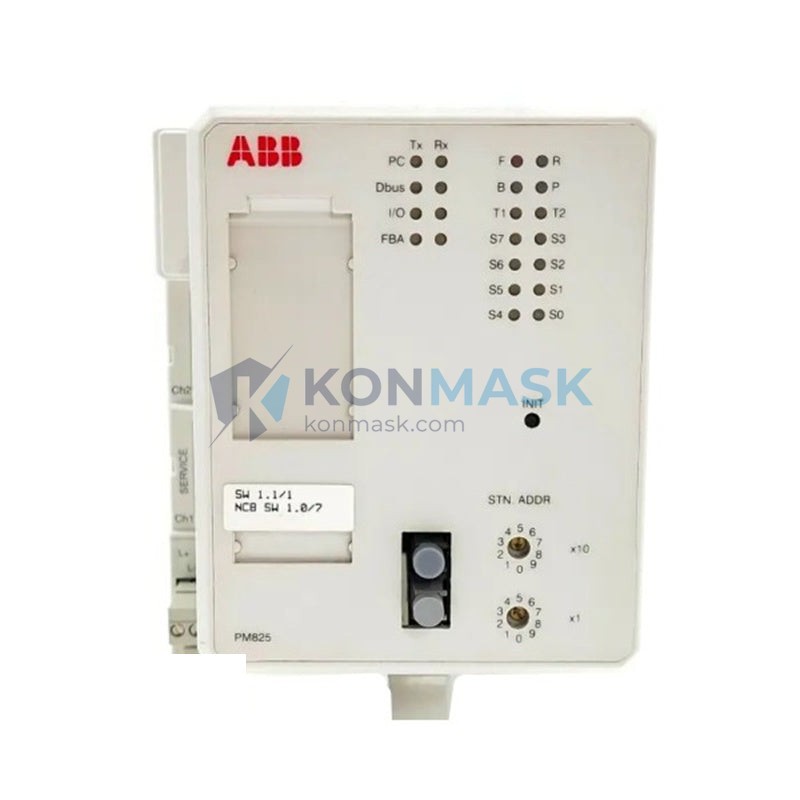

The ABB PM825 (part number 3BSE010796R1) is a central processing unit module designed for ABB’s AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in the global process automation industry. The AC800M series is the backbone of critical infrastructure in oil & gas, power generation, pulp & paper, pharmaceuticals, and chemical processing plants worldwide.
Product Positioning
The PM825 occupies the high-performance tier of the AC800M CPU lineup, offering expanded memory capacity, faster scan cycle execution, and enhanced redundancy support compared to entry-level PM8xx variants. It is the preferred choice for large-scale process control applications requiring deterministic real-time response, high I/O point counts, and continuous 24/7 operation under demanding industrial conditions.
Complete Technical Specifications
| Part Number | 3BSE010796R1 |
| Model | PM825 |
| Platform | ABB AC800M DCS |
| Module Type | Central Processor Unit (CPU) |
| Processor Architecture | 32-bit RISC |
| Program Memory | 8 MB Flash |
| Data Memory (RAM) | 16 MB SDRAM |
| Communication Ports | 2 × Ethernet (10/100 Mbps), 1 × RS-232 service port |
| Supported Protocols | PROFIBUS DP, Modbus RTU/TCP, OPC DA/UA, IEC 61850, Foundation Fieldbus (via CI modules) |
| Max I/O Points | Up to 64,000 I/O tags (application-dependent) |
| Redundancy Support | Hot-standby CPU redundancy (requires paired PM825 + CI858 or equivalent) |
| Scan Cycle Time | Configurable; minimum ~10 ms for fast loops |
| Operating Voltage | 24 VDC (supplied via backplane) |
| Power Consumption | ≤ 8 W typical |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −40 °C to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | AC800M S800 I/O backplane (TB820 or equivalent) |
| Dimensions (W × H × D) | Approx. 35 × 130 × 110 mm |
| Weight | ~900 g |
| Certifications | CE, UL, cUL, ATEX (zone 2 with appropriate enclosure) |
| Programming Environment | ABB Control Builder M (IEC 61131-3: LD, FBD, ST, IL, SFC) |
| Firmware Compatibility | AC800M firmware 5.x and above |
| RoHS Compliance | Yes |
Proven Application Environments
- Oil & Gas: Upstream wellhead control, midstream pipeline SCADA, downstream refinery DCS integration
- Power Generation: Turbine governor control, boiler management systems, grid synchronization logic
- Pulp & Paper: Digester control, bleaching sequence management, paper machine drive coordination
- Pharmaceuticals: Batch process control (ISA-88 compliant), clean-room HVAC automation, CIP/SIP cycle management
- Chemical Processing: Reactor temperature/pressure control, distillation column management, safety interlock systems
- Water & Wastewater: Pump station automation, dosing control, SCADA integration via Modbus/OPC
Engineering Advantages
- Deterministic Real-Time Control: Fixed-priority task scheduling ensures critical control loops execute within guaranteed time windows, essential for safety-critical processes.
- Seamless Redundancy: Bumpless switchover in hot-standby mode minimizes process disruption during CPU failover events — no manual intervention required.
- Broad Protocol Ecosystem: Native support for PROFIBUS DP and Modbus, plus OPC UA gateway capability, enables integration with legacy field devices and modern MES/SCADA layers simultaneously.
- Scalable I/O Architecture: Modular S800 I/O expansion allows engineers to scale from small skid controllers to plant-wide DCS without changing the CPU platform.
- Long Product Lifecycle: ABB’s AC800M platform has a documented multi-decade support commitment, protecting capital investment in installed base.
- IEC 61131-3 Compliance: Standard programming languages reduce vendor lock-in risk and allow cross-trained engineering teams to maintain code.
System Architecture & Signal Flow
The PM825 mounts directly onto the AC800M backplane (e.g., TB820V2) and communicates with S800 I/O modules via the internal ModuleBus. Field signals flow from field instruments → S800 I/O modules → ModuleBus → PM825 CPU → Control Builder M application logic → output modules → final control elements (valves, drives, etc.).
For redundant configurations, a second PM825 is installed in the adjacent backplane slot. The active CPU continuously synchronizes its application data to the standby CPU via a dedicated redundancy link. Upon detection of a CPU fault, the standby assumes control within one scan cycle, maintaining process continuity.
Upstream connectivity to the plant network (DCS operator stations, historian, MES) is achieved via the PM825’s Ethernet ports using OPC DA/UA or proprietary ABB communication drivers within the ABB 800xA System.
Sourcing & Quality Verification
- Genuine Parts: All PM825 units supplied by Konmask.com are sourced from authorized ABB distribution channels or verified industrial surplus with full traceability documentation.
- Pre-Shipment Inspection: Each module undergoes visual inspection for physical damage, label integrity (part number, serial number, firmware revision sticker), and connector pin condition before dispatch.
- Packaging: Shipped in anti-static ESD bags with foam cushioning inside double-wall corrugated cartons. Desiccant packs included for long-transit humidity control.
- Documentation: Certificate of conformity, original ABB datasheet, and packing list provided with every order.
- Warranty: 12-month warranty against manufacturing defects. DOA (Dead on Arrival) replacement within 7 business days of confirmed fault report.
Procurement Process
- Inquiry: Submit your RFQ via the product page or email support@konmask.com with quantity, required delivery date, and destination port.
- Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options (DHL Express, FedEx, sea freight for bulk orders).
- Order Confirmation: Issue a Purchase Order (PO) or pay via T/T bank transfer, PayPal, or credit card through our secure checkout.
- Quality Check & Dispatch: Pre-shipment inspection completed; tracking number provided within 24–48 hours of payment clearance.
- Delivery: Typical transit: 3–7 business days (DHL Express international). Customs documentation (commercial invoice, packing list, HS code 8537.10) provided for smooth clearance.
- After-Sales Support: Technical support available via email and WhatsApp for installation, commissioning, and compatibility queries.
Technical FAQ
Q: Is the PM825 compatible with the ABB 800xA System?
A: Yes. The PM825 is fully supported within the ABB System 800xA engineering and operations environment when running compatible AC800M firmware (5.x and above).
Q: Can the PM825 replace a PM820 or PM821 in an existing installation?
A: In most cases yes, subject to backplane compatibility and firmware version alignment. We recommend consulting the ABB AC800M Hardware Configuration manual (3BSE041434) and verifying the Control Builder M project configuration before substitution.
Q: What is the maximum number of S800 I/O modules per PM825?
A: Up to 12 S800 I/O modules per local backplane, with additional remote I/O via PROFIBUS DP or Ethernet-based I/O expansion.
Q: Does the PM825 support SIL-rated safety functions?
A: The standard PM825 is not SIL-certified. For safety-instrumented systems, ABB offers the dedicated AC800M HI (High Integrity) platform. Contact us for SIL-rated alternatives.
Q: What firmware version is pre-loaded on your stock units?
A: Firmware versions vary by production batch. Please specify your required firmware version at time of order and we will confirm availability or arrange factory upgrade service.
Q: Do you offer exchange/repair services for faulty PM825 units?
A: Yes. We offer board-level repair and exchange programs. Contact support@konmask.com with your fault description and serial number for a repair quotation.
