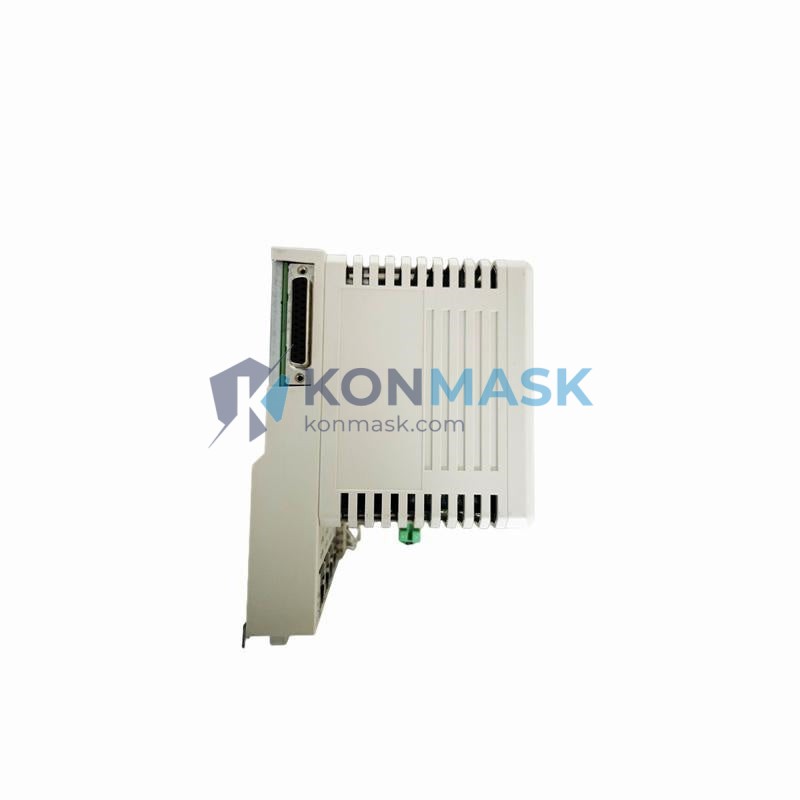

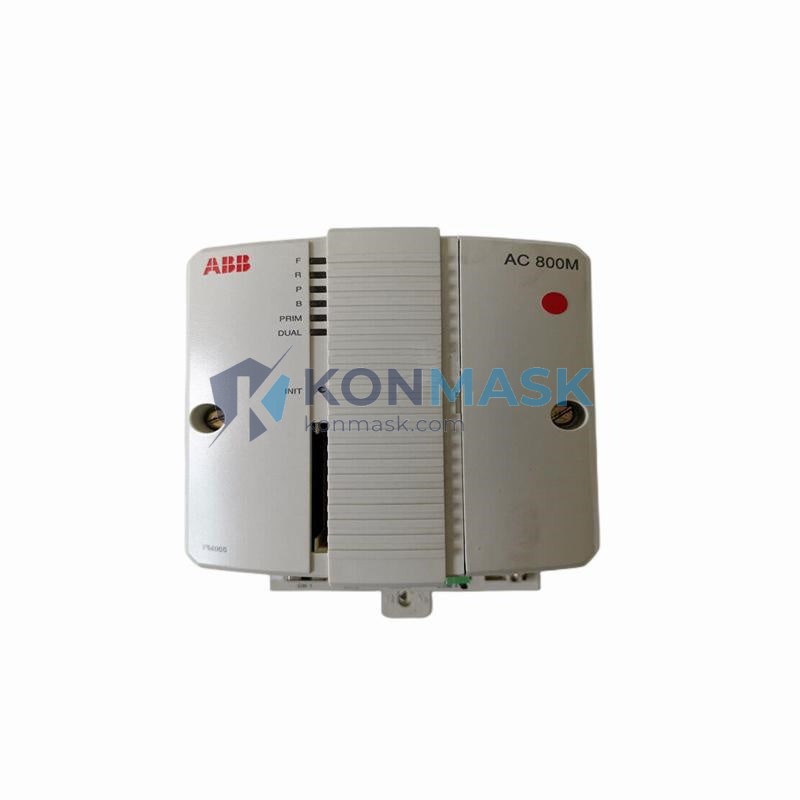

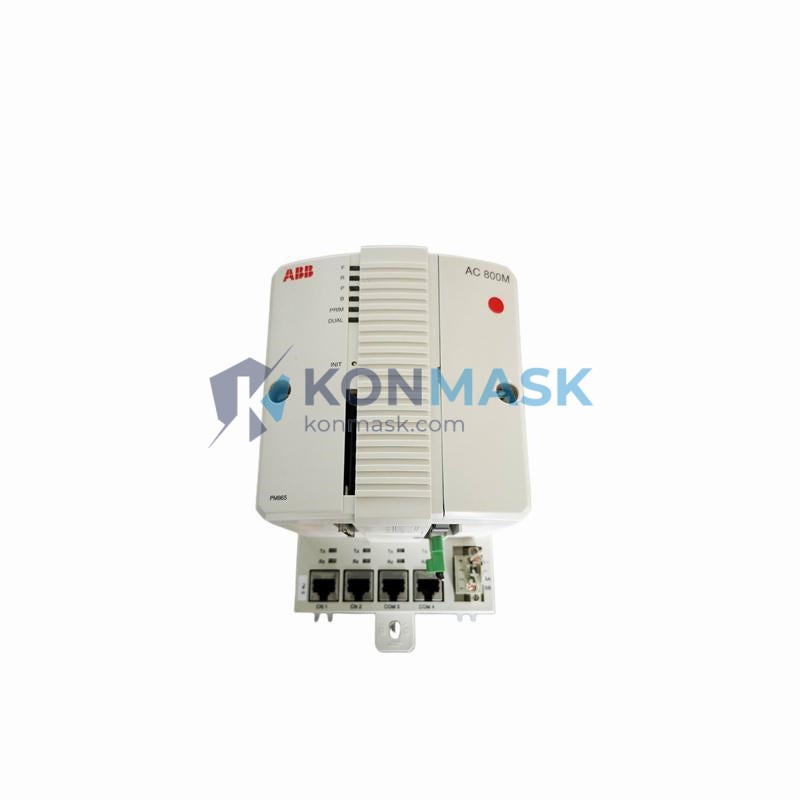

ABB PM865K01 (3BSE031151R1) – High-Performance Redundancy Processor | AC 800M Platform
Engineering Background
The ABB PM865K01, part number 3BSE031151R1, is a high-performance processor module designed for the AC 800M controller platform — ABB’s flagship DCS/PLC architecture for process-critical and safety-instrumented applications. Engineered to meet the demands of continuous industrial operations, the PM865K01 delivers deterministic real-time control with integrated redundancy support, making it the preferred choice for engineers specifying reliable automation infrastructure in power, oil & gas, chemical, and advanced manufacturing environments.
Product Positioning
As a senior-tier processor within the AC 800M family, the PM865K01 sits above the PM864 series, offering expanded memory capacity, faster cycle times, and native support for hot-standby CPU redundancy. Procurement engineers sourcing replacement or expansion modules for existing AC 800M installations will find the PM865K01 a direct, drop-in compatible upgrade path with no firmware re-architecture required.
Complete Technical Specifications
- Manufacturer: ABB
- Model / Part Number: PM865K01 / 3BSE031151R1
- Platform: AC 800M (Advant Controller 800M)
- Processor Type: 32-bit RISC CPU
- Program Memory: 64 MB RAM (application + data)
- Flash Memory: 32 MB non-volatile storage
- Cycle Time: Minimum 1 ms (task-dependent)
- Communication Ports: 2 × Ethernet (10/100 Mbps), 1 × RS-232 service port
- Redundancy: Hot-standby CPU redundancy supported (requires PM865K01 pair)
- Backplane Bus: AC 800M S800 I/O bus compatible
- Operating Voltage: 24 VDC (via controller backplane)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −40 °C to +70 °C
- Humidity: 5–95% RH, non-condensing
- Protection Class: IP20
- Dimensions (W × H × D): Approx. 40 × 230 × 230 mm
- Weight: ~1,200 g
- Certifications: CE, UL, cUL, ATEX (zone 2 with appropriate enclosure)
- Software Compatibility: Control Builder M (CBM) Professional / Plus
- Firmware: Compatible with AC 800M firmware 5.x and above
Proven Application Environments
- Oil & Gas: Upstream wellhead control, pipeline SCADA, compressor station automation
- Power Generation: Turbine governor control, boiler management systems, substation automation
- Chemical & Petrochemical: Batch reactor sequencing, distillation column control, SIL-rated safety loops
- Pulp & Paper: Continuous digester control, bleaching line automation
- Water & Wastewater: Pump station control, SCADA integration, remote telemetry
- Advanced Manufacturing: Precision motion coordination, multi-axis synchronization, quality-critical process control
Engineering Advantages
- Hot-Standby Redundancy: Bumpless switchover in <50 ms ensures zero process interruption during CPU failover — critical for continuous process industries.
- Expanded Memory Architecture: 64 MB RAM supports large application programs and extensive data logging without external memory expansion.
- Dual Ethernet Connectivity: Supports simultaneous connection to plant LAN and control network, enabling transparent integration with ABB System 800xA DCS.
- Deterministic Real-Time Execution: RISC-based architecture guarantees scan-cycle consistency under full I/O load — no jitter in time-critical control loops.
- Backward Compatibility: Fully compatible with existing S800 I/O modules, CI8xx communication interfaces, and AC 800M controller cabinets — no hardware redesign required.
- Long Service Life: ABB’s extended product lifecycle policy ensures continued firmware support and spare parts availability for installed base protection.
System Architecture & Signal Flow
The PM865K01 mounts in the AC 800M controller unit (e.g., TP830, TP854) and communicates with distributed S800 I/O stations via the ModuleBus over fiber or copper. In a redundant configuration, two PM865K01 modules operate in active/standby mode, continuously synchronizing application data over a dedicated redundancy link. The active CPU executes the control program and writes outputs; the standby CPU mirrors all process data and assumes control within one scan cycle upon detecting a primary fault. Upstream, the processor connects to ABB System 800xA or standalone OPC DA/UA SCADA systems via Ethernet, supporting standard industrial protocols including PROFIBUS DP (via CI854), FOUNDATION Fieldbus (via CI852), and Modbus TCP.
Sourcing & Quality Verification
- Stock Condition: Surplus / refurbished units — each module inspected and function-tested prior to listing
- Traceability: Original ABB labeling and part number markings verified; 3BSE031151R1 confirmed on physical unit
- Inspection Protocol: Visual inspection (PCB, connectors, housing), power-on self-test (POST) verification, firmware version confirmation
- Packaging: ESD-safe anti-static bag + foam-lined carton; humidity indicator card included
- Warranty: 90-day functional warranty against DOA; extended warranty available upon request
- Counterfeit Prevention: All units sourced from verified industrial decommissioning projects and authorized surplus channels — no gray-market or clone components
Procurement Process
- Inquiry: Submit your RFQ via the product page or email support@konmask.com with required quantity and delivery timeline.
- Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options.
- Order Confirmation: Purchase order accepted via bank transfer (T/T), PayPal, or platform checkout.
- Pre-Shipment Inspection: Final function test performed; inspection report available upon request.
- Shipping: DHL / FedEx / UPS express worldwide; typical transit 3–7 business days. Sea freight available for bulk orders.
- After-Sales Support: Technical assistance available for installation, firmware compatibility, and system integration queries.
Technical FAQ
Q: Is the PM865K01 compatible with the PM864A?
A: Yes. Both modules share the AC 800M platform and S800 I/O bus. The PM865K01 offers higher memory and redundancy capability; no I/O rewiring is required when upgrading.
Q: What Control Builder M version is required?
A: Control Builder M Professional 5.1 or later is recommended. Earlier versions may have limited support for PM865K01-specific features.
Q: Can this module be used in SIL 2 safety applications?
A: The PM865K01 itself is not SIL-certified. For safety-instrumented systems, ABB’s SM811 / SM812 safety modules within the AC 800M S platform are required. The PM865K01 can coexist in the same cabinet as a standard controller.
Q: Do you provide firmware loading service?
A: Yes. We can pre-load a specified firmware version upon request. Please confirm the target firmware version at time of order.
Q: What is the lead time for bulk orders (>5 units)?
A: Typically 5–10 business days depending on stock availability. Contact us for a dedicated bulk quotation.
