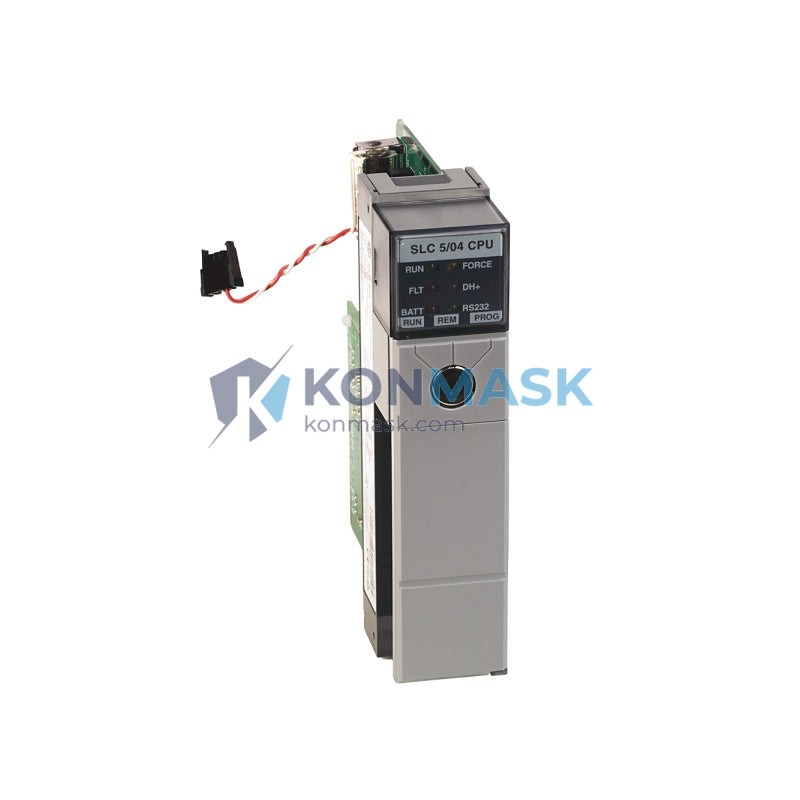

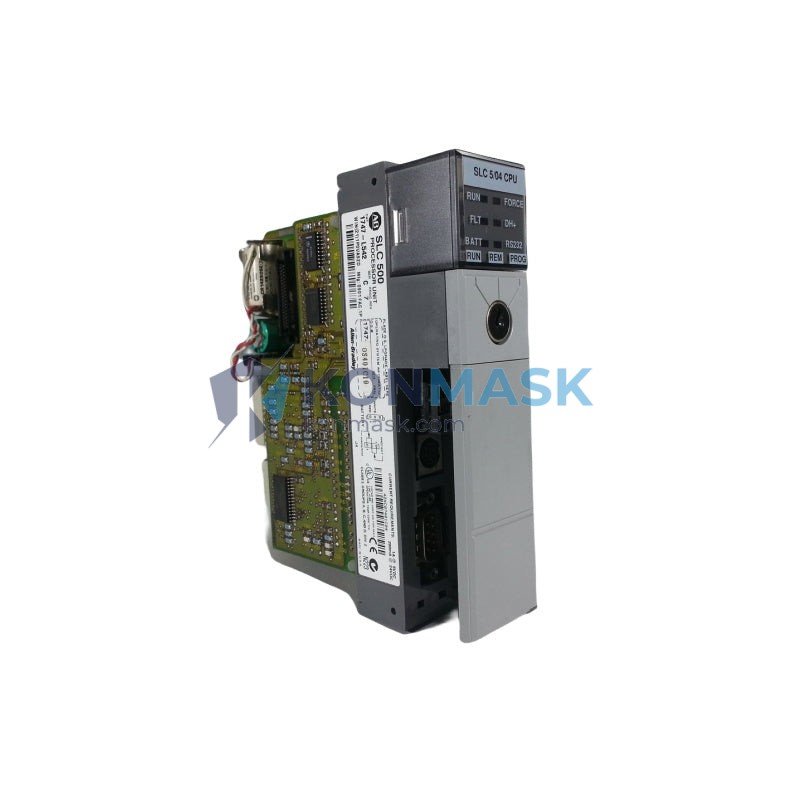

Allen-Bradley 1747-L542/C SLC 5/04 Processor – SLC 500 Series
When a PLC processor fails on the plant floor, production doesn’t pause politely — conveyors stop, alarms cascade, and every idle minute translates directly into lost revenue and missed delivery commitments. In facilities running Allen-Bradley SLC 500 architectures, the processor is the heartbeat of the entire control system: without it, every I/O module, every field device, and every carefully tuned ladder-logic routine goes silent. The Allen-Bradley 1747-L542/C is the exact replacement and upgrade path that keeps those systems alive, delivering proven reliability in environments where downtime is simply not an option.
Within the SLC 500 family, the 1747-L542/C occupies the mid-to-high performance tier as an SLC 5/04 processor. It offers 16K words of user memory — four times the capacity of the entry-level 5/01 — combined with dual communication ports (DH+ and RS-232/DF1), making it the preferred choice for distributed manufacturing cells that must exchange data with supervisory SCADA systems, HMI panels, and peer PLCs simultaneously. Globally, the SLC 500 platform remains one of the most widely deployed small-to-mid-range PLC families in discrete manufacturing, food & beverage, water treatment, and OEM machinery, with millions of installed nodes still in active service across North America, Europe, and Asia-Pacific.
Technical Specifications
- Part Number: 1747-L542/C
- Series: SLC 500 / SLC 5/04
- Manufacturer: Allen-Bradley (Rockwell Automation)
- User Memory: 16K words
- Communication Port 1: DH+ (Data Highway Plus), up to 57.6 Kbps
- Communication Port 2: RS-232 / DF1 (Channel 0)
- I/O Addressing: Up to 4,096 I/O points
- Scan Time: 1 ms/K (typical)
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Storage Temperature: -40 °C to 85 °C
- Relative Humidity: 5% to 95% non-condensing
- Power Supply: Supplied via SLC 500 chassis backplane
- Programming Software: RSLogix 500 / RSLogix Micro
- Firmware Revision: /C (Series C)
- Form Factor: Single-slot SLC 500 chassis module
- Weight: Approx. 300 g
Key Features & Benefits
- Dual-Port Communication: Simultaneous DH+ network connectivity and RS-232 serial programming/HMI link eliminate the need for additional communication modules in most applications.
- 16K Word Memory: Sufficient for complex ladder-logic programs with extensive data tables, PID loops, and sequencer instructions — without requiring memory expansion cards.
- Series C Reliability: The /C firmware revision incorporates Rockwell Automation’s accumulated field improvements, delivering enhanced noise immunity and diagnostic capability over earlier revisions.
- Drop-in Compatibility: Fully backward-compatible with existing SLC 500 chassis, power supplies, and I/O modules — no rewiring or chassis replacement required.
- RSLogix 500 Integration: Native support for Rockwell’s industry-standard programming environment, including online editing, forced I/O, and real-time diagnostics.
- Rugged Industrial Design: Conformal-coated PCB and wide operating temperature range suit harsh factory environments with vibration, dust, and temperature cycling.
- Long Service Life: Designed for 24/7 continuous operation in mission-critical control applications.
Industry & Equipment Applications
- Discrete Manufacturing: Automotive assembly lines, stamping presses, robotic welding cells
- Food & Beverage: Bottling lines, pasteurization systems, packaging machinery
- Water & Wastewater Treatment: Pump station control, filtration sequencing, SCADA integration
- Oil & Gas: Wellhead control panels, pipeline monitoring, compressor skids
- Material Handling: Conveyor systems, sortation equipment, palletizers
- OEM Machinery: Injection molding machines, CNC auxiliary control, test stands
- Building Automation: HVAC control panels, chiller sequencing, energy management
System Integration & Compatible Parts
The 1747-L542/C is designed to operate within the broader Allen-Bradley SLC 500 ecosystem. Compatible and commonly paired components include:
- Chassis: 1746-A4, 1746-A7, 1746-A10, 1746-A13 (4, 7, 10, 13-slot)
- Power Supplies: 1746-P1, 1746-P2, 1746-P3, 1746-P4
- Digital I/O Modules: 1746-IB16, 1746-OB16, 1746-OW16
- Analog I/O Modules: 1746-NI4, 1746-NO4I, 1746-NIO4I
- Communication Modules: 1747-SDN (DeviceNet), 1747-SCNR (ControlNet)
- Programming Cable: 1747-CP3, 1747-UIC (USB-to-DH+)
- HMI Panels: PanelView 300, 550, 600 series via DH+ or DF1
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley 1747-L542/C unit undergoes a rigorous multi-stage inspection before shipment:
- Visual Inspection: PCB, connectors, and housing examined for physical damage, corrosion, or counterfeit indicators
- Authenticity Verification: Holographic labels, date codes, and Rockwell Automation traceability markings cross-checked
- Functional Power-On Test: Module powered and self-diagnostics confirmed prior to packaging
- ESD-Safe Packaging: Shipped in anti-static bags with foam cushioning inside double-wall cartons
- Documentation: Each unit ships with a test report and sourcing declaration upon request
How to Order
- Submit an inquiry via the Contact Us page or email support@konmask.com
- Provide your required quantity, delivery timeline, and destination country
- Receive a formal quotation within 1 business day
- Confirm order and arrange payment via T/T, L/C, or agreed terms
- Shipment dispatched with full tracking and commercial invoice
For urgent requirements or large-volume procurement, please call or WhatsApp: +0086 19859288691
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: We focus exclusively on PLC, DCS, HMI, and drive components — not a generalist distributor
- ✅ Global Sourcing Network: Access to new, surplus, and refurbished stock from verified international suppliers
- ✅ Fast Quotation: Dedicated B2B inquiry response within 24 hours
- ✅ Export Experience: Proficient in international trade documentation, customs compliance, and multi-modal logistics
- ✅ Technical Support: Our team includes experienced automation engineers who can advise on compatibility and integration
- ✅ Competitive Pricing: Direct sourcing relationships enable pricing advantages for volume buyers
Frequently Asked Questions
Q: Is the 1747-L542/C still in production?
A: The SLC 5/04 processor has been discontinued by Rockwell Automation. However, Konmask.com maintains access to new-in-box surplus and professionally refurbished units to support ongoing maintenance and replacement needs.
Q: What is the difference between 1747-L541, 1747-L542, and 1747-L543?
A: These part numbers denote different memory capacities within the SLC 5/04 family: the L541 provides 8K words, the L542 provides 16K words, and the L543 provides 32K words of user memory. All share the same dual-port communication architecture.
Q: Can I use RSLogix 500 to program this processor?
A: Yes. The 1747-L542/C is fully supported by RSLogix 500 and RSLogix Micro. It is also compatible with the legacy A.I. Series software for older program archives.
Q: What chassis slots does this processor occupy?
A: The 1747-L542/C occupies slot 0 (the leftmost slot) of any standard SLC 500 chassis (1746-Axx series). It uses a single slot.
Q: Do you provide a warranty?
A: Yes. All units sold by Konmask.com carry a minimum 90-day functional warranty. Extended warranty options are available — please inquire at the time of quotation.
Q: Can you ship internationally?
A: Absolutely. We regularly export to Southeast Asia, the Middle East, Europe, and the Americas. We handle all export documentation including commercial invoices, packing lists, and certificates of origin.
