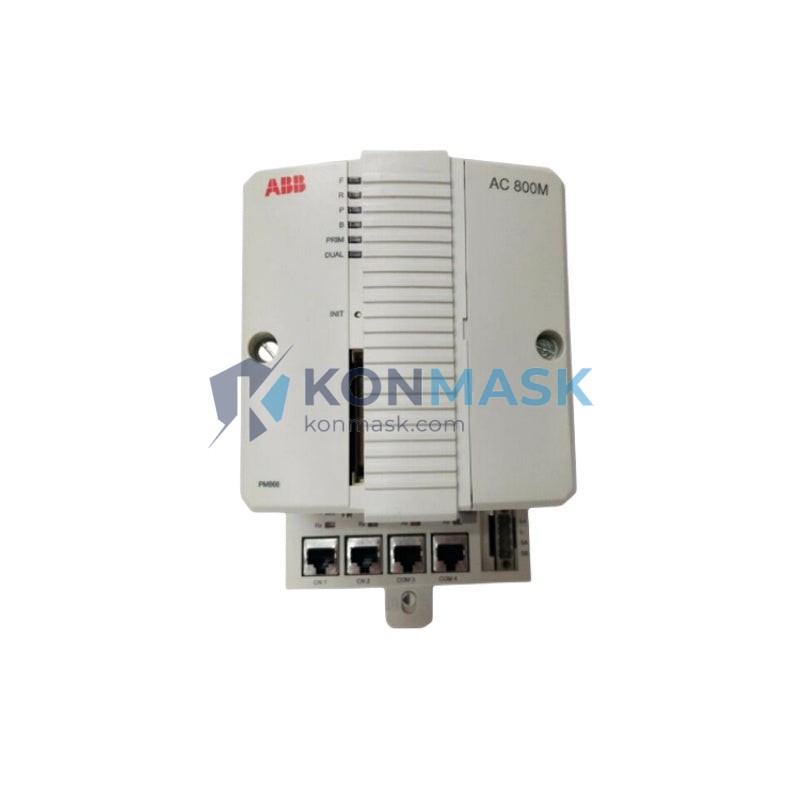

ABB PM866-2 (3BSE050201R1) – Redundant Processor Unit | AC 800M PLC Platform
Engineering Background
The ABB PM866-2 is the dual-redundant central processing unit of the AC 800M controller family — ABB’s flagship distributed control system (DCS) and PLC platform for process-critical industries. Designed for applications where unplanned downtime is unacceptable, the PM866-2 delivers hardware-level CPU redundancy with bumpless, automatic switchover, ensuring continuous process execution even during a primary CPU fault.
Product Positioning
As a procurement engineer sourcing for high-availability control systems, the PM866-2 represents the highest tier of processing capability within the AC 800M range. It is the direct successor to the PM864A and PM865 series, offering expanded memory, faster cycle times, and native support for redundant Ethernet communication. Konmask.com supplies verified OEM units with full traceability, suitable for both new installations and MRO (Maintenance, Repair & Overhaul) replacement.
Complete Technical Specifications
| Part Number | 3BSE050201R1 |
| Model | PM866-2 |
| Series / Platform | AC 800M (S800 I/O Compatible) |
| Manufacturer | ABB Ltd. (Automation Products Division) |
| Country of Origin | Sweden |
| Module Type | Redundant Processor Unit (CPU) |
| Redundancy Mode | Hot-standby, bumpless switchover (<1 ms) |
| Programming Standard | IEC 61131-3 (LD, FBD, ST, IL, SFC) |
| Communication Ports | 2× Ethernet (10/100 Mbps), 1× CEX-Bus, 1× Optical ModuleBus |
| Memory | 64 MB RAM (application), 128 MB Flash |
| Cycle Time | Minimum 1 ms (configurable) |
| Operating Voltage | 24 VDC (via backplane) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5–95% RH (non-condensing) |
| Protection Rating | IP20 |
| Weight | 1,500 g (approx.) |
| Dimensions (W×H×D) | ~50 × 230 × 230 mm |
| Certifications | CE, UL, cUL, ATEX (Zone 2 with barrier), SIL 2 capable |
| HS Code | 853710 |
| Software Tool | ABB Control Builder M (Professional / Plus) |
| Firmware | Compatible with AC 800M firmware 5.x / 6.x |
Proven Application Environments
- Oil & Gas: Upstream wellhead control, pipeline SCADA, compressor station automation
- Power Generation: Turbine governor control, boiler management systems (BMS), grid synchronization
- Chemical & Petrochemical: Reactor control loops, safety instrumented systems (SIS) integration
- Pulp & Paper: Continuous process control with high I/O density via S800 I/O modules
- Water & Wastewater: Redundant SCADA controllers for treatment plant automation
- Marine & Offshore: Vessel automation, dynamic positioning (DP) auxiliary control
- Mining: Conveyor and crusher control with fault-tolerant architecture
Engineering Advantages
- True Hot-Standby Redundancy: Both CPUs execute identical programs simultaneously; switchover is bumpless and transparent to the process — no output glitch, no scan-cycle interruption.
- Expanded Memory Architecture: 64 MB application RAM supports large-scale programs with thousands of function blocks and data arrays, eliminating the memory constraints of earlier PM8xx generations.
- Dual Ethernet Backbone: Two independent 100 Mbps Ethernet ports enable ring or star topology with built-in network redundancy, reducing single-point-of-failure risk at the communication layer.
- IEC 61131-3 Compliance: Full multi-language programming support within ABB Control Builder M — engineers can mix Ladder, FBD, and Structured Text within a single project.
- Backward Compatibility: Drop-in replacement for PM864A and PM865 in existing AC 800M racks — no hardware re-wiring required, only firmware and project migration.
- SIL 2 Capable Architecture: When paired with ABB’s S800 safety I/O modules and certified application libraries, the PM866-2 supports IEC 61508 SIL 2 safety functions.
System Architecture & Signal Flow
The PM866-2 mounts directly into the AC 800M controller rack (TB820V2 or TB840A backplane). The primary and redundant CPUs communicate via a dedicated CEX-Bus synchronization link, maintaining identical memory images at all times. Field I/O is connected via the Optical ModuleBus to S800 I/O clusters (up to 12 clusters, 256 I/O modules per cluster). Supervisory communication to ABB 800xA DCS or third-party SCADA is handled via the dual Ethernet ports using OPC DA/UA, PROFIBUS DP Master, or FOUNDATION Fieldbus HSE protocols (with appropriate communication modules).
Typical Rack Configuration: TB840A Backplane → PM866-2 (Primary) + PM866-2 (Redundant) → SM810 (Redundant Power Supply) → CI854A (PROFIBUS DP) / CI873 (PROFINET) communication modules.
Sourcing & Quality Verification
- Origin: OEM manufactured in Sweden by ABB Automation Products AB
- Traceability: Each unit ships with original ABB part label (3BSE050201R1), serial number, and date code
- Condition: New surplus / refurbished units available — condition specified at time of quotation
- Testing: Functional power-on test performed prior to shipment; test report available on request
- Packaging: ESD-safe anti-static bag, foam-lined export carton, moisture barrier
- Warranty: 12-month Konmask warranty covering manufacturing defects and functional failure
Procurement Process
- Submit RFQ: Contact [email protected] with quantity, required condition (new/refurbished), and delivery timeline
- Quotation: Receive itemized quote with unit price (HKD/USD), lead time, and shipping options within 24 hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment
- Payment: T/T bank transfer, PayPal, or credit card (Visa/Mastercard via Shopify Payments)
- Shipment: DHL Express / FedEx International Priority with full tracking; export documentation (commercial invoice, packing list, COO) included
- After-Sales: Technical support available via email and WhatsApp (+0086 19859288691) for installation and commissioning queries
Technical FAQ
Q: Is the PM866-2 (3BSE050201R1) backward compatible with PM864A racks?
A: Yes. The PM866-2 uses the same physical form factor and backplane connector as the PM864A and PM865. It can be installed in existing TB820V2 or TB840A racks without hardware modification. A project migration using ABB Control Builder M is required to take advantage of PM866-2 features.
Q: What is the minimum firmware version required for PM866-2?
A: ABB AC 800M firmware version 5.1 or higher is required. Firmware 6.x is recommended for full feature support including enhanced Ethernet diagnostics.
Q: Can the PM866-2 operate in a non-redundant (simplex) configuration?
A: Yes. A single PM866-2 can operate as a standalone (simplex) controller. The redundancy feature is activated when a second PM866-2 is installed in the same rack and configured as the standby unit in Control Builder M.
Q: What I/O capacity does the PM866-2 support?
A: Via the Optical ModuleBus, the PM866-2 supports up to 12 S800 I/O clusters with a maximum of 256 I/O modules per cluster, providing thousands of physical I/O points in a single controller domain.
Q: Is export documentation available for customs clearance?
A: Yes. Konmask provides a full set of export documents including commercial invoice, packing list, certificate of origin (COO), and HS code declaration (853710) for all international shipments.
