ABB PM866K01 (3BSE050198R1) – AC 800M High-Performance Processor Unit | ABB AC 800M DCS Platform
Engineering Background
The ABB AC 800M is ABB’s flagship distributed control system (DCS) platform, widely deployed across power generation, oil & gas, pulp & paper, and chemical process industries. Designed for mission-critical continuous process control, the AC 800M architecture supports redundant CPU configurations, high-speed fieldbus communication, and deterministic real-time execution — making it the backbone of thousands of industrial plants worldwide.
Product Positioning

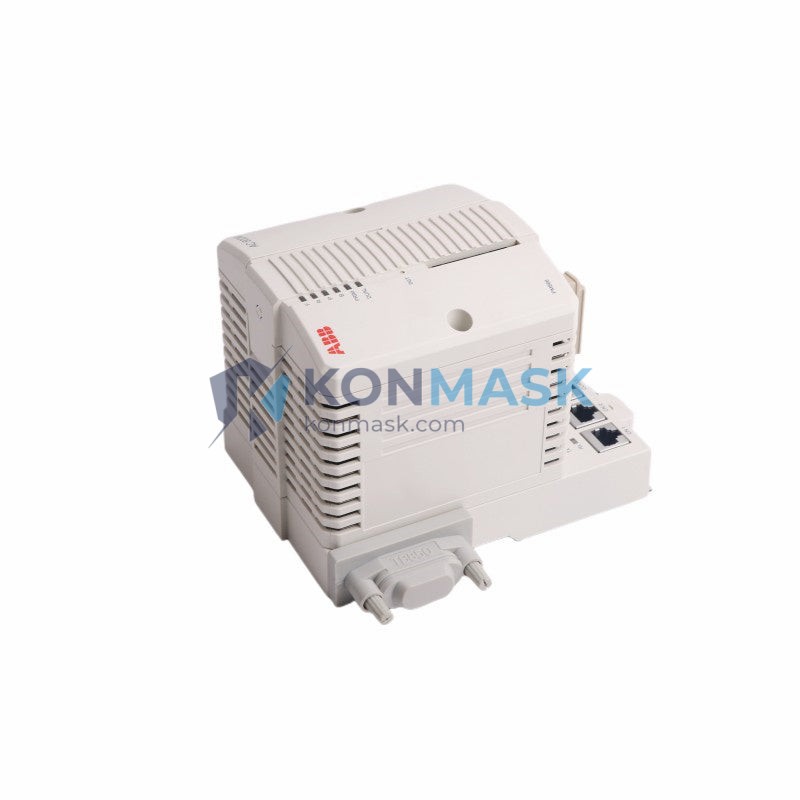

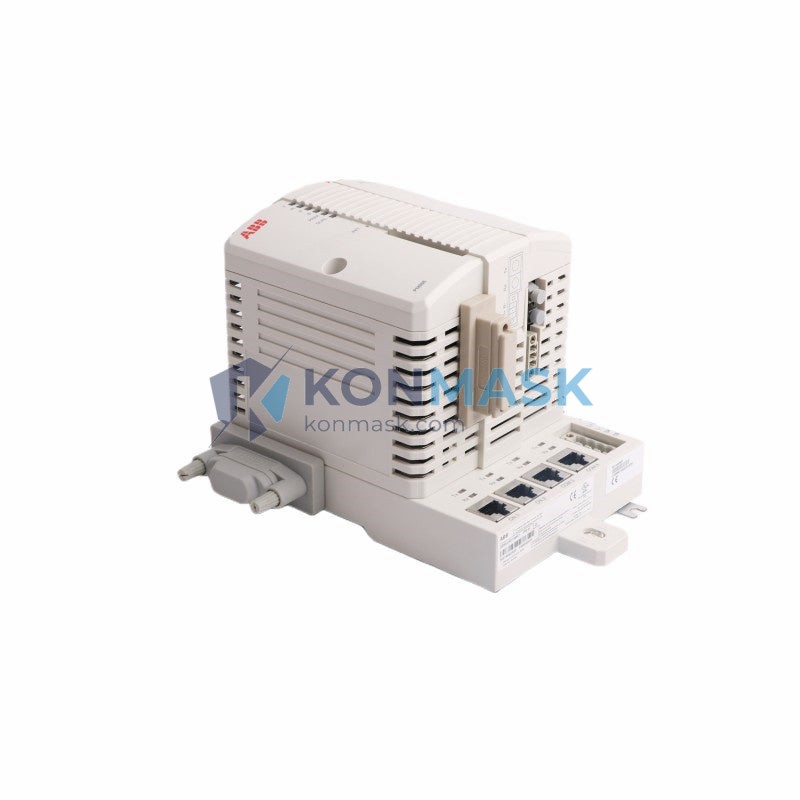

The PM866K01 (catalog reference 3BSE050198R1) is the high-capacity processor module within the AC 800M family. It delivers enhanced computational throughput, expanded memory, and faster scan cycle performance compared to earlier PM8xx generations — making it the preferred upgrade path for plants requiring increased control loop density or faster response times without replacing existing I/O infrastructure.
Complete Technical Specifications

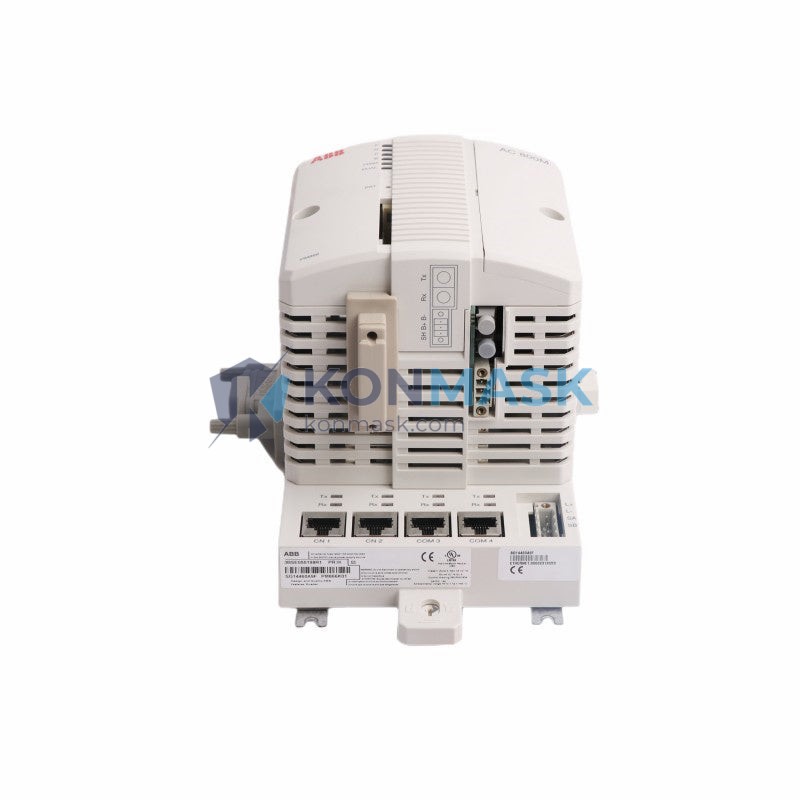

- Part Number: PM866K01
- ABB Catalog No.: 3BSE050198R1
- Platform: ABB AC 800M (S800 I/O compatible)
- Module Type: Central Processor Unit (CPU) / Controller Module
- Processor Architecture: 32-bit RISC, real-time OS
- Program Memory: 64 MB Flash
- RAM: 128 MB SDRAM
- Communication Ports: 2× Ethernet (10/100 Mbps), 1× RS-232 service port
- Fieldbus Support: PROFIBUS DP, FOUNDATION Fieldbus H1, Modbus RTU/TCP (via CI modules)
- Redundancy: Hot-standby CPU redundancy supported
- Scan Cycle: Configurable; minimum ~10 ms typical
- Power Supply: 24 VDC (via backplane)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −40 °C to +70 °C
- Humidity: 5–95% RH, non-condensing
- Protection Class: IP20
- Dimensions (W×H×D): Approx. 35 × 230 × 230 mm (single slot)
- Weight: ~1,040 g
- Certifications: CE, UL, cUL, ATEX (zone 2 with appropriate enclosure)
- Programming Environment: ABB Control Builder M (IEC 61131-3: FBD, LD, SFC, ST, IL)
- Firmware: Compatible with AC 800M firmware 5.x and 6.x
Proven Application Environments
- Power Generation: Boiler combustion control, turbine governor systems, BOP automation
- Oil & Gas: Wellhead control, pipeline SCADA integration, compressor station automation
- Pulp & Paper: Digester control, bleaching sequence management, recovery boiler safety
- Chemical & Petrochemical: Reactor temperature/pressure loops, batch sequencing, SIL-rated safety functions
- Water & Wastewater: Pump station control, dosing systems, SCADA-linked remote I/O
- Mining & Minerals: Conveyor management, crusher control, flotation cell automation
Engineering Advantages
- Backward Compatibility: Drop-in replacement for PM864A/PM865 in existing AC 800M racks — no I/O rewiring required
- Redundancy-Ready: Supports bumpless switchover in hot-standby configurations; minimizes process upset during CPU failover
- Expanded Capacity: Handles larger application programs and more concurrent control loops vs. PM864A generation
- Deterministic Execution: Real-time OS ensures consistent scan cycle timing critical for closed-loop process control
- Dual Ethernet: Supports simultaneous connection to plant network and engineering workstation without additional switches
- Long Service Life: ABB AC 800M platform has 20+ year installed base; spare parts and firmware support remain active
System Architecture & Signal Flow
The PM866K01 mounts in the AC 800M controller cabinet on a TB840/TB840A termination unit or directly on the S800 I/O bus via CI840/CI854 communication interface modules. The processor communicates with remote I/O stations over PROFIBUS DP or MasterBus 300 (MB300), while the dual Ethernet ports connect to the plant-level OPC server and engineering workstation running Control Builder M. In redundant configurations, a second PM866K01 mirrors the primary via a dedicated synchronization link, enabling automatic bumpless failover within one scan cycle.
Sourcing & Quality Verification
- Source: Procured from authorized ABB distributors and verified industrial surplus channels
- Inspection Protocol: Visual inspection (PCB, connectors, label integrity), functional power-on test, firmware version verification
- Authenticity Markers Checked: ABB holographic label, catalog number engraving, date code consistency
- Condition: New surplus (sealed) or refurbished-to-spec; condition stated explicitly in order confirmation
- Packaging: ESD-safe anti-static bag, foam-lined carton, humidity indicator card
- Documentation: ABB datasheet, test report, and certificate of conformance available on request
Procurement Process
- Step 1 – Inquiry: Submit your RFQ via Konmask.com or email support@konmask.com with quantity and required delivery date
- Step 2 – Quotation: Receive itemized quote within 24 hours (business days), including unit price, lead time, and shipping options
- Step 3 – Order Confirmation: Confirm PO; payment via T/T, PayPal, or trade credit (approved accounts)
- Step 4 – QC & Dispatch: Unit inspected, photographed, and dispatched with tracking within 1–3 business days
- Step 5 – After-Sales: 12-month warranty on verified units; technical support available via email and WhatsApp
Technical FAQ
Q: Is PM866K01 compatible with my existing PM864A-based AC 800M system?
A: Yes. The PM866K01 is a direct slot-compatible replacement. You will need to reload your application program via Control Builder M after swapping the module.
Q: Can I use PM866K01 in a redundant CPU configuration?
A: Yes. Two PM866K01 units can be configured in hot-standby redundancy using ABB’s standard redundancy kit. Both units must run identical firmware versions.
Q: What firmware version does this unit ship with?
A: Firmware version is verified and stated in the shipment documentation. We recommend upgrading to the latest AC 800M firmware via ABB’s software portal after installation.
Q: Do you provide an IEC 61131-3 program backup service?
A: We supply hardware only. Program backup and restore must be performed by your site engineering team using Control Builder M.
Q: What is the lead time for urgent orders?
A: In-stock units ship within 1–3 business days. Express DHL/FedEx options available for time-critical plant shutdowns.
