ABB SD833 3BSC610065R1 Power Module | Replacement, Equivalent & Selection Guide

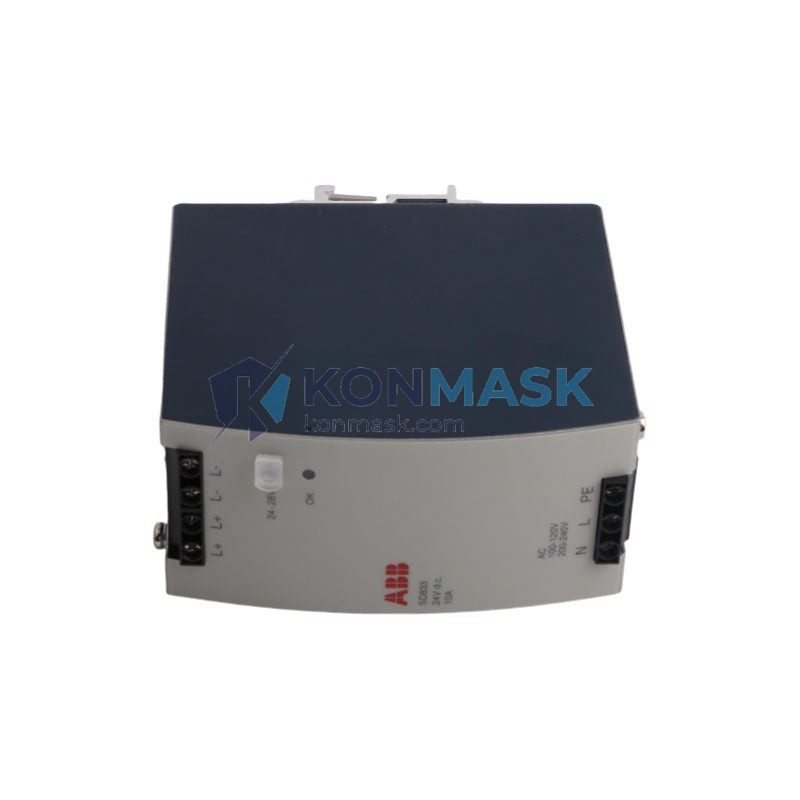

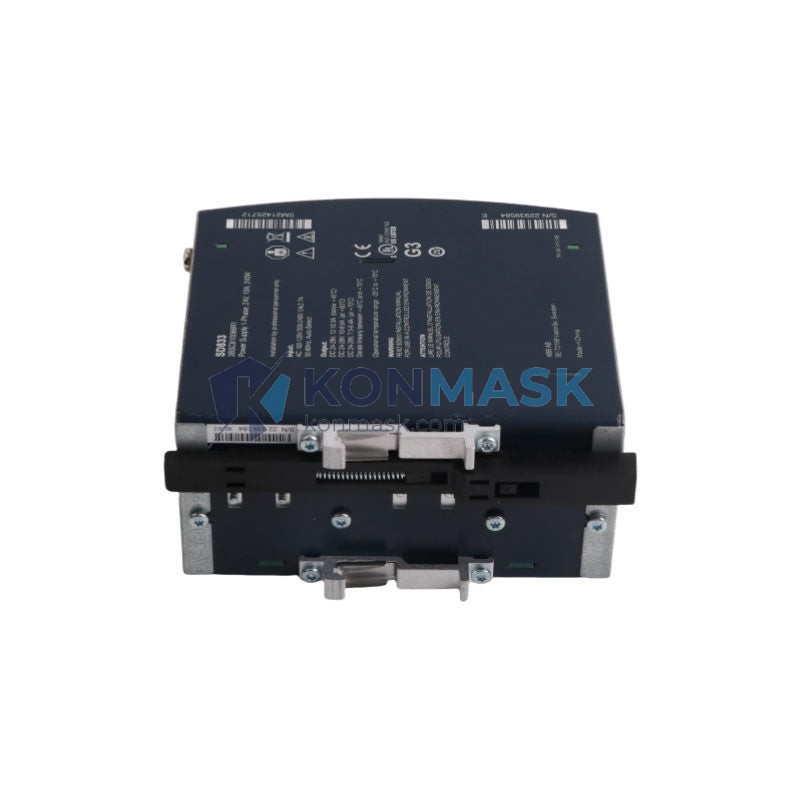

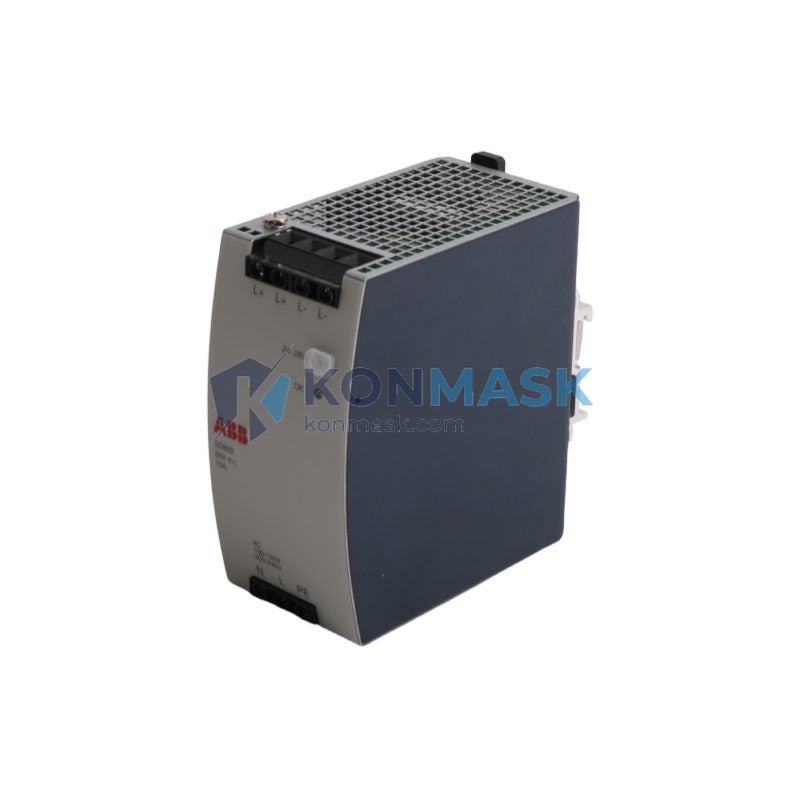

The ABB SD833 (Part No. 3BSC610065R1) is a dedicated power supply module for the ABB AC800M Distributed Control System (DCS) platform. It provides regulated 24 VDC power to the controller backplane and connected I/O modules, ensuring stable, uninterrupted operation in demanding industrial environments. Konmask.com stocks genuine and compatible SD833 units with full traceability and quality verification.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | SD833 / 3BSC610065R1 |
| Brand | ABB |
| Series | AC800M |
| Module Type | Power Supply Module |
| Input Voltage | 24 VDC (18–30 VDC range) |
| Output | Regulated 24 VDC to backplane & I/O bus |
| Redundancy | Supports redundant power configuration |
| Mounting | AC800M S800 I/O backplane / controller rack |
| Weight | 680 g |
| Operating Temp. | 0 °C to +55 °C |
| Protection Class | IP20 |
| Certifications | CE, UL, cUL |
Compatible Replacement & Equivalent Models
When the SD833 is unavailable or end-of-life, the following models are commonly evaluated as replacements. Always verify electrical and mechanical compatibility before substitution:
- SD833A (3BSC610066R1) — Enhanced version with extended temperature range; direct form-fit-function replacement in most AC800M racks.
- SD821 (3BSC610036R1) — Earlier-generation power module; compatible with select AC800M configurations but lower output capacity.
- SD822 (3BSC610037R1) — Mid-range alternative; verify backplane slot compatibility.
- PM865 integrated PSU — Some PM865 controller variants include onboard power regulation; evaluate if a standalone module is still required.
- Third-party 24 VDC DIN-rail PSU — Only suitable as an upstream supply; cannot replace the SD833’s backplane power distribution function.
Note: Konmask.com recommends using original ABB SD833 / SD833A modules for safety-critical and SIL-rated applications.
Why Choose the Original SD833
- Factory-tested and certified for AC800M backplane power distribution.
- Supports hot-swap and redundant power configurations without system shutdown.
- Full ABB firmware and diagnostic compatibility — no re-parameterization required.
- Guaranteed interoperability with PM851, PM856, PM860, PM861, PM864, PM865 controllers.
- Backed by ABB global service network and long-term spare parts availability.
Typical Applications
- Oil & gas process control (upstream / downstream / LNG)
- Chemical and petrochemical plant DCS systems
- Power generation and utilities (boiler, turbine, BOP control)
- Pulp & paper and mining automation
- Water treatment and municipal infrastructure
- Pharmaceutical batch control (FDA 21 CFR Part 11 environments)
System Compatibility
The SD833 is designed for use within the ABB AC800M controller family. Confirmed compatible controllers and I/O families include:
- Controllers: PM851, PM856, PM860, PM861, PM864, PM865, PM866, PM891
- I/O families: S800 I/O (AI810, AO810, DI810, DO810, etc.)
- Communication: CEX-Bus, ModuleBus
- Engineering tool: ABB Automation Builder / Control Builder M
Selection Guide
Use the following criteria to select the correct power module for your AC800M system:
- Standard environments (0–55 °C): SD833 (3BSC610065R1) — recommended.
- Extended temperature or harsh environments: SD833A (3BSC610066R1) — preferred.
- Redundant power requirement: Order two SD833 / SD833A units; configure in parallel on the same backplane.
- Legacy AC800 (non-M) systems: Consult ABB compatibility matrix — SD833 is AC800M-specific.
- Replacement urgency: Konmask.com maintains ready stock; contact us for lead time on quantity orders.
Quality Assurance & Sourcing
- All SD833 units sourced from authorized ABB distributors or verified surplus channels.
- 100% functional test prior to shipment.
- Anti-static packaging with humidity indicator card.
- Batch traceability records available on request.
- 12-month warranty against manufacturing defects.
How to Order
- Confirm your AC800M controller model and backplane configuration.
- Specify quantity and required delivery timeline.
- Contact Konmask.com via email or phone for a formal quotation.
- Submit purchase order — we accept T/T, L/C, and major credit cards.
- Receive shipment with full documentation (test report, packing list, COO).
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can SD833A replace SD833 directly?
A: Yes. The SD833A is the enhanced successor with identical form factor and backplane connector. No hardware modification is required.
Q: Is SD833 compatible with AC800 (non-M) systems?
A: No. SD833 is designed exclusively for the AC800M platform. For AC800 (non-M), consult ABB for the correct power module.
Q: Can I use a standard 24 VDC DIN-rail PSU instead of SD833?
A: Only as an upstream power source. The SD833 performs backplane power distribution and monitoring functions that a generic PSU cannot replicate.
Q: What is the lead time for SD833?
A: In-stock units ship within 1–3 business days. Contact us for current availability.
Q: Does Konmask.com provide a warranty?
A: Yes — 12 months from shipment date, covering functional defects under normal operating conditions.
