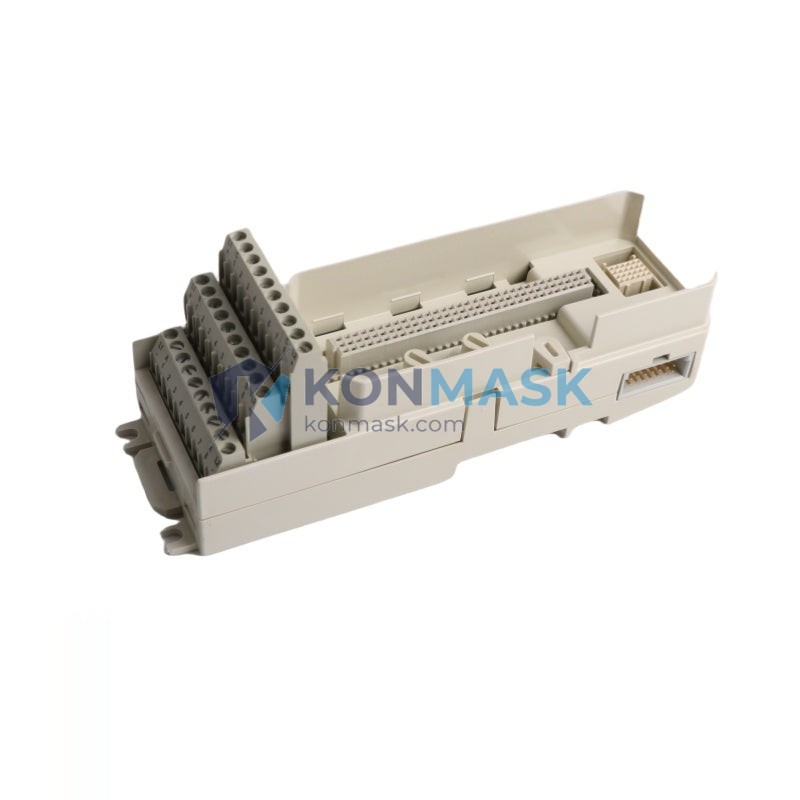

ABB TU810V1 3BSE013230R1 Module Termination Unit – S800 I/O System
When a termination unit fails on the plant floor, the consequences are immediate and severe: I/O modules lose their field wiring interface, process signals go dark, and operators are left blind to critical measurements. In distributed control architectures, a single missing termination unit can cascade into unplanned shutdowns, production losses, and costly emergency maintenance windows. The ABB TU810V1 (3BSE013230R1) Module Termination Unit is the foundational hardware that keeps your S800 I/O field connections reliable, organized, and maintainable — making it an indispensable component in any ABB AC800M-based control system.
Within the ABB S800 I/O family, the TU810V1 occupies a critical role as the standard single-module termination unit, providing the physical interface between I/O modules and field wiring. Globally, the S800 I/O platform is deployed across thousands of process plants in oil & gas, power generation, pulp & paper, and chemical industries. The TU810V1 is one of the most widely specified termination units in this ecosystem, valued for its robust screw-terminal field wiring connections, DIN-rail mounting simplicity, and full compatibility with the AC800M controller family.
Technical Specifications
- Part Number: TU810V1
- Catalog Number: 3BSE013230R1
- Manufacturer: ABB
- Series: S800 I/O
- Type: Module Termination Unit (Single Module)
- Mounting: DIN Rail
- Field Wiring: Screw terminals
- Compatible I/O Modules: S800 I/O series (AI810, AO810, DI810, DO810, etc.)
- Weight: Approx. 200 g
- Operating Temperature: Refer to ABB S800 I/O system documentation
- Standards: Designed to ABB AC800M system requirements
Key Features & Benefits
- Plug-and-Replace Design: I/O modules can be swapped without disturbing field wiring, minimizing maintenance downtime.
- Robust Screw Terminals: Secure, vibration-resistant field wiring connections suitable for industrial environments.
- DIN Rail Mounting: Standard 35 mm DIN rail installation for flexible cabinet layout.
- Single-Module Form Factor: Compact footprint optimized for high-density I/O marshalling panels.
- Full S800 I/O Compatibility: Works seamlessly with the complete range of ABB S800 analog and digital I/O modules.
- Long-Term Availability: Widely stocked as a critical spare part for AC800M system lifecycle support.
Industry & Equipment Applications
- Oil & Gas: Upstream wellhead control, midstream pipeline SCADA, downstream refinery DCS panels.
- Power Generation: Turbine control systems, boiler management, substation automation.
- Pulp & Paper: Process control cabinets for digesters, bleaching lines, and paper machines.
- Chemical & Petrochemical: Reactor monitoring, batch control, safety instrumented systems (SIS) marshalling.
- Water & Wastewater: Pump station control panels, treatment plant automation.
- Marine & Offshore: Vessel automation and platform control systems using ABB AC800M.
System Integration & Compatible Parts
The TU810V1 is designed to integrate directly within the ABB AC800M / S800 I/O architecture. Compatible and commonly paired components include:
- ABB AI810 / AI815 — Analog Input Modules
- ABB AO810 / AO815 — Analog Output Modules
- ABB DI810 / DI811 — Digital Input Modules
- ABB DO810 / DO814 — Digital Output Modules
- ABB TB810 / TB820 — ModuleBus Optical Port
- ABB AC800M Controllers (PM860, PM861, PM864, PM866 series)
- ABB S800 I/O Power Supply Units
For multi-module termination requirements, consider the ABB TU812V1 (3BSE013231R1) dual-module termination unit as an alternative configuration.
Our Quality Assurance Process
At Konmask.com, every ABB TU810V1 unit undergoes a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Cross-referenced against ABB factory markings, date codes, and label specifications.
- Visual Inspection: Full inspection of terminal blocks, module connectors, DIN rail clips, and housing integrity.
- Functional Check: Where applicable, modules are bench-tested for mechanical fit and connector integrity.
- Secure Packaging: Anti-static packaging with foam protection to prevent transit damage.
- Documentation: Certificate of conformity and test records available upon request.
How to Order
- Submit your inquiry via the “Request a Quote” button on this page.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and pricing within 24 hours.
- Upon agreement, we issue a proforma invoice and arrange secure international shipping (DHL, FedEx, UPS, or sea freight).
- Tracking information and shipping documents (commercial invoice, packing list, COO) provided upon dispatch.
📧 support@konmask.com | 📞 +0086 19859288691
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: Focused exclusively on PLC, DCS, and industrial control components from leading global brands.
- ✅ Global B2B Export Experience: Serving engineering firms, system integrators, and plant operators across 50+ countries.
- ✅ Genuine Parts Guaranteed: Strict sourcing standards — no counterfeit, no refurbished parts sold as new.
- ✅ Fast Response: Dedicated technical sales team responds to all inquiries within one business day.
- ✅ Flexible Logistics: Air freight, sea freight, and express courier options to meet your project schedule.
- ✅ After-Sales Support: Technical consultation available for system compatibility and installation guidance.
Frequently Asked Questions
Q: Is the TU810V1 the same as 3BSE013230R1?
A: Yes. TU810V1 is the ABB product model designation and 3BSE013230R1 is the catalog/order number. They refer to the same physical product.
Q: Which I/O modules are compatible with the TU810V1?
A: The TU810V1 is compatible with the full range of ABB S800 I/O single-width modules, including AI810, AO810, DI810, DO810, and their variants.
Q: Can the TU810V1 be used with AC800F or AC800PEC controllers?
A: The TU810V1 is designed for the S800 I/O system, which is primarily used with AC800M controllers. Compatibility with AC800F or AC800PEC should be verified against ABB system documentation for your specific configuration.
Q: Do you provide a warranty on the TU810V1?
A: Yes. We offer a standard warranty period on all genuine parts. Please contact us for specific warranty terms applicable to your order.
Q: What is the lead time for the ABB TU810V1?
A: Lead time depends on current stock levels. Please submit an inquiry and our team will confirm availability and estimated delivery within 24 hours.
{
