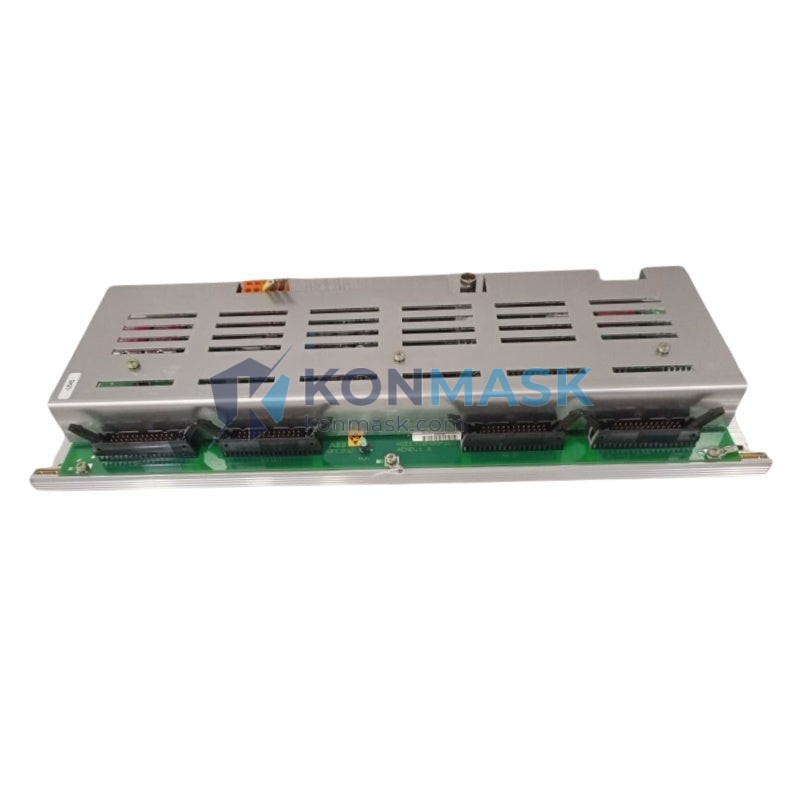

ABB UP C090 AE01 HIEE300661R1 32I/O Field Bus Coupler | Replacement, Equivalent & Selection Guide
The ABB UP C090 AE01 (HIEE300661R1) is a 32-channel I/O Field Bus Coupler designed for ABB’s Advant OCS and AC800M distributed control architectures. Whether you are sourcing an exact replacement, evaluating a functional equivalent, or selecting the right coupler for a new project, this guide provides the technical depth and cross-reference data you need to make a confident decision.
Technical Specifications
- Part Number: HIEE300661R1
- Ordering Code: UP C090 AE01
- Manufacturer: ABB
- Series: Advant OCS / AC800M I/O
- Type: 32I/O Field Bus Coupler
- I/O Channels: 32 (mixed digital I/O)
- Communication Interface: RCOM / S100 I/O Bus
- Mounting: DIN rail / rack-mount compatible
- Operating Temperature: 0 °C to +55 °C
- Power Supply: 24 V DC (nominal)
- Weight: approx. 1,000 g
- Compliance: CE, IEC 61131-2
Compatible Replacement & Equivalent Models
When the original HIEE300661R1 is unavailable or discontinued, the following models may serve as functional equivalents depending on your system configuration. Always verify firmware compatibility and I/O bus version before substitution.
- HIEE300661R0 – Earlier hardware revision; functionally equivalent in most AC800M applications
- HIEE300661R2 – Later revision with enhanced diagnostics; drop-in replacement in most cases
- ABB UP C091 AE01 – Extended I/O variant; suitable when additional channel capacity is required
- ABB CI830 / CI840 – PROFIBUS DP coupler alternative for systems migrating to open fieldbus
- ABB CI854 – PROFIBUS DP-V1 coupler; recommended for new installations requiring IEC 61784 compliance
Note: Cross-compatibility depends on firmware version, rack slot assignment, and software configuration in Control Builder M. Contact our engineers for a validated substitution assessment.
Why Choose the Original Model
- Guaranteed Compatibility: Factory-validated for Advant OCS and AC800M racks without firmware modification
- Proven Reliability: Deployed in thousands of process control installations across power, oil & gas, and chemical industries
- OEM Traceability: Full ABB manufacturing traceability and revision history available
- Reduced Integration Risk: No re-engineering of I/O mapping or Control Builder M project required
- Long-Term Support: ABB extended lifecycle support available through authorized service partners
Typical Applications
- Process automation in oil & gas refineries and petrochemical plants
- Power generation and substation automation (DCS integration)
- Pulp & paper and water treatment distributed control systems
- Chemical plant batch and continuous process control
- Legacy Advant OCS system maintenance and life extension projects
System Compatibility
- Compatible Controllers: ABB AC800M (PM851, PM856, PM860, PM864, PM866)
- Compatible Racks: ABB S100 I/O rack series
- Software: ABB Control Builder M (CBM) v4.x and above
- Bus Protocol: ABB RCOM / S100 I/O Bus
- Not Compatible With: AC800F, AC800PEC, or third-party DCS platforms without gateway
Selection Guide
Use the following criteria to determine whether HIEE300661R1 or an alternative is the right choice for your application:
- Exact replacement (same rack, same slot): Order HIEE300661R1 or R0/R2 revision — no project changes needed
- Expanding I/O capacity: Consider UP C091 AE01 for additional channels in the same bus segment
- Migrating to open fieldbus: Evaluate CI830 (PROFIBUS DP) or CI854 (PROFIBUS DP-V1) with updated CBM project
- New installation: Consult ABB’s current AC800M I/O catalog — newer S800 I/O modules may offer better long-term support
- Budget-constrained MRO: Refurbished HIEE300661R1 units with test certification available — contact us for stock availability
Quality Assurance & Sourcing
- All units inspected against ABB technical drawings and functional test procedures
- Sourced from decommissioned plant upgrades, authorized distributors, and OEM surplus channels
- Each unit ships with a test report and 90-day operational warranty
- Packaging: anti-static ESD bag + foam-lined carton for international transit
- Traceability documentation available upon request (batch records, inspection reports)
How to Order
- Step 1: Confirm your part number: HIEE300661R1 (or specify revision R0 / R2 if required)
- Step 2: Specify quantity and required delivery timeline
- Step 3: Submit your inquiry via the product page or email support@konmask.com
- Step 4: Receive a formal quotation with lead time, warranty terms, and shipping options within 24 hours
- Step 5: Confirm order — we ship worldwide via DHL, FedEx, and UPS with full export documentation
Replacement & Compatibility FAQ
Q: Can HIEE300661R0 replace HIEE300661R1 directly?
A: In most AC800M applications, yes. Hardware revisions R0 and R1 share the same functional specification. Verify with your CBM project’s hardware catalog before swapping.
Q: Is HIEE300661R1 still in production?
A: ABB has transitioned newer installations to the S800 I/O platform. HIEE300661R1 is available as MRO (Maintenance, Repair & Operations) stock. We maintain inventory for legacy system support.
Q: Can I use a PROFIBUS coupler (CI830) as a replacement?
A: Only with a Control Builder M project update and hardware reconfiguration. This is a migration, not a drop-in replacement. Our engineers can assist with migration planning.
Q: Do you provide test certificates with each unit?
A: Yes. Every unit ships with a functional test report. Full calibration certificates are available on request for critical applications.
Q: What is the lead time for HIEE300661R1?
A: Typically 3–7 business days for in-stock units. For bulk orders or specific revisions, contact us for a confirmed lead time.
