ABB 1SAY130110R0100 – Circuit Board / Control Module | AC500 & Freelance DCS Platform
Engineering Background

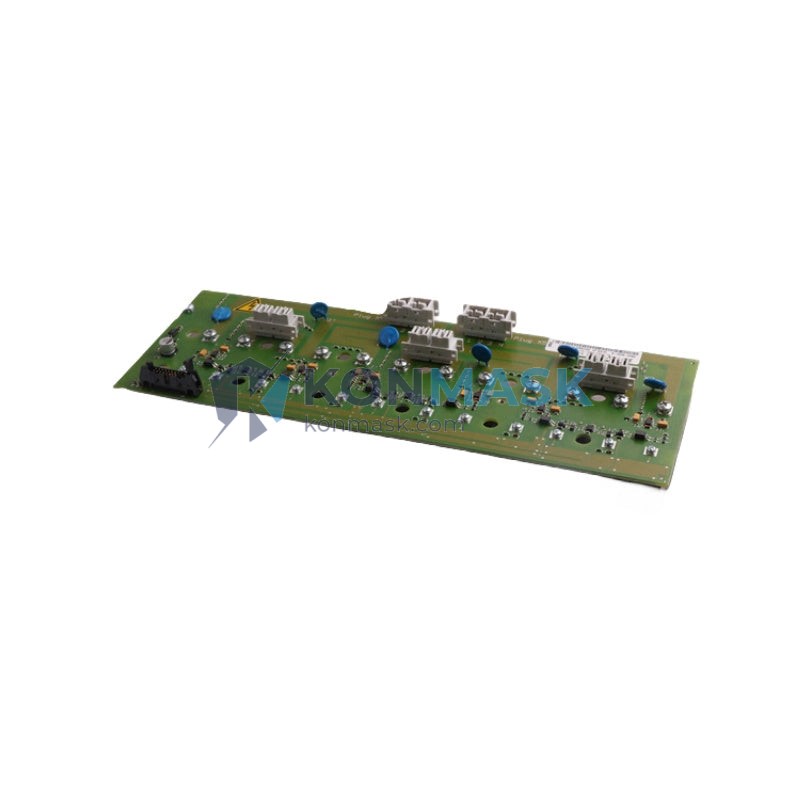

The ABB part number 1SAY130110R0100, board assembly code 07SS91C2, is an OEM-grade printed circuit board assembly (PCBA) designed for ABB’s industrial automation ecosystem — spanning the AC500 PLC series and the Freelance distributed control system (DCS). These platforms are widely deployed in power generation, water treatment, oil & gas, and process manufacturing facilities worldwide.
Product Positioning
This board serves as a critical internal assembly within ABB control hardware — functioning as a processor carrier, I/O interface board, or communication backplane depending on the host unit. Procurement engineers specify this part for board-level repair, module refurbishment, and spare-parts inventory programs. Konmask sources this component through verified OEM and authorized distribution channels, with full traceability documentation available upon request.
Complete Technical Specifications
| Manufacturer | ABB Ltd. |
| Part Number | 1SAY130110R0100 |
| Board Assembly Code | 07SS91C2 |
| Component Type | Printed Circuit Board Assembly (PCBA) |
| Compatible Platform | ABB AC500 PLC Series; ABB Freelance DCS |
| Form Factor | Internal PCB assembly (host-unit dependent) |
| Operating Temperature | 0 °C to +60 °C (typical ABB industrial grade) |
| Storage Temperature | −25 °C to +85 °C |
| Humidity | 5–95% RH, non-condensing |
| Supply Voltage | Per host module specification (typically 24 V DC internal bus) |
| Weight (approx.) | 200 g |
| Condition Available | New OEM / Refurbished / Tested surplus |
| Warranty | 12 months (Konmask quality guarantee) |
Note: Full datasheet and board-level schematics available upon NDA request for qualified MRO accounts.
Proven Application Environments
- Power Generation & Utilities — ABB Freelance DCS installations in turbine control and boiler management systems requiring board-level spare inventory.
- Oil & Gas Processing — Offshore and onshore facilities running AC500-based safety and process control architectures.
- Water & Wastewater Treatment — Municipal SCADA systems built on ABB AC500 PLCs where long-term spare availability is critical.
- Pulp & Paper / Chemical Plants — Continuous process environments with high MTTR requirements demanding immediate board-swap capability.
- MRO & Repair Workshops — Third-party service centers performing component-level repair on ABB control modules.
- OEM Machine Builders — Equipment manufacturers maintaining production-line spares for ABB-based control cabinets.
Engineering Advantages
- OEM Traceability — Each unit ships with batch/lot documentation; date codes verified against ABB production records where available.
- Functional Test Protocol — Refurbished units undergo powered bench testing against ABB module functional parameters before dispatch.
- Drop-in Compatibility — Exact OEM part number ensures zero firmware or hardware modification required during installation.
- Long Lead-Time Mitigation — ABB legacy boards often carry 16–52 week factory lead times; Konmask stock enables same-week dispatch for critical shutdowns.
- Dual-Code Cross-Reference — Both 1SAY130110R0100 and 07SS91C2 are indexed for procurement system compatibility (SAP, Maximo, Oracle EAM).
System Architecture & Signal Flow
Within the ABB AC500 / Freelance architecture, this PCB assembly interfaces at the module backplane level, handling internal signal routing between the CPU carrier, I/O expansion bus, and communication interfaces. The board integrates:
- Internal DC power distribution rails
- Digital signal conditioning and isolation circuitry
- Bus interface logic for ABB proprietary backplane protocols
- Diagnostic LED driver circuits (module status indication)
Replacement of this board restores full module functionality without requiring CPU firmware re-flash in most AC500 configurations. Consult ABB service bulletin for Freelance DCS host units prior to installation.
Sourcing & Quality Verification
- Source Channels: ABB authorized distributors, certified MRO surplus, OEM factory overstock.
- Inspection Standard: IPC-A-610 Class 2 visual inspection; functional power-on test for refurbished units.
- Anti-Counterfeit Measures: ABB holographic labels, PCB silkscreen markings, and component date codes verified pre-shipment.
- Packaging: ESD-safe anti-static bag + foam-lined carton; humidity indicator card included for long-haul shipments.
- Documentation Available: Certificate of Conformance (CoC), test report, packing list, commercial invoice with HS code.
Procurement Process
- Submit RFQ — Email support@konmask.com with quantity, required condition (new/refurbished), and delivery deadline.
- Receive Quotation — Konmask responds within 4 business hours with price, lead time, and stock condition details.
- Order Confirmation — Purchase order accepted via email; proforma invoice issued for payment processing.
- Quality Inspection & Dispatch — Unit inspected, photographed, and packed; tracking number provided within 24 hours of payment clearance.
- Delivery & After-Sales — 12-month warranty; Konmask technical team available for installation guidance and compatibility verification.
Accepted Payment: T/T (Wire Transfer), PayPal, Western Union, Trade Assurance (Alibaba).
Shipping: DHL / FedEx / UPS Express worldwide; sea freight available for bulk orders.
Technical FAQ
Q: Is 1SAY130110R0100 the same as 07SS91C2?
A: Yes. 1SAY130110R0100 is the ABB commercial ordering part number; 07SS91C2 is the board assembly drawing number printed on the PCB silkscreen. Both codes refer to the identical physical component.
Q: Which ABB modules use this board?
A: This board is used in specific AC500 CPU/I/O modules and Freelance DCS controller assemblies. Contact Konmask with your host module part number for exact compatibility confirmation.
Q: Can I install a refurbished board without reconfiguring the module?
A: In most AC500 configurations, yes — the board carries no user-configurable firmware. For Freelance DCS units, refer to the ABB service bulletin for your specific controller revision.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock sourcing typically requires 7–21 business days depending on global supply conditions.
Q: Do you provide a test report?
A: Yes. Functional test reports are available for all refurbished units. New OEM units ship with ABB factory CoC documentation.
Q: Can you supply multiple quantities for a plant-wide spare program?
A: Yes. Konmask supports blanket orders and consignment stock programs for MRO and EPC clients. Contact us to discuss volume pricing and stocking agreements.
