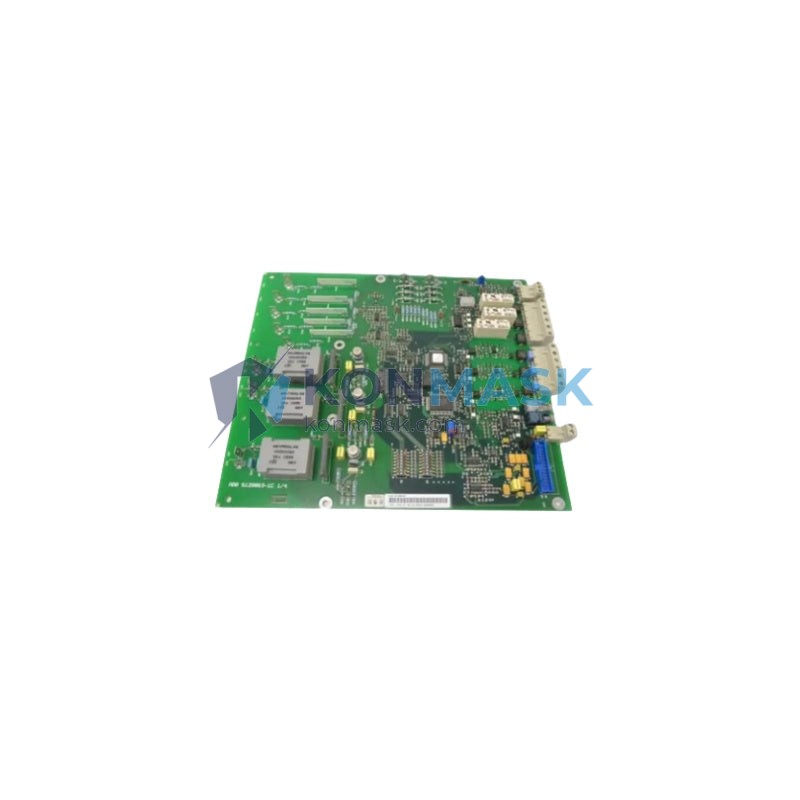

ABB 3ADT220090R0010 NDSC-01-COAT Control Board | Replacement, Equivalent & Selection Guide
The ABB 3ADT220090R0010 NDSC-01-COAT is a dedicated control board used in ABB drive and automation systems. This page provides full technical specifications, verified compatible replacements, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Manufacturer: ABB
- Part Number: 3ADT220090R0010
- Model / Board ID: NDSC-01-COAT
- Type: Control Board / Control Card
- Series: ABB ACS / DCS Drive Series (NDSC family)
- Form Factor: PCB plug-in module
- Weight: Approx. 200 g
- Condition Available: New, Surplus New, Refurbished
- Country of Origin: Finland / EU (OEM)
- RoHS Compliant: Yes (OEM specification)
Note: For full electrical ratings (voltage, current, communication protocol), please contact our technical team or refer to the ABB NDSC-01 hardware manual.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional replacements or equivalents. Always verify firmware version and hardware revision compatibility before substitution:
- ABB NDSC-01 (base variant, without COAT suffix — confirm coating requirement)
- ABB NDSC-02 (next-generation variant; check pinout and firmware compatibility)
- ABB 3ADT220090R0001 (earlier revision; verify hardware revision match)
- ABB NAMC-11 / NAMC-51 (alternative control boards for ACS800 series — application-dependent)
- Third-party compatible boards: consult Konmask technical team for validated alternatives
⚠ Important: The -COAT suffix indicates a conformal coating applied for humidity/corrosion resistance. Ensure any replacement also carries this specification if operating in harsh environments.
Why Choose the Original Model
- OEM Firmware Compatibility: Guaranteed compatibility with ABB drive firmware without re-parameterization risk
- Conformal Coating (COAT): Factory-applied protection against moisture, dust, and chemical exposure — critical for industrial environments
- Plug-and-Play Replacement: Direct drop-in for existing NDSC-01-COAT installations with no hardware modification
- ABB Warranty & Traceability: Full OEM traceability for regulated industries (energy, marine, process)
- Long Service Life: Designed for continuous 24/7 industrial operation
Typical Applications
- ABB ACS800 / ACS880 variable frequency drive (VFD) control systems
- ABB DCS800 DC drive control boards
- Industrial motor control centers (MCC)
- Process automation in oil & gas, chemical, and water treatment plants
- Marine and offshore drive systems requiring conformal-coated electronics
- Crane, hoist, and conveyor drive control
- HVAC and pump station automation
System Compatibility
- Compatible Drive Series: ABB ACS800, ACS880, DCS800 (verify with drive nameplate)
- Communication: Compatible with ABB DDCS fiber-optic communication (drive-dependent)
- PLC Integration: Works with ABB AC500, Siemens S7, Allen-Bradley ControlLogix via drive fieldbus adapters (PROFIBUS, Modbus, EtherNet/IP)
- Software Tools: ABB DriveWindow, Drive Composer (for parameter backup and commissioning)
Selection Guide
Use the following criteria to confirm the correct part for your application:
- Step 1 — Identify Drive Model: Check the drive nameplate for model number (e.g., ACS800-01-0016-3)
- Step 2 — Confirm Board Slot: Locate the NDSC-01 slot in the drive’s control section (refer to drive hardware manual)
- Step 3 — Check Coating Requirement: If the installation environment has humidity >85% RH or chemical exposure, the -COAT variant is mandatory
- Step 4 — Verify Firmware Revision: Match the hardware revision (R0010) to your existing drive firmware version to avoid incompatibility
- Step 5 — Confirm Quantity & Lead Time: Contact Konmask for stock availability and delivery schedule
📞 Not sure which part you need? Send us your drive nameplate photo or existing board part number — our engineers will confirm compatibility within 24 hours.
Quality Assurance & Sourcing
- Source: Authorized distributors, OEM surplus, and verified industrial suppliers
- Inspection: Each unit visually inspected and function-tested before shipment
- Packaging: Anti-static ESD packaging with moisture barrier
- Documentation: Certificate of conformity and test report available on request
- Traceability: Batch and serial number records maintained for 5 years
- Warranty: 12-month warranty against manufacturing defects (new units)
How to Order
- Click Add to Cart or Buy Now on this page
- For bulk orders (>3 units) or urgent requirements, contact us directly for priority pricing
- Provide your drive model and application details for technical pre-sales confirmation
- We accept T/T bank transfer, PayPal, and major credit cards
- Shipping: DHL / FedEx Express worldwide | Lead time: 1–5 business days for in-stock items
📧 Email: support@konmask.com | 📱 WhatsApp/Tel: +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use NDSC-01 (without COAT) to replace NDSC-01-COAT?
A: Functionally yes in dry environments, but the conformal coating provides critical protection in humid or corrosive conditions. We recommend always matching the COAT specification.
Q: Is the 3ADT220090R0010 the same as other NDSC-01 part numbers?
A: 3ADT220090R0010 is the ABB catalog number for the NDSC-01-COAT. Different suffixes (R0001, R0010, etc.) may indicate hardware revisions — confirm with your drive documentation.
Q: Do you provide installation support?
A: Yes. We offer remote technical guidance for board replacement and commissioning. Contact our engineering team after purchase.
Q: What is the lead time if out of stock?
A: Typical sourcing lead time is 2–4 weeks. Contact us to join the waitlist or explore equivalent alternatives.
Q: Can this board be repaired instead of replaced?
A: Board-level repair is possible for some failure modes. Contact us with your fault description for a repair vs. replace recommendation.
