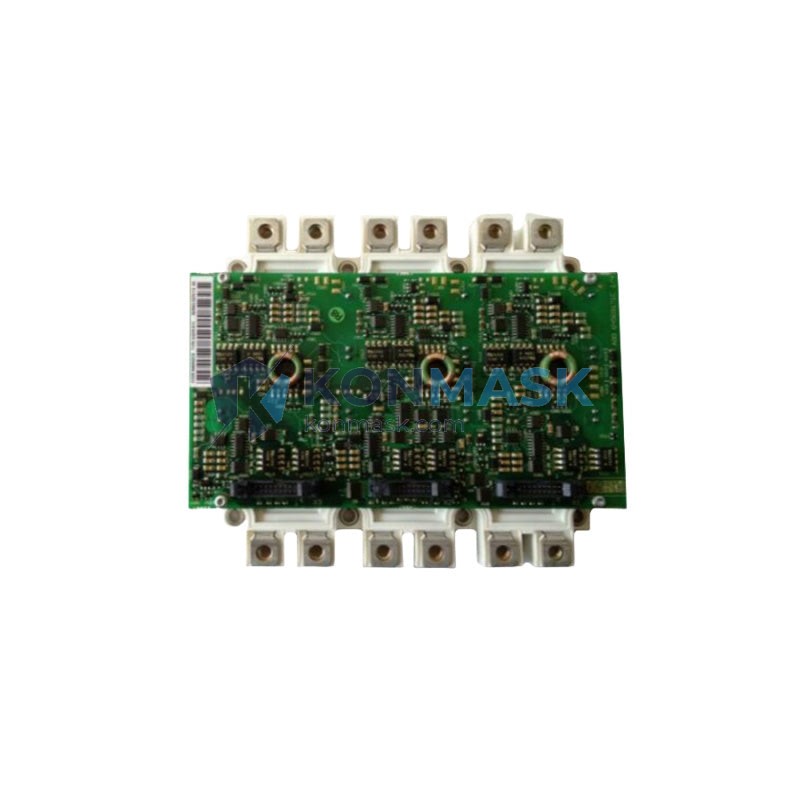

Genuine ABB FS300R12KE3/AGDR-72CS EconoPACK+ - Industrial Automation Part

ABB FS300R12KE3 / AGDR-72CS IGBT Module | EconoPACK+ Series – Verified Source

SKU: FS300R12KE3/AGDR-72CS Category: ABB

Description

Genuine ABB FS300R12KE3 / AGDR-72CS IGBT Module | EconoPACK+ Series – Verified Source

The ABB FS300R12KE3 paired with the AGDR-72CS gate driver board is a high-performance IGBT power module engineered for demanding industrial drive and converter applications. Sourced directly through verified ABB distribution channels, every unit supplied by Konmask.com undergoes a rigorous 4-step authenticity and quality verification process before dispatch — giving B2B buyers the confidence to specify with certainty.

Technical Specifications

Part Number: FS300R12KE3 / AGDR-72CS
Manufacturer: ABB (Asea Brown Boveri)
Module Series: EconoPACK+
Collector-Emitter Voltage (V_CES): 1200 V
Continuous Collector Current (I_C): 300 A
Gate-Emitter Voltage (V_GES): ±20 V
Switching Frequency: Up to 20 kHz (application dependent)
Configuration: 3-phase bridge (6-pack) with integrated freewheeling diodes
Gate Driver: AGDR-72CS (dedicated ABB driver board, fiber-optic interface)
Isolation Voltage: 4000 V_rms
Operating Temperature (T_j): -40°C to +150°C
Package: EconoPACK+ (industry-standard footprint)
Weight: Approx. 440 g
RoHS Compliant: Yes

Our 4-Step Quality Verification Process

Every ABB IGBT module shipped from Konmask.com passes through the following verification gates:

Source Authentication — Procurement exclusively from ABB-authorized distributors and certified secondary-market partners with full traceability documentation.
Physical Inspection — Holographic label verification, date-code cross-check, housing integrity assessment, and pin/terminal condition review.
Electrical Spot-Check — Gate threshold voltage (V_GE(th)), leakage current (I_CES), and diode forward voltage (V_F) measured against ABB datasheet limits.
Packaging & Documentation Audit — Anti-static packaging integrity, inclusion of original ABB datasheet or QR-linked spec sheet, and shipment manifest accuracy.

Certificates of conformance and test records are available upon request for orders ≥ 5 units.

Key Features & Benefits

✅ Genuine ABB origin — not grey-market or remarked components
✅ EconoPACK+ footprint — drop-in compatible with existing PCB/heatsink designs
✅ AGDR-72CS driver included — fiber-optic isolated gate drive, simplifies system integration
✅ Low switching losses — optimized for high-efficiency variable-speed drives (VSD)
✅ Integrated NTC thermistor — enables real-time thermal monitoring
✅ Short-circuit ruggedness — 10 µs short-circuit withstand capability
✅ B2B-ready supply — volume pricing, consolidated shipping, and documentation packages available

Typical Applications

AC variable-speed motor drives (VSD / VFD) — 75 kW to 250 kW range
Industrial servo drives and spindle drives
Regenerative braking and energy recovery systems
UPS and power conditioning equipment
Solar inverters and wind turbine converters
Traction and railway auxiliary converters
Welding power supplies and induction heating

Compatible System Components

Gate Driver: ABB AGDR-72CS (included in this listing), AGDR-71C
Heatsink: EconoPACK+ standard mounting (M6 screws, thermal compound required)
Thermal Interface: Dow Corning TC-5026 or equivalent (not included)
DC Bus Capacitors: Compatible with standard 1200 V DC link capacitor banks
Control Interface: Fiber-optic HFBR-series (via AGDR-72CS)
Related ABB Modules: FS450R12KE3, FS200R12KE3, FS100R12KE3

Global Sourcing & Shipping Capabilities

Stock Location: China (Mainland) — bonded warehouse with export documentation
Lead Time: In-stock items ship within 1–3 business days; sourced items 5–15 business days
Shipping Methods: DHL Express, FedEx International Priority, SF International, sea freight (LCL/FCL) for bulk orders
Export Documentation: Commercial invoice, packing list, certificate of origin (CO), and FORM E (ASEAN) available
Customs HS Code: 8541.10 (semiconductor devices — IGBT modules)
Minimum Order Quantity: 1 unit (volume discounts from 5 units)
Supported Regions: Southeast Asia, Middle East, Europe, Americas, Africa — contact us for country-specific compliance requirements

Certifications & Compliance Statement

CE Marking: Applicable per ABB product certification (Low Voltage Directive)
RoHS 2 (2011/65/EU): Compliant — no restricted hazardous substances
REACH: Compliant per ABB SVHC declaration
UL Recognition: Per ABB component certification (file reference available on request)
ISO 9001: Konmask.com operates under ISO 9001-aligned procurement and QC procedures

All compliance documentation is based on ABB’s published certifications. Konmask.com does not alter, remark, or repackage components in any way that would affect original certification status.

How to Order

Add to Cart — Select quantity and proceed to checkout, or
Request a Quote — Email support@konmask.com with your required quantity, delivery address, and any documentation requirements.
Confirm Stock & Lead Time — Our team will confirm real-time availability and estimated ship date within 4 business hours.
Payment — T/T (bank transfer), PayPal, credit card, and LC (letter of credit, orders ≥ USD 10,000) accepted.
Dispatch & Tracking — Shipment notification with tracking number issued on same day as dispatch.

For urgent requirements or OEM/project quantities, please contact us directly for priority handling.

Authenticity & Trust FAQ

Q: How do I know the module is genuine ABB?
A: Every unit is sourced from ABB-authorized channels and passes our 4-step verification. We provide procurement traceability documentation and can supply a certificate of conformance for qualifying orders.

Q: Can I return a module if it fails incoming inspection?
A: Yes. We offer a 30-day DOA (Dead on Arrival) return policy. Modules must be returned in original packaging with a failure description. Contact support@konmask.com to initiate.

Q: Do you offer long-term supply agreements?
A: Yes. We support blanket purchase orders and scheduled releases for MRO and OEM customers. Contact us to discuss framework agreements.

Q: Is the AGDR-72CS driver board included?
A: Yes — this listing covers the FS300R12KE3 module together with the AGDR-72CS gate driver board as a matched set.

Q: What if I need a different current rating or voltage class?
A: We stock a broad range of ABB EconoPACK+ and other IGBT module families. Contact us with your specifications and we will identify the correct part.
