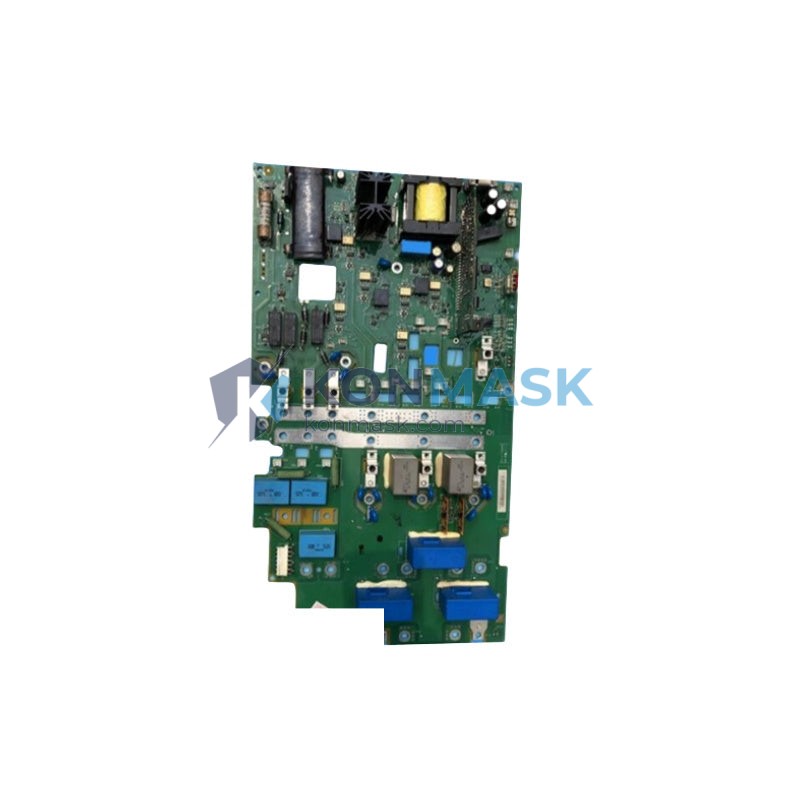

ABB RINT-5521C – Circuit Interface Board | ACS800 Variable Frequency Drive Platform
Engineering Background: In high-power AC drive systems, the interface board is the critical signal bridge between the control unit and the power stage. When an RINT-5521C fails or is missing, the ACS800 drive loses its ability to accurately transmit gate firing pulses to the IGBT modules — resulting in immediate drive fault, uncontrolled motor shutdown, and potential damage to downstream process equipment. In continuous-process industries such as pulp & paper, mining conveyors, and marine propulsion, an unplanned drive outage can cost tens of thousands of dollars per hour. The RINT-5521C is not a generic component; it is a precision-engineered, firmware-matched interface card designed exclusively for the ACS800 architecture.
Product Positioning: The ABB RINT-5521C (OEM part number 3AUA0000016016E) is the dedicated circuit interface board for ABB’s ACS800 series industrial drives. Positioned as a core control-layer component, it manages the bidirectional signal path between the RDCU/RMIO control board and the OINT/AINT power interface layers. Its role in the ACS800 signal chain makes it one of the most frequently sourced spare parts for drive maintenance engineers worldwide. Konmask.com maintains verified stock of this board to support urgent MRO procurement globally.
Complete Technical Specifications
- Manufacturer: ABB
- Part Number (SKU): RINT-5521C
- OEM Reference Number: 3AUA0000016016E
- Component Type: Circuit Interface Board
- Compatible Drive Series: ABB ACS800
- Country of Origin: China (CN)
- Weight: 100 g
- Barcode / Traceability Ref: 3AUA0000016016E
- HS Code: 853710
- Shipping: Physical component, requires shipping
Note: Additional electrical specifications (voltage, current ratings, communication protocol) are available upon request. We do not publish unverified parameters.
Proven Application Environments
- Pulp & Paper Mills: Refiner drives, winder drives, and pump control systems using ACS800 multi-drive cabinets
- Mining & Minerals: Conveyor belt drives, crusher drives, and hoist systems requiring high-reliability interface boards
- Marine & Offshore: Propulsion drives and thruster control systems built on ACS800 platform
- Oil & Gas: Compressor and pump VFD systems in hazardous-area drive enclosures
- Water & Wastewater: High-power pump station drives requiring long-term spare parts availability
- Steel & Metals: Rolling mill and crane drive systems with ACS800 multi-drive topology
Engineering Advantages
- OEM-Matched Signal Integrity: Designed to ABB’s exact electrical specifications — no signal degradation or compatibility risk associated with aftermarket alternatives
- Plug-and-Play Replacement: Direct drop-in replacement for failed RINT-5521C boards; no firmware re-flashing required in standard ACS800 configurations
- Long-Term Availability: Konmask.com sources and stocks legacy ABB drive components to support equipment with 10–20 year operational lifespans
- Traceability: Each unit is traceable by OEM reference number (3AUA0000016016E) for maintenance record compliance
- Global MRO Support: Suitable for emergency procurement with expedited international shipping options
System Architecture & Signal Flow
Within the ACS800 drive architecture, the RINT-5521C sits at the interface layer between the main control board (RDCU/RMIO) and the power electronics section. Its primary function is to condition, isolate, and route gate control signals to the IGBT power modules while simultaneously feeding back status signals (overcurrent, temperature, fault) to the control layer. This bidirectional signal management is essential for the drive’s closed-loop vector control algorithm to function correctly. A fault on this board typically manifests as drive fault codes related to gate drive failure, IGBT overcurrent, or communication loss between control and power sections.
Compatible system components in the ACS800 signal chain include: RDCU control units, RMIO I/O extension boards, OINT/AINT power interface boards, and IGBT power modules. When replacing the RINT-5521C, engineers should also inspect fiber optic connectors and ribbon cable harnesses for wear.
Sourcing & Quality Verification
- Source Verification: All RINT-5521C units are sourced from verified industrial surplus channels, authorized distributors, or decommissioned OEM equipment — never from unverified grey-market sources
- Visual Inspection: Each board undergoes visual inspection for component damage, corrosion, burn marks, and connector integrity before listing
- Functional Testing: Where test equipment is available, boards are bench-tested against known-good ACS800 drive configurations
- Packaging: Anti-static ESD packaging with moisture barrier for international shipment
- Documentation: OEM part number cross-reference documentation provided with each shipment
Procurement Process
- Submit Inquiry: Contact us via email at support@konmask.com or use the on-page inquiry form with your required quantity and delivery timeline
- Receive Quote: Our technical team will confirm stock availability, condition grade, and pricing within 1 business day
- Order Confirmation: Upon agreement, we issue a proforma invoice with full part traceability details
- Shipment: Parts are dispatched via DHL / FedEx / UPS with full tracking; export documentation provided for customs clearance
- After-Sales Support: Technical support available post-delivery for installation verification queries
Technical FAQ
Q: Is the RINT-5521C compatible with all ACS800 variants?
A: The RINT-5521C is designed for specific ACS800 drive configurations. Please provide your full drive type code (e.g., ACS800-04-XXXX-X) when inquiring to confirm compatibility.
Q: What is the difference between RINT-5521C and other RINT series boards (e.g., RINT-5511C, RINT-5531C)?
A: Different RINT variants correspond to different power ratings and IGBT module configurations within the ACS800 family. The -5521C variant is matched to a specific power stage topology. Cross-referencing your drive’s hardware manual is recommended before ordering.
Q: Can you supply a test report or certificate of conformity?
A: We provide OEM part number documentation and inspection records. For formal CoC requirements, please specify this in your inquiry and we will advise on available documentation.
Q: What is the lead time for international orders?
A: In-stock items typically ship within 2–3 business days. International delivery via express courier is 3–7 business days depending on destination.
Q: Do you accept returns if the board does not resolve the drive fault?
A: We offer a technical consultation process before return claims. Please contact support@konmask.com with your drive fault codes and installation details for assessment.
