ABB XVC769AE101 3BHE006373R0101 OEI-Board | Replacement, Equivalent & Selection Guide
The ABB XVC769AE101 (part number 3BHE006373R0101) is an OEI (Optical-Electrical Interface) Board designed for ABB’s high-power drive and excitation systems. This page provides full technical specifications, compatible replacement options, application guidance, and sourcing information to help engineers and procurement teams make confident selection decisions.
Technical Specifications
- Manufacturer: ABB
- Part Number: XVC769AE101
- Reference Number: 3BHE006373R0101

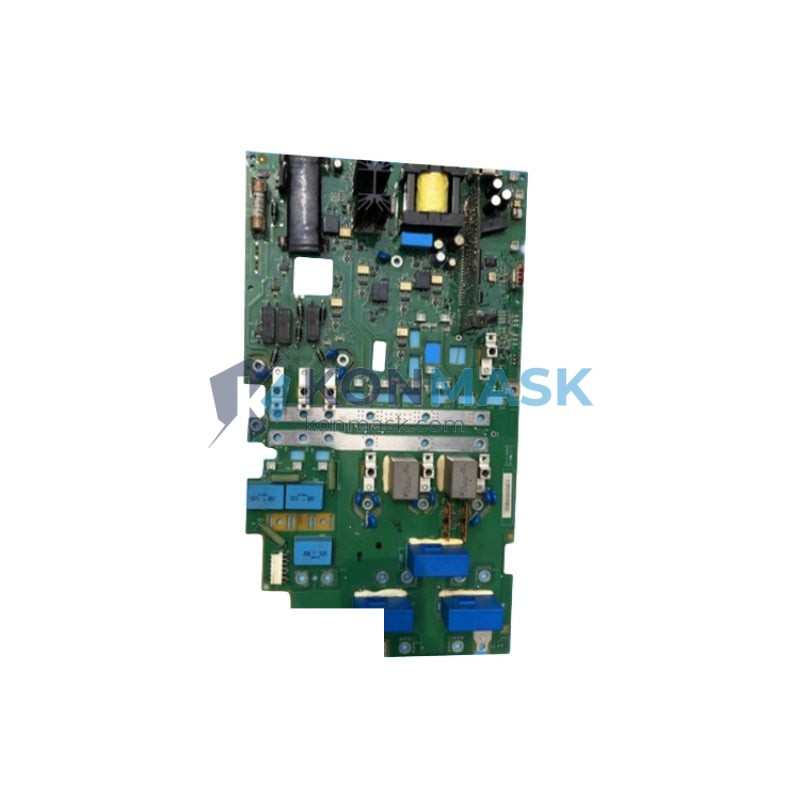

- Board Type: OEI-Board (Optical-Electrical Interface)
- Application Platform: ABB ACS / ACS6000 / Unitrol / AC80 Excitation Systems
- Interface: Optical fiber signal conversion and electrical I/O interface
- Weight: Approx. 1,160 g
- Country of Origin: Sweden / Finland (ABB manufacturing)
- Condition Available: New, Refurbished, Tested Used
Compatible Replacement & Equivalent Models
The following models are known compatible replacements or functional equivalents for the ABB XVC769AE101. Always verify firmware and hardware revision compatibility before substitution:
- ABB 3BHE006373R0101 – Direct OEM equivalent (same board, alternate catalog reference)
- ABB XVC769AE102 / R0102 – Revised hardware version; confirm compatibility with your drive firmware
- ABB XVC769AE103 / R0103 – Later revision; may require parameter re-configuration
- ABB SDCS-CON-2 – Alternative interface board for DCS500 series (verify application suitability)
- Third-party OEM-compatible boards – Available; must match optical fiber connector type and signal protocol
Note: Konmask.com recommends confirming the exact hardware revision (Rxxxx suffix) with your system documentation before ordering a replacement.
Why Choose the Original Model
- Guaranteed Compatibility: Factory-matched to ABB drive and excitation system firmware
- Signal Integrity: Precision optical-electrical conversion minimizes noise and latency in high-power control loops
- Long Service Life: Designed for continuous industrial duty in demanding environments
- ABB Ecosystem Integration: Plug-and-play with ABB ACS6000, Unitrol 6000, and AC80 platforms without re-engineering
- Traceability: Full OEM documentation and revision history available
Typical Applications
- ABB ACS6000 medium-voltage variable speed drives
- ABB Unitrol 6000 / AC80 generator excitation systems
- High-power industrial motor control systems
- Power plant auxiliary drive systems
- Steel mill, cement plant, and mining drive applications
- Marine propulsion and offshore platform drives
System Compatibility
| ABB Platform | Compatible | Notes |
|---|---|---|
| ACS6000 | ✅ Yes | Primary target platform |
| Unitrol 6000 | ✅ Yes | Excitation control interface |
| AC80 Excitation | ✅ Yes | Verify hardware revision |
| ACS800 | ⚠️ Verify | Confirm optical interface spec |
| DCS500 / DCS800 | ❌ Not Direct | Different board family; use SDCS series |
Selection Guide
Use the following criteria to confirm the XVC769AE101 is the correct board for your application:
- Step 1 – Identify your drive/excitation platform: Confirm the ABB system model (ACS6000, Unitrol 6000, AC80, etc.)
- Step 2 – Locate the existing board label: Match the part number (XVC769AE101) and revision suffix (R0101) on the installed board
- Step 3 – Check firmware version: Ensure the replacement board revision is compatible with your current firmware release
- Step 4 – Verify optical fiber connector type: Confirm ST, SC, or FSMA connector compatibility
- Step 5 – Confirm quantity and lead time: Contact Konmask.com for stock availability and delivery schedule
Quality Assurance & Sourcing
- Source: Authorized distributors, certified surplus, and OEM-refurbished stock
- Testing: All boards are function-tested prior to shipment; refurbished units include burn-in test reports
- Packaging: Anti-static ESD packaging with foam cushioning; original ABB packaging where available
- Warranty: 12-month warranty on new units; 6-month warranty on refurbished units
- Certification: CE-compliant; RoHS documentation available on request
- Traceability: Serial number and batch records provided with each shipment
How to Order
- Confirm your part number: ABB XVC769AE101 / 3BHE006373R0101
- Specify condition required: New / Refurbished / Tested Used
- Provide your delivery timeline and destination country
- Contact us via email or phone for a formal quotation
- Submit purchase order — we accept T/T, L/C, and major payment platforms
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can XVC769AE101 R0101 be replaced by R0102 or R0103?
A: In most cases yes, but you must verify firmware compatibility. Later revisions may require a firmware update on the drive controller. Contact us for revision-specific guidance.
Q: Is a refurbished OEI-Board reliable for continuous industrial use?
A: Yes, provided it has been properly tested and burn-in verified. Konmask.com supplies refurbished boards with full test reports and a 6-month warranty.
Q: What is the lead time for a new XVC769AE101?
A: Stock availability varies. In-stock units ship within 3–5 business days. Out-of-stock items typically have a 4–8 week lead time. Contact us for current availability.
Q: Do you provide installation support?
A: We provide technical documentation and remote guidance. On-site commissioning support can be arranged through our partner network.
Q: Can I return a board if it is not compatible?
A: Yes. We offer a 30-day return policy for unused boards in original packaging. Please confirm compatibility before installation.
