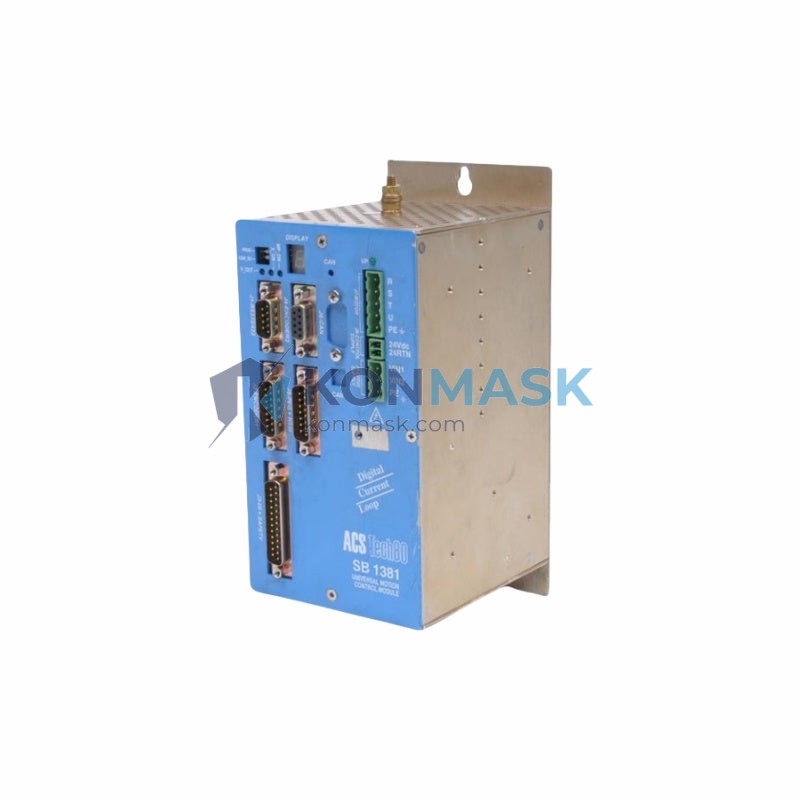

ACS SB1381-B-E-R-A-PM2 Universal Motion Control Module | ACS Motion Control SPiiPlus Platform
Engineering Background: ACS Motion Control is a global leader in high-performance motion control solutions, headquartered in Israel with a worldwide installed base across semiconductor, medical, photonics, and precision manufacturing industries. The SPiiPlus platform represents ACS’s flagship architecture for multi-axis coordinated motion, combining real-time EtherCAT communication with advanced servo algorithms.
Product Positioning: The SB1381-B-E-R-A-PM2 is a universal motion control module engineered for OEMs and system integrators who demand deterministic, sub-microsecond synchronization across multiple servo axes. It serves as the central intelligence layer in high-throughput automation cells, replacing legacy multi-card architectures with a single, compact, high-density solution.
Complete Technical Specifications
- Part Number / SKU: SB1381-B-E-R-A-PM2
- Manufacturer: ACS Motion Control
- Platform / Series: SPiiPlus SB (Standalone Box)
- Form Factor: Standalone Box Controller
- Axis Count: Up to 64 axes (EtherCAT network expansion)
- Communication Interface: EtherCAT (Master), RS-232, USB, Ethernet (TCP/IP)
- Fieldbus Protocol: EtherCAT CoE (CANopen over EtherCAT)
- Processor: Dual-core real-time DSP + host CPU
- Servo Update Rate: Up to 20 kHz
- I/O: Digital I/O, Analog I/O (configuration-dependent per suffix)
- Encoder Feedback: Incremental, Sine/Cosine, EnDat, BiSS, SSI (suffix-dependent)
- Power Supply: 24 VDC nominal
- Weight: 2,730 g
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -20°C to +70°C
- Humidity: 5–95% RH, non-condensing
- Certifications: CE, RoHS
- HS Code: 8537.10
- Country of Origin: Israel
Note: Suffix breakdown — B: Base unit | E: EtherCAT master | R: RS-232 | A: Analog I/O | PM2: Power Module 2. Verify exact I/O count and encoder type against ACS datasheet revision for your application.
Proven Application Environments
- Semiconductor Wafer Handling: Sub-micron positioning with synchronized multi-axis gantry control
- Laser Processing & Photonics: High-speed galvo and linear stage coordination for cutting, marking, and inspection
- Medical Device Manufacturing: Precision dispensing, assembly, and test automation requiring IEC 62061 safety compliance
- Flat Panel Display (FPD) Production: Large-format stage control with real-time error mapping
- Precision Metrology: CMM and profilometer integration with encoder interpolation
- Robotics & Pick-and-Place: Coordinated kinematics for SCARA, delta, and Cartesian configurations
Engineering Advantages
- Deterministic Real-Time Control: Dual-core architecture separates motion execution from host communication, eliminating jitter in servo loops
- EtherCAT Master Integration: Native EtherCAT master eliminates external master hardware, reducing BOM cost and cabinet footprint
- SPiiPlus ACSPL+ Language: High-level motion programming with multitasking, event-driven triggers, and built-in PVT/PT/PVA trajectory modes
- Scalable Architecture: Single controller scales from 1 to 64 axes via EtherCAT network without firmware changes
- Advanced Servo Algorithms: Notch filters, velocity/acceleration feedforward, cross-coupling compensation, and adaptive gain scheduling
- Compact Standalone Form: Eliminates PC-based controller dependency; suitable for embedded OEM integration
System Architecture & Signal Flow
The SB1381-B-E-R-A-PM2 operates as an EtherCAT master, polling distributed servo drives and I/O nodes at configurable cycle times (250 µs–1 ms typical). The internal dual-core DSP executes motion programs in ACSPL+ while the host CPU manages Ethernet/USB communication to the engineering workstation running ACS’s SPiiPlus MMI Application Studio. Encoder feedback is processed locally or via EtherCAT slave drives. Analog I/O (suffix A) provides ±10 V command outputs and analog sensor inputs for legacy drive integration. The PM2 power module provides regulated 24 VDC distribution to the controller logic and I/O bus.
Sourcing & Quality Verification
- All units sourced through verified industrial distribution channels with full traceability
- Pre-shipment inspection: visual, label verification, and functional power-on check
- Original ACS firmware version confirmed prior to dispatch
- Packaging: anti-static ESD bag + foam-lined export carton
- Warranty: 12-month Konmask quality guarantee against manufacturing defects
- Counterfeit risk mitigation: serial number cross-referenced against ACS authorized records where available
Procurement Process
- Inquiry: Submit your BOM or part number to [email protected] or via the product page
- Quote: Receive a formal quotation within 1 business day including lead time and freight options
- Order Confirmation: Pro-forma invoice issued; payment via T/T, PayPal, or credit card
- Inspection & Dispatch: Unit inspected, photographed, and shipped with tracking within 2–5 business days
- After-Sales: Technical support available via email and WhatsApp; RMA process for warranty claims
Technical FAQ
Q: Is the SB1381-B-E-R-A-PM2 compatible with third-party EtherCAT drives?
A: Yes. The EtherCAT master (suffix E) supports any CoE-compliant slave drive. ACS provides a library of pre-configured drive profiles for major brands including Beckhoff, Panasonic, Yaskawa, and Mitsubishi.
Q: What programming environment is required?
A: ACS SPiiPlus MMI Application Studio (Windows-based IDE, free download from ACS). The controller is also accessible via ACS .NET/COM API for custom HMI integration.
Q: Can this unit replace an older ACS SPiiPlus CM/NT controller?
A: In most cases yes, with ACSPL+ program migration. I/O mapping and axis configuration must be reviewed. Contact us for a compatibility assessment.
Q: What is the lead time for this part?
A: In-stock units ship within 2–5 business days. Out-of-stock lead time is typically 4–8 weeks depending on ACS production schedule. Contact us for real-time availability.
Q: Do you provide a test report or inspection certificate?
A: Yes. A pre-shipment inspection report with photos is provided for all orders. Third-party inspection can be arranged upon request.
