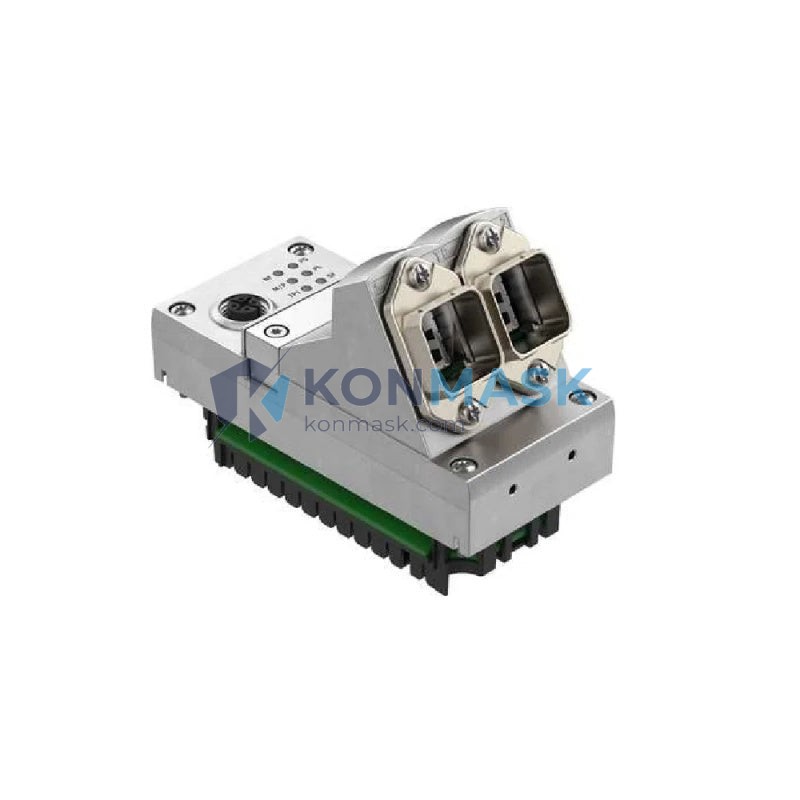

Welding Automation Solution – FESTO CPX-SB-LT-WELD-SA | CPX Series
Where This Product Is Used
The FESTO CPX-SB-LT-WELD-SA is purpose-built for demanding welding automation environments. Engineers specify this controller across a wide range of industrial welding applications:
- Robotic MIG/MAG Welding Cells – Coordinates pneumatic clamping, torch positioning, and weld sequencing in automotive body-in-white lines.
- Spot Welding Automation – Controls electrode force, weld timer signals, and coolant valve actuation in resistance welding stations.
- Laser Welding Systems – Manages shielding gas flow, part fixturing, and safety interlocks in precision laser welding enclosures.
- Plasma Cutting & Welding – Handles gas mixture control and torch height regulation in CNC plasma tables.
- Shipbuilding & Heavy Fabrication – Deployed in large-scale structural welding jigs requiring distributed I/O with high EMI immunity.
- Pipe & Orbital Welding – Integrates with orbital welding heads for precise parameter control in oil & gas pipeline fabrication.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | CPX-SB-LT-WELD-SA |
| Manufacturer | FESTO |
| Series | CPX (Compact Performance) |
| Function | Welding Application Sub-Base / Controller Module |
| Protection Rating | IP65 / IP67 |
| Operating Voltage | 24 V DC |
| Communication | CPX fieldbus interface compatible (PROFIBUS, PROFINET, EtherNet/IP, DeviceNet) |
| Mounting | CPX terminal sub-base, DIN rail compatible |
| Operating Temperature | -5 °C to +50 °C |
| Weight | 1,780 g |
| Country of Origin | Germany |
Why Engineers Specify This Model
- Welding-Optimized I/O Architecture – The -WELD-SA suffix designates a sub-base configuration specifically validated for weld spatter, high-frequency EMI, and thermal cycling inherent to arc welding environments.
- Modular CPX Platform – Snap-on I/O expansion without rewiring; add digital, analog, or safety modules as your cell evolves.
- IP65/IP67 Ingress Protection – Sealed against weld spatter, coolant mist, and washdown cycles — no additional enclosure required in most installations.
- Fieldbus Agnostic – Single hardware platform supports all major industrial networks, reducing spare-parts inventory across multi-vendor plants.
- Integrated Diagnostics – Per-channel fault detection with LED indication accelerates troubleshooting during production downtime.
- FESTO Ecosystem Compatibility – Direct integration with FESTO valve terminals (MPA, VTSA, VUVG series) eliminates interface engineering overhead.
Complete System Bill of Materials
For a complete welding automation node based on the CPX-SB-LT-WELD-SA, engineers typically specify:
- CPX-SB-LT-WELD-SA – Welding sub-base controller (this item)
- CPX-FB-[fieldbus] – Fieldbus module (PROFINET / EtherNet/IP / PROFIBUS)
- CPX-8DE-8DA – 8-channel digital I/O module
- VTSA / MPA Valve Terminal – Pneumatic valve manifold for clamping & gas control
- CABL-M12-[length] – Pre-assembled M12 sensor cables
- CPX-P-[PSU] – CPX power supply module
- FESTO CMMT-AS / CMMT-ST – Servo drive for torch axis (optional)
Compliance & Industry Standards
- CE Marked – EU Machinery Directive 2006/42/EC compliant
- UL Listed – North American electrical safety certification
- RoHS Compliant – Restriction of Hazardous Substances Directive
- IEC 61131-2 – Programmable controller hardware standard
- ISO 10218 – Robot safety standard compatibility (welding cell integration)
- ATEX / IECEx – Consult FESTO for zone-classified welding environments
Quality Assurance & Sourcing
Konmask.com sources FESTO CPX modules exclusively through authorized distribution channels and verified industrial surplus networks. Every unit undergoes:
- Visual inspection for physical damage, label integrity, and connector condition
- Firmware version verification against FESTO published release notes
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Batch traceability documentation available on request
How to Source This Part
The CPX-SB-LT-WELD-SA is a specialized welding-application module with variable lead times from standard distribution. Konmask.com maintains stock of hard-to-find CPX series components to support urgent MRO and project procurement needs.
- Request a Quote: Contact [email protected] for volume pricing and lead time confirmation.
- Phone / WhatsApp: +0086 19859288691
- Shipping: Worldwide DHL / FedEx express available. Export documentation provided.
- Payment: T/T, PayPal, credit card accepted.
Application-Specific FAQ
Q: Is the CPX-SB-LT-WELD-SA compatible with PROFINET IO?
A: Yes, when paired with the CPX-FB-PN fieldbus module. The sub-base is fieldbus-independent; the communication protocol is determined by the fieldbus module selected.
Q: Can this module be used outside of welding applications?
A: Yes. The -WELD-SA designation indicates a sub-base optimized for welding environments (enhanced EMI shielding, spatter-resistant sealing), but it is electrically compatible with all standard CPX I/O modules and can be deployed in any CPX terminal application.
Q: What is the difference between CPX-SB and CPX-SB-LT?
A: The -LT variant features a low-temperature rated seal compound, extending reliable operation in environments where ambient temperatures drop below 0 °C during non-production periods.
Q: Do you provide FESTO original packaging?
A: Where available, yes. For MRO surplus stock, original FESTO packaging may not be present; all units are repackaged in ESD-safe materials with full labeling.
Q: Can I return the module if it is incompatible with my system?
A: Please verify compatibility with your CPX terminal configuration before ordering. Contact our technical team for pre-sale compatibility checks.
