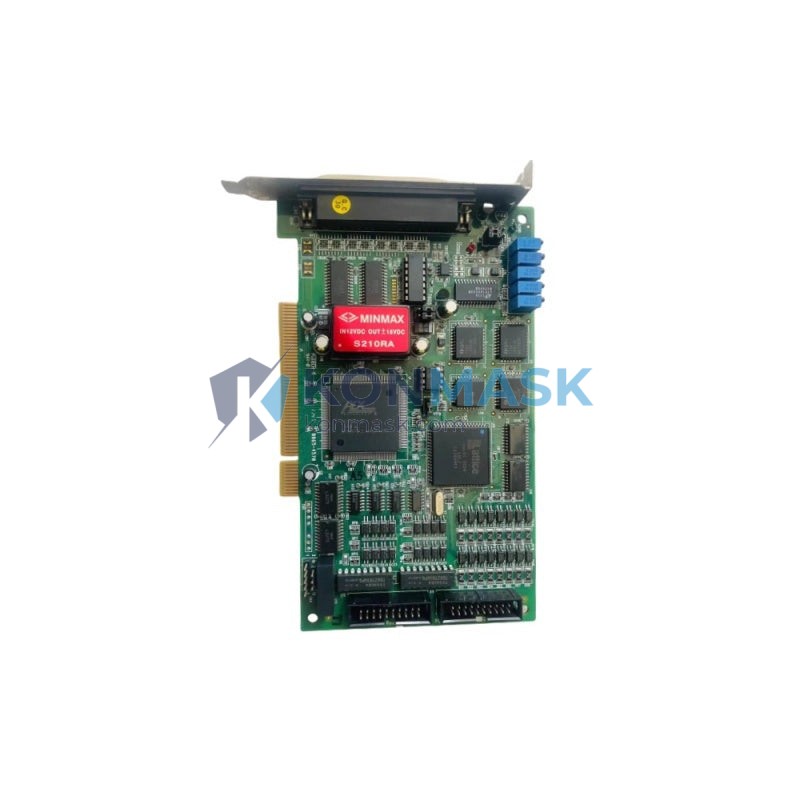

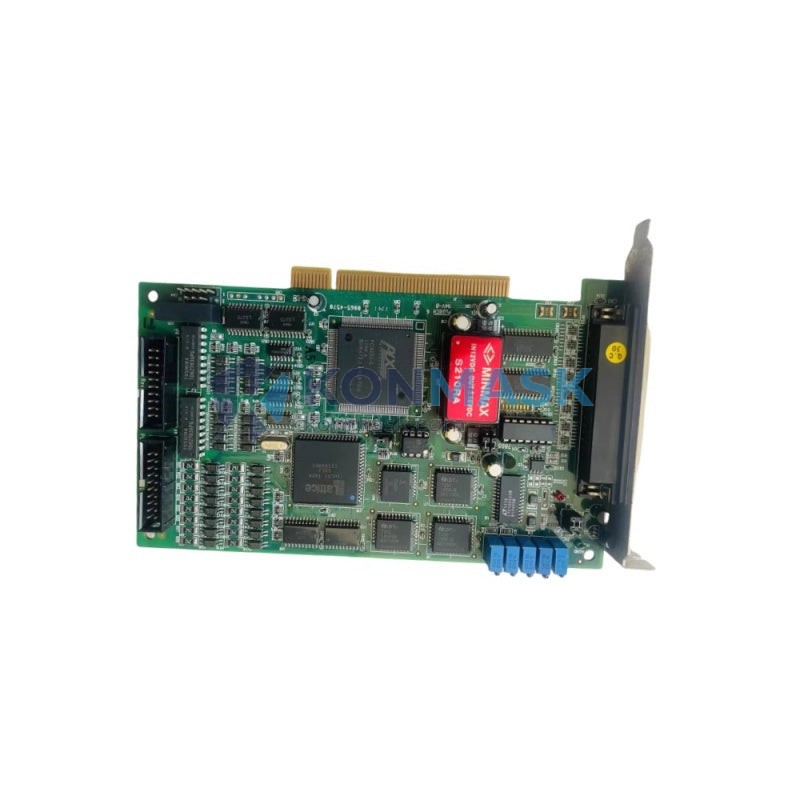

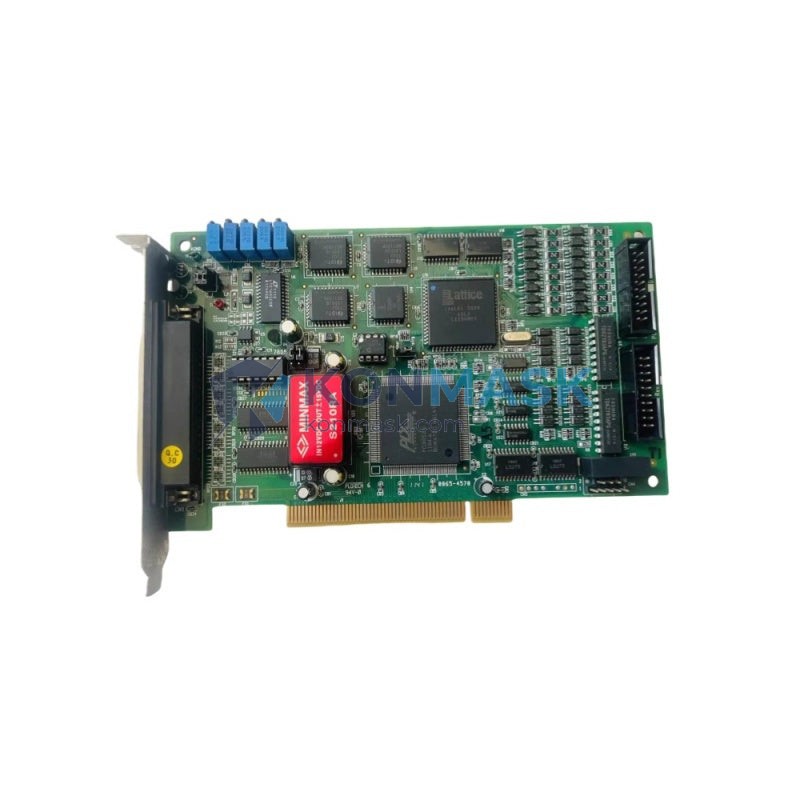

Industrial Data Acquisition Solution – ADLINK PCI-9114A-DG | PCI-9114 Series
Where This Product Is Used
The ADLINK PCI-9114A-DG is a high-performance multifunction data acquisition card engineered for demanding industrial and laboratory environments. Engineers and system integrators deploy this card across a wide range of application scenarios:
- Industrial Process Monitoring – Real-time acquisition of analog signals from temperature sensors, pressure transducers, and flow meters on factory floors and process lines.
- Machine Condition Monitoring – Vibration analysis and predictive maintenance systems for CNC machines, motors, and rotating equipment.
- Automated Test & Measurement (ATE) – Functional testing of PCBs, electronic assemblies, and electromechanical components in production test fixtures.
- Laboratory Research & Data Logging – Scientific data capture in R&D labs, universities, and calibration facilities requiring precise multi-channel analog input.
- Energy & Power Quality Analysis – Monitoring voltage, current, and power parameters in electrical distribution and renewable energy systems.
- Environmental Monitoring – Continuous acquisition from gas sensors, humidity probes, and environmental transducers in cleanrooms and HVAC systems.
- Robotics & Motion Control – Feedback signal acquisition for servo drives and motion controllers in automated assembly lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PCI-9114A-DG |
| Series | PCI-9114 |
| Manufacturer | ADLINK Technology |
| Bus Interface | PCI (32-bit, 33 MHz) |
| Analog Input Channels | 16 Single-ended / 8 Differential |
| ADC Resolution | 12-bit |
| Sampling Rate | Up to 110 kS/s (aggregate) |
| Input Voltage Range | ±10V, ±5V, ±2.5V, ±1.25V (programmable) |
| Digital I/O | 16-bit programmable DIO |
| Counter/Timer | 2 × 16-bit counters |
| Trigger | Software, external digital trigger |
| Operating Temperature | 0°C to 60°C |
| Power Consumption | +5V @ 500mA typical |
| Dimensions | Half-length PCI card |
| OS Support | Windows 10/11, Linux |
| Software | DAQPilot, LabVIEW driver, MATLAB support |
Why Engineers Specify This Model
- Proven PCI Platform – The PCI-9114 series has decades of field deployment in industrial automation and ATE systems, ensuring driver stability and long-term software support.
- Flexible Channel Configuration – Switchable between 16 SE and 8 DIFF inputs allows adaptation to both single-ended sensor arrays and differential signal sources without hardware changes.
- Programmable Gain – Four selectable input ranges per channel maximize dynamic range and signal-to-noise ratio for diverse sensor types.
- Onboard FIFO Buffer – Prevents data loss during high-speed continuous acquisition even under Windows OS scheduling latency.
- Comprehensive Software Ecosystem – Native LabVIEW VIs, MATLAB Data Acquisition Toolbox support, and DAQPilot GUI reduce integration time significantly.
- Half-Length Form Factor – Fits in compact industrial PCs and embedded chassis with limited slot depth.
Complete System Bill of Materials
For a complete data acquisition system built around the PCI-9114A-DG, engineers typically specify:
- ADLINK PCI-9114A-DG – Multifunction DAQ card (this item)
- ADLINK ACL-10168 – 68-pin SCSI-II to screw-terminal breakout board
- ADLINK CA-6868 – 68-pin SCSI-II shielded cable (0.5m / 1m / 2m)
- Industrial PC / IPC Chassis – With available PCI slot (full or half-length)
- Signal Conditioning Module – For thermocouple, RTD, or high-voltage inputs (e.g., ADLINK AMAX-3000 series)
- Power Supply – ATX or industrial PSU providing stable +5V / +12V rails
Compliance & Industry Standards
- CE Marking – EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- FCC Part 15 Class A – Radiated and conducted emissions compliance
- RoHS 2 Compliant – Directive 2011/65/EU (restriction of hazardous substances)
- PCI Local Bus Specification Rev. 2.2 compliant
- ISO 9001:2015 – Manufactured under ADLINK’s certified quality management system
Quality Assurance & Sourcing
Konmask.com sources the ADLINK PCI-9114A-DG exclusively through verified supply channels. Every unit undergoes incoming inspection including:
- Visual inspection for physical damage, counterfeit markings, and date code verification
- Functional power-on test confirming PCI bus enumeration and driver recognition
- Channel continuity and basic ADC linearity spot-check
- Anti-static packaging with humidity indicator card for safe international shipping
Traceability documentation and certificates of conformance are available upon request for regulated industries.
How to Source This Part
- In Stock Orders – Add to cart and complete checkout. Orders placed before 14:00 CST ship same business day via DHL Express, FedEx International, or SF Express.
- Bulk / Project Quantity – Contact us for volume pricing, lead time commitment, and consignment stocking arrangements.
- Obsolete / Long Lead Time – If the standard channel shows extended lead time, our sourcing team can locate new-surplus or refurbished units with full test reports.
- OEM / System Integrator Accounts – Apply for a trade account to access net pricing, priority allocation, and dedicated technical support.
Application-Specific FAQ
Q: Can the PCI-9114A-DG acquire thermocouple signals directly?
A: No. Thermocouples require cold-junction compensation and signal conditioning. Pair this card with an ADLINK AMAX-3000 series signal conditioning module or a third-party isothermal terminal block.
Q: Is the PCI-9114A-DG compatible with Windows 11?
A: Yes. ADLINK provides signed WDM drivers compatible with Windows 10 and Windows 11 (32/64-bit). Download from the ADLINK support portal or contact Konmask for the driver package.
Q: What is the maximum cable length between the card and the breakout board?
A: ADLINK recommends a maximum of 2 meters for the 68-pin SCSI-II cable to maintain signal integrity at full sampling rates. Use shielded cables in electrically noisy environments.
Q: Can I use multiple PCI-9114A-DG cards in one PC for more channels?
A: Yes. Multiple cards can be installed simultaneously. Each card is independently addressable via its PCI slot. Software synchronization between cards requires ADLINK’s multi-card API or LabVIEW multi-device tasks.
Q: Is this card suitable for high-voltage industrial signals (e.g., 4–20mA loops)?
A: The card’s maximum input is ±10V. For 4–20mA current loop signals, use a precision shunt resistor (e.g., 250Ω) to convert to 1–5V, or use a dedicated signal conditioning module.
