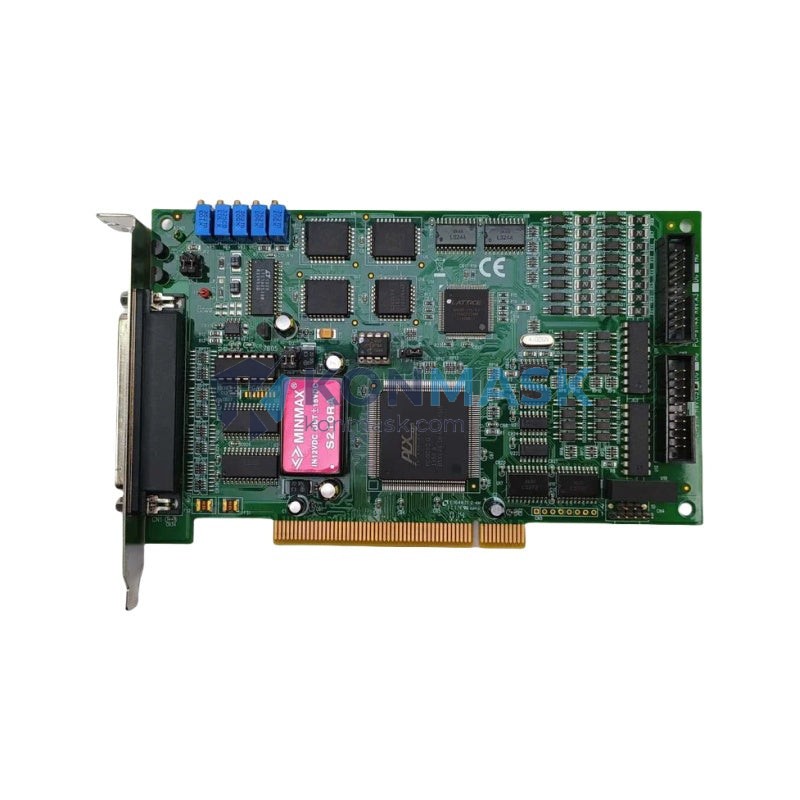

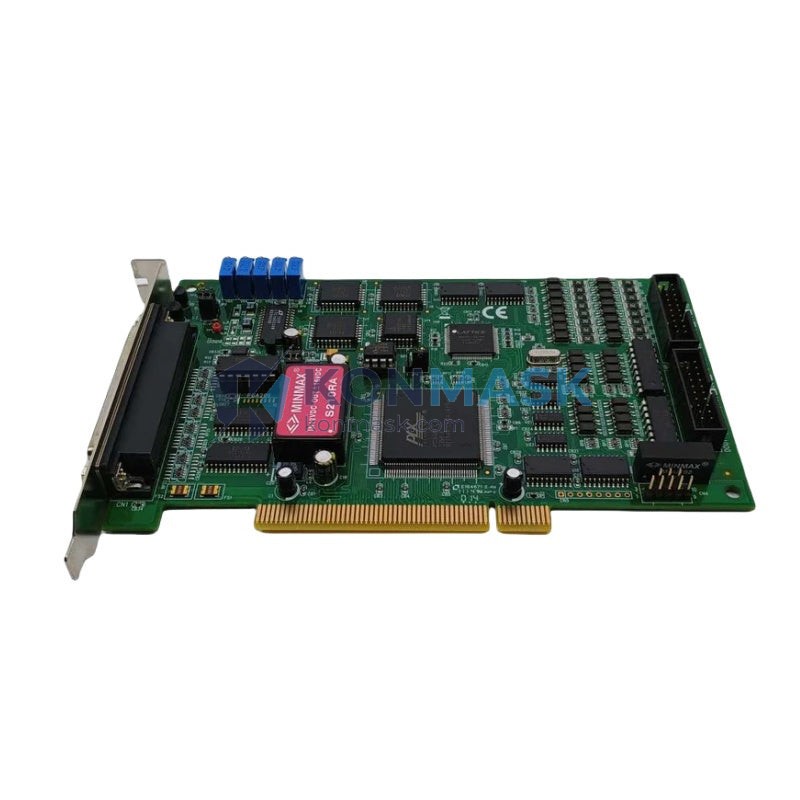

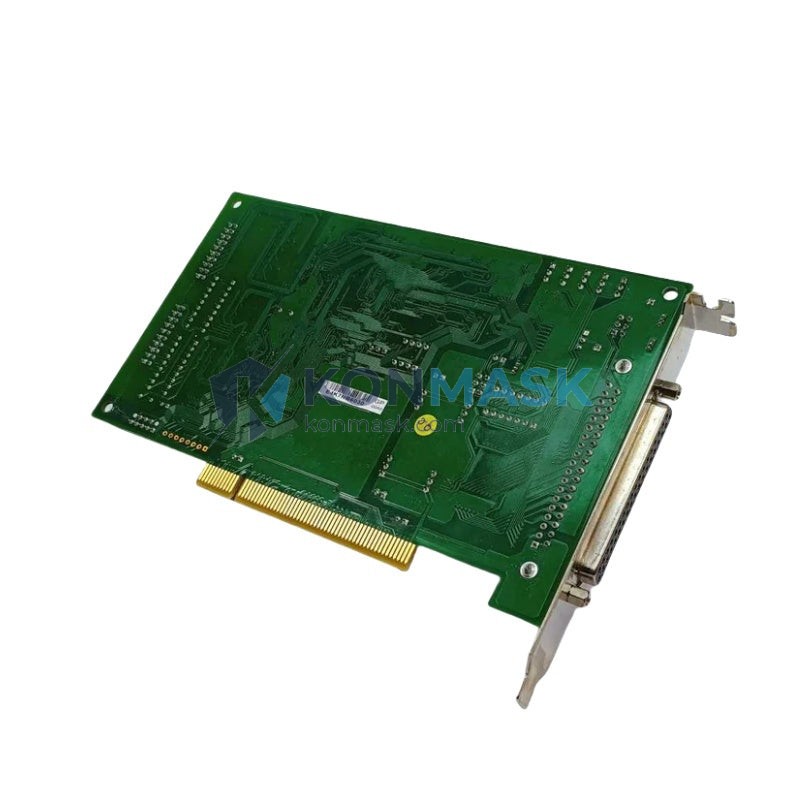

Genuine ADLINK PCI-9114DG Normal Gain 16-CH Analog Input DAQ Card | PCI-9114 Series – Verified Source
The ADLINK PCI-9114DG is a high-performance, normal-gain data acquisition card designed for demanding industrial measurement and control applications. Sourced directly through verified distribution channels, every unit sold by Konmask.com undergoes rigorous authenticity and functional verification before shipment.
Technical Specifications
- Model: PCI-9114DG
- Manufacturer: ADLINK Technology Inc.
- Series: PCI-9114
- Form Factor: PCI Bus Card
- Analog Input Channels: 16 single-ended / 8 differential
- Input Gain Mode: Normal Gain
- Resolution: 12-bit A/D converter
- Sampling Rate: Up to 100 kS/s
- Input Range: ±10V, ±5V, ±2.5V, ±1.25V (software selectable)
- Digital I/O: 16-bit programmable DIO
- Bus Interface: 32-bit PCI
- Operating Temperature: 0°C to 60°C
- Weight: 610 g
- Compliance: CE, FCC
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All ADLINK PCI-9114DG units are procured through traceable, authorized supply chains. We verify manufacturer documentation and batch records before purchase.
- Step 2 – Physical Inspection: Each card is inspected for PCB integrity, component placement, label authenticity, and serial number consistency against ADLINK’s known production standards.
- Step 3 – Functional Testing: Units undergo bench-level power-on and I/O channel verification to confirm analog input responsiveness and digital I/O functionality prior to packaging.
- Step 4 – Secure Packaging & Documentation: Products are packed in anti-static ESD-safe materials with inspection records included. A certificate of verification is available upon request.
Key Features & Benefits
- ✅ Normal-gain analog input for accurate, low-noise signal acquisition
- ✅ 16 single-ended or 8 differential AI channels — flexible configuration for diverse sensor types
- ✅ 100 kS/s aggregate sampling rate — suitable for real-time monitoring applications
- ✅ Software-selectable input ranges — adapt to ±1.25V to ±10V signals without hardware changes
- ✅ 16-bit programmable DIO — integrate seamlessly with relay boards, PLCs, and actuators
- ✅ 32-bit PCI bus — stable, low-latency data transfer in industrial PC environments
- ✅ ADLINK driver support — compatible with Windows and Linux, with SDK and example code
Typical Applications
- Industrial process monitoring and control
- Laboratory data acquisition and signal analysis
- Machine condition monitoring (vibration, temperature, pressure)
- PLC and DCS system integration and testing
- Automated test equipment (ATE) platforms
- Energy management and power quality monitoring
- Research and development instrumentation
Compatible System Components
- ADLINK PCI-9114HG (High Gain variant of same series)
- ADLINK PCIS-910 / PCIS-920 signal conditioning accessories
- ADLINK ACL-10168 / ACL-10268 terminal boards
- Standard 32-bit PCI slot industrial PCs and IPC chassis
- Compatible with ADLINK DAQPilot and DAQBench software suites
Global Sourcing & Shipping Capabilities
Konmask.com maintains an active global sourcing network for ADLINK products, including legacy, current-production, and hard-to-find industrial automation components. We ship worldwide with the following capabilities:
- Origin: China (Mainland) — Fujian Province
- Shipping Methods: DHL Express, FedEx International Priority, EMS, Sea Freight (for bulk orders)
- Lead Time: In-stock items ship within 1–3 business days; sourced items within 5–15 business days
- Export Documentation: Commercial invoice, packing list, certificate of origin available upon request
- Customs Support: HS Code 8471.80 — we assist with customs declarations for smooth clearance
- Bulk & OEM Orders: Contact us for volume pricing and dedicated account management
Certifications & Compliance Statement
The ADLINK PCI-9114DG is manufactured by ADLINK Technology Inc., a publicly listed, ISO 9001-certified company headquartered in Taiwan. All units supplied by Konmask.com are:
- CE Marked — compliant with EU electromagnetic compatibility (EMC) directives
- FCC Part 15 Class A compliant — suitable for industrial environments
- RoHS compliant — free from restricted hazardous substances
- Sourced with full traceability documentation available upon request
Konmask.com is an independent distributor and reseller. We are not an authorized ADLINK dealer. All brand names and trademarks are the property of their respective owners.
How to Order
- Online: Add to cart and complete checkout — we accept T/T bank transfer, PayPal, and major credit cards
- Email RFQ: Send your part number, quantity, and delivery requirements to support@konmask.com
- Phone/WhatsApp: +0086 19859288691 — available Monday–Saturday, 09:00–18:00 CST
- Lead Time Confirmation: We will confirm stock availability and estimated delivery within 24 hours of order receipt
- Payment Terms: 100% T/T in advance for standard orders; net terms available for qualified accounts
Authenticity & Trust FAQ
Q: How do I know the PCI-9114DG I receive is genuine?
A: Every unit passes our 4-step verification process. We provide inspection records and can supply photos of the actual unit prior to shipment upon request.
Q: Do you offer a warranty?
A: Yes. We offer a 90-day functional warranty on all units. If a product fails under normal operating conditions, we will replace or refund at our discretion.
Q: Can I request a test report or datasheet?
A: Yes. The official ADLINK PCI-9114DG datasheet and, where available, test reports are provided upon request. Contact us before purchase if you require specific documentation.
Q: What if the item is out of stock?
A: We operate a global sourcing network. Submit an RFQ and we will locate the unit and provide a lead time estimate within 1–2 business days.
Q: Do you ship to my country?
A: We ship to over 80 countries worldwide. Contact us if you have specific import requirements or need assistance with customs documentation.
