RF Generator Control Solution – Advanced Energy RFG 3000 V2 | SCU-STC-G Series
Where This Product Is Used

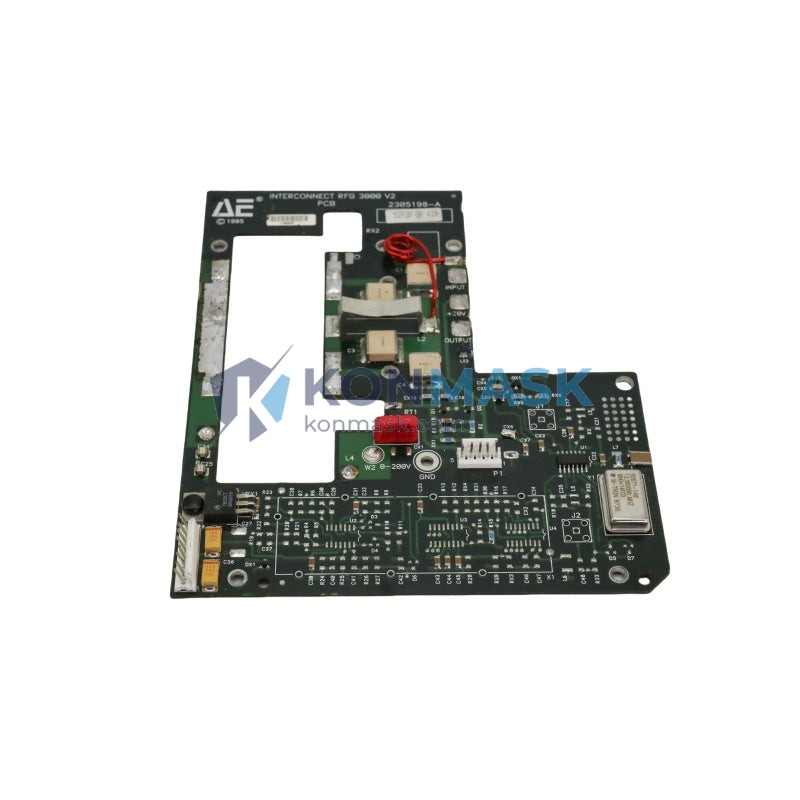

The Advanced Energy RFG 3000 V2 PCB Board (P/N 2305198-A / 810-013872-002, SCU-STC-G) is a mission-critical control module deployed across high-precision industrial and semiconductor manufacturing environments. Typical application sites include:
- Semiconductor Fab & Wafer Processing – RF power delivery and plasma control in CVD, PVD, and etch chambers where stable, repeatable RF output is non-negotiable.
- Flat Panel Display (FPD) Manufacturing – Plasma-enhanced deposition processes requiring precise I/O coordination between the RF generator and process controller.
- Solar Cell Production Lines – PECVD and sputtering systems where the SCU-STC-G board manages digital and analog I/O handshaking with upstream PLC/DCS controllers.
- Industrial Plasma Systems – Surface treatment, coating, and cleaning equipment relying on the RFG 3000 platform for sustained high-frequency power delivery.
- Research & Development Labs – University and corporate R&D plasma reactors requiring a proven, field-tested control PCB with documented I/O mapping.
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Advanced Energy Industries, Inc. |
| Part Number (Primary) | 2305198-A |
| Assembly / BOM Reference | 810-013872-002 |
| Board Designation | SCU-STC-G (System Control Unit – Signal & Timing Control) |
| Platform | RFG 3000 V2 RF Generator |
| Digital Inputs (DI) | 80 channels |
| Digital Outputs (DO) | 96 channels |
| Analog Inputs (AI) | 8 channels (8A02AI configuration) |
| Form Factor | PCB Module (field-replaceable unit) |
| Weight | approx. 150 g |
| HS Code | 8537.10 |
| Condition | New / Refurbished / Exchange (specify at inquiry) |
Why Engineers Specify This Model
- High-density I/O architecture – 80 DI + 96 DO + 8 AI on a single board eliminates the need for external I/O expanders in complex process sequences.
- Drop-in replacement compatibility – Designed to the original Advanced Energy mechanical and electrical footprint; no firmware re-flashing or wiring changes required in most RFG 3000 V2 chassis.
- Proven field reliability – The SCU-STC-G designation indicates a mature, production-validated revision with documented ECO history.
- Reduced downtime risk – Stocking a spare PCB reduces mean-time-to-repair (MTTR) from days to under one hour in the event of a board-level fault.
- Traceable part numbers – Dual P/N traceability (2305198-A + 810-013872-002) simplifies procurement, MRO records, and OEM warranty cross-referencing.
Complete System Bill of Materials
This PCB is typically sourced alongside the following RFG 3000 platform components. Contact us for bundle pricing:
- Advanced Energy RFG 3000 V2 RF Generator Chassis
- RF Output Network / Matching Network Module
- Power Supply Board (PSU PCB) for RFG 3000
- Front Panel Display / HMI Interface Board
- RF Coaxial Output Cable Assembly (50 Ω)
- Fiber Optic Communication Cable (generator ↔ process controller)
Compliance & Industry Standards
- CE Marking – Manufactured to EU Low Voltage Directive and EMC Directive requirements (as part of the RFG 3000 system).
- RoHS Compliance – Advanced Energy production PCBs conform to RoHS 2 (Directive 2011/65/EU) restrictions on hazardous substances.
- SEMI S2 / S8 – The RFG 3000 platform is designed for semiconductor equipment safety per SEMI standards; this board is a certified sub-assembly.
- ISO 9001 – Advanced Energy operates under ISO 9001-certified quality management systems.
- HS Code 8537.10 – Classified as boards, panels, consoles for electric control or distribution of electricity (<1,000 V).
Quality Assurance & Sourcing
At Konmask.com, every Advanced Energy PCB module is processed through a structured quality workflow before shipment:
- Visual inspection for component damage, solder joint integrity, and PCB trace condition.
- Part number and revision label verification against the manufacturer’s BOM database.
- Anti-static packaging (ESD bag + foam insert + outer carton) with humidity indicator card.
- Optional functional test report available upon request for refurbished units.
- Photographs of the actual unit provided prior to shipment on request.
How to Source This Part
Ready to order or need a formal quotation for your procurement team?
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; sourced units typically 5–15 business days.
- Payment: T/T (Wire Transfer), PayPal, and major credit cards accepted.
- Export: Worldwide shipping with DHL, FedEx, and UPS Express options; full export documentation provided.
Application-Specific FAQ
Q: Is this board compatible with the RFG 3000 V1 chassis?
A: The V2 board revision (2305198-A) may not be backward-compatible with V1 chassis without firmware and connector verification. Please provide your chassis serial number for confirmation before ordering.
Q: What does the SCU-STC-G designation mean?
A: SCU = System Control Unit; STC = Signal & Timing Control; G = board revision suffix. This designation identifies the board’s functional role within the RFG 3000 control architecture.
Q: Can this board be repaired if one I/O channel fails?
A: Component-level repair is possible for experienced technicians. Konmask can also supply exchange units to minimize downtime while your original board is under repair.
Q: Do you provide a warranty?
A: Yes. New units carry the original manufacturer warranty where applicable. Refurbished units carry a 90-day Konmask functional warranty. Terms available on request.
Q: Can I get a datasheet or wiring diagram?
A: Available documentation is shared under NDA or with verified purchase. Contact us with your application details.
