Industrial Measurement & Control Solution — Advanced Energy 2305451-B | PS261/MC11/AO32/DO32 Series
Where This Product Is Used

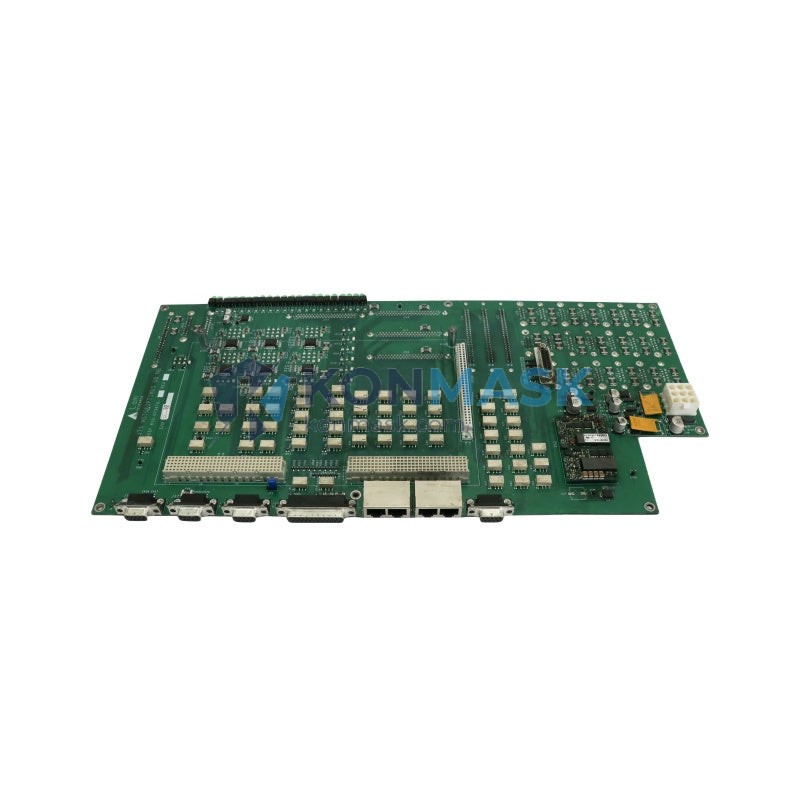

The Advanced Energy 2305451-B Universal Measurement Board is engineered for demanding industrial environments where precise analog and digital signal acquisition is critical. Typical deployment scenarios include:
- Power Generation & Utilities: Turbine control panels, generator excitation systems, and grid-tie inverter monitoring where high-accuracy voltage/current measurement is non-negotiable.
- Semiconductor & Thin-Film Manufacturing: RF power delivery systems, plasma process control, and etch/deposition chambers requiring real-time power measurement feedback.
- Oil & Gas / Petrochemical: DCS-integrated measurement nodes for flow, pressure, and temperature transmitter signal conditioning across hazardous-area control loops.
- Automotive & Battery Testing: End-of-line test benches and battery formation systems demanding synchronized multi-channel analog output (AO32) and digital output (DO32) control.
- Water Treatment & Infrastructure: SCADA-connected measurement boards for pump station monitoring, dosing control, and remote I/O expansion in distributed control architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | 2305451-B |
| Series / Configuration | PS261 / MC11 / AO32 / DO32 |
| Terminal Block Unit | TBU268**S (PDFASTEST-ll-72) |
| Module Type | Universal Measurement Board |
| Analog Outputs | 32 Channels (AO32) |
| Digital Outputs | 32 Channels (DO32) |
| Power Supply Module | PS261 |
| Controller Module | MC11 |
| Manufacturer | Advanced Energy Industries |
| Weight | ~150 g |
| Condition | New / Surplus / Refurbished (specify on inquiry) |
Why Engineers Specify This Model
- High-Density I/O: 32-channel analog output combined with 32-channel digital output in a single board reduces panel footprint and wiring complexity significantly.
- Proven Advanced Energy Platform: Built on the same architecture trusted in semiconductor capital equipment worldwide — field-proven reliability in 24/7 continuous-process environments.
- Plug-Compatible TBU268 Terminal Block: The PDFASTEST-ll-72 terminal block unit enables rapid field replacement without rewiring, minimizing unplanned downtime.
- PS261 Power Supply Integration: Onboard PS261 power module ensures stable, regulated power delivery to all I/O channels, eliminating external PSU dependencies.
- MC11 Controller Compatibility: Native MC11 controller interface allows seamless integration into existing Advanced Energy control architectures without firmware modifications.
Complete System Bill of Materials
For a fully operational measurement and control node based on the 2305451-B, engineers typically specify the following complementary components:
- Advanced Energy PS261 — Power Supply Module
- Advanced Energy MC11 — Controller Module
- TBU268**S Terminal Block Unit (PDFASTEST-ll-72)
- Shielded multi-conductor cable (per channel count and distance)
- DIN rail mounting hardware (35 mm standard)
- Surge protection modules for field-side I/O (recommended for outdoor or long-run installations)
Contact support@konmask.com for a complete BOM quotation and compatibility verification.
Compliance & Industry Standards
- Designed and manufactured under ISO 9001 quality management systems
- Compatible with IEC 61131-3 programmable controller environments
- Suitable for integration into CE-marked control panel assemblies (verify with system integrator)
- RoHS compliance status: confirm with Advanced Energy datasheet for specific revision
Quality Assurance & Sourcing
All Advanced Energy modules supplied by Konmask.com are subject to the following quality controls:
- Visual and dimensional inspection upon receipt
- Functional power-on verification where applicable
- Secure anti-static packaging for transit protection
- Traceability documentation available on request (batch records, test reports)
- Sourced from authorized distributors, OEM surplus channels, or certified refurbishers — origin disclosed on invoice
How to Source This Part
- Submit an RFQ via support@konmask.com with your required quantity, delivery timeline, and condition preference (new / surplus / refurbished).
- Receive a quotation within 1 business day including lead time, unit price, and shipping options (DHL / FedEx / sea freight for bulk orders).
- Confirm order with purchase order or proforma invoice — payment via T/T, PayPal, or trade assurance.
- Shipment & tracking provided within 24–48 hours of payment confirmation.
📞 WhatsApp / WeChat: +0086 19859288691
Application-Specific FAQ
Q: Is the 2305451-B compatible with third-party DCS systems such as Emerson DeltaV or Honeywell Experion?
A: The board is designed for the Advanced Energy control architecture. Third-party DCS integration requires a signal conditioning interface or gateway module. Contact us for integration guidance.
Q: Can the AO32 channels be configured for 4–20 mA current loop output?
A: Output range configuration depends on the firmware and jumper settings of the MC11 controller. Refer to the Advanced Energy PS261/MC11 system manual or contact our technical team for confirmation.
Q: What is the lead time for the 2305451-B?
A: Stock availability varies. Submit an RFQ and we will confirm availability and lead time within 24 hours.
Q: Do you supply the TBU268 terminal block separately?
A: Yes. The TBU268**S (PDFASTEST-ll-72) can be quoted independently. Include it in your RFQ.
Q: Is a warranty provided?
A: Konmask.com offers a 90-day functional warranty on all verified units. Extended warranty options are available for volume orders.
