Applied Materials CPCI SCOM-0800 PCB Board | Replacement, Equivalent & Selection Guide

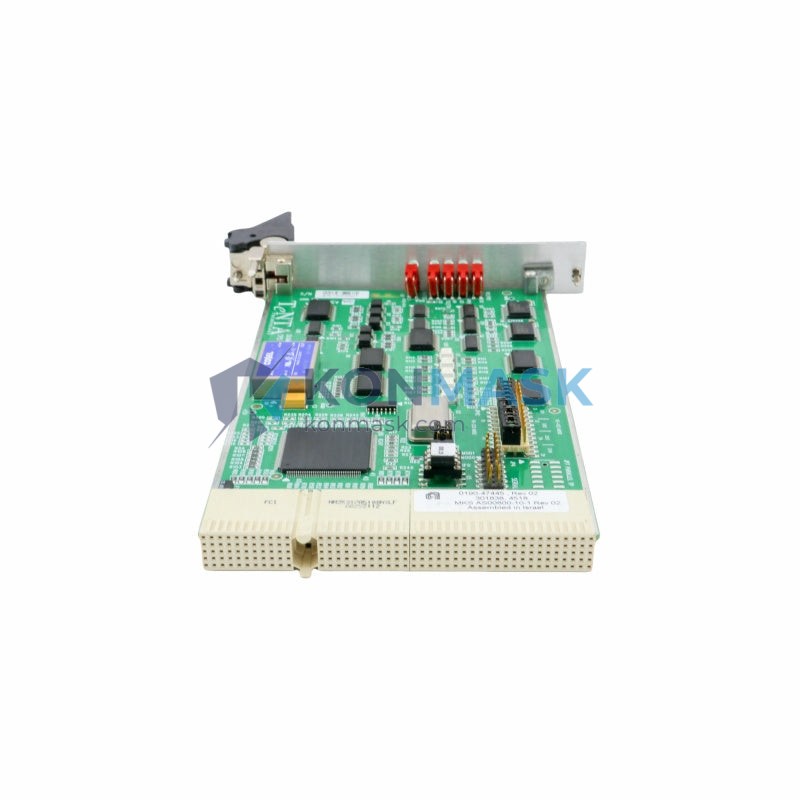

The Applied Materials CPCI SCOM-0800 is a CompactPCI-standard serial communication PCB board used in semiconductor process equipment control systems. Cross-referenced with MKS AS00800-10-1, part numbers 0190-47445, 0100-03391, LTA-15A, and LTA-15A1R, this board serves as a critical interface module in CVD, PVD, and etch tool platforms. Konmask.com supplies verified OEM and compatible replacement units with full traceability.
Technical Specifications
- Manufacturer: Applied Materials / MKS Instruments
- Part Number (Primary): CPCI SCOM-0800
- Cross-Reference SKUs: AS00800-10-1 | 0190-47445 | 0100-03391 | LTA-15A | LTA-15A1R
- Form Factor: CompactPCI (CPCI) — 3U or 6U compatible
- Function: Serial Communication Interface PCB Board
- Interface: Multi-port serial I/O for process tool communication
- Application Platform: Semiconductor CVD / PVD / Etch Equipment
- Weight: Approx. 20 g (bare board)
- Condition Available: OEM New / Refurbished / Tested Used
Compatible Replacement & Equivalent Models
The following part numbers are confirmed compatible replacements or functional equivalents for the CPCI SCOM-0800:
- MKS AS00800-10-1 — OEM equivalent, same communication architecture
- 0190-47445 — Applied Materials internal part number
- 0100-03391 — Applied Materials alternate assembly reference
- LTA-15A — Legacy designation, functionally interchangeable
- LTA-15A1R — Revised revision of LTA-15A, drop-in compatible
Always verify firmware revision and connector pinout before substitution. Contact our engineers for compatibility confirmation.
Why Choose the Original Model
- OEM Firmware Compatibility: Factory-programmed communication parameters ensure seamless integration with Applied Materials tool software
- Validated Signal Integrity: Designed to meet Applied Materials’ internal EMI and signal timing specifications
- Reduced Qualification Risk: Using the original part number avoids re-qualification cycles in regulated fab environments
- Long-Term Support: OEM documentation and revision history available for audit and compliance purposes
- Traceability: Full lot traceability from authorized distribution channels
Typical Applications
- Applied Materials Centura CVD / PVD platforms
- Applied Materials Producer PECVD systems
- Applied Materials Endura PVD tool clusters
- MKS-integrated gas delivery and pressure control subsystems
- Semiconductor fab equipment serial bus communication backplanes
- CompactPCI chassis upgrades and board-level repairs
System Compatibility
- Chassis Standard: PICMG 2.x CompactPCI (3U / 6U)
- OS / Software: Compatible with Applied Materials tool controller software stacks
- Connector Interface: Standard CPCI J1/J2 backplane connectors
- Co-compatible Boards: Works alongside MKS pressure transducer interface cards, I/O expansion boards, and motion control modules in the same chassis
- Power Rail: Standard CPCI ±5 V / ±12 V / 3.3 V supply
Selection Guide
Use the table below to identify the correct part for your system:
- Need OEM new with full warranty? → Order CPCI SCOM-0800 (Applied Materials OEM)
- Need MKS-branded equivalent? → Order AS00800-10-1
- Have legacy LTA-15A installed? → LTA-15A1R is the direct revised replacement
- Need cost-optimized refurbished unit? → Request tested-used 0190-47445 with inspection report
- Unsure of revision? → Send us your tool serial number and we will confirm the correct part
Quality Assurance & Sourcing
- Source Verification: All units sourced from authorized distributors or directly decommissioned from certified fab environments
- Incoming Inspection: Visual inspection, functional power-on test, and communication port verification
- Anti-Counterfeit Screening: Component-level marking verification and date code analysis
- Documentation: Certificate of Conformance (CoC) and test report available upon request
- Packaging: ESD-safe anti-static packaging with moisture barrier for international shipment
How to Order
- Click Add to Cart or use the Request a Quote form for bulk or urgent orders
- Specify required condition: OEM New / Refurbished / Tested Used
- Provide your tool model and serial number for compatibility verification (recommended)
- Our team responds within 1 business day with availability, lead time, and pricing
- Secure payment via T/T, PayPal, or credit card — global shipping available
Replacement & Compatibility FAQ
Q: Can LTA-15A1R directly replace LTA-15A without reconfiguration?
A: Yes. LTA-15A1R is a revised revision of LTA-15A and is designed as a drop-in replacement with no firmware or hardware reconfiguration required in most Applied Materials platforms.
Q: Is AS00800-10-1 (MKS) fully interchangeable with CPCI SCOM-0800 (Applied Materials)?
A: In most configurations, yes. Both boards share the same communication architecture. We recommend confirming the chassis slot assignment and firmware version with our engineers before substitution.
Q: Do you supply refurbished units with a warranty?
A: Yes. Refurbished units are supplied with a 90-day functional warranty and a full inspection report. Extended warranty options are available.
Q: Can you source obsolete or end-of-life revisions?
A: Yes. Konmask.com specializes in sourcing legacy and obsolete semiconductor equipment parts. Contact us with your specific revision requirement.
Q: What is the lead time for OEM new units?
A: Lead time varies by stock availability. In-stock units ship within 3–5 business days. Out-of-stock units typically have a 2–6 week lead time. Contact us for real-time availability.
