Industrial Speed Monitoring Solution – AI-Tek 70084-1713-111 | 70084 Series
Where This Product Is Used

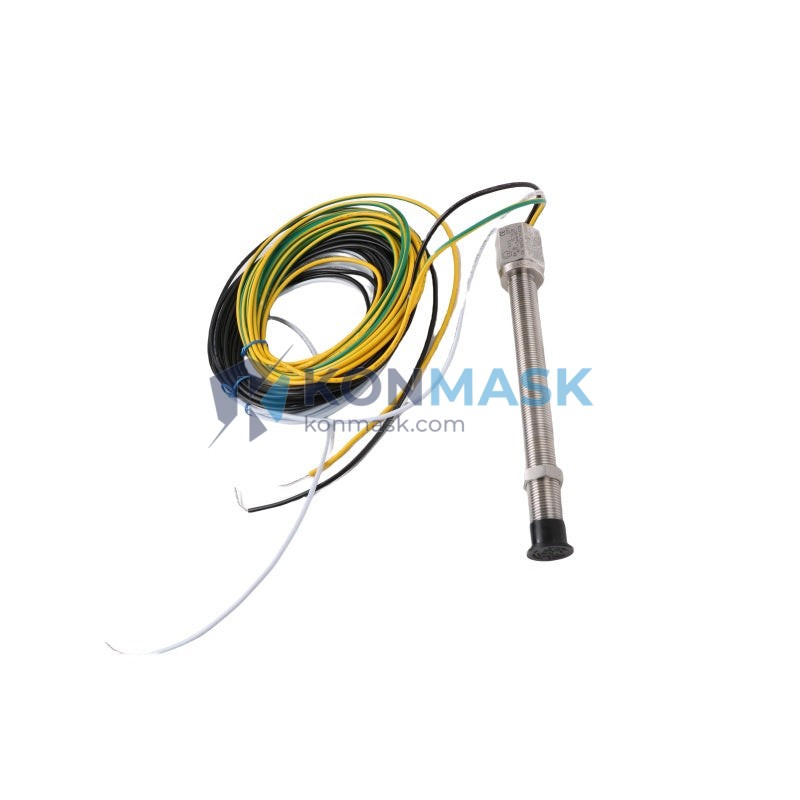

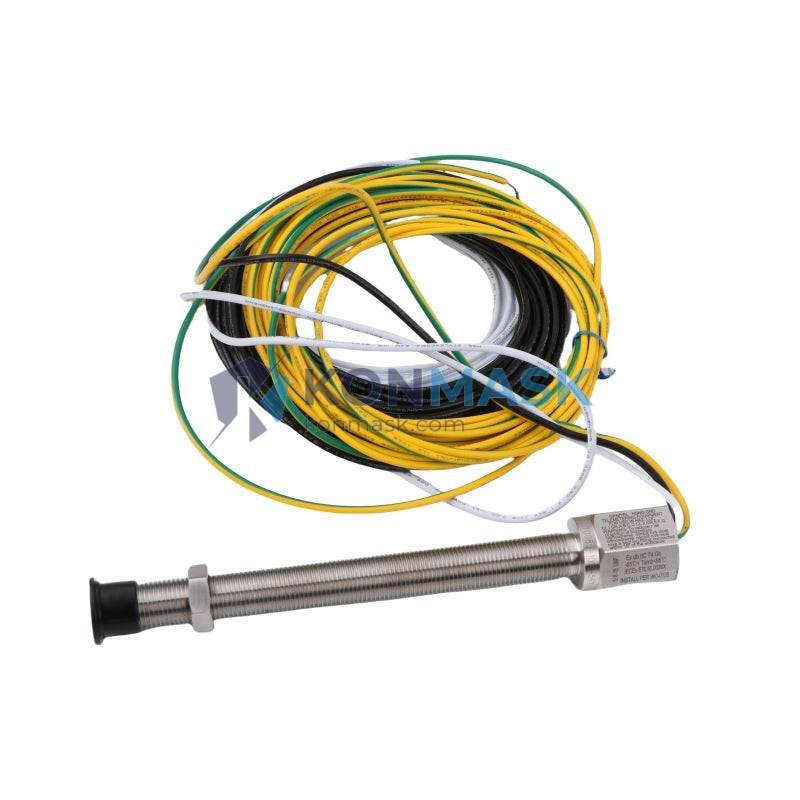

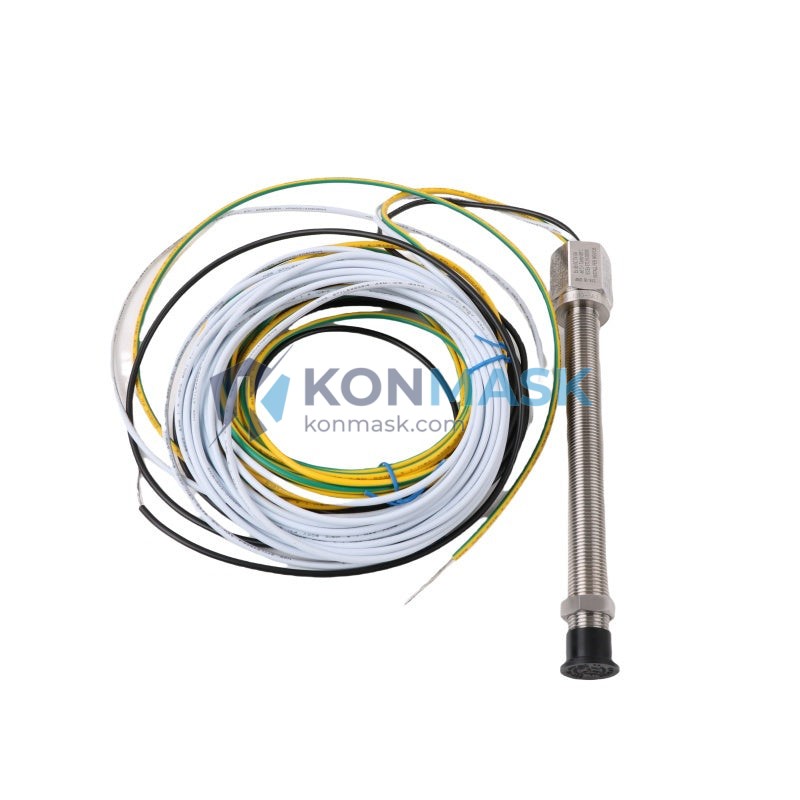

The AI-Tek 70084-1713-111 passive magnetic speed sensor is engineered for demanding industrial environments where accurate rotational speed measurement is critical. Typical deployment scenarios include:
- Electric Motor Speed Monitoring – Closed-loop feedback on AC/DC drive systems to prevent over-speed and under-speed faults.
- Conveyor & Material Handling Lines – Belt slip detection and line-speed synchronization in packaging, mining, and logistics facilities.
- Turbine & Compressor Control – Shaft RPM feedback for gas turbines, steam turbines, and centrifugal compressors in power generation and oil & gas.
- Gearbox & Transmission Monitoring – Gear-tooth counting for predictive maintenance programs and condition monitoring systems.
- Paper & Printing Machinery – Web-tension control requiring precise roll-speed signals.
- Pump & Fan Control Panels – Speed verification in HVAC and process-cooling applications.
Technical Specifications
- Part Number: 70084-1713-111
- Series: AI-Tek 70084
- Sensor Type: Passive Variable Reluctance (VR) / Magnetic Pickup
- Output Signal: Sinusoidal AC voltage (amplitude proportional to speed)
- Operating Principle: Gear-tooth detection via electromagnetic induction
- Thread Size: 3/4-20 UNF (standard AI-Tek mounting)
- Cable Suffix: -111
- Weight: 350 g
- Requires External Power: No (passive sensor)
For full datasheet specifications (temperature range, coil resistance, output voltage curve), contact support@konmask.com.
Why Engineers Specify This Model
- No External Power Required – Passive VR sensors self-generate signal from gear-tooth movement, eliminating power-supply wiring complexity.
- Robust in Harsh Environments – No active electronics in the sensing head; immune to vibration-induced electronic failure.
- Wide Speed Range – Reliable signal from very low RPM to high-speed applications without sensor swap-out.
- Direct PLC/DCS Compatibility – Sinusoidal output accepted natively by most PLCs, DCS speed-input cards, and dedicated tachometer modules.
- Proven AI-Tek 70084 Platform – Decades of field deployment across power generation, heavy industry, and process automation.
Complete System Bill of Materials
For a complete speed-monitoring loop, engineers typically pair the 70084-1713-111 with:
- Ferromagnetic toothed target wheel (60-tooth standard)
- Speed signal conditioner / frequency-to-voltage converter
- PLC high-speed counter (HSC) input module
- Shielded twisted-pair signal cable (e.g., Belden 9501 or equivalent)
- Mounting bracket & jam nut (3/4-20 UNF compatible)
- DIN-rail terminal block for field wiring termination
Compliance & Industry Standards
- Designed to meet IEC 60947 (Low-voltage switchgear and controlgear)
- Compatible with ISO 13849 safety-rated speed monitoring circuits when used with appropriate safety relay
- Suitable for CE-marked machinery control panels (EMC Directive 2014/30/EU)
- RoHS-compliant construction
Quality Assurance & Sourcing
Konmask.com sources AI-Tek sensors through verified industrial distribution channels. Every unit undergoes:
- Visual inspection and packaging integrity check upon receipt
- Part number and label verification against manufacturer documentation
- Secure anti-static packaging for shipment
We supply OEM-original parts only — no remanufactured or counterfeit substitutes.
How to Source This Part
- Add the AI-Tek 70084-1713-111 to your cart directly on this page.
- For bulk orders (>5 units) or project-based procurement, email support@konmask.com for a formal quotation.
- Lead time: typically 3–7 business days for in-stock units; extended lead times communicated at order confirmation.
- Export documentation (commercial invoice, packing list, CO) available upon request for international shipments.
Application-Specific FAQ
Q: What is the minimum RPM this sensor can reliably detect?
A: Minimum RPM depends on gear-tooth count and coil resistance. Contact us with your target wheel specs for confirmation.
Q: Can this sensor be used with a plastic target wheel?
A: No. Variable reluctance sensors require a ferromagnetic (steel) target wheel to generate the magnetic flux change needed for signal output.
Q: Is the 70084-1713-111 interchangeable with Hall-effect speed sensors?
A: Electrically, no — VR sensors output sinusoidal AC; Hall-effect sensors output square-wave DC. Verify your controller input card type before substituting.
Q: What air gap should I set between sensor tip and gear tooth?
A: AI-Tek recommends 0.25 mm to 1.5 mm for the 70084 series. Tighter gaps increase signal amplitude; excessive gaps reduce it below threshold.
Q: Do you offer technical support for integration?
A: Yes. Our engineering team assists with wiring diagrams, PLC configuration, and signal conditioner selection. Contact support@konmask.com.
