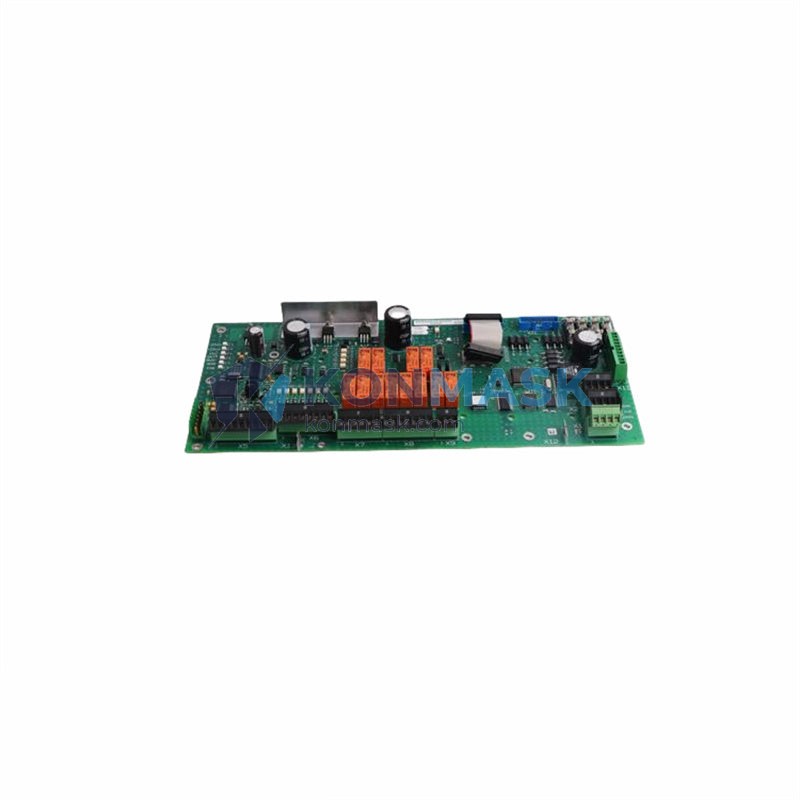

ALFA LAVAL 3183045486 – I/O Board for EPC50 Process Controller | EPC50 Automation Platform
Engineering Background
The ALFA LAVAL EPC50 is a dedicated process controller platform widely deployed in heat exchanger, separator, and fluid handling systems across food & beverage, marine, and industrial process industries. The 3183045486 I/O Board is the core input/output expansion module for the EPC50 controller, enabling real-time signal acquisition and actuator command output in demanding process environments. Its robust design and direct backplane integration make it the preferred choice for maintenance engineers managing critical process uptime.
Product Positioning
Designed for procurement engineers and maintenance teams requiring a genuine, tested replacement for EPC50 controller I/O boards. This module is sourced through verified industrial supply channels and is suitable for both direct replacement and system expansion projects. Konmask.com specializes in hard-to-source automation components with full traceability and documented quality assurance.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | 3183045486 |
| Compatible Platform | ALFA LAVAL EPC50 Controller |
| Module Type | I/O Board (Input/Output Expansion) |
| Manufacturer | ALFA LAVAL |
| Product Series | EPC50 Automation Platform |
| Weight | 430 g |
| Condition | New / Surplus / Refurbished (specify on inquiry) |
| Warranty | 12 months (Konmask standard) |
| Certifications | CE, RoHS compliant (per ALFA LAVAL platform standard) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Mounting | DIN rail / panel mount (EPC50 chassis) |
| HS Code | 8537.10.90 |
| Country of Origin | Sweden (ALFA LAVAL) |
Proven Application Environments
- Heat Exchanger Control Systems — ALFA LAVAL plate heat exchanger automation lines
- Marine & Offshore — Separator and purifier control panels on vessels
- Food & Beverage Processing — Pasteurization and CIP (Clean-in-Place) control loops
- Industrial HVAC — District heating and cooling plant automation
- Pharmaceutical — Sterile fluid handling process control
- Power Generation — Lube oil and cooling water management systems
Engineering Advantages
- Drop-in Replacement — Direct form/fit/function compatibility with EPC50 controller chassis; no firmware reconfiguration required in most installations
- Signal Integrity — Isolated I/O channels minimize ground loop interference in mixed-signal industrial environments
- Robust Construction — Conformal-coated PCB for resistance to humidity, dust, and vibration per industrial standards
- Reduced Downtime — In-stock availability enables same-week dispatch, minimizing process interruption costs
- Traceability — Each unit ships with inspection record and part number verification documentation
System Architecture & Signal Flow
The 3183045486 I/O Board interfaces directly with the EPC50 main processor board via the internal backplane bus. Analog and digital field signals are conditioned, isolated, and converted before being passed to the controller CPU for PID loop execution and alarm management. Output signals are buffered and protected against short-circuit and over-voltage conditions typical in field wiring environments.
- Input Side: Field sensors (RTD, thermocouple, 4–20 mA, digital contact) → Signal conditioning → Isolation barrier → A/D conversion → EPC50 CPU bus
- Output Side: EPC50 CPU bus → D/A conversion → Output driver → Field actuators (control valves, pumps, alarms)
Sourcing & Quality Verification
- All units undergo incoming inspection including visual, dimensional, and functional checks prior to listing
- Part numbers cross-referenced against ALFA LAVAL OEM documentation to confirm authenticity
- Counterfeit-risk screening applied per IEC 62239 supply chain assurance practices
- Packaging: anti-static bag + foam-lined carton; humidity indicator card included
- Certificate of Conformance (CoC) available on request
Procurement Process
- Confirm compatibility — Provide your EPC50 controller serial number or existing board part number for cross-reference verification
- Request quotation — Contact support@konmask.com with quantity and required delivery date
- Order confirmation — Pro-forma invoice issued within 1 business day
- Dispatch — DHL / FedEx express shipping; tracking provided within 24 hours of shipment
- After-sales — 12-month warranty; technical support available via email and phone
Technical FAQ
Q: Is this board compatible with all EPC50 variants?
A: The 3183045486 is the standard I/O board for the EPC50 platform. Please confirm your controller revision with our technical team if you have an early-generation EPC50 unit.
Q: Can this board be used in a new EPC50 build, not just replacement?
A: Yes. The board is suitable for both OEM system builds and field replacement applications.
Q: What is the lead time if not in stock?
A: Typical lead time for sourced units is 2–4 weeks. Contact us for current stock status before ordering.
Q: Do you provide installation support?
A: We provide documentation and remote technical guidance. On-site commissioning support can be arranged through our partner network.
Q: Is export to my country supported?
A: We ship globally. Export compliance documentation (including HS code and country of origin) is provided with each shipment.
