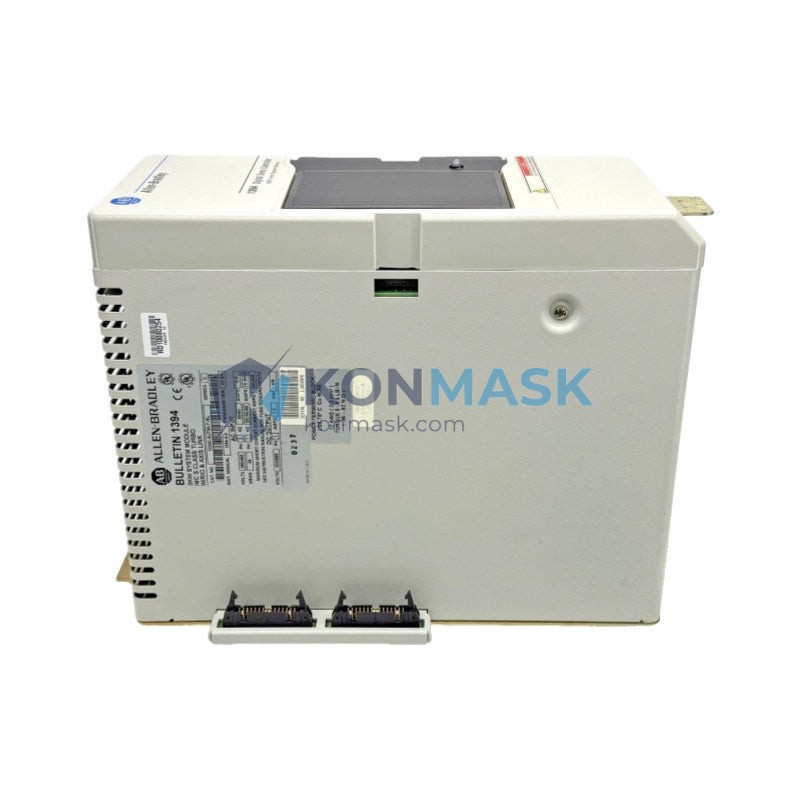

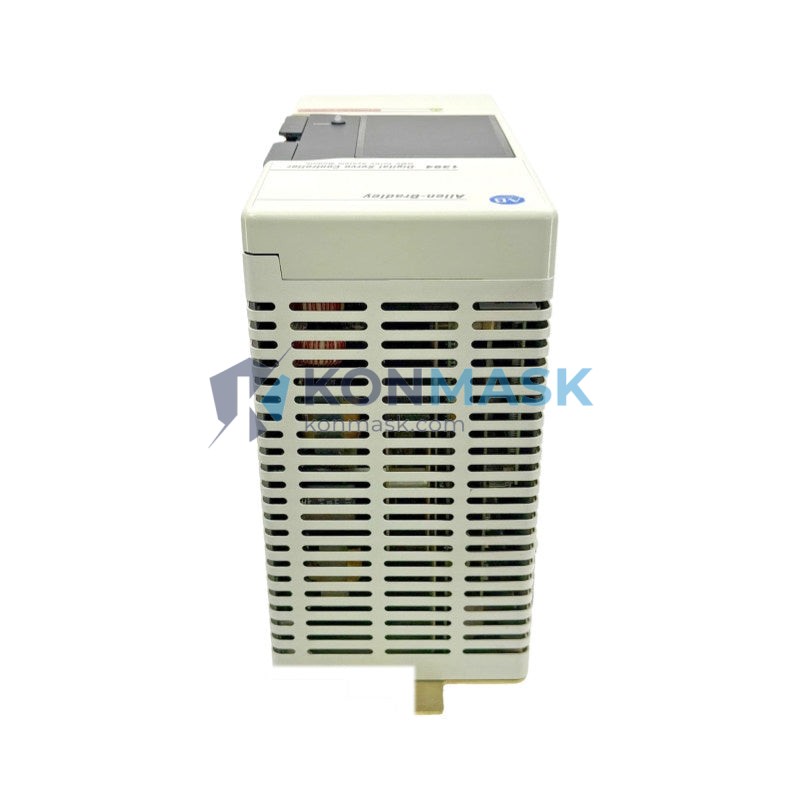

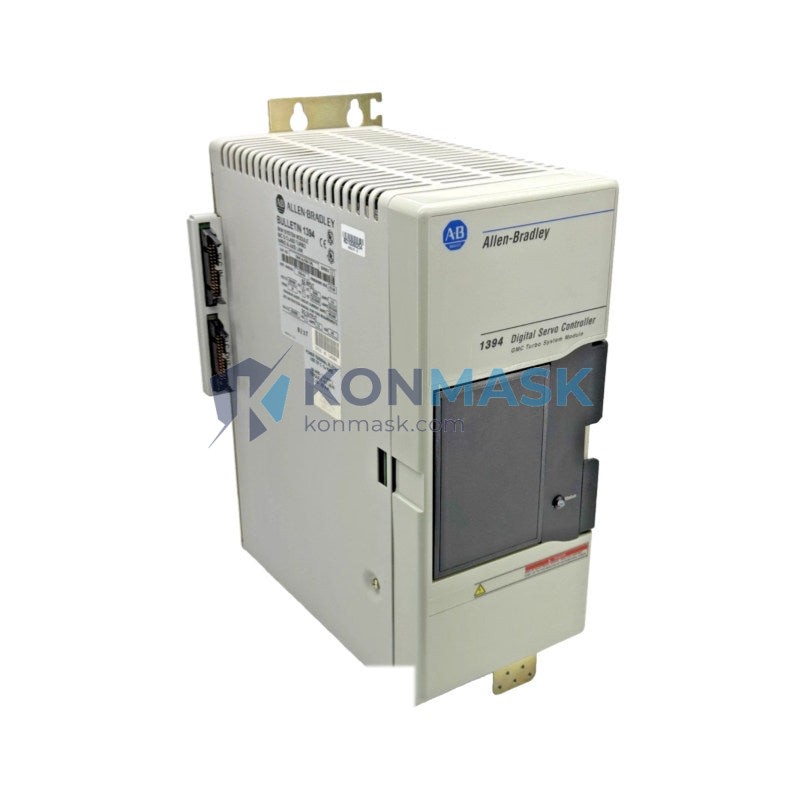

Allen-Bradley 1394C-SJT05-T-RL – Multi-Axis Servo Controller Module | Rockwell 1394C Series Platform
Engineering Background: The Allen-Bradley 1394C Series represents Rockwell Automation’s high-performance multi-axis servo drive platform, engineered for demanding motion control applications in discrete manufacturing, packaging, and material handling. The 1394C-SJT05-T-RL is a fully integrated servo controller module combining drive intelligence, axis coordination, and network communication in a single compact unit.
Product Positioning: Designed for procurement engineers and system integrators sourcing certified replacement or expansion modules for existing 1394C installations. Konmask.com supplies this module with full traceability, pre-shipment inspection, and technical documentation support — reducing your qualification lead time and procurement risk.
Complete Technical Specifications
- Part Number: 1394C-SJT05-T-RL
- Series: Allen-Bradley 1394C (Rockwell Automation)
- Module Type: Multi-Axis Servo Controller
- Axes Supported: Up to 4 axes (coordinated motion)
- Power Rating: 5 kW continuous output
- Input Voltage: 380–480 VAC, 3-phase, 50/60 Hz
- DC Bus Voltage: 650 VDC nominal
- Communication Interface: Remote I/O (RL suffix) — Allen-Bradley Remote I/O link compatible
- Encoder Feedback: Incremental encoder, differential TTL
- Operating Temperature: 0°C to +55°C (32°F to 131°F)
- Storage Temperature: -40°C to +70°C
- Protection Rating: IP20 (panel-mount installation)
- Cooling Method: Forced air (internal fan)
- Weight: Approx. 10.68 kg
- Certifications: UL Listed, CE Marked, cUL
- Country of Origin: United States
Proven Application Environments
- Automotive body assembly lines — coordinated multi-axis weld gun positioning
- Packaging machinery — high-speed pick-and-place and form-fill-seal systems
- Printing and converting — register control and tension management
- Material handling — gantry and Cartesian robot motion control
- Semiconductor fab equipment — precision stage positioning
- Food and beverage — hygienic conveyor indexing and filling systems
Engineering Advantages
- Integrated multi-axis coordination: Eliminates external motion coordinator hardware, reducing panel footprint and wiring complexity.
- Remote I/O native integration: Seamless drop-in compatibility with existing Allen-Bradley PLC-5 and SLC 500 Remote I/O networks — no gateway required.
- Deterministic scan time: Synchronized axis updates ensure repeatable motion profiles critical for high-throughput manufacturing.
- Robust DC bus architecture: Shared DC bus topology enables regenerative energy exchange between axes, reducing net energy consumption.
- Field-proven reliability: 1394C platform has accumulated millions of operating hours across global installations since introduction.
System Architecture & Signal Flow
The 1394C-SJT05-T-RL operates as a standalone servo controller receiving motion commands from an upstream PLC (PLC-5 or SLC 500) via the Remote I/O link. The module’s internal DSP executes real-time current, velocity, and position loops for each axis independently. Encoder feedback signals are processed at the module level, and fault status is reported back to the host PLC via the RIO data table. The shared DC bus allows multiple drive axes to exchange regenerative energy, with excess energy dissipated through an optional dynamic braking resistor.
Typical signal flow: Host PLC → Remote I/O Link → 1394C Controller → PWM Inverter → Servo Motor → Encoder Feedback → 1394C Controller (closed loop)
Sourcing & Quality Verification
- Source: Authorized distribution channel and verified surplus inventory — no gray-market or counterfeit risk.
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on test prior to shipment.
- Documentation: Original Rockwell Automation documentation references provided; certificate of conformance available on request.
- Warranty: 12-month Konmask warranty covering manufacturing defects and functional failure under normal operating conditions.
- Traceability: Lot and serial number recorded at time of shipment for full supply chain traceability.
Procurement Process
- Submit RFQ via Konmask.com product page or email support@konmask.com
- Receive quotation with lead time, stock confirmation, and shipping options within 24 business hours.
- Issue PO — accepted formats: PDF PO, email confirmation, or B2B portal order.
- Payment: T/T (wire transfer), PayPal, or approved net terms for qualified accounts.
- Shipment: DHL Express / FedEx International Priority — typical transit 3–7 business days worldwide.
- Post-delivery: Technical support available via email and WhatsApp for installation and commissioning queries.
Technical FAQ
Q: Is the 1394C-SJT05-T-RL compatible with ControlLogix or CompactLogix platforms?
A: No. This module uses the legacy Remote I/O (RIO) protocol and is designed for PLC-5 and SLC 500 host controllers. For ControlLogix integration, a 1756-DHRIO bridge module is required.
Q: Can this module be used as a single-axis drive?
A: Yes. The 1394C-SJT05-T-RL supports 1 to 4 axes; unused axis slots remain inactive and do not affect system operation.
Q: What servo motors are compatible?
A: The module is designed for use with Allen-Bradley MPL, MPM, and 1326 series servo motors with incremental encoder feedback. Consult Rockwell publication 1394-UM001 for full motor compatibility tables.
Q: Is firmware upgrade support available?
A: Konmask can advise on firmware revision identification. Firmware updates for 1394C modules require Rockwell Automation DriveExplorer software and a 1203-GU6 DPI/SCANport interface.
Q: What is the typical lead time from stock?
A: In-stock units ship within 1–2 business days. Out-of-stock units: 2–6 weeks depending on sourcing channel. Contact us for real-time availability.
