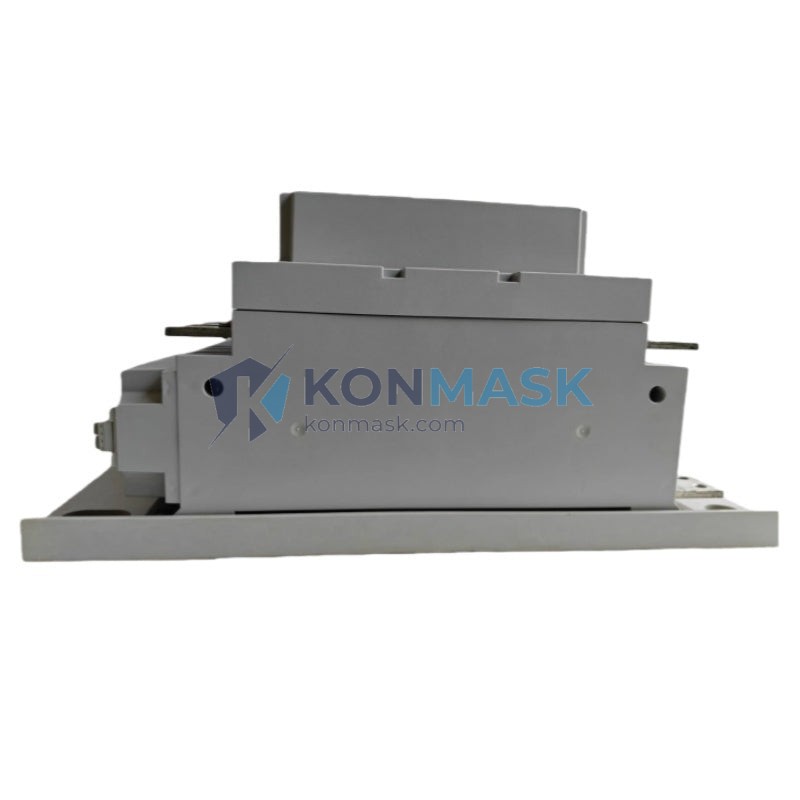

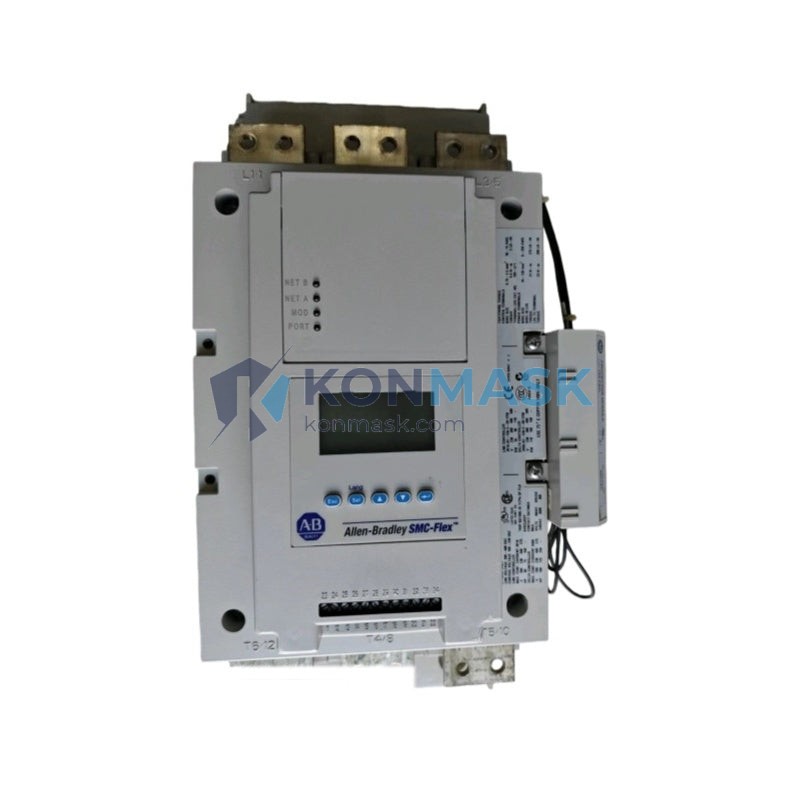

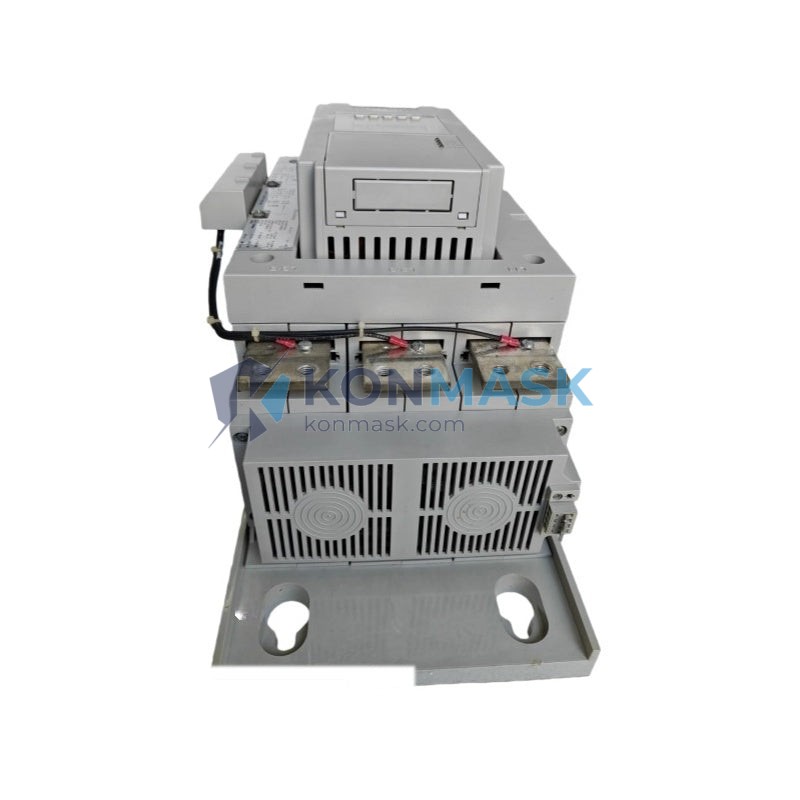

Allen-Bradley 150-F201NBD SMC Flex Smart Motor Controller | Replacement, Equivalent & Selection Guide
The Allen-Bradley 150-F201NBD is a SMC Flex Smart Motor Controller manufactured by Rockwell Automation. Designed for soft-start and soft-stop control of AC induction motors, it delivers precise motor management, reduced mechanical stress, and extended equipment life in demanding industrial environments.
Technical Specifications
- Part Number: 150-F201NBD
- Series: SMC Flex
- Manufacturer: Allen-Bradley / Rockwell Automation
- Type: Smart Motor Controller (Soft Starter)
- Current Rating: 201A
- Voltage: 200–600V AC, 3-Phase
- Control Voltage: 100–240V AC / 24V DC
- Communication: DeviceNet, EtherNet/IP (optional)
- Protection: Phase loss, overload, jam, stall, underload
- Enclosure: Open Type (IP00)
- Certifications: UL, CE, CSA
- Weight: ~30.4 kg
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 150-F201NBD. Always verify electrical and mechanical compatibility before substitution:
- 150-F201NBDB – Same series, with additional bypass contactor option
- 150-F201NZD – SMC Flex with DeviceNet communication module
- 150-C201NBD – SMC-3 series, compatible current rating, reduced feature set
- Siemens 3RW4455 – Cross-brand soft starter, 200A class, verify control wiring
- ABB PSE210-600-70 – ABB equivalent, 210A, 208–600V, similar protection features
- Schneider Electric ATS48C21Q – Altistart 48, 210A equivalent, verify bus compatibility
Note: Cross-brand replacements require full parameter verification. Contact support@konmask.com for compatibility assessment.
Why Choose the Original Model
- Native integration with Rockwell Automation Studio 5000 / RSLogix 5000
- Full SMC Flex feature set: soft start, soft stop, current limit, kick start, pump control
- Seamless DeviceNet / EtherNet/IP communication without additional gateways
- Proven reliability in OEM and process industry applications
- Factory warranty and Rockwell TechConnect support eligibility
Typical Applications
- Pumps and compressors (water treatment, HVAC, oil & gas)
- Conveyors and material handling systems
- Fans and blowers in industrial ventilation
- Mixers and agitators in food & beverage processing
- Crushers and mills in mining and aggregate industries
System Compatibility
- PLC Platforms: Allen-Bradley ControlLogix, CompactLogix, MicroLogix (via DeviceNet/EtherNet/IP)
- SCADA/DCS: FactoryTalk View, Wonderware, DeltaV (via EtherNet/IP gateway)
- Motor Types: Standard AC induction motors, 3-phase, 200–600V
- Bypass Contactor: Compatible with 100-C series contactors (external)
Selection Guide
Use the following criteria to confirm the 150-F201NBD is the correct model for your application:
- Motor FLA: Must be ≤ 201A continuous
- Supply Voltage: 200–600V AC, 3-phase, 50/60Hz
- Control Voltage: 100–240V AC or 24V DC available at site
- Communication Bus: DeviceNet or EtherNet/IP required for network control
- Enclosure: Install in a UL-listed enclosure; unit is open-type (IP00)
- Ambient Temperature: 0–50°C operating range
If your motor FLA exceeds 201A or your voltage is outside 200–600V, please refer to adjacent SMC Flex models (150-F251NBD, 150-F361NBD) or contact us for sizing assistance.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- 100% functional testing prior to shipment
- Genuine Allen-Bradley / Rockwell Automation product — no counterfeit risk
- Traceable lot documentation available on request
- Backed by Konmask.com quality guarantee and return policy
How to Order
- Confirm part number: 150-F201NBD
- Verify quantity and required delivery timeline
- Submit inquiry via support@konmask.com or add to cart directly
- Receive order confirmation with lead time and shipping details within 24 hours
For urgent requirements or bulk orders (>5 units), contact us directly at +0086 19859288691 for priority processing.
Replacement & Compatibility FAQ
Q: Can I replace 150-F201NBD with 150-C201NBD?
A: The SMC-3 (150-C series) lacks advanced features like pump control, soft braking, and full network diagnostics. It is a functional downgrade — acceptable for basic applications only.
Q: Is the 150-F201NBD compatible with EtherNet/IP?
A: Yes, with the optional EtherNet/IP communication module. The base unit supports DeviceNet natively.
Q: What is the difference between 150-F201NBD and 150-F201NBDB?
A: The “B” suffix indicates an integrated bypass contactor option, eliminating the need for an external bypass device.
Q: Can I use a Siemens or ABB soft starter as a drop-in replacement?
A: Electrically possible with rewiring, but network integration and parameter mapping will require engineering effort. Not recommended for networked Rockwell systems.
Q: Do you provide a warranty?
A: Yes. All units carry a minimum 90-day functional warranty. Extended warranty available on request.
