Allen-Bradley 1797-ACN15 FLEX I/O ControlNet Adapter Module | Replacement, Equivalent & Selection Guide

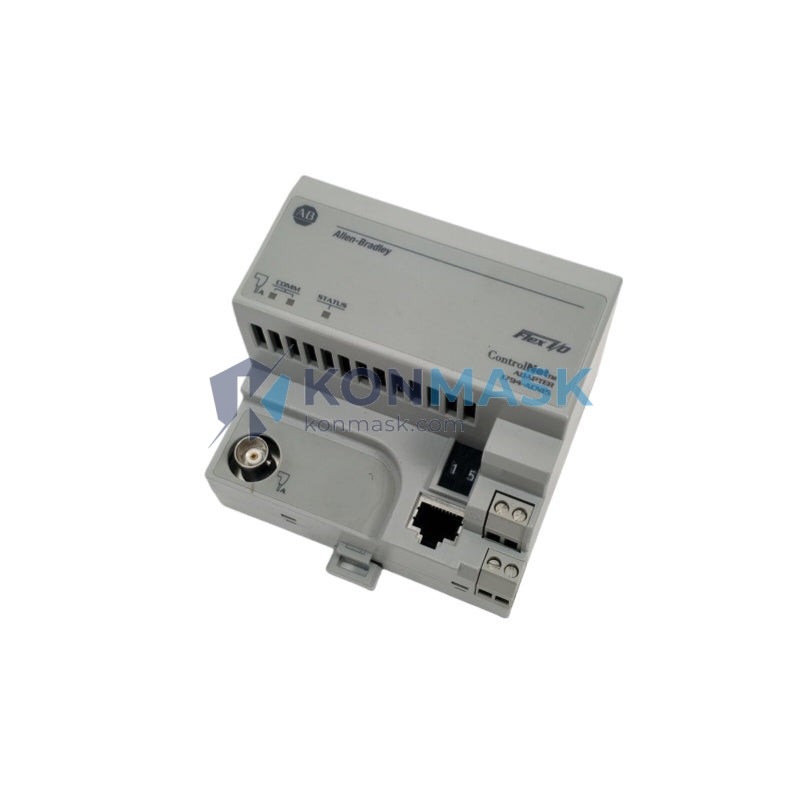

The Allen-Bradley 1797-ACN15 is a FLEX I/O ControlNet Adapter Module manufactured by Rockwell Automation. It enables FLEX I/O terminal bases and I/O modules to communicate over a ControlNet network, supporting up to 8 FLEX I/O modules per adapter. This page provides full technical specifications, compatible replacement options, application guidance, and a structured selection guide for industrial automation engineers and procurement teams.
Technical Specifications
- Part Number: 1797-ACN15
- Manufacturer: Allen-Bradley / Rockwell Automation
- Series: FLEX I/O
- Network Protocol: ControlNet (IEEE 802.3)
- ControlNet Revision: 1.5
- Max I/O Modules Supported: 8 per adapter
- Backplane Current: 900 mA @ 5 VDC
- Power Supply Voltage: 24 VDC (external)
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Enclosure Rating: Open type (requires enclosure)
- Dimensions (H × W × D): 87 × 43 × 87 mm (approx.)
- Weight: ~300 g
- Certifications: UL, CE, CSA
- Country of Origin: USA
Compatible Replacement & Equivalent Models
When the 1797-ACN15 is discontinued, hard to source, or cost-prohibitive, the following models may serve as functional replacements or equivalents depending on your system configuration:
- 1797-ACN – Earlier ControlNet adapter for FLEX I/O; ControlNet Rev 1.0/1.5 compatible. Suitable for legacy systems.
- 1797-ACNR15 – Redundant media version of the 1797-ACN15; drop-in replacement where dual-cable ControlNet redundancy is required.
- 1797-AENTR – EtherNet/IP adapter for FLEX I/O; requires network migration from ControlNet to EtherNet/IP but offers modern connectivity.
- 1794-ACN15 – FLEX I/O ControlNet adapter for the 1794 FLEX I/O platform; not pin-compatible but functionally equivalent for ControlNet I/O expansion.
- Third-party ControlNet adapters – Verify ControlNet Rev 1.5 compliance and FLEX I/O backplane compatibility before substitution.
⚠ Always verify firmware revision, ControlNet node address range, and backplane current draw before substituting any adapter module.
Why Choose the Original 1797-ACN15
- ✅ Native ControlNet Rev 1.5 support — guaranteed interoperability with existing Rockwell ControlNet infrastructure
- ✅ Seamless integration with RSNetWorx for ControlNet and Studio 5000 / RSLogix 5000
- ✅ Deterministic, scheduled data transfer — critical for motion and process control applications
- ✅ Proven reliability in harsh industrial environments (vibration, EMI, temperature extremes)
- ✅ Full Rockwell Automation technical support and firmware update path
Typical Applications
- Distributed I/O expansion on ControlNet networks in manufacturing cells
- Process control panels in oil & gas, chemical, and water treatment plants
- Automotive assembly line I/O integration with ControlLogix or CompactLogix PLCs
- Conveyor and material handling systems requiring deterministic I/O scanning
- Machine safety and interlock systems with ControlNet backbone
System Compatibility
- Compatible PLCs: ControlLogix (1756), CompactLogix (1769), SoftLogix 5800
- Compatible Software: RSLogix 5000, Studio 5000 Logix Designer, RSNetWorx for ControlNet
- Compatible I/O Modules: All 1797-series FLEX I/O modules (digital, analog, specialty)
- Network: ControlNet coaxial (RG-6) or fiber; up to 99 nodes per segment
- Not compatible with: EtherNet/IP or DeviceNet networks without additional gateway hardware
Selection Guide
Use the following criteria to confirm the 1797-ACN15 is the right adapter for your application:
- Network type: Must be ControlNet (not EtherNet/IP or DeviceNet) → ✅ 1797-ACN15
- ControlNet revision required: Rev 1.5 → ✅ 1797-ACN15 | Rev 1.0 only → consider 1797-ACN
- Media redundancy needed: No → ✅ 1797-ACN15 | Yes → select 1797-ACNR15
- Number of I/O modules: ≤ 8 → ✅ 1797-ACN15 | > 8 → add additional adapter nodes
- Backplane current budget: Confirm total I/O module draw ≤ 900 mA @ 5 VDC
- Migration path: Planning EtherNet/IP migration → consider 1797-AENTR as long-term replacement
Quality Assurance & Sourcing
All Allen-Bradley 1797-ACN15 modules supplied by Konmask.com are:
- Sourced from authorized distributors or verified surplus channels
- Inspected for physical integrity, label authenticity, and firmware version prior to shipment
- Shipped with anti-static packaging and full traceability documentation
- Backed by our quality guarantee — contact us within 30 days for any DOA claims
How to Order
- Part Number: 1797-ACN15
- Manufacturer: Allen-Bradley / Rockwell Automation
- Add to cart directly, or contact us for bulk pricing, lead time confirmation, or export documentation
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- We support T/T, PayPal, and trade finance for qualified B2B buyers
Replacement & Compatibility FAQ
Q: Can the 1797-ACN15 replace the 1797-ACN directly?
A: Yes, in most cases. The 1797-ACN15 supports ControlNet Rev 1.5 and is backward compatible with Rev 1.0 networks. Verify node address settings and RSNetWorx configuration after swap.
Q: Is the 1797-ACN15 compatible with EtherNet/IP?
A: No. It is a ControlNet-only adapter. For EtherNet/IP connectivity, use the 1797-AENTR instead.
Q: Can I use a 1794-ACN15 in place of a 1797-ACN15?
A: No. The 1794 and 1797 series use different backplane form factors and are not interchangeable.
Q: What is the maximum number of I/O modules per 1797-ACN15?
A: Up to 8 FLEX I/O modules per adapter node.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes, available upon request for all orders.
