Allen-Bradley 150-F201NBDB SMC-Flex Smart Motor Controller | Replacement, Equivalent & Selection Guide

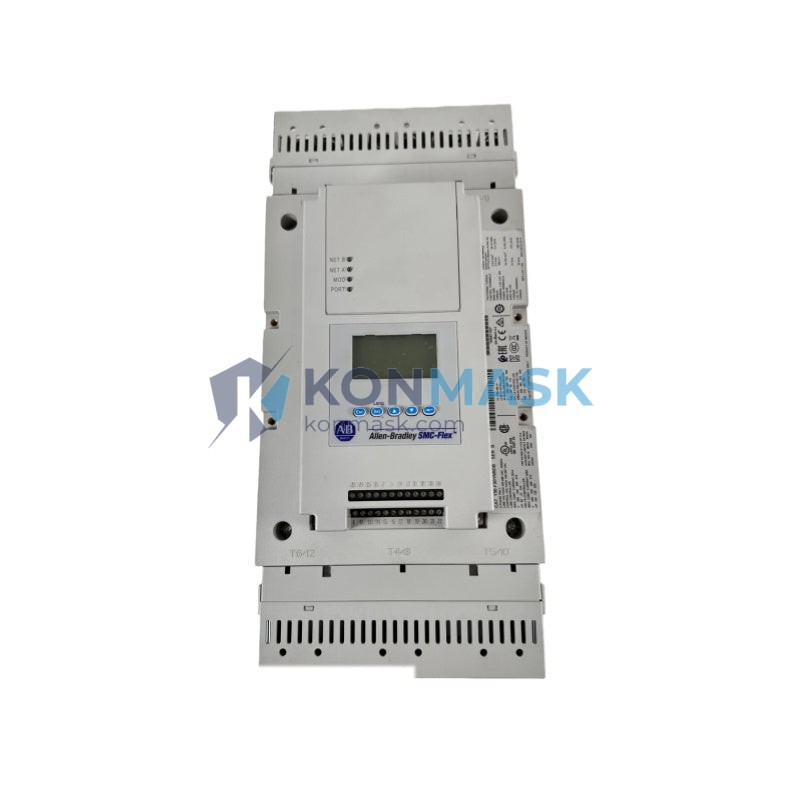

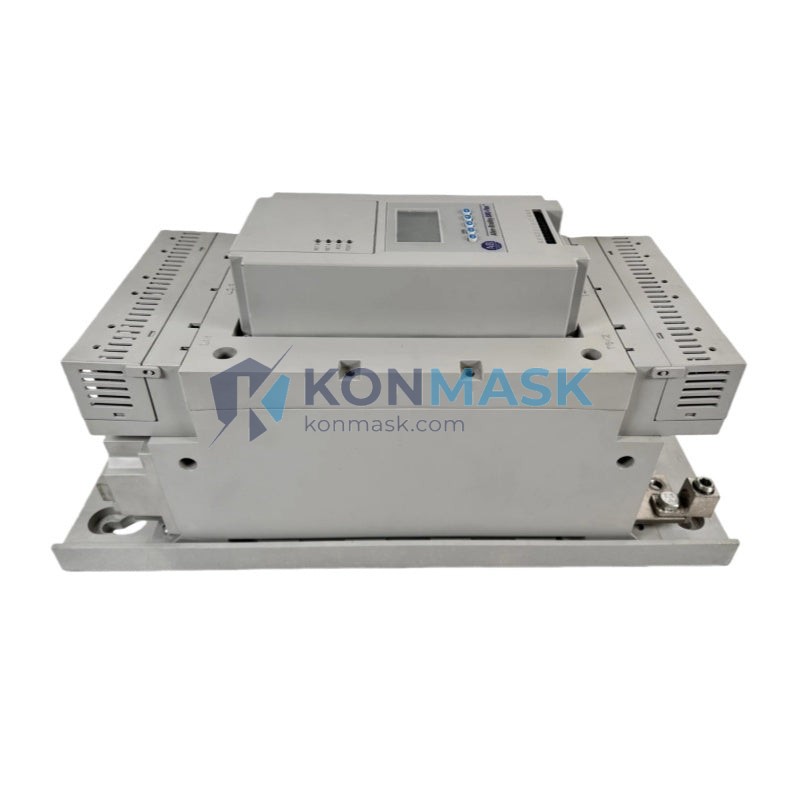

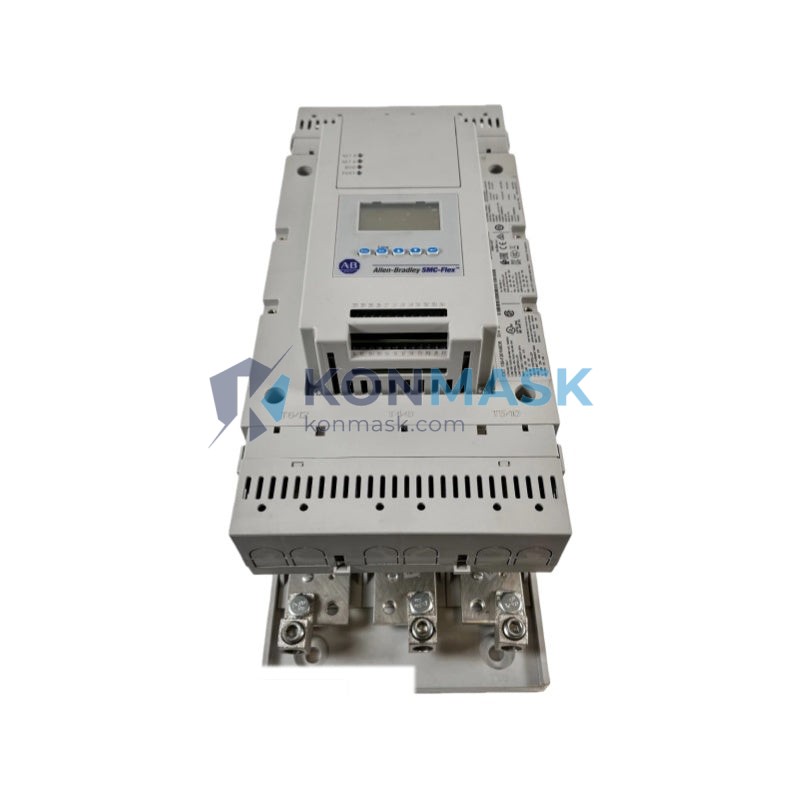

The Allen-Bradley 150-F201NBDB is a SMC-Flex Smart Motor Controller manufactured by Rockwell Automation / Allen-Bradley. Designed for soft-start and soft-stop motor control applications, this unit delivers precise current limiting, pump control, and energy savings for industrial motor systems. At Konmask.com, we supply genuine and equivalent units with full traceability for B2B industrial buyers worldwide.
Technical Specifications
| Part Number | 150-F201NBDB |
| Brand | Allen-Bradley (Rockwell Automation) |
| Series | SMC-Flex |
| Current Rating | 201 A |
| Supply Voltage | 200–600 VAC, 3-Phase |
| Control Voltage | 100–240 VAC |
| Enclosure | Open / Panel Mount (IP00) |
| Communication | DeviceNet (N suffix) |
| Bypass | Internal Bypass (B suffix) |
| Brake | Dynamic Braking (DB suffix) |
| Horsepower (HP) | Up to 150 HP @ 460 VAC |
| Protection | Electronic overload, phase loss, jam, stall |
| Standards | UL, CE, CSA |
Compatible Replacement & Equivalent Models
The following models are functionally compatible or direct replacements for the 150-F201NBDB. Always verify voltage, current rating, and communication protocol before substitution.
| Model | Brand | Current | Notes |
|---|---|---|---|
| 150-F201NBD | Allen-Bradley | 201 A | Same unit without dynamic braking |
| 150-F201NB | Allen-Bradley | 201 A | No bypass, no braking |
| 150-C201NBD | Allen-Bradley | 201 A | SMC-3 series, reduced feature set |
| 3RW4455-6BC44 | Siemens | 200 A | SIRIUS soft starter, cross-brand equivalent |
| PST250-600-70 | ABB | 250 A | ABB PSTX series, functional equivalent |
| ATS48C21Q | Schneider Electric | 210 A | Altistart 48, cross-brand soft starter |
Why Choose the Original Model
- Native DeviceNet integration — seamless communication with Allen-Bradley PLCs and ControlLogix/CompactLogix systems
- Internal bypass contactor — reduces heat generation and extends service life after motor reaches full speed
- Dynamic braking — controlled motor stop for applications requiring precise stopping (conveyors, hoists, pumps)
- SMC-Flex advanced features — pump control, soft stop, current limit, and kickstart modes in one unit
- Full Rockwell ecosystem support — Studio 5000, RSLogix 5000, and FactoryTalk integration
Typical Applications
- Centrifugal pumps and compressors
- Conveyors and material handling systems
- HVAC fans and blowers
- Mixers and agitators
- Crushers and mills requiring controlled starting
- Water treatment and municipal infrastructure
System Compatibility
- PLC Platforms: ControlLogix, CompactLogix, MicroLogix (via DeviceNet scanner)
- Networks: DeviceNet (built-in), optional EtherNet/IP with add-on module
- Software: RSLogix 5000 / Studio 5000, RSNetWorx for DeviceNet
- Motor Types: Standard AC induction motors, 3-phase
- Bypass: Internal bypass rated for continuous duty
Selection Guide
Use the table below to select the correct 150-F2xx series model based on your application requirements:
| Requirement | Recommended Suffix | Example Model |
|---|---|---|
| DeviceNet communication | N | 150-F201NBDB |
| Internal bypass needed | B | 150-F201NBDB |
| Dynamic braking required | DB | 150-F201NBDB |
| No communication needed | (omit N) | 150-F201BD |
| Lower current (97 A) | — | 150-F97NBD |
| Higher current (361 A) | — | 150-F361NBD |
Tip: If your application does not require dynamic braking, consider the 150-F201NBD to reduce cost. If DeviceNet is not used in your network, the 150-F201BD is a cost-effective alternative.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Each unit inspected and tested prior to shipment
- Genuine Allen-Bradley parts with original packaging where available
- Traceability documentation available upon request (COC, test reports)
- Export compliance: HS Code 8537.10 | Origin: USA
How to Order
- Confirm your motor FLA (Full Load Amps) and select the matching current rating
- Verify supply voltage (200–480 VAC or 200–600 VAC range)
- Confirm communication protocol (DeviceNet, EtherNet/IP, or standalone)
- Check bypass and braking requirements for your application
- Contact support@konmask.com for bulk pricing, lead time, and availability
- Submit your PO or request a formal quotation via our website
Replacement & Compatibility FAQ
Q: Can the 150-F201NBDB replace a 150-F201NBD?
A: Yes. The 150-F201NBDB adds dynamic braking capability. It is a drop-in upgrade if your panel has space and wiring for the DB terminals.
Q: Is the 150-F201NBDB compatible with ControlLogix?
A: Yes, via a DeviceNet scanner module (e.g., 1756-DNB) in the ControlLogix chassis.
Q: Can I use a Siemens 3RW44 as a replacement?
A: Functionally yes for soft-start duty, but DeviceNet communication and Rockwell software integration will not be available. Rewiring and parameter reconfiguration are required.
Q: What is the warranty on units from Konmask.com?
A: We offer a 12-month warranty on all genuine Allen-Bradley units. Refurbished units carry a 6-month warranty. Contact us for details.
Q: Do you provide installation support?
A: Yes. Our technical team can provide wiring diagrams, parameter setup guides, and remote commissioning support.
