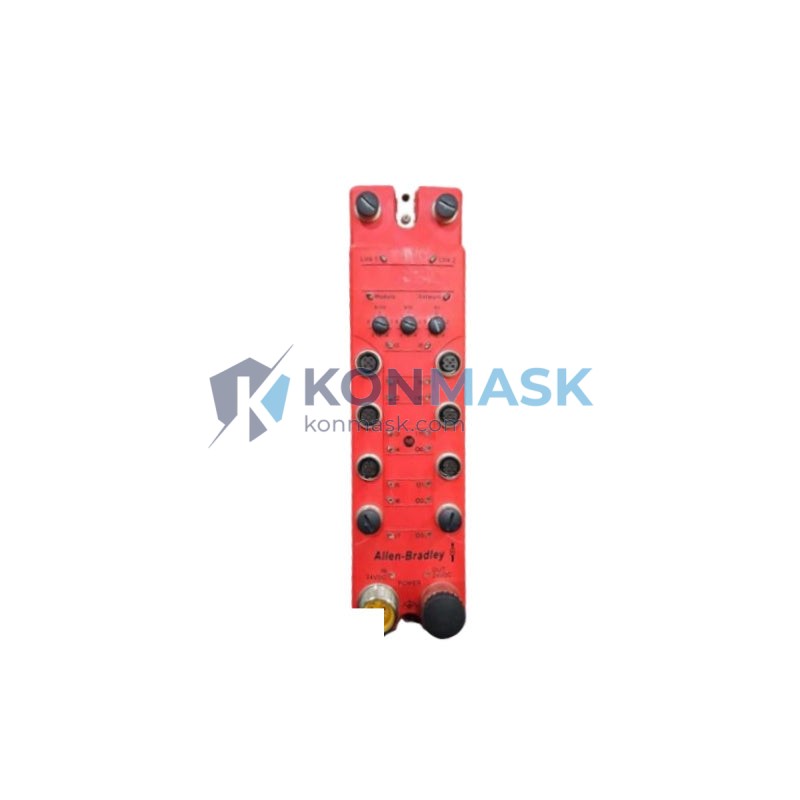

Allen-Bradley 1732ES-IB12XOBV2 – Safety ArmorBlock Guard I/O Module | 12-Input OSSD | EtherNet/IP
Engineering Background
The 1732ES-IB12XOBV2 is part of Rockwell Automation’s ArmorBlock Guard I/O series — a field-proven safety I/O platform engineered for machine-level safety integration in harsh industrial environments. Designed to operate directly on the machine frame without a control cabinet, this module eliminates long cable runs and simplifies safety architecture for distributed control systems.
Product Positioning
Targeted at OEMs and system integrators deploying GuardLogix or Compact GuardLogix safety controllers, the 1732ES-IB12XOBV2 delivers SIL 2 / PLd-rated safety input monitoring with IP67 ingress protection — making it the preferred choice for food & beverage, automotive assembly, and packaging machinery where washdown and particulate exposure are routine.
Complete Technical Specifications
- Catalog Number: 1732ES-IB12XOBV2
- Series: ArmorBlock Guard I/O (EtherNet/IP Safety)
- Manufacturer: Allen-Bradley / Rockwell Automation
- Safety Inputs: 12 × safety digital inputs (dual-channel capable)
- OSSD Outputs: 2 × OSSD (Output Signal Switching Device) test pulse outputs
- Safety Rating: SIL 2 (IEC 62061), PLd Cat. 3 (ISO 13849-1)
- Communication Protocol: EtherNet/IP (CIP Safety)
- Input Voltage: 24V DC
- IP Rating: IP67 (dust-tight, immersion-resistant)
- Operating Temperature: -20°C to +55°C (-4°F to +131°F)
- Housing: Die-cast zinc alloy, M12 quick-disconnect connectors
- Certifications: UL, CE, TÜV, cULus
- Mounting: Direct machine-mount, DIN rail optional adapter
- Weight: Approx. 800 g
- Country of Origin: United States
Proven Application Environments
- Automotive Assembly Lines: E-stop monitoring, light curtain interfacing, safety gate interlocks
- Food & Beverage: Washdown-rated safety zones, conveyor guarding, hygienic area monitoring
- Packaging Machinery: Distributed safety I/O across multi-axis packaging lines
- Material Handling: AGV perimeter guarding, palletizer safety zones
- Semiconductor & Electronics: Clean-room compatible distributed safety nodes
Engineering Advantages
- Cabinet-Free Deployment: IP67 housing allows direct machine-frame mounting, reducing panel space and wiring costs by up to 40%
- CIP Safety over EtherNet/IP: Single-network architecture — standard and safety data share the same Ethernet infrastructure
- OSSD Test Pulse Monitoring: Built-in OSSD outputs enable direct connection of safety light curtains and laser scanners without external relays
- Dual-Channel Input Support: Configurable for single or dual-channel safety input pairs to meet PLd / SIL 2 requirements
- Hot-Connect Capable: Supports module replacement without full system shutdown (with appropriate controller configuration)
- Integrated Diagnostics: Per-channel fault detection with LED status indicators and controller-level diagnostic tags
System Architecture & Signal Flow
The 1732ES-IB12XOBV2 connects directly to a GuardLogix or Compact GuardLogix controller via a standard EtherNet/IP network switch. Safety input data is transmitted over CIP Safety protocol with inherent data integrity checking (CRC, time-stamp, connection ID). The OSSD outputs supply 24V DC test pulses to connected safety devices; the module monitors the return signal to detect short circuits, cross-faults, and device failures before reporting status to the safety controller task.
Typical topology: Safety Sensor → M12 Input Port → 1732ES-IB12XOBV2 → EtherNet/IP Switch → GuardLogix Controller → Safety Output Module → Machine Actuator.
Sourcing & Quality Verification
- All units sourced through authorized industrial distribution channels or verified surplus with full traceability
- Each module inspected for firmware revision, label integrity, and connector condition prior to shipment
- Original Rockwell Automation packaging preserved where available; repackaged units clearly identified
- Functional test records available upon request for critical safety applications
- Counterfeit-risk mitigation: holographic labels, date codes, and PCB markings verified against Rockwell Automation reference standards
Procurement Process
- Submit your inquiry via the product page or email support@konmask.com
- Receive stock confirmation and lead time within 1 business day
- Review quotation including unit price, shipping, and export documentation
- Place order — payment via T/T, PayPal, or credit card accepted
- Shipment via DHL / FedEx with tracking; export documents (CO, packing list, commercial invoice) included
- Post-delivery technical support available for integration and commissioning questions
Technical FAQ
Q: Is the 1732ES-IB12XOBV2 compatible with Studio 5000 Logix Designer?
A: Yes. The module uses an EDS file for Studio 5000 integration and is fully supported in GuardLogix safety projects.
Q: What is the maximum cable length for safety inputs?
A: Rockwell Automation specifies a maximum of 100 m for safety input wiring when using shielded cable to maintain SIL 2 / PLd integrity.
Q: Can this module replace a 1732DS-IB12XOBV2?
A: The 1732ES series uses EtherNet/IP (CIP Safety); the 1732DS series uses DeviceNet Safety. They are not directly interchangeable — verify your network infrastructure before substitution.
Q: Does Konmask provide a warranty?
A: Yes. We offer a 90-day functional warranty on all modules. Extended warranty options available — contact us for details.
Q: Can you provide a Certificate of Conformance or test report?
A: Available upon request for safety-critical procurement. Please specify requirements at time of order.
