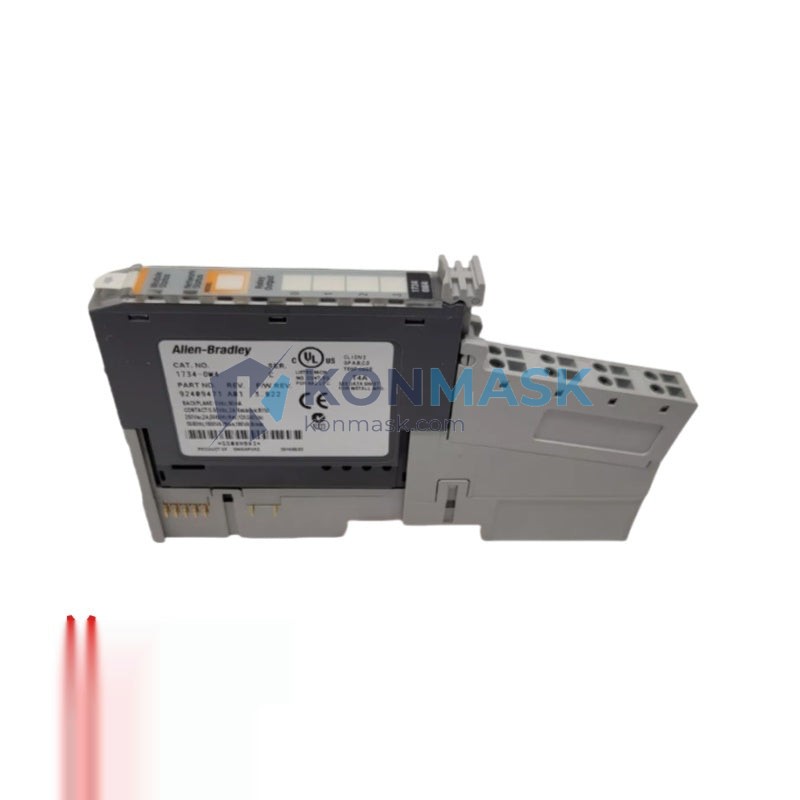

Allen-Bradley 1734-IF4U-1 – 4-Channel Universal Analog Input Module | POINT I/O Platform
Engineering Background
The Allen-Bradley 1734-IF4U-1 is a high-density analog input module engineered for the POINT I/O distributed I/O platform. Designed by Rockwell Automation, it addresses the demanding signal acquisition requirements of modern process control and machine automation systems where space efficiency and signal flexibility are critical.
Product Positioning
Targeted at procurement engineers and system integrators specifying distributed I/O for ControlLogix, CompactLogix, and FlexLogix controller architectures, the 1734-IF4U-1 delivers four independently configurable universal analog input channels in a single POINT I/O slice — reducing panel footprint while maximizing signal versatility across voltage, current, and thermocouple/RTD input types.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1734-IF4U-1 |
| Platform | Allen-Bradley POINT I/O |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Module Type | 4-Channel Universal Analog Input |
| Input Channels | 4 (independently configurable) |
| Input Signal Types | Voltage (±10V, 0–10V, 0–5V, 1–5V), Current (0–20 mA, 4–20 mA), Thermocouple (J, K, T, E, R, S, B, N), RTD (Pt100, Pt1000, Ni100, Ni1000) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale (voltage/current); ±1°C (thermocouple/RTD) |
| Input Impedance | >1 MΩ (voltage); 249 Ω (current) |
| Update Rate | Configurable per channel |
| Communication | POINT I/O backplane (via adapter) |
| Power Consumption | 75 mA @ 5V DC (backplane) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions (H×W×D) | 94 mm × 12 mm × 71 mm |
| Weight | Approx. 300 g |
| Certifications | UL, CE, cUL, C-Tick |
| Country of Origin | United States |
Proven Application Environments
- Process Manufacturing: Temperature, pressure, and flow monitoring in chemical, pharmaceutical, and food & beverage plants
- Oil & Gas: Field transmitter signal acquisition in hazardous and non-hazardous areas
- Water & Wastewater: Multi-parameter sensor integration for treatment plant SCADA systems
- Automotive Assembly: Precision torque, force, and position feedback in robotic welding and assembly lines
- Building Automation: HVAC sensor integration for BMS/BAS platforms
- Power Generation: Generator and turbine analog signal monitoring
Engineering Advantages
- Universal Input Flexibility: Single module supports voltage, current, thermocouple, and RTD — eliminates need for multiple module types and reduces spare parts inventory
- High-Density Design: 4 channels in a 12 mm wide POINT I/O slice minimizes DIN rail space consumption
- 16-Bit Resolution: Delivers precise signal representation for tight process control loops
- Per-Channel Configuration: Each channel independently configurable via RSLogix 5000 / Studio 5000 — no hardware jumpers required
- Hot-Swap Capable: Supports removal and insertion under power (RIUP) for zero-downtime maintenance
- Seamless Rockwell Integration: Native Add-On Profile (AOP) support for rapid commissioning in Studio 5000 Logix Designer
System Architecture & Signal Flow
The 1734-IF4U-1 mounts directly onto the POINT I/O DIN rail base (1734-TB or 1734-TBS) and communicates via the POINT I/O backplane to a network adapter (e.g., 1734-AENT EtherNet/IP, 1734-ADNX DeviceNet, 1734-APB PROFIBUS). The adapter bridges the I/O data to the controller network. Each analog channel samples the field signal, performs A/D conversion at 16-bit resolution, applies engineering unit scaling, and delivers the process value directly to the controller tag database — enabling real-time closed-loop control without additional signal conditioning hardware.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply chains
- Each module inspected for physical integrity, label authenticity, and firmware version prior to shipment
- Traceability documentation available upon request for regulated industries
- New, surplus-new, and tested-refurbished conditions available — condition clearly stated on each listing
- Konmask.com maintains a zero-tolerance policy on counterfeit components
Procurement Process
- Step 1: Confirm catalog number 1734-IF4U-1 against your BOM or engineering drawing
- Step 2: Verify required condition (new / surplus / refurbished) and lead time with our team
- Step 3: Submit PO or request a formal quotation via support@konmask.com
- Step 4: Receive shipping confirmation with tracking within 1–2 business days of order confirmation
- Step 5: Inspect on receipt — 30-day return window for any discrepancy
Technical FAQ
Q: Is the 1734-IF4U-1 compatible with ControlLogix and CompactLogix controllers?
A: Yes. Via a POINT I/O EtherNet/IP or DeviceNet adapter, the module integrates with any Logix-family controller supporting the respective network.
Q: Can I mix thermocouple and current inputs on the same module?
A: Yes. Each of the four channels is independently configurable, so you can assign different input types per channel within the same module.
Q: Does this module require external power for field devices?
A: The module itself is backplane-powered. Field transmitters requiring loop power (e.g., 4–20 mA two-wire) need an external 24V DC supply.
Q: What software is required for configuration?
A: Rockwell Automation Studio 5000 Logix Designer (v21 or later recommended) with the 1734-IF4U-1 Add-On Profile (AOP) installed.
Q: Is RIUP (Removal and Insertion Under Power) supported?
A: Yes, the POINT I/O platform supports RIUP, allowing module replacement without powering down the system.
