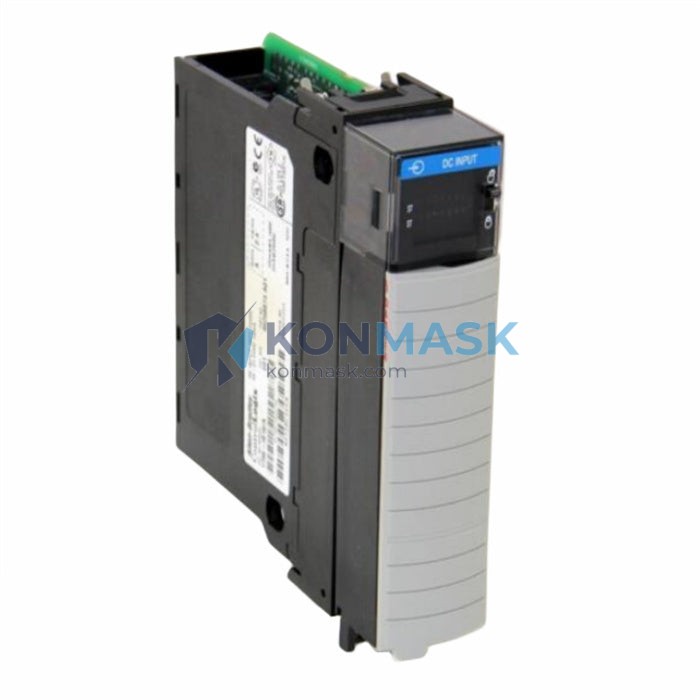

Allen-Bradley 1756-IB16 16-Point DC Input Module – ControlLogix

Allen-Bradley 1756-IB16 16-Point DC Input Module – ControlLogix Series

Imagine a high-speed automotive assembly line suddenly losing visibility into 16 critical sensor signals — conveyor positions, safety interlocks, and proximity switches all go dark simultaneously. Without a reliable digital input module, the entire PLC system is blind to the physical world, forcing an unplanned shutdown that costs thousands of dollars per minute. The Allen-Bradley 1756-IB16 is the precision interface that prevents exactly this scenario, converting real-world 10–31V DC field signals into the digital data your ControlLogix controller depends on for every scan cycle.

Within the ControlLogix 1756 platform — Rockwell Automation’s flagship modular control architecture — the 1756-IB16 occupies a foundational role as a 16-point sourcing DC input module. It is one of the most widely deployed digital input cards in the global industrial automation market, trusted across automotive, oil & gas, food & beverage, and discrete manufacturing sectors. Its combination of high channel density, broad voltage compatibility, and seamless integration with Studio 5000 Logix Designer makes it the default choice for engineers specifying ControlLogix I/O.

Technical Specifications

• Catalog Number: 1756-IB16
• Platform: ControlLogix 1756
• Input Points: 16 (sourcing / current sinking)
• Input Voltage Range: 10–31V DC
• Input Current: 2–8 mA per point (nominal)
• ON-State Voltage Min: 10V DC
• OFF-State Voltage Max: 5V DC
• Backplane Current (5V): 75 mA
• Backplane Current (24V): 2 mA
• Operating Temperature: 0–60°C (32–140°F)
• Storage Temperature: -40–85°C
• Isolation: 100V DC continuous, channel-to-backplane
• Wiring: Removable terminal block (RTB), 20-point
• Indicators: Per-point LED status
• Module Weight: Approx. 1200 g (with RTB)
• Standards: UL, CE, C-Tick

Key Features & Benefits

• 16 Independent Input Channels: High channel density reduces chassis slot consumption and lowers per-point hardware cost in large I/O systems.
• Wide DC Voltage Range (10–31V): Compatible with standard 24V DC field devices including proximity sensors, limit switches, and push buttons without additional signal conditioning.
• Per-Point LED Diagnostics: Instant visual confirmation of each input state accelerates troubleshooting and reduces mean time to repair (MTTR).
• Removable Terminal Block (RTB): Pre-wired RTBs can be swapped during module replacement without disturbing field wiring, minimizing downtime.
• Seamless Studio 5000 Integration: Auto-configuration via RSLogix 5000 / Studio 5000 Logix Designer with full tag-based addressing and online diagnostics.
• ControlLogix Backplane Compatibility: Installs in any 1756 chassis slot; supports both local and remote (ControlNet/EtherNet/IP) rack configurations.
• Proven Field Reliability: Designed to IEC 61131-2 input specifications with robust noise immunity for industrial environments.

Industry & Equipment Applications

• Automotive Manufacturing: Body-in-white welding lines, transfer press interlocks, AGV position sensing
• Oil & Gas: Wellhead control panels, pipeline valve position feedback, ESD system inputs
• Food & Beverage: Filling machine sensors, conveyor jam detection, CIP cycle monitoring
• Packaging: Case erector limit switches, labeler registration sensors, palletizer safety gates
• Water & Wastewater: Pump run/fail status, level switch inputs, valve open/closed confirmation
• Discrete Manufacturing: Machine tool door interlocks, part-present sensors, cycle start/stop buttons

System Integration & Compatible Parts

The 1756-IB16 is designed to operate within the broader ControlLogix ecosystem. Common companion modules and accessories include:

• Controllers: 1756-L71, 1756-L72, 1756-L73, 1756-L74, 1756-L75, 1756-L81E, 1756-L82E, 1756-L83E, 1756-L84E, 1756-L85E
• Power Supplies: 1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75
• Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
• Communication Modules: 1756-EN2T, 1756-EN2TR, 1756-CN2, 1756-DNB
• Wiring Accessories: 1756-TBCH (cage clamp RTB), 1756-TBS6H (spring clamp RTB)
• Output Counterparts: 1756-OB16E, 1756-OB16I, 1756-OA16

Our Quality Assurance Process

Every 1756-IB16 unit sourced and supplied by Konmask.com undergoes a structured verification process before shipment:

• Authenticity Verification: Visual inspection of Rockwell Automation labeling, date codes, and holographic seals to screen for counterfeit parts.
• Functional Testing: Where applicable, modules are bench-tested for backplane communication and per-point input response.
• Condition Grading: Units are clearly graded as New (factory-sealed), Refurbished (tested & reconditioned), or Used (tested, cosmetic wear). Grade is disclosed on every quotation.
• Secure Packaging: ESD-safe anti-static bags, foam cushioning, and double-wall cartons protect modules during international transit.
• Documentation: Test reports and certificates of conformance available upon request for critical applications.

How to Order

1. Submit an inquiry via the Contact Us form or email support@konmask.com with your required quantity and delivery timeline.
2. Our technical team will confirm availability, condition grade, lead time, and provide a formal quotation within 24 business hours.
3. Upon PO confirmation, we arrange secure packaging and dispatch with full tracking information.
4. Post-delivery support is available for installation queries and compatibility verification.

Minimum order quantity: 1 unit. Volume pricing available for orders of 5+ units.

Why Choose Konmask.com?

• ✅ Specialist Focus: Exclusively industrial automation components — PLC, DCS, drives, and HMI hardware from leading global brands.
• ✅ Global Supply Network: Access to both new and hard-to-find discontinued Rockwell Automation parts through verified supplier channels.
• ✅ Technical Expertise: Our team includes experienced control system engineers who can advise on compatibility, firmware, and system integration.
• ✅ Transparent Grading: No hidden conditions — every unit is clearly described and graded before quotation.
• ✅ Fast Response: Quotations within 24 hours; expedited shipping options available for urgent plant breakdowns.
• ✅ Export Compliance: Experienced in international trade documentation for Asia-Pacific, Middle East, and European customers.

Frequently Asked Questions

Q: Is the 1756-IB16 compatible with all ControlLogix chassis?
A: Yes. The 1756-IB16 installs in any 1756-series chassis slot (4, 7, 10, 13, or 17 slots) and is compatible with all ControlLogix and GuardLogix controllers running RSLogix 5000 v13 or later / Studio 5000 Logix Designer.

Q: What is the difference between 1756-IB16 and 1756-IB16D?
A: The 1756-IB16D adds diagnostic capabilities including open-wire detection and field power loss detection per channel. The standard 1756-IB16 provides basic 16-point DC input functionality without per-channel diagnostics.

Q: Can I use the 1756-IB16 in a remote I/O rack over EtherNet/IP?
A: Yes. When installed in a remote chassis with a 1756-EN2T or 1756-EN2TR adapter, the module operates as a remote I/O rack accessible over EtherNet/IP from any ControlLogix controller.

Q: Do you supply new or used units?
A: We supply both. All units are clearly graded (New / Refurbished / Used-Tested) and the grade is stated on every quotation. Contact us to specify your preference.

Q: What is the lead time for the 1756-IB16?
A: Lead time depends on current stock levels. In-stock units typically ship within 1–3 business days. For sourced units, lead time is typically 5–15 business days. Contact us for real-time availability.

Q: Is a warranty provided?
A: Yes. All units carry a minimum 90-day warranty against defects in materials and workmanship. Extended warranty options are available — please inquire at the time of quotation.

---
