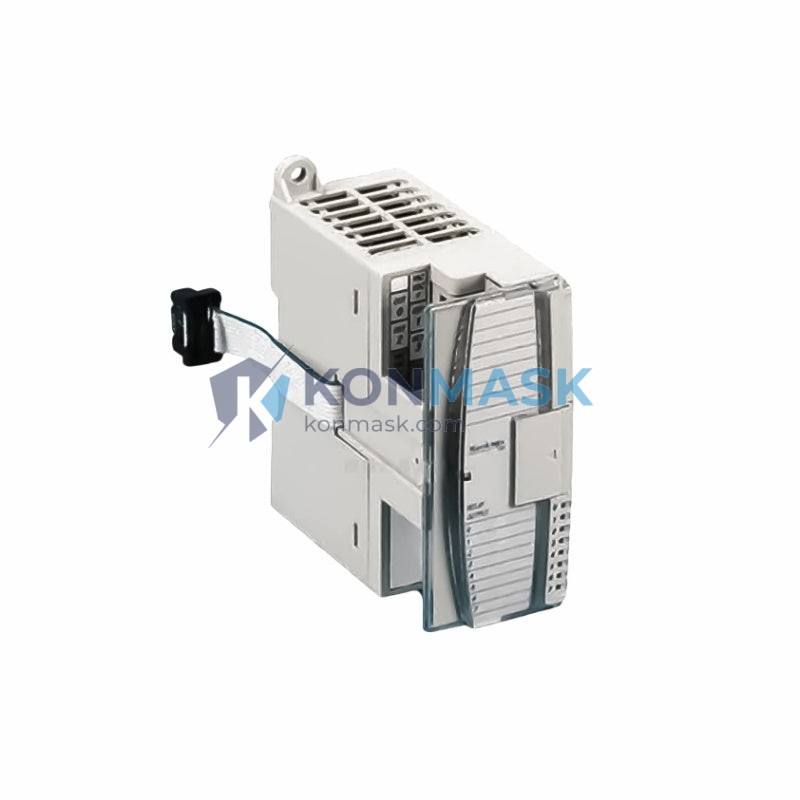

Allen-Bradley 1762-IF2OF2 – 4-Point Analog Combo I/O Module | MicroLogix 1200 / 1500 Platform
Engineering Background: The 1762-IF2OF2 is a compact analog combination module designed for the Allen-Bradley MicroLogix 1762 I/O expansion bus. It integrates two analog inputs and two analog outputs into a single module slot, making it the preferred choice for space-constrained control panels where both sensing and actuation signals must be handled simultaneously. Manufactured by Rockwell Automation under the Allen-Bradley brand, this module is a cornerstone of the MicroLogix 1200 and MicroLogix 1500 analog expansion ecosystem.
Product Positioning: Targeted at OEM machine builders, process skid integrators, and plant maintenance engineers who require reliable, DIN-rail-mountable analog I/O without the overhead of a full ControlLogix or CompactLogix rack. The 1762-IF2OF2 delivers industrial-grade signal conditioning in a 35 mm DIN-rail form factor, fully compatible with RSLogix 500 / Studio 5000 Logix Designer programming environments.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1762-IF2OF2 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series / Platform | MicroLogix 1762 Expansion I/O |
| Compatible Controllers | MicroLogix 1200 (1762-Lxx), MicroLogix 1500 (1764-Lxx) |
| Analog Inputs | 2 channels (differential) |
| Analog Outputs | 2 channels (single-ended) |
| Input Signal Range | 0–10 V DC / 0–20 mA / 4–20 mA (software selectable) |
| Output Signal Range | 0–10 V DC / 4–20 mA (software selectable) |
| Input Resolution | 12-bit (0–4095 counts) |
| Output Resolution | 12-bit (0–4095 counts) |
| Input Impedance (Voltage) | ≥ 1 MΩ |
| Input Impedance (Current) | 250 Ω |
| Output Load (Voltage) | ≥ 1 kΩ |
| Output Load (Current) | ≤ 500 Ω |
| Accuracy (Input) | ±0.5% full scale at 25 °C |
| Accuracy (Output) | ±0.5% full scale at 25 °C |
| Update Rate | ~10 ms per channel (typical) |
| Backplane Current Draw | 40 mA @ 5 V DC |
| External Power Supply | Not required (bus-powered) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Enclosure Rating | IP20 (open type, panel mount) |
| Mounting | 35 mm DIN rail |
| Dimensions (W × H × D) | 40 mm × 90 mm × 87 mm (approx.) |
| Weight | ~300 g |
| Certifications | UL, CE, cUL |
| Programming Software | RSLogix 500 / Studio 5000 Logix Designer |
Proven Application Environments
- Process Control: PID loop control for temperature, pressure, and flow using 4–20 mA transmitters and control valves.
- HVAC Systems: Monitoring supply/return air temperature and modulating damper actuators via 0–10 V signals.
- Packaging Machinery: Tension control and speed reference output to variable frequency drives (VFDs).
- Water & Wastewater: Level sensor input and pump speed control in lift stations and treatment plants.
- Food & Beverage: Ingredient dosing control with load cell inputs and proportional valve outputs.
- OEM Machine Building: Compact analog I/O for standalone machines where MicroLogix 1200/1500 is the primary controller.
Engineering Advantages
- Combo Module Efficiency: Eliminates the need for separate input and output modules, saving one expansion slot and reducing wiring complexity.
- Software-Selectable Ranges: Input and output signal types are configured via RSLogix 500 without hardware jumpers, reducing commissioning time.
- 12-Bit Resolution: Provides 4096 discrete levels across the full signal range, sufficient for most industrial process control applications.
- Bus-Powered Design: No external 24 V DC supply required for the module itself; simplifies panel power distribution.
- Differential Inputs: Rejects common-mode noise on long cable runs in electrically noisy industrial environments.
- Compact DIN-Rail Form Factor: 40 mm wide module integrates seamlessly into existing MicroLogix 1762 expansion chains.
System Architecture & Signal Flow
The 1762-IF2OF2 connects directly to the MicroLogix 1762 expansion bus via the right-side bus connector of the controller or preceding expansion module. Signal flow is as follows:
- Analog Inputs (CH0, CH1): Field transmitter → terminal block → differential ADC → 12-bit digital word → controller image table (I-file).
- Analog Outputs (CH0, CH1): Controller output image table (O-file) → 12-bit DAC → terminal block → field actuator (valve, VFD reference, etc.).
- Backplane Communication: Module communicates with the MicroLogix processor over the proprietary 1762 expansion bus; no additional network configuration required.
- Configuration: Channel mode (voltage/current), scaling, and filter settings are stored in the module configuration file (MG-file) within RSLogix 500.
Sourcing & Quality Verification
- All units sourced through authorized industrial distributors or verified surplus channels with full traceability documentation.
- Each module undergoes incoming inspection: visual check, label verification (catalog number, series, firmware revision), and functional power-on test.
- Firmware revision and series letter (Series A/B) confirmed and disclosed prior to shipment.
- Original Rockwell Automation packaging preserved where available; anti-static packaging used for all shipments.
- Certificate of conformance (CoC) available upon request for MRO and regulated-industry procurement.
Procurement Process
- Confirm Compatibility: Verify your MicroLogix controller model (1762-Lxx or 1764-Lxx) and available expansion slots before ordering.
- Request a Quote: Contact support@konmask.com with your required quantity, delivery timeline, and any series/revision requirements.
- Order Confirmation: Receive proforma invoice with unit price, lead time, and shipping options (DHL / FedEx / sea freight for bulk).
- Payment & Dispatch: Payment processed; module inspected, packed, and dispatched within 1–3 business days.
- After-Sales Support: Technical assistance available for installation, RSLogix 500 configuration, and troubleshooting via email or WhatsApp.
Technical FAQ
Q: Is the 1762-IF2OF2 compatible with MicroLogix 1100?
A: No. The MicroLogix 1100 uses the 1762 expansion bus physically, but Rockwell Automation does not officially support analog expansion modules on the 1100 platform. The 1762-IF2OF2 is validated for MicroLogix 1200 and 1500 only.
Q: Can I use both voltage and current on different channels simultaneously?
A: Yes. Each channel is independently configurable in RSLogix 500. CH0 can be set to 4–20 mA while CH1 is set to 0–10 V, for both inputs and outputs.
Q: What is the maximum number of 1762-IF2OF2 modules per controller?
A: MicroLogix 1200 supports up to 6 expansion modules total; MicroLogix 1500 supports up to 8. The number of analog modules is limited by the total backplane current budget (5 V bus).
Q: Does this module support HART protocol?
A: No. The 1762-IF2OF2 is a standard analog I/O module and does not support HART or any other digital fieldbus overlay protocol.
Q: What is the difference between Series A and Series B?
A: Series B introduced minor firmware improvements and enhanced EMC performance. Both series are functionally interchangeable for most applications. Please specify your preferred series when ordering.
Q: Can I replace a 1762-IF2OF2 with a 1762-IF4 and 1762-OF4?
A: Functionally yes, but this requires two module slots instead of one and different I/O addressing in your RSLogix 500 program. The 1762-IF2OF2 is the more slot-efficient solution.
