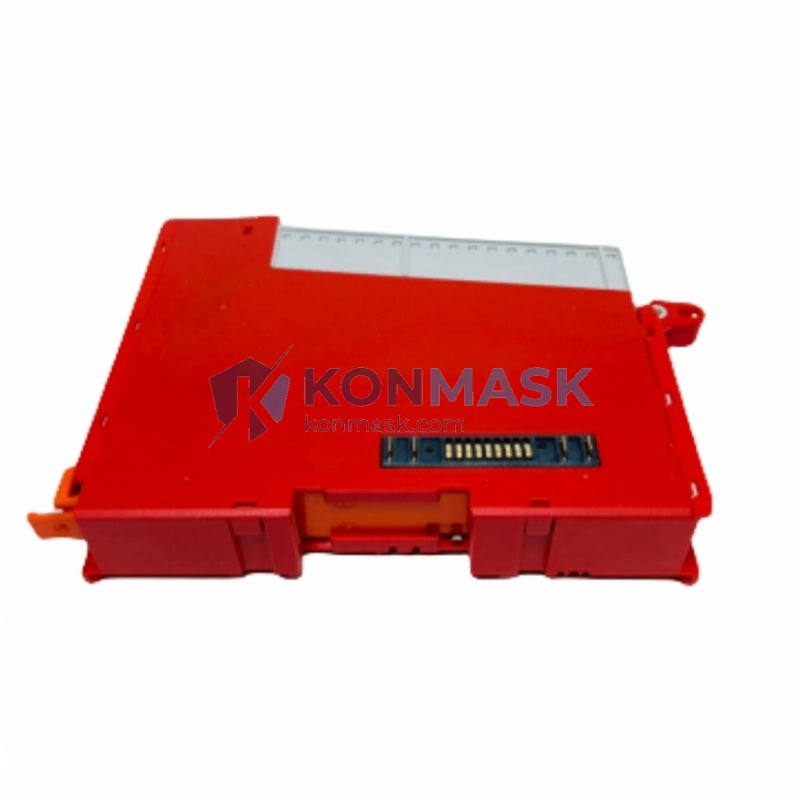

Allen-Bradley 5069-IB8S Safety Digital Input Module – Compact 5000 Series
Imagine a high-speed automated production line where a safety light curtain, emergency stop button, or two-hand control device fails to communicate its status to the controller in real time. Without a certified safety input module, the machine cannot distinguish a genuine safe state from a wiring fault or sensor failure — the result is either an undetected hazardous condition or a nuisance shutdown that halts production. In safety-critical environments, neither outcome is acceptable. The Allen-Bradley 5069-IB8S eliminates this risk by providing IEC 61508 SIL 2-capable, dual-channel safety digital input monitoring with built-in diagnostics, ensuring that every safety signal is validated before it reaches the control logic.
Within the Compact 5000 I/O platform, the 5069-IB8S occupies a precise technical niche: it is the 8-point safety-rated digital input module designed for machines and cells where functional safety certification is mandatory but panel space is at a premium. Unlike standard digital input modules, it supports dual-channel input evaluation and cross-channel fault detection, making it suitable for PLd/Cat. 3 and SIL 2 safety functions when used with a compatible Compact GuardLogix controller. Globally, the Compact 5000 family has become the benchmark for mid-range safety automation in automotive, food & beverage, packaging, and life sciences — and the 5069-IB8S is a cornerstone of that ecosystem.
Technical Specifications
- Catalog Number: 5069-IB8S
- Series: Compact 5000 I/O
- Module Type: Safety Digital Input
- Number of Inputs: 8 points
- Input Voltage: 24V DC (sourcing/sinking compatible)
- Safety Rating: SIL 2 (IEC 61508), PLd Cat. 3 (ISO 13849-1)
- Dual-Channel Support: Yes (for safety function evaluation)
- Diagnostics: Cross-channel fault detection, short-circuit detection, open-wire detection
- Communication: EtherNet/IP via Compact 5000 backplane
- Compatible Controllers: Compact GuardLogix 5380, GuardLogix 5580
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Mounting: DIN rail via Compact 5000 I/O system
- Manufacturer: Rockwell Automation / Allen-Bradley
Note: Specifications are based on published Rockwell Automation documentation. Always verify against the official product datasheet for your specific application.
Key Features & Benefits
- SIL 2 / PLd Certified Safety Inputs — Meets IEC 61508 and ISO 13849-1 requirements for functional safety, enabling certified machine safety architectures without external safety relays.
- 8-Point Density in a Compact Form Factor — Maximizes I/O density within the Compact 5000 chassis, reducing panel footprint and wiring complexity.
- Dual-Channel Input Evaluation — Supports paired-channel safety functions (e.g., E-stop, light curtains, two-hand controls) with discrepancy detection.
- Integrated Diagnostics — On-module fault detection for open-wire, short-circuit, and cross-channel faults reduces mean time to repair (MTTR) and simplifies commissioning.
- Seamless GuardLogix Integration — Native backplane communication with Compact GuardLogix controllers eliminates the need for separate safety gateways, simplifying the safety network architecture.
- Studio 5000 Logix Designer Support — Full Add-On Profile (AOP) support for rapid configuration, tag-based programming, and online diagnostics within the standard engineering environment.
Industry & Equipment Applications
- Automotive Manufacturing — Robotic cell guarding, press safety interlocks, and conveyor E-stop circuits.
- Food & Beverage — Safety door monitoring on filling lines, packaging machines, and CIP stations.
- Packaging & Material Handling — Light curtain and safety mat inputs on palletizers, case erectors, and stretch wrappers.
- Life Sciences & Pharmaceutical — Safety interlocks on isolators, filling lines, and cleanroom automation.
- General Machine Building — Any machine requiring IEC 62061 or ISO 13849-1 compliant safety input monitoring.
System Integration & Compatible Parts
The 5069-IB8S is designed to operate within the Compact 5000 I/O ecosystem. Key compatible components include:
- 5069-L306ERS2 / 5069-L310ERS2 — Compact GuardLogix 5380 Safety Controllers
- 5069-AEN2TR — Compact 5000 EtherNet/IP Adapter (for remote I/O configurations)
- 5069-OB8S — Compact 5000 8-Point Safety Digital Output Module (complementary output module)
- 5069-IB16 — Compact 5000 16-Point Standard Digital Input Module
- 1606-XLS240E — Allen-Bradley 24V DC Power Supply (recommended for Compact 5000 systems)
Contact Konmask.com for cross-reference assistance and complete BOM support for your safety system project.
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley module we supply goes through a structured verification process before shipment:
- Source Verification — We source from authorized distributors and traceable supply chains to minimize counterfeit risk.
- Visual & Label Inspection — Each unit is inspected for label authenticity, date codes, and physical condition.
- Packaging Integrity Check — Original factory packaging is preserved where possible; repackaged units are clearly identified.
- Documentation — Certificate of conformance and traceability documentation available upon request.
How to Order
Ordering the Allen-Bradley 5069-IB8S from Konmask.com is straightforward:
- Step 1: Submit an inquiry via the product page or email support@konmask.com with your required quantity and delivery timeline.
- Step 2: Receive a formal quotation within 1 business day, including unit price, lead time, and shipping options.
- Step 3: Confirm the order and complete payment via your preferred method (T/T, PayPal, or other agreed terms).
- Step 4: Shipment with tracking number provided; express and freight options available worldwide.
For urgent requirements or large-volume orders, call us directly at +0086 19859288691.
Why Choose Konmask.com?
- Industrial Automation Specialists — We focus exclusively on PLC, DCS, and automation hardware — not a generalist marketplace.
- Global Supply Capability — We serve engineering teams and procurement departments across Asia, Europe, the Middle East, and the Americas.
- Fast Quotation — Most inquiries receive a response within 24 hours, with competitive pricing on both standard and hard-to-find parts.
- Technical Support — Our team has hands-on experience with Rockwell Automation systems and can assist with compatibility questions and system design.
- Reliable Logistics — Partnerships with DHL, FedEx, and freight forwarders ensure safe, on-time delivery globally.
Frequently Asked Questions
Q: Is the 5069-IB8S compatible with standard Logix 5380 controllers (non-safety)?
A: No. The 5069-IB8S safety module requires a Compact GuardLogix 5380 or GuardLogix 5580 controller to utilize its safety functions. It cannot be used as a standard input module with non-safety controllers.
Q: Can the 5069-IB8S be used in a remote I/O configuration?
A: Yes. When paired with a 5069-AEN2TR EtherNet/IP adapter, the module can be used in a remote Compact 5000 I/O bank connected to a GuardLogix controller over EtherNet/IP.
Q: What is the maximum safety integrity level achievable with this module?
A: The 5069-IB8S supports up to SIL 2 (IEC 61508) and PLd Category 3 (ISO 13849-1) when configured correctly with a compatible GuardLogix controller. Achieving the rated SIL/PL requires proper system design, wiring, and proof-test intervals per Rockwell’s safety reference manual.
Q: Do you provide the firmware or configuration files?
A: Configuration is performed via Studio 5000 Logix Designer using the module’s Add-On Profile (AOP), which is available from Rockwell Automation’s Product Compatibility and Download Center (PCDC). Konmask.com supplies the hardware; software is obtained directly from Rockwell.
Q: What is the lead time for the 5069-IB8S?
A: Lead time varies by stock availability. Contact us at support@konmask.com for a real-time availability check and delivery estimate.
