Allen-Bradley 1766-L32BWAA MicroLogix 1400 32-Point PLC Controller | Replacement, Equivalent & Selection Guide

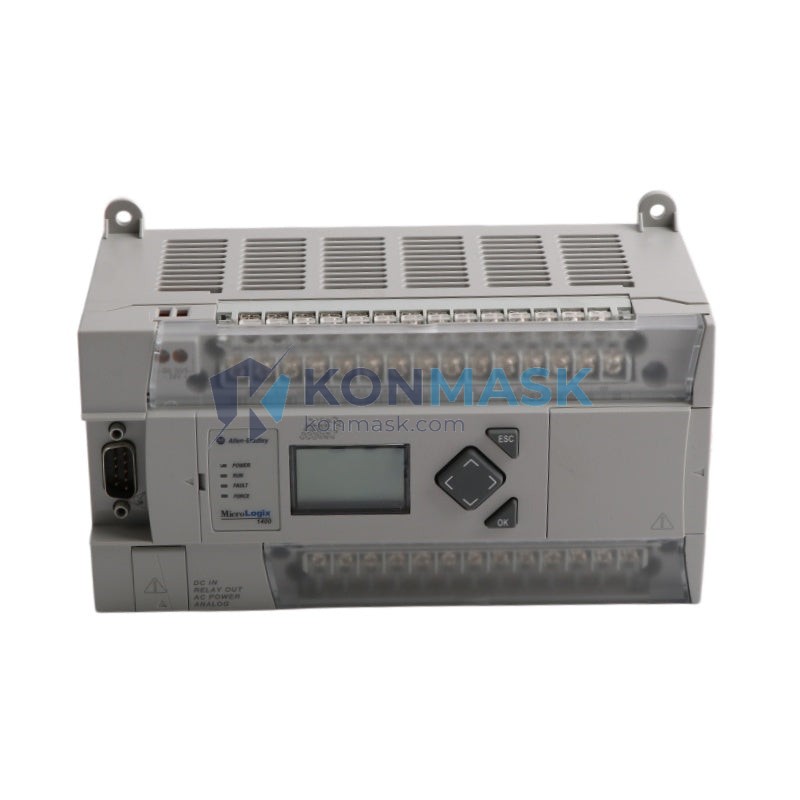

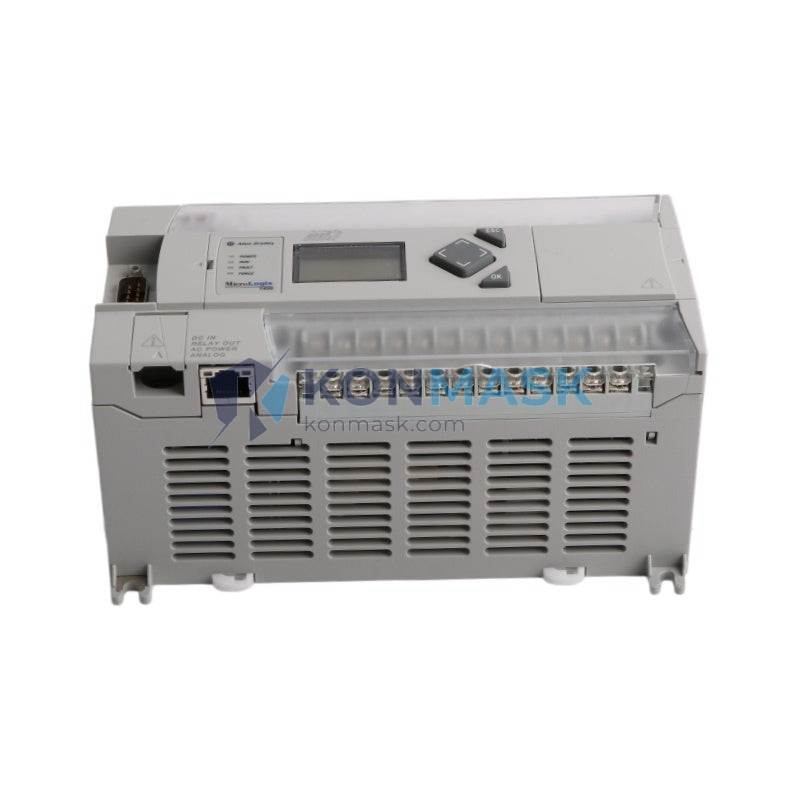

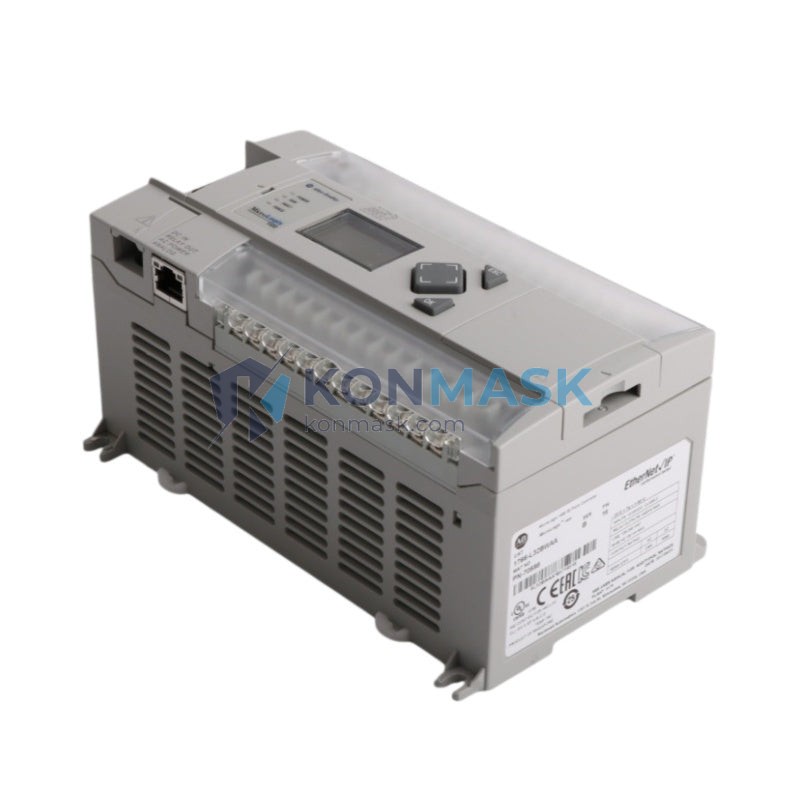

The Allen-Bradley 1766-L32BWAA is a 32-point fixed I/O programmable logic controller from the MicroLogix 1400 series by Rockwell Automation. Designed for mid-range automation tasks, it combines onboard analog I/O, high-speed counting, and EtherNet/IP connectivity in a compact DIN-rail package — making it a preferred choice for OEM machine builders and system integrators worldwide.
At Konmask.com, we specialize in sourcing, cross-referencing, and supplying Allen-Bradley MicroLogix controllers with full traceability. Whether you need the original 1766-L32BWAA or a verified equivalent, this guide helps you select the right solution.
Technical Specifications
- Part Number: 1766-L32BWAA
- Series: MicroLogix 1400
- Manufacturer: Allen-Bradley / Rockwell Automation
- Total I/O Points: 32 (20 Inputs / 12 Outputs)
- Input Type: 24V DC Sink/Source
- Output Type: Relay (Form A)
- Onboard Analog I/O: 4 Analog Inputs / 2 Analog Outputs
- Communication Ports: RS-232 (Channel 0), RS-232/485 (Channel 1), EtherNet/IP (RJ-45)
- Program Memory: 10K words (user program)
- Data Memory: 10K words
- High-Speed Counter: Up to 100 kHz
- Real-Time Clock: Yes (built-in)
- LCD Display: Yes (4-line, 20-character)
- Power Supply: 24V DC
- Operating Temperature: 0°C to 60°C
- Dimensions (W×H×D): Approx. 178 × 90 × 87 mm
- Weight: ~920 g
- Certifications: UL, CE, RoHS
- Programming Software: RSLogix 500 / Studio 5000 Logix Designer (view only)
Compatible Replacement & Equivalent Models
When the 1766-L32BWAA is unavailable or over-budget, the following models offer functional equivalence or direct drop-in replacement potential:
| Model | Brand | I/O Points | Output Type | Key Difference |
|---|---|---|---|---|
| 1766-L32BWAA (Original) | Allen-Bradley | 32 | Relay | — |
| 1766-L32AWA | Allen-Bradley | 32 | Relay | 120V AC power supply |
| 1766-L32BXB | Allen-Bradley | 32 | Transistor (NPN) | Faster switching, 24V DC |
| 1766-L32BXBA | Allen-Bradley | 32 | Transistor (NPN) | 24V DC, NPN output variant |
| 1766-L32AWAA | Allen-Bradley | 32 | Relay | AC power, relay output |
| 1762-L40BWAR (MicroLogix 1200) | Allen-Bradley | 40 | Relay | Older series, no EtherNet/IP onboard |
Note: Always verify I/O wiring, power supply voltage, and communication requirements before substituting models. Contact Konmask.com for a free compatibility assessment.
Why Choose the Original 1766-L32BWAA
- Native EtherNet/IP: Seamless integration with Rockwell FactoryTalk and SCADA systems without additional gateways.
- Onboard Analog I/O: Eliminates the need for expansion modules in many standard applications.
- Relay Outputs: Ideal for controlling motors, solenoids, and high-inrush loads directly.
- LCD Operator Panel: Enables on-machine diagnostics and parameter display without a separate HMI.
- Proven Reliability: Widely deployed in food & beverage, water treatment, and packaging industries globally.
- Long-Term Support: Rockwell Automation continues to support MicroLogix 1400 with firmware updates and spare parts.
Typical Applications
- Conveyor and material handling systems
- Pump and motor control panels
- HVAC and building automation
- Water and wastewater treatment
- Food and beverage processing lines
- Packaging and labeling machines
- OEM machine control with remote monitoring via EtherNet/IP
System Compatibility
- Programming Software: RSLogix 500 (v8.0 or later recommended)
- Communication Driver: RSLinx Classic / RSLinx Enterprise
- Expansion I/O: Compatible with 1762 MicroLogix 1200/1400 expansion modules (up to 7 modules)
- HMI Compatibility: PanelView Component, PanelView Plus (via EtherNet/IP or serial)
- Network Protocols: EtherNet/IP, Modbus RTU (via Channel 1), DF1, DH-485
- Power Supply: 24V DC (external); compatible with standard 24V DIN-rail PSUs
Selection Guide
Use this guide to confirm the 1766-L32BWAA is the right fit — or to identify the best alternative:
| Requirement | Recommended Model |
|---|---|
| 24V DC power + Relay output + EtherNet/IP | 1766-L32BWAA ✓ |
| 120V AC power + Relay output | 1766-L32AWA or 1766-L32AWAA |
| High-speed transistor output (NPN) | 1766-L32BXB / 1766-L32BXBA |
| Lower cost, no analog I/O needed | 1762-L40BWAR (MicroLogix 1200) |
| More I/O points required (>32) | Add 1762 expansion modules to 1766-L32BWAA |
Not sure which model fits your application? Send us your wiring diagram or I/O list — our engineers will recommend the optimal solution at no charge.
Quality Assurance & Sourcing
- Source: Authorized distributors and verified surplus channels
- Inspection: Every unit undergoes visual inspection, label verification, and functional power-on test
- Traceability: Lot codes and date codes documented on request
- Condition: New (factory-sealed) and refurbished (tested, warranted) options available
- Warranty: 12-month replacement warranty on all units shipped from Konmask.com
- Counterfeit Prevention: We do not source from unverified grey-market channels; all units include original packaging where available
How to Order
- Confirm your power supply voltage (24V DC or 120V AC) and output type (relay vs. transistor).
- Verify EtherNet/IP or serial communication requirement.
- Add 1766-L32BWAA to cart, or contact us for bulk pricing and lead time.
- For urgent requirements, email support@konmask.com with your PO or RFQ.
- We ship worldwide via DHL, FedEx, and UPS with full export documentation.
Replacement & Compatibility FAQ
Q: Is the 1766-L32BWAA still in production?
A: Yes. As of 2026, Rockwell Automation continues to manufacture and support the MicroLogix 1400 series. Lead times vary; Konmask.com maintains stock for immediate shipment.
Q: Can I replace a 1766-L32BWAA with a 1766-L32BXB?
A: Functionally yes for most applications, but the output type changes from relay to transistor (NPN). Verify your load type and wiring before substituting.
Q: Does the 1766-L32BWAA support Modbus RTU?
A: Yes, via Channel 1 (RS-232/485) using the MSG instruction with Modbus RTU protocol enabled in RSLogix 500.
Q: How many expansion modules can I add?
A: Up to 7 expansion modules from the 1762 series, allowing up to 136 additional I/O points.
Q: What is the difference between 1766-L32BWAA and 1766-L32AWA?
A: The primary difference is the power supply: BWAA uses 24V DC; AWA uses 120V AC. Both have relay outputs and identical I/O counts.
Q: Can I use Studio 5000 to program the 1766-L32BWAA?
A: No. The MicroLogix 1400 requires RSLogix 500. Studio 5000 is for ControlLogix/CompactLogix families only.
