Genuine Allen-Bradley 1769-DPM PROFIBUS DP Master Module | CompactLogix Series – Verified Source

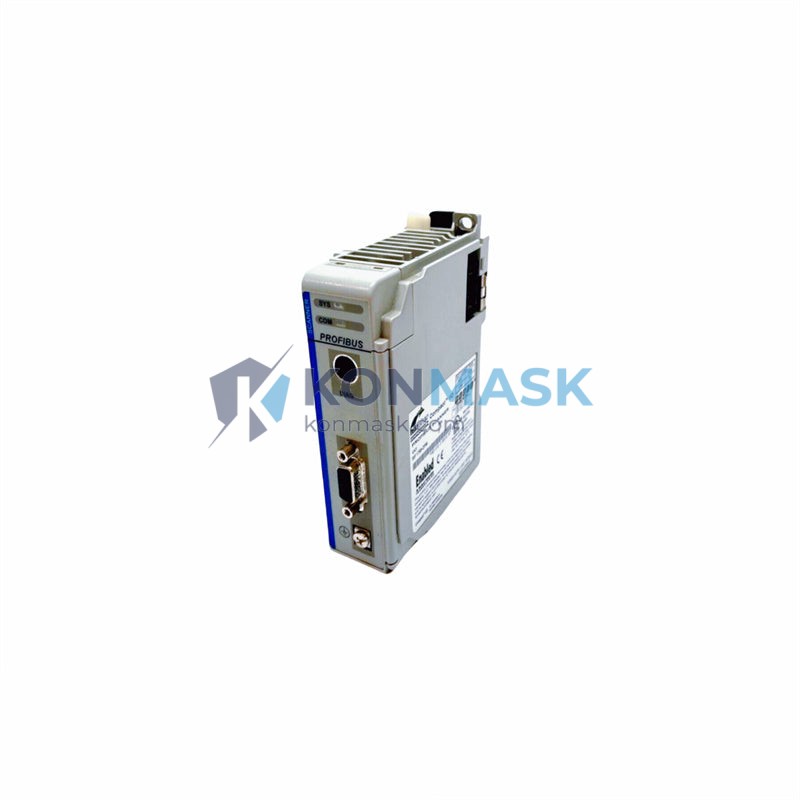

The Allen-Bradley 1769-DPM is a PROFIBUS DP Master communication module designed for the CompactLogix platform. Sourced directly through verified industrial distribution channels, every unit sold by Konmask.com undergoes a rigorous 4-step authenticity and quality verification process before shipment.
Technical Specifications
- SKU / Part Number: 1769-DPM
- Brand: Allen-Bradley (Rockwell Automation)
- Series: CompactLogix 1769
- Module Type: PROFIBUS DP Master Communication Module
- Protocol: PROFIBUS DP (EN 50170 / IEC 61158)
- Max DP Slaves: Up to 125 slave devices
- Baud Rate: 9.6 Kbps – 12 Mbps (auto-detect)
- Backplane Interface: CompactLogix 1769 local I/O bus
- Power Consumption: 160 mA @ 5 VDC (from backplane)
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Storage Temperature: -40 °C to 85 °C
- Dimensions (H × W × D): 118 mm × 35 mm × 87 mm
- Weight: 1,480 g (with packaging)
- Certifications: CE, UL, cUL, RoHS
- Firmware: Configurable via RSLogix 5000 / Studio 5000
Our 4-Step Quality Verification Process
- Source Authentication — All units are procured exclusively from authorized distributors or verified OEM surplus channels. Counterfeit-risk suppliers are blacklisted.
- Physical Inspection — Label integrity, housing condition, connector pin alignment, and serial number traceability are checked against Rockwell Automation’s published specifications.
- Functional Bench Test — Where applicable, modules are powered and tested for backplane communication and PROFIBUS DP enumeration prior to dispatch.
- Secure Packaging & Documentation — Units ship in anti-static ESD packaging with a Konmask inspection certificate and original manufacturer documentation where available.
Key Features & Benefits
- Seamlessly integrates PROFIBUS DP slave devices into a CompactLogix control system without a separate gateway
- Supports Class 1 and Class 2 master functionality for full DP network management
- Auto-baud detection eliminates manual network speed configuration
- Configurable via industry-standard Studio 5000 Logix Designer — no proprietary software required
- Compact 1769 form factor minimizes panel footprint while maximizing I/O density
- Hot-swap capable within CompactLogix chassis for reduced downtime during maintenance
Typical Applications
- Factory automation lines integrating legacy PROFIBUS field devices (drives, sensors, valves)
- Process control systems requiring deterministic DP communication cycles
- Hybrid architectures bridging EtherNet/IP-based CompactLogix controllers with PROFIBUS DP networks
- Automotive, food & beverage, oil & gas, and water treatment plant automation
- Retrofit and modernization projects replacing older PLC-5 or SLC 500 PROFIBUS masters
Compatible System Components
- Controllers: 1769-L23E-QB1B, 1769-L27ERM-QBFC1B, 1769-L30ER, 1769-L33ER, 1769-L36ERM, 1769-L43, 1769-L45
- Power Supplies: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
- End Caps: 1769-ECR (right), 1769-ECL (left)
- Programming Software: Studio 5000 Logix Designer v21.00 or later
- PROFIBUS Cable: Standard EN 50170 Type A shielded twisted-pair (9-pin D-sub connector)
Global Sourcing & Shipping Capabilities
Konmask.com ships the 1769-DPM worldwide from our warehouse in China. Standard lead times are 3–7 business days for stocked units. Express DHL / FedEx options are available for urgent requirements. We serve customers in North America, Europe, Southeast Asia, the Middle East, and beyond. All export documentation, including commercial invoices and HS code declarations, is prepared in compliance with destination country import regulations.
- HS Code: 8537.10 (Boards, panels, consoles for electric control)
- Country of Origin: USA (Rockwell Automation manufactured)
- Export Compliance: EAR99 / Non-ITAR (verify with your local trade compliance team for dual-use regulations)
