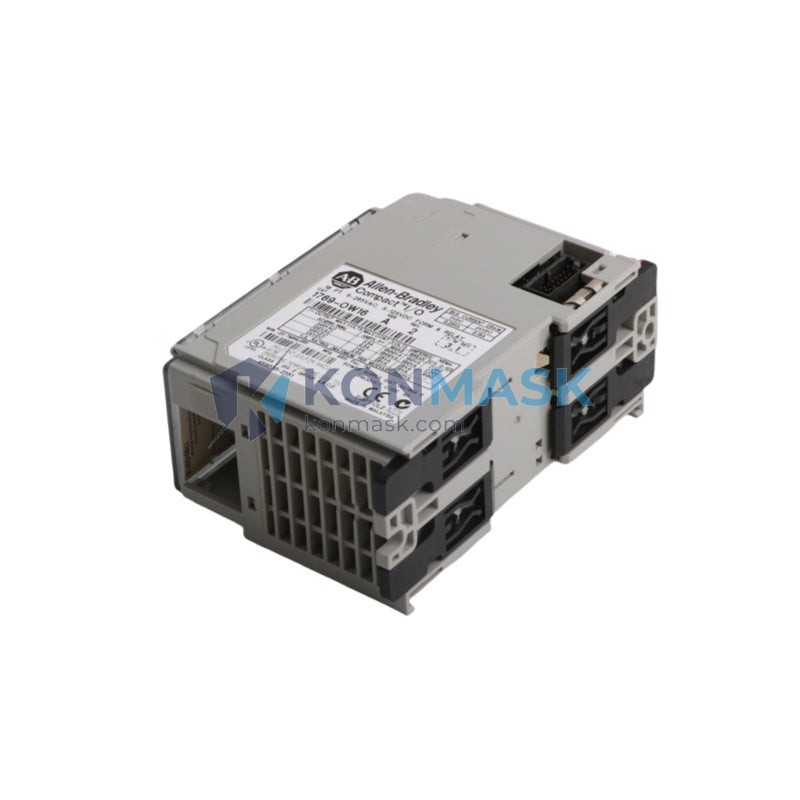

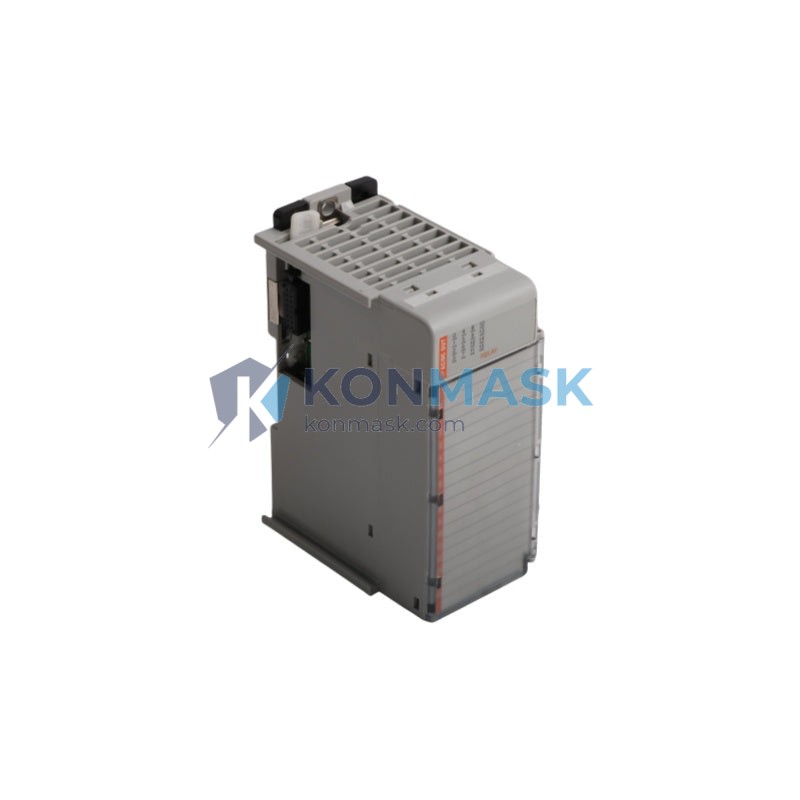

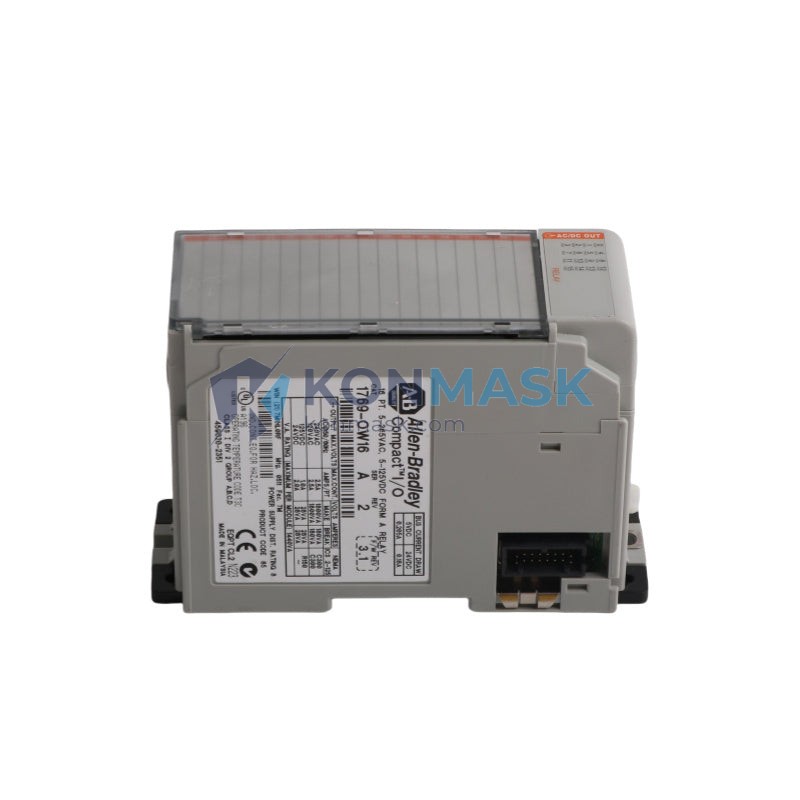

Allen-Bradley 1769-OW16 Relay Output Module – CompactLogix Compact I/O Series
When a relay output module fails on the production floor, the consequences are immediate and costly: conveyor lines halt, actuators lose control signals, and entire manufacturing cells go dark. Without a reliable discrete output interface, PLCs cannot command the real-world devices that keep operations running. The Allen-Bradley 1769-OW16 is the precision component that bridges your CompactLogix controller to the physical world — 16 isolated relay contacts ready to switch motors, solenoids, indicators, and safety circuits with proven industrial-grade reliability.
Within the 1769 Compact I/O family, the 1769-OW16 occupies a critical position as the high-density relay output solution. Designed for space-constrained control panels and mid-range automation applications, it is deployed across thousands of installations worldwide — from automotive assembly lines in Germany to food processing facilities in Southeast Asia — making it one of the most trusted discrete output modules in the global industrial automation market.
Technical Specifications
- Part Number / SKU: 1769-OW16
- Series: Allen-Bradley CompactLogix 1769 Compact I/O
- Output Type: Relay (dry contact)
- Number of Output Points: 16
- Output Groups: 8 groups of 2 points (individually isolated)
- Load Voltage Range: 5–265V AC / 5–125V DC
- Maximum Load Current: 2A per point (resistive)
- Surge Current: 7.5A for 10 ms
- Minimum Load Current: 10 mA
- Backplane Current (5V DC): 105 mA
- Power Dissipation: 5.25W max
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5–95% non-condensing
- Dimensions (H × W × D): 118 × 35 × 87 mm
- Weight: Approx. 300 g
- Certifications: UL, CE, CSA, RCM
Key Features & Benefits
- 16 Isolated Relay Outputs: Each output group is individually isolated, eliminating cross-interference between circuits and enabling mixed-voltage field wiring in a single module.
- Wide Voltage Compatibility: Supports both AC and DC loads from 5V to 265V AC / 125V DC, giving engineers maximum flexibility in panel design without additional interface relays.
- Compact Form Factor: Single-slot 1769 Compact I/O footprint minimizes panel space while delivering high I/O density — ideal for machine-level control cabinets.
- Hot-Swap Capable: Supports removal and insertion under power (RIUP) when used with compatible CompactLogix systems, reducing maintenance downtime.
- Removable Terminal Block: Pre-wired terminal blocks can be swapped without rewiring, accelerating module replacement in the field.
- Diagnostic LED Indicators: Per-point output status LEDs provide instant visual feedback for commissioning and fault isolation.
- Long Mechanical Life: Rated for millions of operations, ensuring long-term reliability in high-cycle applications.
Industry & Equipment Applications
- Automotive Manufacturing: Controlling welding gun solenoids, conveyor drive starters, and fixture clamp actuators.
- Food & Beverage Processing: Switching pump motors, valve actuators, and conveyor indexing drives in washdown environments.
- Packaging Machinery: Commanding label applicators, reject gates, and product diverters on high-speed lines.
- Water & Wastewater Treatment: Operating pump station contactors, valve actuators, and alarm annunciators.
- Oil & Gas: Controlling wellhead equipment, pipeline valve actuators, and safety shutdown systems.
- Building Automation & HVAC: Switching fan starters, damper actuators, and lighting control circuits.
- Material Handling: Driving conveyor motor starters, sorter diverters, and accumulation zone controls.
System Integration & Compatible Parts
The 1769-OW16 integrates seamlessly within the Allen-Bradley 1769 Compact I/O ecosystem. Compatible and commonly paired components include:
- Controllers: 1769-L16ER-BB1B, 1769-L18ERM-BB1P, 1769-L24ER-QB1B (CompactLogix 5370)
- Power Supplies: 1769-PA2, 1769-PB2, 1769-PA4
- Digital Input Modules: 1769-IQ16, 1769-IQ32, 1769-IA16
- Analog Modules: 1769-IF4, 1769-OF4, 1769-IF8
- End Caps: 1769-ECR (right end cap), 1769-ECL (left end cap)
- Communication Adapters: 1769-ADN (DeviceNet), 1769-SDN
Our Quality Assurance Process
Every 1769-OW16 unit sourced and shipped by Konmask.com undergoes a rigorous multi-stage verification process:
- Authenticity Verification: Visual inspection of Rockwell Automation holographic labels, date codes, and country-of-origin markings against manufacturer references.
- Functional Testing: Each relay output point is energized and continuity-verified under load conditions before dispatch.
- Packaging Inspection: Original or equivalent ESD-safe anti-static packaging is used to prevent transit damage.
- Documentation: Traceability records including lot codes and inspection reports are available upon request for critical applications.
How to Order
- Submit an inquiry via the “Request a Quote” button on this page.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will respond within 24 business hours with pricing, lead time, and shipping options.
- Upon confirmation, we issue a proforma invoice and arrange secure international shipment with full tracking.
For urgent requirements, contact us directly: support@konmask.com | +0086 19859288691
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: Focused exclusively on PLC, DCS, and automation hardware — not a generalist marketplace.
- ✅ Global B2B Supply: Serving engineering teams, MRO buyers, and system integrators across 50+ countries.
- ✅ Competitive Lead Times: Extensive supplier network enables fast sourcing of both current and legacy/obsolete parts.
- ✅ Technical Support: Our team includes experienced automation engineers who can advise on compatibility and system integration.
- ✅ Secure Transactions: T/T, L/C, and other B2B payment terms available with full documentation.
Frequently Asked Questions
Q: Is the 1769-OW16 compatible with MicroLogix controllers?
A: No. The 1769 Compact I/O series is designed for CompactLogix controllers. MicroLogix systems use the 1762 (MicroLogix 1200) or 1766 (MicroLogix 1400) I/O expansion modules.
Q: Can the 1769-OW16 switch inductive loads such as motor starters?
A: Yes, but a suppression device (RC snubber or MOV) is strongly recommended across inductive loads to protect relay contacts and extend service life.
Q: What is the maximum number of 1769-OW16 modules per CompactLogix system?
A: This depends on the specific CompactLogix controller’s I/O capacity. Refer to the controller’s technical specifications for the maximum local and expansion I/O module count.
Q: Do you supply both new and refurbished units?
A: We primarily supply new, factory-sealed units. Tested surplus units may be available — please specify your preference when submitting an inquiry.
Q: Can you provide the 1769-OW16 datasheet or wiring diagram?
A: Yes. Technical documentation is available upon request. Contact support@konmask.com with your inquiry.
