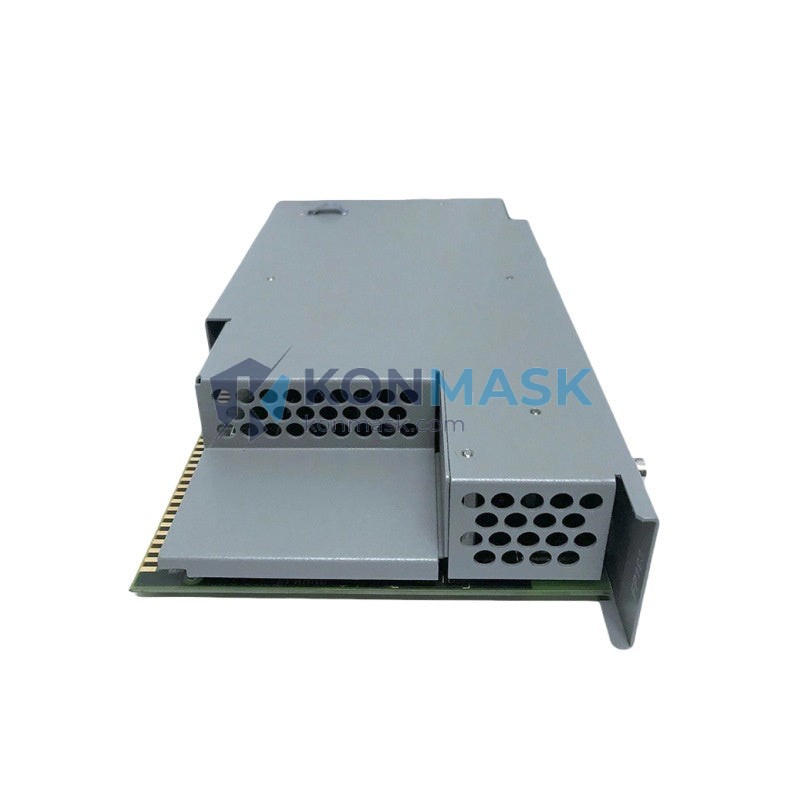

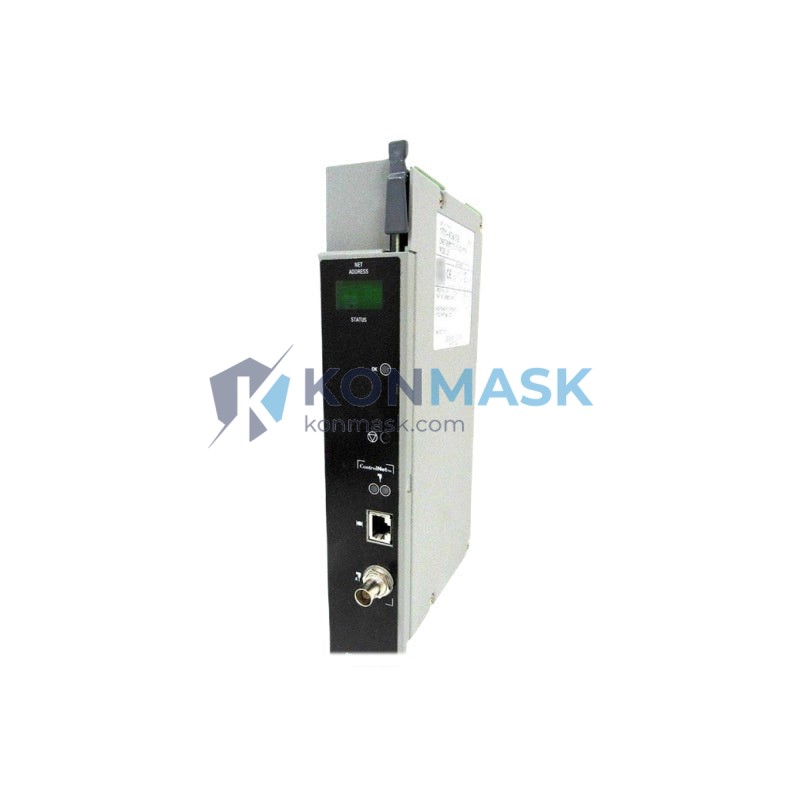

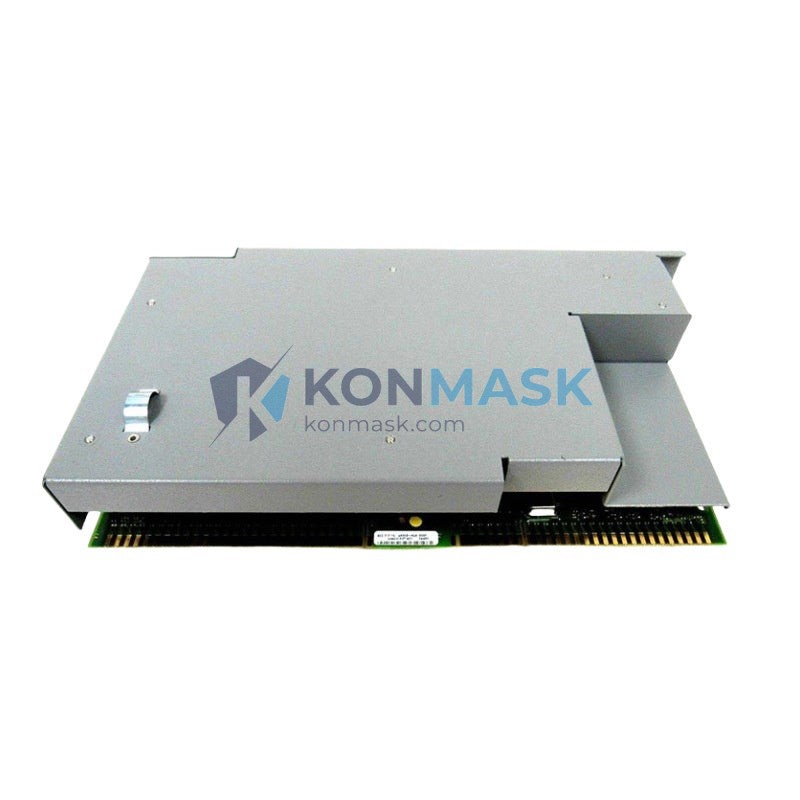

Allen-Bradley 1771-ACN – ControlNet I/O Adapter Module | PLC-5 Remote I/O Platform
Engineering Background: The Allen-Bradley 1771-ACN is a ControlNet I/O Adapter Module designed for use within the 1771 I/O chassis family. It serves as the communication bridge between a ControlNet network and remote I/O modules, enabling deterministic, high-speed data exchange in distributed control architectures. Developed under Rockwell Automation’s PLC-5 platform ecosystem, this module has been deployed across thousands of industrial facilities worldwide since its introduction.
Product Positioning: The 1771-ACN is the preferred adapter for engineers who require reliable ControlNet connectivity in legacy PLC-5 and SLC-500 environments, as well as in hybrid architectures where ControlNet backbones must interface with 1771 I/O chassis. It is a critical component for plants undergoing phased modernization — maintaining existing I/O infrastructure while upgrading network layers.
Complete Technical Specifications
- Part Number: 1771-ACN
- Manufacturer: Allen-Bradley / Rockwell Automation
- Series/Platform: 1771 I/O / PLC-5 / ControlNet
- Module Type: ControlNet I/O Adapter
- Network Protocol: ControlNet (CTNET)
- Backplane Compatibility: 1771 I/O Chassis (all standard sizes)
- Node Address Range: 1–99 (software configurable)
- Data Transfer Rate: 5 Mbps (ControlNet standard)
- I/O Capacity: Up to 8 I/O modules per chassis
- Power Consumption: Supplied via 1771 backplane
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Enclosure Rating: Open-style (requires panel or enclosure mounting)
- Certifications: UL Listed, CE Marked, CSA Certified
- Weight: Approx. 100 g
- Dimensions: Standard 1771 single-slot form factor
Proven Application Environments
- Automotive Manufacturing: Body-in-white assembly lines using PLC-5 controllers with distributed 1771 I/O racks connected via ControlNet for deterministic cycle-time control.
- Oil & Gas Processing: Remote I/O marshalling panels in upstream and midstream facilities where ControlNet provides noise-immune communication over long cable runs.
- Water & Wastewater Treatment: SCADA-integrated pump stations and filtration systems using 1771 chassis for analog and digital I/O with ControlNet backbone.
- Food & Beverage: Packaging and filling lines requiring synchronized I/O updates across multiple chassis in a single ControlNet network segment.
- Power Generation & Utilities: Turbine control auxiliaries and switchgear automation panels where PLC-5 systems remain the primary controller platform.
- Pharmaceutical Manufacturing: Validated legacy systems where change control requirements make 1771-ACN replacement-in-kind the preferred maintenance strategy.
Engineering Advantages
- Deterministic Communication: ControlNet’s scheduled messaging ensures predictable I/O scan times — critical for motion-coordinated and safety-adjacent applications.
- Dual-Port Redundancy Support: Compatible with redundant ControlNet cable configurations (coax or fiber) for high-availability architectures.
- Seamless Legacy Integration: Drop-in replacement for existing 1771-ACN installations — no chassis modification, no re-wiring, no PLC program changes required.
- Broad I/O Module Compatibility: Works with the full 1771 I/O module library including analog, digital, specialty, and safety I/O types.
- RSNetWorx Configuration: Fully supported by Rockwell’s RSNetWorx for ControlNet configuration and diagnostics tool suite.
- Long Service Life: Designed for 24/7 continuous operation in industrial environments; field-proven reliability over 20+ years of deployment.
System Architecture & Signal Flow
In a typical deployment, the PLC-5 processor communicates over the ControlNet network to the 1771-ACN adapter installed in a remote 1771 I/O chassis. The adapter translates ControlNet scheduled connection data into backplane I/O updates, which are then distributed to individual I/O modules (digital inputs, analog outputs, etc.) within the same chassis. Return data (input status, diagnostics) flows back through the adapter to the controller in the same deterministic scan cycle. Multiple 1771-ACN adapters can coexist on a single ControlNet segment, each assigned a unique node address, enabling scalable distributed I/O architectures across large plant floors.
Sourcing & Quality Verification
- All 1771-ACN units sourced by Konmask.com are inspected for physical integrity, label authenticity, and firmware revision prior to shipment.
- Units are tested for backplane communication and ControlNet node initialization where test bench facilities permit.
- Traceability documentation (lot records, inspection reports) available upon request for regulated industries.
- Packaging inspected for moisture ingress, ESD damage, and counterfeit indicators before acceptance into inventory.
- Surplus and refurbished units are clearly identified and priced separately from new/factory-sealed stock.
Procurement Process
- Confirm Part Number: Verify 1771-ACN is the correct adapter for your ControlNet revision and chassis configuration.
- Check Firmware Compatibility: Confirm required firmware revision with your RSNetWorx project file if applicable.
- Request a Quote: Contact Konmask.com via email or phone with quantity and delivery timeline requirements.
- Review Inspection Report: Request pre-shipment inspection documentation for critical or validated applications.
- Place Order & Ship: Standard lead time 1–5 business days; expedited options available for emergency maintenance scenarios.
Technical FAQ
Q: Is the 1771-ACN compatible with ControlLogix or CompactLogix controllers?
A: Not directly. The 1771-ACN is designed for PLC-5 ControlNet scanner architectures. ControlLogix systems use the 1756-CNB or 1756-CNBR adapter for 1771 I/O chassis connectivity.
Q: Can I use the 1771-ACN on a ControlNet network with both coax and fiber media?
A: Yes, provided the appropriate ControlNet media converters and repeaters are used. The 1771-ACN itself connects via standard BNC coax ports.
Q: What is the maximum number of 1771-ACN adapters on a single ControlNet segment?
A: Up to 99 nodes per ControlNet segment, subject to network bandwidth and scheduled connection limits defined in your RSNetWorx configuration.
Q: Is this module still manufactured by Rockwell Automation?
A: The 1771-ACN has reached end-of-life (EOL) status with Rockwell Automation. Konmask.com specializes in sourcing quality surplus and refurbished units to support ongoing maintenance of installed base systems.
Q: What warranty does Konmask.com provide on this module?
A: All units carry a standard 90-day functional warranty. Extended warranty options are available — contact support@konmask.com for details.
