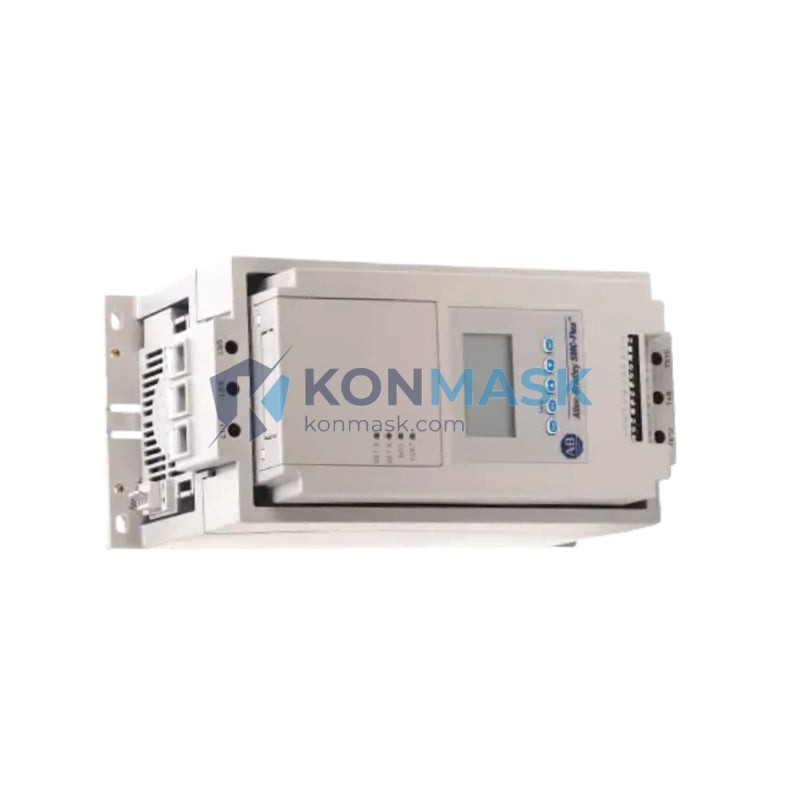

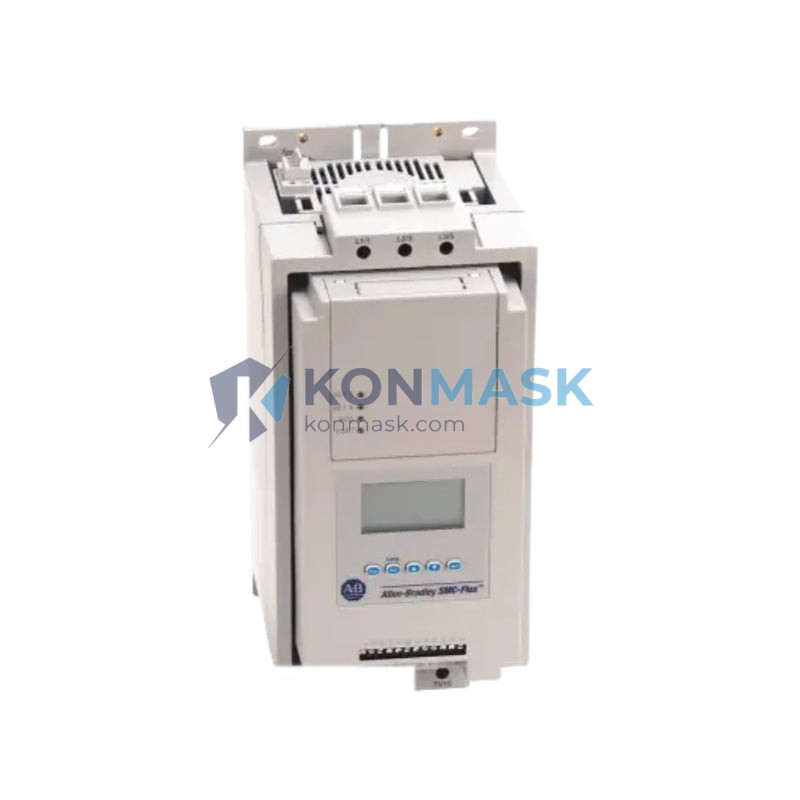

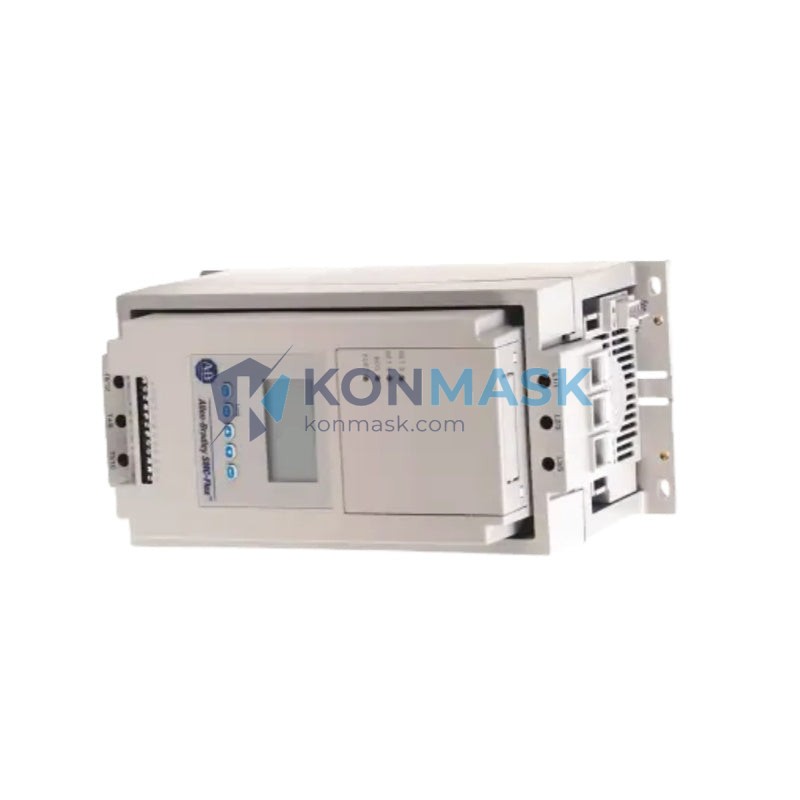

Allen-Bradley 150-F251NZD – SMC Flex Smart Motor Controller | Rockwell Automation
The Allen-Bradley 150-F251NZD is a high-capacity 251A Smart Motor Controller from Rockwell Automation’s industry-leading SMC Flex™ platform. Engineered for demanding industrial environments, this unit delivers precise soft-start and soft-stop control, protecting motors and driven equipment from mechanical stress and electrical transients. It is the preferred choice for procurement engineers specifying reliable motor management in heavy-duty process and manufacturing applications.
Product Positioning: The 150-F251NZD targets large-motor applications (up to 250 HP @ 480V) where traditional across-the-line starters cause unacceptable current spikes and mechanical shock. Its integrated DeviceNet/DPI communication port enables seamless integration into Rockwell ControlLogix and CompactLogix architectures, reducing panel footprint and wiring complexity.
Complete Technical Specifications
- Part Number / SKU: 150-F251NZD
- Series / Platform: SMC Flex™ (Allen-Bradley / Rockwell Automation)
- Rated Current: 251 A (continuous)
- Supply Voltage: 200–480 V AC, 3-Phase, 50/60 Hz
- Motor Power Range: Up to 250 HP @ 480V / 125 HP @ 200V
- Control Voltage: 100–240 V AC (external control circuit)
- Starting Modes: Soft Start, Current Limit Start, Dual Ramp, Full Voltage, Preset Slow Speed
- Stopping Modes: Soft Stop, Coast-to-Rest, Braking (DC Injection)
- Communication: DeviceNet™ / DPI (Drive Peripheral Interface)
- Protection Functions: Overload, Phase Loss, Phase Imbalance, Stall, Jam, Underload, Ground Fault (optional)
- Bypass Contactor: Internal bypass (full-voltage run mode)
- Enclosure Type: Open / Panel Mount (IP00)
- Ambient Temperature: 0°C to +40°C (operating); -40°C to +85°C (storage)
- Certifications: UL Listed, CE Marked, CSA Certified
- Catalog Prefix: 150-F (Flex Series, Frame F)
- Weight: Approx. 5.7 kg
Proven Application Environments
- Pumping Stations: Water/wastewater treatment, booster pump systems — eliminates water hammer on large centrifugal pumps
- Compressor Drives: Air compressors, refrigeration compressors — reduces mechanical shock on couplings and belts
- Conveyor Systems: Heavy-duty belt conveyors in mining, aggregate, and logistics — smooth acceleration prevents belt slip and product spillage
- Fan & HVAC: Large AHU fans, cooling tower fans — soft start reduces bearing wear and extends motor life
- Mixer & Agitator Drives: Chemical processing, food & beverage — controlled ramp-up prevents torque spikes in viscous media
- Oil & Gas: Pump jacks, pipeline booster stations — ATEX-compatible enclosure options available
Engineering Advantages
- Integrated Bypass Contactor: Eliminates external bypass wiring; reduces panel space by up to 30% vs. separate bypass configurations
- DPI Communication Port: Native integration with Rockwell PLC ecosystems (ControlLogix, CompactLogix, MicroLogix) via DeviceNet adapter; full parameter read/write and real-time diagnostics over network
- Dual Ramp Profile: Independent acceleration and deceleration ramp settings for applications requiring different start/stop characteristics (e.g., loaded vs. unloaded conveyor)
- Advanced Motor Protection: Electronic overload with class 5–30 trip curves; phase-loss and imbalance detection protects against single-phasing events
- Energy Optimization Mode: Reduces applied voltage during light-load conditions, lowering motor losses and heat generation
- Parameter Storage: Non-volatile memory retains all settings through power cycles; supports parameter upload/download via DPI for rapid commissioning of replacement units
System Architecture & Signal Flow
The 150-F251NZD is installed in series with the motor supply circuit. The internal SCR (thyristor) stack controls the voltage ramp applied to the motor terminals during start and stop sequences. Once the motor reaches full speed, the internal bypass contactor closes, shunting the SCRs and eliminating switching losses during steady-state run. The DPI port connects to a DeviceNet scanner module in the PLC rack, enabling the controller to appear as a standard network node. All protection events generate fault codes readable via the HIM (Human Interface Module) or over the network.
Typical Wiring Topology: Upstream MCP (Motor Circuit Protector) → 150-F251NZD Line Terminals (L1/L2/L3) → Motor Terminals (T1/T2/T3) → Motor. Control circuit: 120V AC from control transformer → terminals 1 & 2. DeviceNet cable: 5-pin micro connector on DPI port.
Sourcing & Quality Verification
- Authenticity: All units sourced through verified industrial distribution channels. Serial numbers traceable to Rockwell Automation manufacturing records.
- Condition: New-in-box (NIB) or factory-reconditioned with full test report available on request. Reconditioned units carry 12-month warranty.
- Inspection Protocol: Each unit undergoes incoming inspection: visual check, label verification, functional power-up test, and parameter default confirmation before shipment.
- Counterfeit Prevention: Konmask.com does not source from grey-market or unverified secondary suppliers. Certificate of Conformance (CoC) available upon request.
Procurement Process
- Lead Time: In-stock units ship within 1–3 business days (DHL Express / FedEx International Priority). Ex-stock lead time for bulk orders: contact sales.
- MOQ: 1 unit (no minimum order quantity for standard stock)
- Payment Terms: T/T (Wire Transfer), PayPal, Credit Card. Net-30 available for approved corporate accounts.
- Export Compliance: EAR99 / No export license required for most destinations. Buyer responsible for import duties and local compliance.
- Documentation: Commercial Invoice, Packing List, CoC, and test report provided with each shipment.
- RFQ: For volume pricing (>5 units) or project-specific requirements, submit RFQ to support@konmask.com.
Technical FAQ
Q: Is the 150-F251NZD compatible with Wye-Delta (Star-Delta) motor configurations?
A: No. The SMC Flex is designed for across-the-line (DOL) motor connections. For Wye-Delta motors, consult Rockwell for the appropriate SMC-3 or SMC Dialog Plus variant.
Q: Can I use the 150-F251NZD without a DeviceNet network?
A: Yes. The unit operates fully in standalone mode using the onboard HIM or hardwired I/O. DeviceNet is optional for network integration.
Q: What is the difference between 150-F251NZD and 150-F251NBD?
A: The suffix codes indicate control voltage and communication options. NZD = 100–240V AC control, DeviceNet/DPI port. NBD = 24V DC control, DeviceNet/DPI port. Verify your control circuit voltage before ordering.
Q: Does this unit support bypass operation for VFD replacement?
A: The internal bypass contactor supports full-voltage run mode but does not provide variable frequency output. For variable speed, a VFD (PowerFlex series) is required.
Q: What overload class settings are available?
A: Class 5, 10, 15, 20, 25, and 30 are selectable via parameter P-11 (Trip Class). Default is Class 10.
